New!  Cable Prep SCT-500-ALU PIII and T10 Strip/Core Tool

Cable Prep SCT-500-ALU PIII and T10 Strip/Core Tool


TTS PRICE: $86.09

STATUS:  IN STOCK

Free Shipping

Availability:
IN STOCK & READY TO SHIP

PRODUCT CODE: CPR-SCT-500-ALU
QUANTITY:

PRODUCT DESCRIPTION

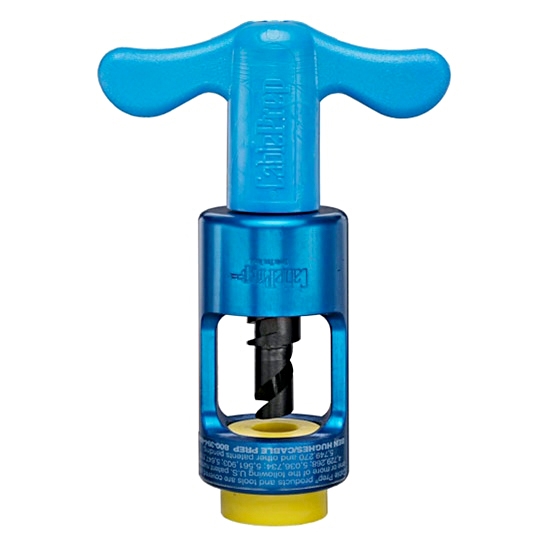

Cable Prep SCT-500-ALU Strip & Core Tool - .500 PIII & T10 Hardline, Aluminum, Yellow Sleeve

The SCT-500-ALU stripping/coring tool is two tools in one. SCT cable strippers remove the aluminum sheath without scoring, while the cable coring function cores the dielectric and bevels the outer conductor on hardline cables. SCT stripping/coring tools work on 0.412" through 1.000" hardline cables, including PIII, T10, TX10, CommScope® Power Feeder, Times Fiber 50-ohm, PB10, MC2, and comparable HFC cables. The SCT-500-ALU is sized for .500 PIII & T10 hardline.

Features:
  • Performs 3 functions at once: strips back and bevels the outer conductor and cores the dielectric in one operation
  • Perfectly aligned coring and stripping edges on the patented one-piece blade
  • Blade manufactured from high-alloy tool steel that is heat treated to full hardness; beveled edges remain sharp over long life
  • Precision performance: the beveled outer conductor edge prevents O-ring damage and minimizes water migration
  • Operate manually, or remove the handle to run the tool on a 3/8" variable-speed drill
  • Threaded body accepts the matching Cable Prep JCS jacket stripper for jacket strip, strip, bevel and core in one operation
  • Self-aligning color-coded guide sleeve with tab and notch for quick insertion
  • Rugged, lightweight blue anodized aluminum body

    • Specifications:
  • Cable: .500 PIII & T10 hardline
  • Housing: Aluminum (blue anodized)
  • Handle: Standard ergonomic handle (removable)
  • Color Code: Yellow
  • Weight: 11.2 oz (317.5 g)
  • Model: SCT-500-ALU

    • Available Sizes (SCT / RSCT Stripping & Coring Tools):
    Part #Cable Prep #CableHousingHandleColor CodeWeightBlade KitGuide Sleeve
    CPR-SCT-412-ALUSCT-412-ALU0.412 T10 & PIIIAluminumStandardLight Blue10.9 oz (309 g)SC-412RBGS-412
    CPR-RSCT-412-ALURSCT-412-ALU0.412 T10 & PIIIAluminumRatchet T-HandleLight Blue15.7 oz (445.1 g)SC-412RBGS-412
    CPR-SCT-412SCT-4120.412 T10 & PIIIPlasticStandardLight Blue7.4 oz (209.8 g)SC-412RBGS-412
    CPR-RSCT-412RSCT-4120.412 T10 & PIIIPlasticRatchet T-HandleLight Blue15.7 oz (445.1 g)SC-412RBGS-412
    CPR-SCT-500-ALUSCT-500-ALU (this item)0.500 T10 & PIIIAluminumStandardYellow11.2 oz (317.5 g)SC-500RBGS-500
    CPR-RSCT-500-ALURSCT-500-ALU0.500 T10 & PIIIAluminumRatchet T-HandleYellow16 oz (453.6 g)SC-500RBGS-500
    CPR-SCT-500SCT-5000.500 T10 & PIIIPlasticStandard-SC-500RBGS-500
    CPR-RSCT-500RSCT-5000.500 T10 & PIIIPlasticRatchet T-HandleYellow16 oz (453.6 g)SC-500RBGS-500
    CPR-SCT-625-ALUSCT-625-ALU0.625 T10 & PIIIAluminumStandardGreen11.5 oz (326 g)SC-625RBGS-625
    CPR-RSCT-625-ALURSCT-625-ALU0.625 T10 & PIIIAluminumRatchet T-HandleGreen16.3 oz (462.7 g)SC-625RBGS-625
    CPR-SCT-625SCT-6250.625 T10 & PIIIPlasticStandardGreen8 oz (226.8 g)SC-625RBGS-625
    CPR-RSCT-625RSCT-6250.625 T10 & PIIIPlasticRatchet T-HandleGreen16.3 oz (462.1 g)SC-625RBGS-625
    CPR-SCT-750-ALUSCT-750-ALU0.750 T10 & PIIIAluminumStandardRed11.8 oz (334.5 g)SC-750RBGS-750
    CPR-RSCT-750-ALURSCT-750-ALU0.750 T10 & PIIIAluminumRatchet T-HandleRed16.6 oz (470.6 g)SC-750RBGS-750
    CPR-SCT-750SCT-7500.750 T10 & PIIIPlasticStandardRed8.3 oz (235.3 g)SC-750RBGS-750
    CPR-RSCT-750RSCT-7500.750 T10 & PIIIPlasticRatchet T-HandleRed16.6 oz (470.6 g)SC-750RBGS-750
    CPR-SCT-875-ALUSCT-875-ALU0.875 T10 & PIIIAluminumStandard-SC-875RBGS-875
    CPR-RSCT-875-ALURSCT-875-ALU0.875 T10 & PIIIAluminumRatchet T-HandleGrey17.6 oz (499 g)SC-875RBGS-875
    CPR-SCT-875SCT-8750.875 T10 & PIIIPlasticStandardGrey9.3 oz (263.6 g)SC-875RBGS-875
    CPR-RSCT-875RSCT-8750.875 T10 & PIIIPlasticRatchet T-HandleGrey17.6 oz (499 g)SC-875RBGS-875
    CPR-RSCT-1000-ALURSCT-1000-ALU1.000 T10 & PIIIAluminumRatchet T-HandleBlack21.8 oz (618 g)SC-1000RBGS-1000
    CPR-SCT-565-ALUSCT-565-ALU0.565 TX10 & PIIIAluminumStandardOrange11.2 oz (317.5 g)SC-565RBGS-565
    CPR-RSCT-565-ALURSCT-565-ALU0.565 TX10 & PIIIAluminumRatchet T-HandleOrange16 oz (453.6 g)SC-565RBGS-565
    CPR-SCT-565SCT-5650.565 TX10 & PIIIPlasticStandard-SC-565RBGS-565
    CPR-RSCT-565RSCT-5650.565 TX10 & PIIIPlasticRatchet T-HandleOrange16 oz (453.6 g)SC-565RBGS-565
    CPR-SCT-700-ALUSCT-700-ALU0.700 TX10 & PIIIAluminumStandardMaroon11.8 oz (334.5 g)SC-700RBGS-700
    CPR-RSCT-700-ALURSCT-700-ALU0.700 TX10 & PIIIAluminumRatchet T-HandleMaroon16.6 oz (470.6 g)SC-700RBGS-700
    CPR-SCT-700SCT-7000.700 TX10 & PIIIPlasticStandardMaroon8.3 oz (235.3 g)SC-700RBGS-700
    CPR-RSCT-700RSCT-7000.700 TX10 & PIIIPlasticRatchet T-HandleMaroon16.6 oz (470.6 g)SC-700RBGS-700
    CPR-SCT-840-ALUSCT-840-ALU0.840 TX10 & PIIIAluminumStandardLight Grey12.8 oz (362.9 g)SC-840RBGS-840
    CPR-RSCT-840-ALURSCT-840-ALU0.840 TX10 & PIIIAluminumRatchet T-HandleLight Grey17.6 oz (499 g)SC-840RBGS-840
    CPR-SCT-840SCT-8400.840 TX10 & PIIIPlasticStandardLight Grey9.3 oz (263.6 g)SC-840RBGS-840
    CPR-RSCT-840RSCT-8400.840 TX10 & PIIIPlasticRatchet T-HandleLight Grey17.6 oz (499 g)SC-840RBGS-840
    CPR-SCT-625/PF-ALUSCT-625/PF-ALU0.625 CommScope Power FeederAluminumStandardGreen10.9 oz (309 g)SC-625/PF-RBGS-625
    CPR-RSCT-625/PF-ALURSCT-625/PF-ALU0.625 CommScope Power FeederAluminumRatchet T-HandleGreen11.2 oz (317.5 g)SC-625/PF-RBGS-625
    CPR-SCT-625/50-ALUSCT-625/50-ALU0.625 Times Fiber 50 OhmAluminumStandardGreen10.9 oz (309 g)SC-625/50-RBGS-625
    CPR-RSCT-625/50-ALURSCT-625/50-ALU0.625 Times Fiber 50 OhmAluminumRatchet T-HandleGreen16.3 oz (462.1 g)SC-625/50-RBGS-625
    CPR-SCT-625/50SCT-625/500.625 Times Fiber 50 OhmPlasticStandardGreen8 oz (226.8 g)SC-625/50-RBGS-625
    CPR-RSCT-625/50RSCT-625/500.625 Times Fiber 50 OhmPlasticRatchet T-HandleGreen16.3 oz (462.1 g)SC-625/50-RBGS-625
    CPR-SCT-440MCSCT-440MC0.440 Trilogy MC2AluminumStandard-12.8 oz (362.9 g)SC-440MC
    CPR-RSCT-440MCRSCT-440MC0.440 Trilogy MC2AluminumRatchet T-Handle-21.1 oz (598.2 g)SC-440MC
    CPR-RSCT-1000MCRSCT-1000MC1.000 Trilogy MC2AluminumRatchet T-Handle-30.1 oz (853.3 g)

    Replacement Parts:
    Part #Cable Prep #Description
    -SC-500RBReplacement blade kit (blade, screw, hex key) for .500 PIII & T10
    -GS-500Guide sleeve kit, yellow color code

    Accessories:
    Part #Cable Prep #Description
    CPR-JCS-500JCS-500Jacket stripper for .500 PIII & T10 - threads onto this tool

    Related Products:
    Part #Cable Prep #Description
    CPR-GATORGATORGator center conductor cleaner and beveler
    SCT Stripping/Coring Tools Brochure
