New!  Cable Prep SCT-625-ALU, CommScope Power Feeder Strip/Core Tool

Cable Prep SCT-625-ALU, CommScope Power Feeder Strip/Core Tool


TTS PRICE: $93.09

STATUS:  IN STOCK

Free Shipping

Availability:
IN STOCK & READY TO SHIP

PRODUCT CODE: CPR-SCT-625/PF-ALU
QUANTITY:

PRODUCT DESCRIPTION

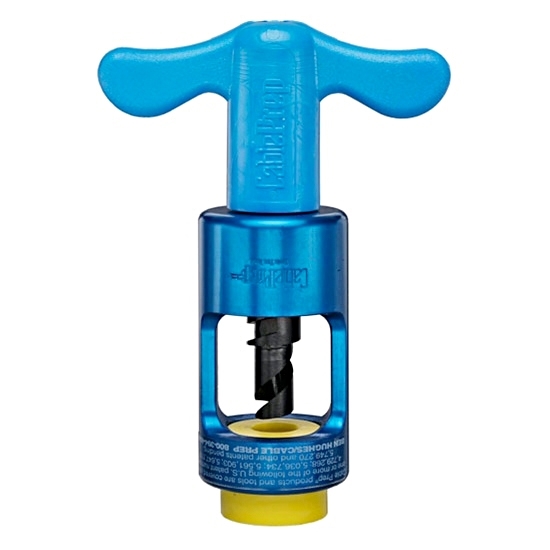

Cable Prep SCT-625/PF-ALU Strip & Core Tool - .625 CommScope Power Feeder Hardline, Aluminum, Green Sleeve

The SCT-625/PF-ALU stripping/coring tool is two tools in one. SCT cable strippers remove the aluminum sheath without scoring, while the cable coring function cores the dielectric and bevels the outer conductor on hardline cables. SCT stripping/coring tools work on 0.412" through 1.000" hardline cables; this aluminum-body tool is the CommScope® Power Feeder version of the .625 SCT (the SCT-625-ALU is the .625 PIII & T10 version).

Use it by hand with the standard ergonomic handle, or remove the handle and run it on a 3/8-inch variable-speed drill. The green color-coded guide sleeve makes it easy to pick the right tool for the cable.

Features:
  • Performs 3 functions at once: strips back and bevels the outer conductor and cores the dielectric in one operation
  • Patented one-piece blade with perfectly aligned coring and stripping edges
  • Blade manufactured from high-alloy tool steel heat treated to full hardness; beveled edges remain sharp over a long life
  • Precision performance: cores the dielectric and strips the aluminum sheath without scoring
  • Prevents O-ring damage: the beveled outer conductor edge also minimizes water migration
  • Operate manually or with a drill (standard handle removes for 3/8-inch variable-speed drill use)
  • Threads molded into the body accept a Cable Prep JCS jacket stripper (sold separately)
  • Rugged aluminum body

    • Specifications:
  • Type: Hardline Stripping & Coring Tool
  • Cable: .625 CommScope® Power Feeder (625PF)
  • Color Code: Green
  • Handle: Standard ergonomic handle (removable)
  • Drill Operation: 3/8-inch variable-speed drill (handle removed)
  • Body: Aluminum
  • Weight: 10.9 oz (309 g)
  • Model: SCT-625/PF-ALU

    • Available Sizes (SCT / RSCT Stripping & Coring Tools):
    Part #Cable Prep #CableHousingHandleColor CodeWeightBlade KitGuide Sleeve
    CPR-SCT-412-ALUSCT-412-ALU0.412 T10 & PIIIAluminumStandardLight Blue10.9 oz (309 g)SC-412RBGS-412
    CPR-RSCT-412-ALURSCT-412-ALU0.412 T10 & PIIIAluminumRatchet T-HandleLight Blue15.7 oz (445.1 g)SC-412RBGS-412
    CPR-SCT-412SCT-4120.412 T10 & PIIIPlasticStandardLight Blue7.4 oz (209.8 g)SC-412RBGS-412
    CPR-RSCT-412RSCT-4120.412 T10 & PIIIPlasticRatchet T-HandleLight Blue15.7 oz (445.1 g)SC-412RBGS-412
    CPR-SCT-500-ALUSCT-500-ALU0.500 T10 & PIIIAluminumStandardYellow11.2 oz (317.5 g)SC-500RBGS-500
    CPR-RSCT-500-ALURSCT-500-ALU0.500 T10 & PIIIAluminumRatchet T-HandleYellow16 oz (453.6 g)SC-500RBGS-500
    CPR-SCT-500SCT-5000.500 T10 & PIIIPlasticStandard-SC-500RBGS-500
    CPR-RSCT-500RSCT-5000.500 T10 & PIIIPlasticRatchet T-HandleYellow16 oz (453.6 g)SC-500RBGS-500
    CPR-SCT-625-ALUSCT-625-ALU0.625 T10 & PIIIAluminumStandardGreen11.5 oz (326 g)SC-625RBGS-625
    CPR-RSCT-625-ALURSCT-625-ALU0.625 T10 & PIIIAluminumRatchet T-HandleGreen16.3 oz (462.7 g)SC-625RBGS-625
    CPR-SCT-625SCT-6250.625 T10 & PIIIPlasticStandardGreen8 oz (226.8 g)SC-625RBGS-625
    CPR-RSCT-625RSCT-6250.625 T10 & PIIIPlasticRatchet T-HandleGreen16.3 oz (462.1 g)SC-625RBGS-625
    CPR-SCT-750-ALUSCT-750-ALU0.750 T10 & PIIIAluminumStandardRed11.8 oz (334.5 g)SC-750RBGS-750
    CPR-RSCT-750-ALURSCT-750-ALU0.750 T10 & PIIIAluminumRatchet T-HandleRed16.6 oz (470.6 g)SC-750RBGS-750
    CPR-SCT-750SCT-7500.750 T10 & PIIIPlasticStandardRed8.3 oz (235.3 g)SC-750RBGS-750
    CPR-RSCT-750RSCT-7500.750 T10 & PIIIPlasticRatchet T-HandleRed16.6 oz (470.6 g)SC-750RBGS-750
    CPR-SCT-875-ALUSCT-875-ALU0.875 T10 & PIIIAluminumStandard-SC-875RBGS-875
    CPR-RSCT-875-ALURSCT-875-ALU0.875 T10 & PIIIAluminumRatchet T-HandleGrey17.6 oz (499 g)SC-875RBGS-875
    CPR-SCT-875SCT-8750.875 T10 & PIIIPlasticStandardGrey9.3 oz (263.6 g)SC-875RBGS-875
    CPR-RSCT-875RSCT-8750.875 T10 & PIIIPlasticRatchet T-HandleGrey17.6 oz (499 g)SC-875RBGS-875
    CPR-RSCT-1000-ALURSCT-1000-ALU1.000 T10 & PIIIAluminumRatchet T-HandleBlack21.8 oz (618 g)SC-1000RBGS-1000
    CPR-SCT-565-ALUSCT-565-ALU0.565 TX10 & PIIIAluminumStandardOrange11.2 oz (317.5 g)SC-565RBGS-565
    CPR-RSCT-565-ALURSCT-565-ALU0.565 TX10 & PIIIAluminumRatchet T-HandleOrange16 oz (453.6 g)SC-565RBGS-565
    CPR-SCT-565SCT-5650.565 TX10 & PIIIPlasticStandard-SC-565RBGS-565
    CPR-RSCT-565RSCT-5650.565 TX10 & PIIIPlasticRatchet T-HandleOrange16 oz (453.6 g)SC-565RBGS-565
    CPR-SCT-700-ALUSCT-700-ALU0.700 TX10 & PIIIAluminumStandardMaroon11.8 oz (334.5 g)SC-700RBGS-700
    CPR-RSCT-700-ALURSCT-700-ALU0.700 TX10 & PIIIAluminumRatchet T-HandleMaroon16.6 oz (470.6 g)SC-700RBGS-700
    CPR-SCT-700SCT-7000.700 TX10 & PIIIPlasticStandardMaroon8.3 oz (235.3 g)SC-700RBGS-700
    CPR-RSCT-700RSCT-7000.700 TX10 & PIIIPlasticRatchet T-HandleMaroon16.6 oz (470.6 g)SC-700RBGS-700
    CPR-SCT-840-ALUSCT-840-ALU0.840 TX10 & PIIIAluminumStandardLight Grey12.8 oz (362.9 g)SC-840RBGS-840
    CPR-RSCT-840-ALURSCT-840-ALU0.840 TX10 & PIIIAluminumRatchet T-HandleLight Grey17.6 oz (499 g)SC-840RBGS-840
    CPR-SCT-840SCT-8400.840 TX10 & PIIIPlasticStandardLight Grey9.3 oz (263.6 g)SC-840RBGS-840
    CPR-RSCT-840RSCT-8400.840 TX10 & PIIIPlasticRatchet T-HandleLight Grey17.6 oz (499 g)SC-840RBGS-840
    CPR-SCT-625/PF-ALUSCT-625/PF-ALU (this item)0.625 CommScope Power FeederAluminumStandardGreen10.9 oz (309 g)SC-625/PF-RBGS-625
    CPR-RSCT-625/PF-ALURSCT-625/PF-ALU0.625 CommScope Power FeederAluminumRatchet T-HandleGreen11.2 oz (317.5 g)SC-625/PF-RBGS-625
    CPR-SCT-625/50-ALUSCT-625/50-ALU0.625 Times Fiber 50 OhmAluminumStandardGreen10.9 oz (309 g)SC-625/50-RBGS-625
    CPR-RSCT-625/50-ALURSCT-625/50-ALU0.625 Times Fiber 50 OhmAluminumRatchet T-HandleGreen16.3 oz (462.1 g)SC-625/50-RBGS-625
    CPR-SCT-625/50SCT-625/500.625 Times Fiber 50 OhmPlasticStandardGreen8 oz (226.8 g)SC-625/50-RBGS-625
    CPR-RSCT-625/50RSCT-625/500.625 Times Fiber 50 OhmPlasticRatchet T-HandleGreen16.3 oz (462.1 g)SC-625/50-RBGS-625
    CPR-SCT-440MCSCT-440MC0.440 Trilogy MC2AluminumStandard-12.8 oz (362.9 g)SC-440MC
    CPR-RSCT-440MCRSCT-440MC0.440 Trilogy MC2AluminumRatchet T-Handle-21.1 oz (598.2 g)SC-440MC
    CPR-RSCT-1000MCRSCT-1000MC1.000 Trilogy MC2AluminumRatchet T-Handle-30.1 oz (853.3 g)

    Replacement Parts:
    Part #Cable Prep #Description
    -SC-625/PF-RBReplacement blade kit for SCT-625/PF-ALU - blade, screw and hex key
    CPR-GS-625GS-625Green guide sleeve kit for .625 CommScope Power Feeder cable
    SCT Stripping/Coring Tools Brochure
