Ripley Cablematic CST Coring Tool for Powerfeeder & 22 Ohm Cables

CST Coring Tool for Powerfeeder & 22 Ohm Cables


TTS PRICE: $135.99

STATUS:  IN STOCK

Free Shipping

Availability:
IN STOCK & READY TO SHIP

PRODUCT CODE: CST-625-PF
QUANTITY:

PRODUCT DESCRIPTION

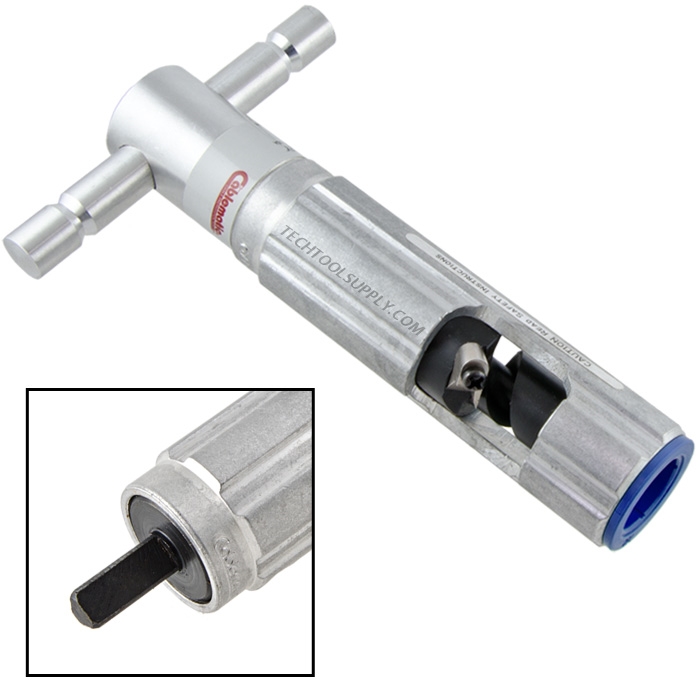

Ripley Cablematic CST 625PF Coring & Stripping Tool - Powerfeeder™ & 22 Ohm Cable, Blue Sleeve

Ripley's CST-625-PF features manual or drill operation with a standard "T" handle and a built in 3/8" drill adapter. It also features a heat treated, sheath cutting blade that produces a smooth beveled edge and can be replaced without the expense of replacing the entire coring bit. The CST-625-PF is a great addition to any tool kit with its ability to be used on CommScope® Powerfeeder™ and Times Fiber T10 22 Ohm cable. In need of a Replacement Guide Sleeve for the 625-PF Coring Tool? See Ripley Part # 29106.

Features:
  • Manual or drill operation - standard "T" handle with a built-in 3/8" (9.5 mm) drill adapter
  • Combination stripping and coring tool - strips the sheath and cores the dielectric in one precise operation
  • Heat treated sheath cutting blade produces a smooth, beveled edge and can be replaced
  • Spiral-fluted, heat treated steel coring bit
  • Rugged, durable all metal construction with color-coded guide sleeves for easy cable size identification
  • Accepts strip stops for strip lengths of 0.5" to 2" (12.7 to 50.8 mm)

    • Specifications:
  • Cable Size: 625/PF kcmil
  • Cable Compatibility: CommScope® Powerfeeder™; Times Fiber T10 22 Ohm
  • Handle: Standard "T" handle
  • Drill Adapter: Built-in 3/8" (9.5 mm)
  • Sleeve Color: Blue
  • Cable Access: End
  • Length: 6.88" (175 mm)
  • Weight: 13 oz (369 g)
  • Model: 36058

    • Available Sizes:
    Part #ModelRipley #HandleCable Size (kcmil)Cable CompatibilityCoring Bit Kit
    CST-412CST 41231810Standard412CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31220
    CBM-31850CST 412-R31850Ratchet412CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31220
    CST-500CST 50031910Standard500CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31320
    CST-500-RCST 500-R31950Ratchet500CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31320
    CST-565TXCST 565TX31985Standard565CommScope® P3; Times Fiber TX31325
    CST-565-TX-RCST 565TX-R31990Ratchet565CommScope® P3; Times Fiber TX31325
    CST-625CST 62532010Standard625CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31420
    CST-625-PFCST 625PF (this item)36058Standard625/PFCommScope® Powerfeeder™; Times Fiber T10 22 Ohm36057
    CST-625-RCST 625-R32050Ratchet625CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31420
    CST-700TXCST 700TX33863Standard700CommScope® P3; Times Fiber TX33858
    CST-700TX-RCST 700TX-R33855Ratchet700CommScope® P3; Times Fiber TX33858
    CST-750CST 75032110Standard750CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31520
    CST-750-RCST 750-R32150Ratchet750CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31520
    CST-840TXCST 840TX32180Standard840CommScope® P3; Times Fiber TX31531
    CBM-32185CST 840TX-R32185Ratchet840CommScope® P3; Times Fiber TX31531
    CST-875CST 87532210Standard875CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31620
    CST-875-RCST 875-R32250Ratchet875CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31620
    CST-21000CST 2100032320Standard1000CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31720
    CST-21000-RCST 21000-R32330Ratchet1000CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31720
    CST-21160TXCST 21160TX32380Standard1160CommScope® P3; Times Fiber TX32385
    CST-21160TX-RCST 21160TX-R32390Ratchet1160CommScope® P3; Times Fiber TX32385

    Replacement Parts:
    Part #Ripley #Description
    RIP-2910629106Guide sleeve, blue

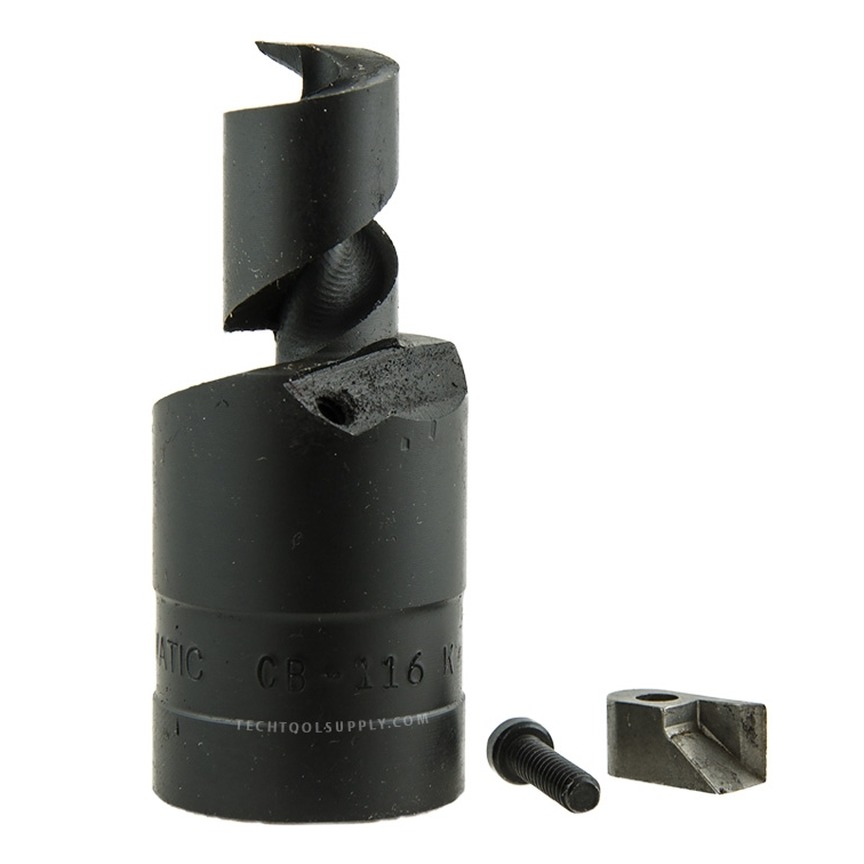

    -36057Coring bit kit
    RIP-CB-6014907Sheath cutting blade

    Accessories:
    Part #Ripley #Description
    RIP-3298532985Conductor strip stop - 3/4" (19.05 mm) strip length
    RIP-3298232982Conductor strip stop - 1-1/2" (38.1 mm) strip length
    Feature Sheet & Sizing Info CST Instruction Sheet

    Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 1 WRITE A REVIEW

      So far, this Product Review was helpful to 0 TTS Customers.

    5 of 5 Just the right size. Monday, October 9, 2023
    Reviewer: James Madrid from Tucson AZ,
    I'm glad I found someone who carries these power feeder 22 Ohm coring tools. It does a good job as long as you cut the cable clean. I suggest a hacksaw. like the direction say. There is also a 50 Ohm Coring tool. which is for the smaller center conductor power feeder cable.
