Jonard TK-DC05 Data Center Network Prep & Install Kit - Copper Cabling Termination, Testing & Routing
The Jonard TK-DC05 Data Center Network Prep and Install Kit equips technicians for the copper side of data center buildouts: preparing, terminating, testing, and routing network cabling through racks, trays, and pathways. From cutting in new runs during a rack-and-stack to dressing cable bundles cleanly across a row, this kit consolidates the network installation workflow into one organized package.
Terminate with the UC-4511 pass-through crimper for RJ45 and RJ11/12 connectors, then verify your work with the CM-100 Cable Mapper Pro - mapping up to 8 network or coax cables at once, with tone generation for locating runs in patch panels and wiring closets. CP-475 cable pulleys keep pulls smooth through pathways (up to 20 CAT5/6 cables at a time), and the Cable Comb organizing tool dresses up to 24 cables into clean, professional bundles up to CAT 8.
Features:
Complete copper network prep, termination, and installation workflow in one kit
UC-4511 pass-through crimper for RJ45 and RJ11/12 connectors
CM-100 Cable Mapper Pro maps up to 8 cables with tone generator for tracing
CP-475 pulleys route up to 20 CAT5/6 cables smoothly through pathways
Cable Comb tool dresses up to 24 cables through CAT 8 into clean bundles
Reusable hook-and-loop cable ties keep bundles organized and reconfigurable
Organized and field-ready for rack-and-stack and structured cabling projects

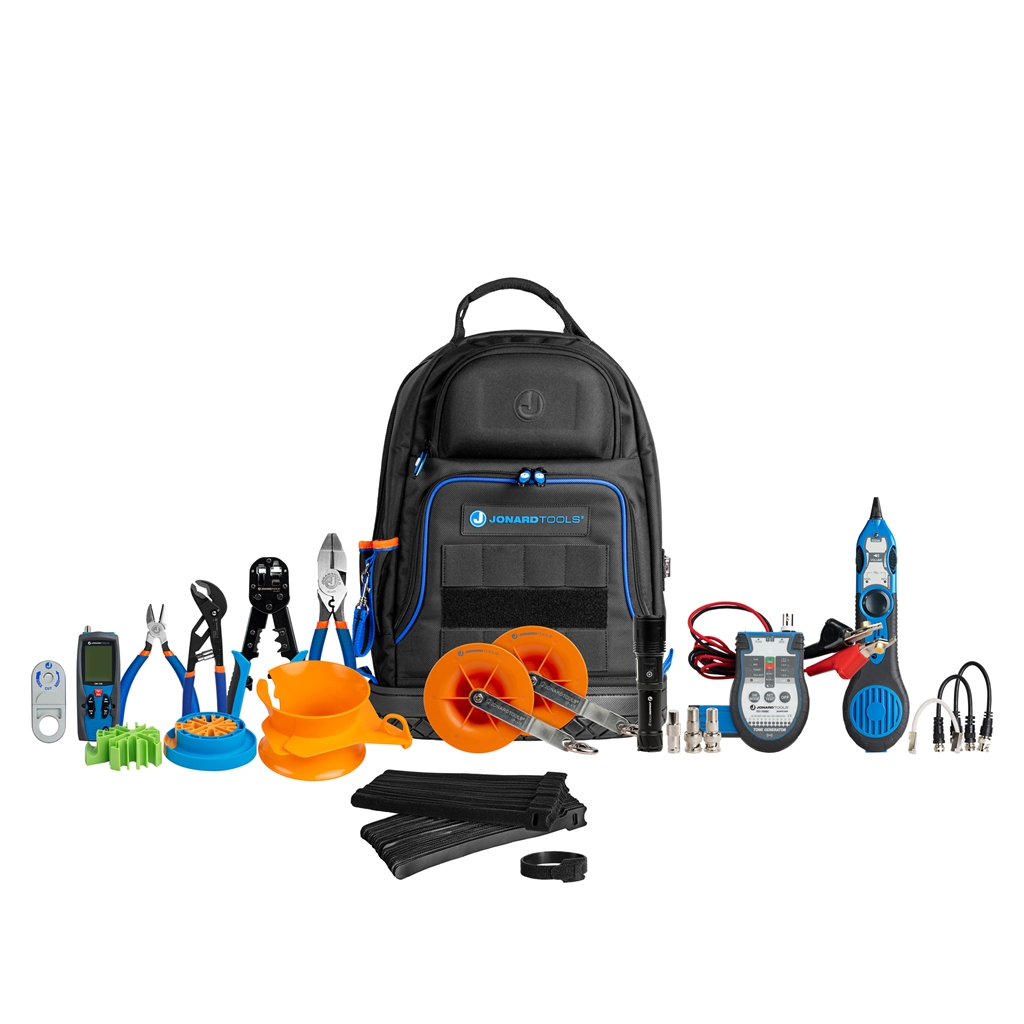

Kit Includes:
1 x UC-4511 RJ45 & RJ11/12 Modular Pass-through Crimper
1 x CM-100 Cable Mapper Pro
1 x CP-475 Cable Pulleys for Low Voltage/Network/COAX (2 pack)
1 x CPF-215 Cable Funnel Drop Ceiling Protector
1 x CCB-2534 Cable Comb Cable Organizing Tool Set
1 x CTS-812/100 Hook and Loop Cable Tie Straps
1 x JIC-685 Lineman's Pliers
1 x CST-1i Cable Stripper
1 x JIC-7858 Diagonal Telecom Cutter & Stripper
1 x SOL-F1 Solis Rechargeable Tactical Flashlight
1 x BP-100 Technician's Tool Bag Backpack
Plus additional Jonard network installation tools
Specifications:
Data Center Type: Traditional (Edge, Enterprise, Colocation), Hyperscale (Cloud, Large-Scale)
Environment Type: Inside Plant (ISP)
Solutions Focus: Cabling Infrastructure - Network
Lifecycle Phase: Prep & Install, Testing & Commission, Repair & Maintenance
Cable Management: Bundling up to 2"; pulling, ceiling protection and organizing for most cables up to 0.36" (9.14 mm)
Cable Testing: Tone & probe, wire mapping, telephone power
Crimping: RJ11, RJ12 and RJ45 pass-through, shielded and unshielded, CAT3 to CAT7; toolless keystone jacks and field termination connectors
Stripping: Wire 18-22 AWG solid / 26 AWG stranded; network cable CAT3 to CAT 8 (TP, UTP, STP) 1/8" - 3/8" (3.2-9.6 mm)
Pulling & Gripping: Keystone jacks, general materials, steel fishtape 1/8" - 1/4" (3.18-6.35 mm)
Illumination: 250-1500 lm, 4-8 hrs
Kit Weight: approx. 18 lb
Manufacturer: Jonard Industries
Model: TK-DC05
