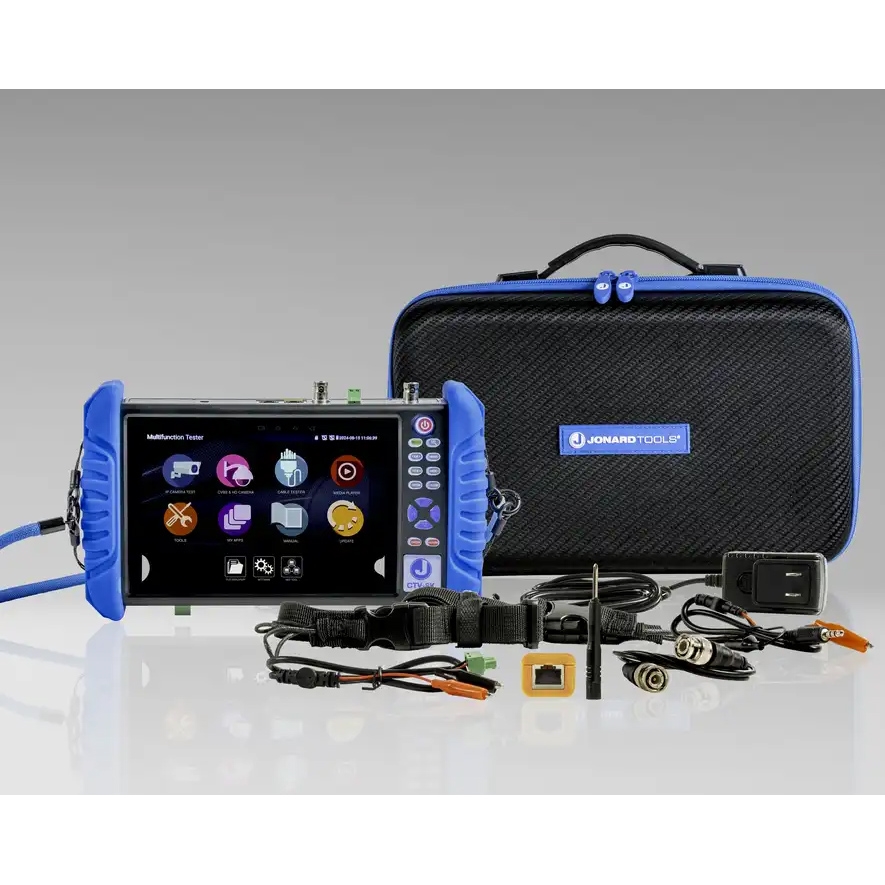

Jonard CTV-8K Multifunction 8K CCTV Tester - 7" Touchscreen, PoE++ 90W, IP/HD Coax/Analog
The CTV-8K Multifunction 8K CCTV Tester is the all-in-one installation and troubleshooting tool for digital/IP, HD coax, and analog CCTV camera systems. Designed with a 7-inch 1280x800 touchscreen, Android 11 OS, and built-in PoE/PoE++ power output, it streamlines setup, testing, and maintenance across virtually any camera type.
Features:
8K H.265 IP & 4K HDMI Testing: Display 8K/4K video streams and output HDMI up to 4K 60FPS
Universal Camera Support: Works with IP, CVBS, AHD, CVI, TVI (up to 8MP), plus ONVIF/PTZ compatibility
Power Options: Built-in PoE++ up to 90W, 12V/3A DC, 24V/2A DC, and USB 5V/2A outputs to directly power cameras

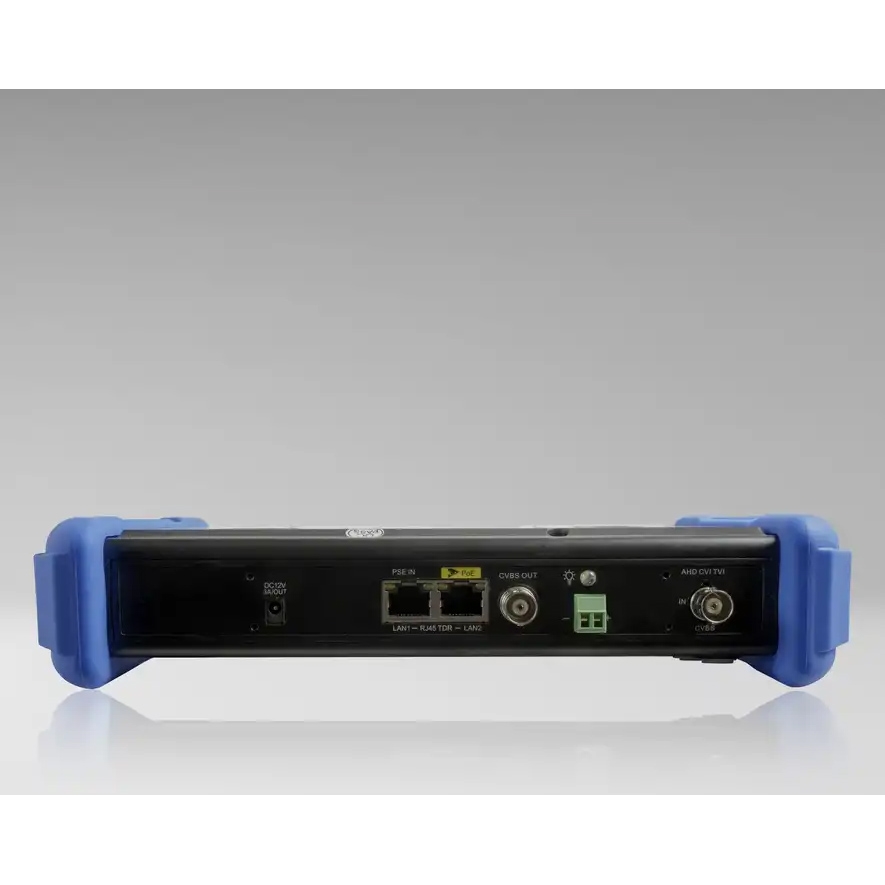

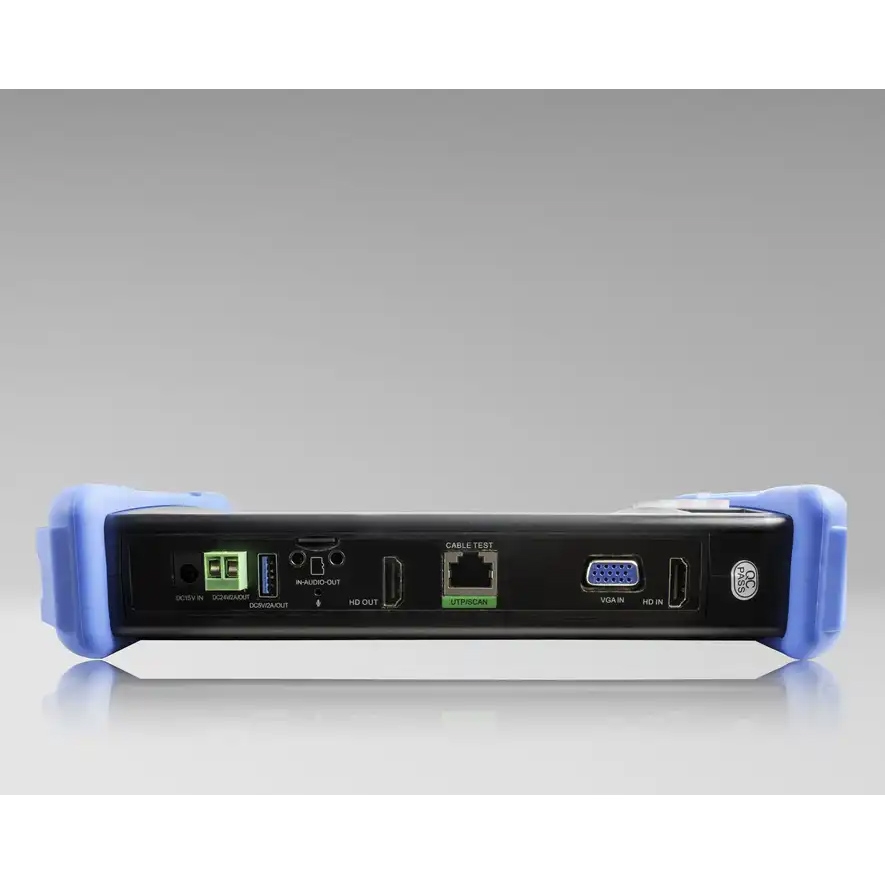

Connectivity: Dual RJ45 Gigabit LAN ports, Wi-Fi (150 Mbps), VGA In, HDMI In/Out, RS485, and BNC for analog/coax
Testing Tools: PoE protocol detection, PoE/PSE voltage test, IP discovery, ONVIF quick connect, PING, DHCP server, network traffic monitor, port flashing, and RTSP player
Cable Diagnostics: RJ45 TDR tester measures length, attenuation, impedance, skew (up to 3 km), plus UTP wiring test and BNC loop test
Advanced Camera Tools: Batch activate/configure Hikvision & Dahua, PTZ control, snapshot, video recording/playback, and zoom
Utility Apps: Color bar generator, audio test/record, notepad, LED flashlight, media player, file explorer, browser, and Office file support
Portable Power: 11.1V Li-Po battery (5200 mAh) with ~11 hours runtime; 3.5 hr fast charge
Independently tested to meet ETL Listed standards
Specifications:

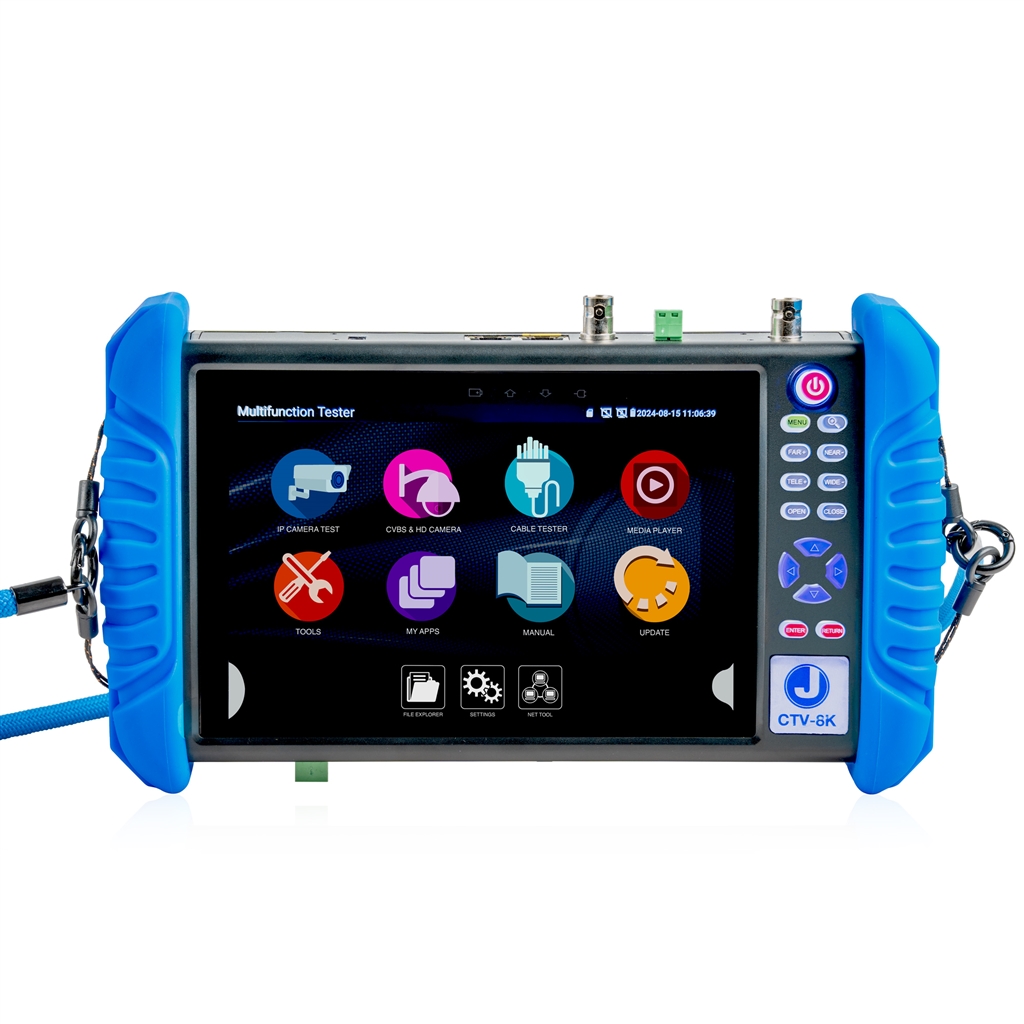

Display: 7" capacitive touchscreen, 1280x800
OS: Android 11
IP Camera Test: 8K H.265
Supported Camera Types: IP, CVBS, AHD, CVI, TVI
Network Port: Dual RJ45, auto-adjusting 10/100/1000 Mbps
Wi-Fi Speed: 150 Mbps
HDMI Output: 4K 60FPS
HDMI Input: Up to 4K 30FPS (3840x2160P)
VGA Input: Up to 1920x1080P
PoE++ Output: Max 90W
DC Outputs: 12V/3A, 24V/2A, USB 5V/2A
PTZ Control: RS485, 600-115200 bps, 30+ protocols incl. PELCO-D/P
TDR Cable Length: Up to 1.8 mi (3 km)
Battery: 11.1V Li-Po, 5200 mAh
External Power Supply: DC 15V 1.6A
Auto Off: 1-30 min
Working Temperature: -10 °C to +50 °C
Working Humidity: 30%-90%
Standards: ETL
Dimensions: 240 x 154 x 46 mm (9.45 x 6.06 x 1.81 in)
Weight: 4.68 lb (2125 g)
UPC: 810132438028
Model: CTV-8K
