The Triplett 8150 CamView IP Pro 5 Security Camera Tester is a professional surveillance installation and diagnostic tool designed for CCTV installers, low-voltage contractors, security technicians, and network integrators. Built for the installation and maintenance of IP cameras, analog cameras, TVI, CVI, AHD, and 4K H.264/H.265 surveillance systems, the CamView IP Pro 5 combines advanced testing functionality with a compact, field-ready design.

Featuring a 5-inch IPS touchscreen display with 1920 x 1080 resolution, the Triplett 8150 allows technicians to view high-resolution network and analog camera feeds directly from the tester. Integrated WiFi capability, 24W PoE output, HDMI output, PTZ control, IP diagnostics, and advanced cable testing tools make this an essential all-in-one solution for professional camera installation and troubleshooting. Its lightweight design and intuitive touchscreen interface help streamline setup, diagnostics, and maintenance in commercial and residential security applications.

• 5" IPS touchscreen monitor with 1920 x 1080 resolution
• Supports IP cameras, analog cameras, TVI, CVI, AHD, and 4K H.264/H.265 systems
• 8MP tester capability (1080p)
• HDMI, BNC, and RJ45 ports for flexible connectivity
• Integrated WiFi for connecting to WiFi cameras and creating WiFi hotspots
• 24W PoE output powers compatible IP cameras directly from the tester
• 12V/3A DC power output for powering cameras and accessories
• Supports ONVIF PTZ and analog PTZ control with compatibility for more than 30 protocols
• Auto-recognizes HD coax camera type and resolution
• PING and IP address search functions simplify network troubleshooting
• RJ45 TDR cable testing and cable quality testing capabilities
• UTP cable testing detects opens, shorts, and wiring misconfigurations
• Built-in Ookla Speed Test
• Compact and lightweight portable design
• Approximately 4-hour runtime with 2–3 hour recharge time

• Manufacturer: Triplett
• Model: 8150
• Series: CamView IP Pro 5
• UPC: 614395002930
• Product Type: Security Camera Tester
• Display Size: 5" IPS Touchscreen
• Display Resolution: 1920 x 1080
• Supported Camera Types: IP, Analog, TVI, CVI, AHD, H.264, H.265
• Maximum Camera Support: 8MP
• Ports: HDMI, BNC, RJ45
• WiFi: Yes
• PoE Output: 24W
• DC Output: 12V/3A

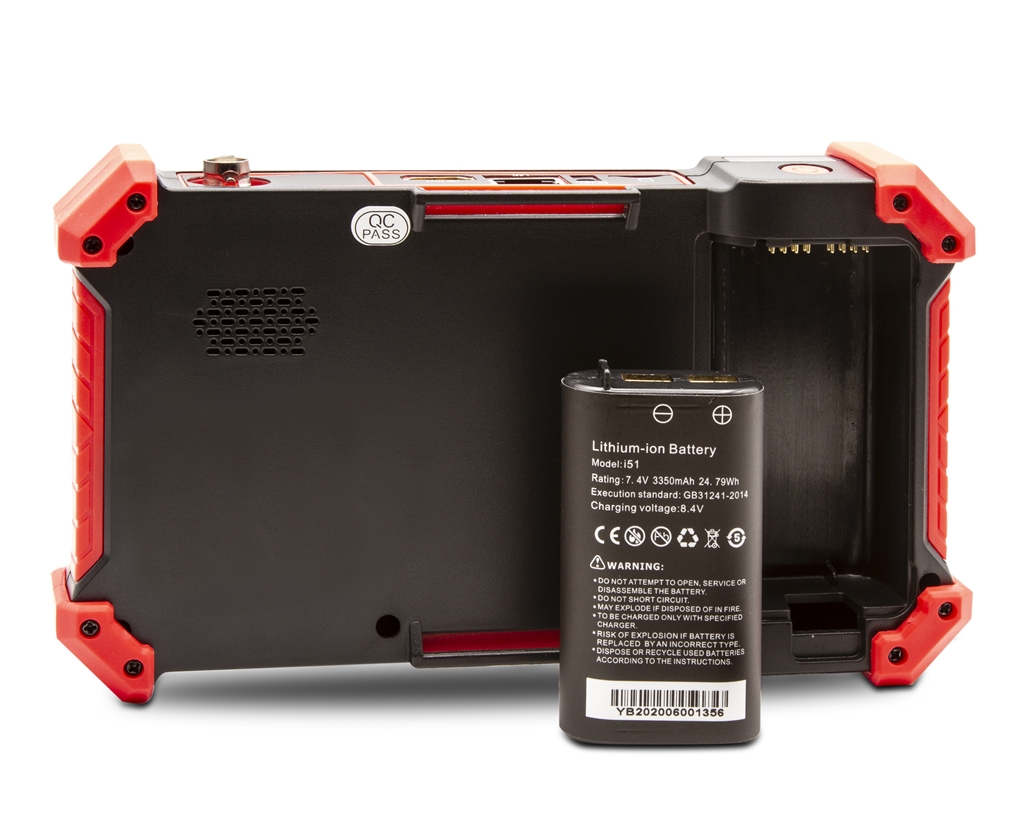

• Battery: 7.4V Li-ion battery, 3350mAh, 24.79Wh
• Runtime: Approximately 4 Hours
• Charge Time: Approximately 2–3 Hours
• Country of Origin: China
• ECCN: EAR99
• HTS Code: 8471.30.0100
• Shipping Weight: 1.6 lbs.

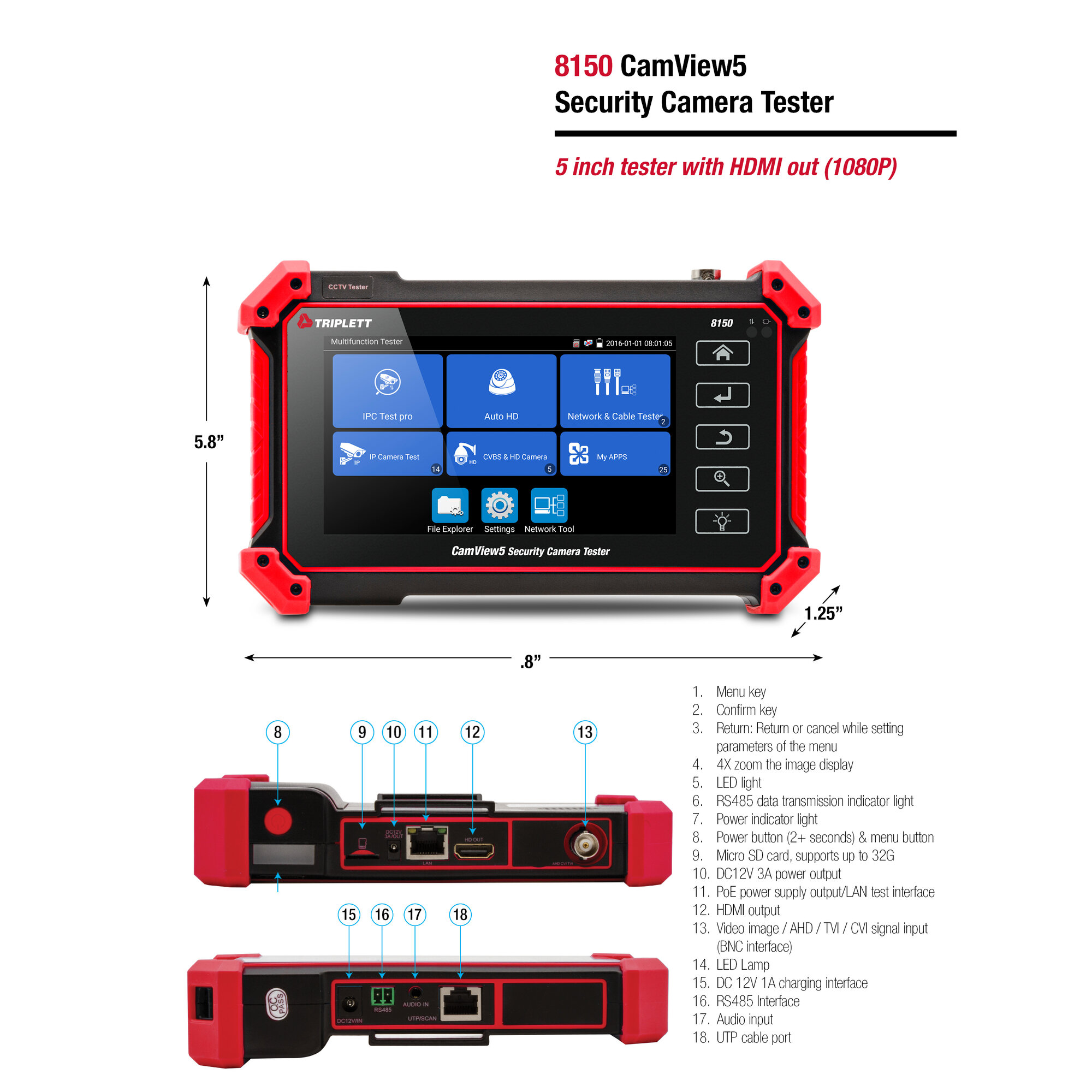

• Dimensions: 8" L x 2.75" W x 6.5" H
• Package Type: Box

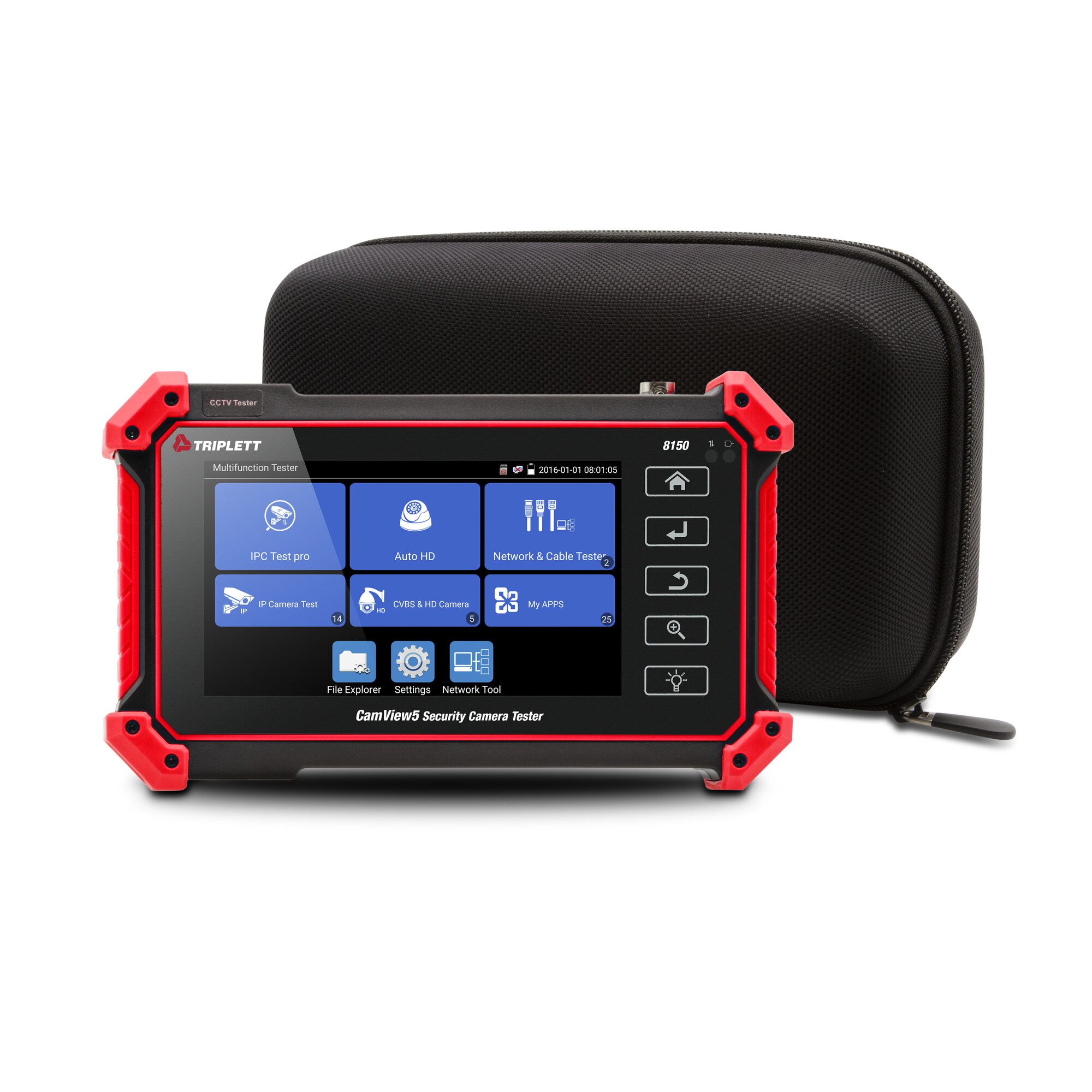

• Includes: Li-ion battery, AC adapter/charger, DC power cable, BNC cable, RS485 cable, audio cable, wrist strap, and carrying case
