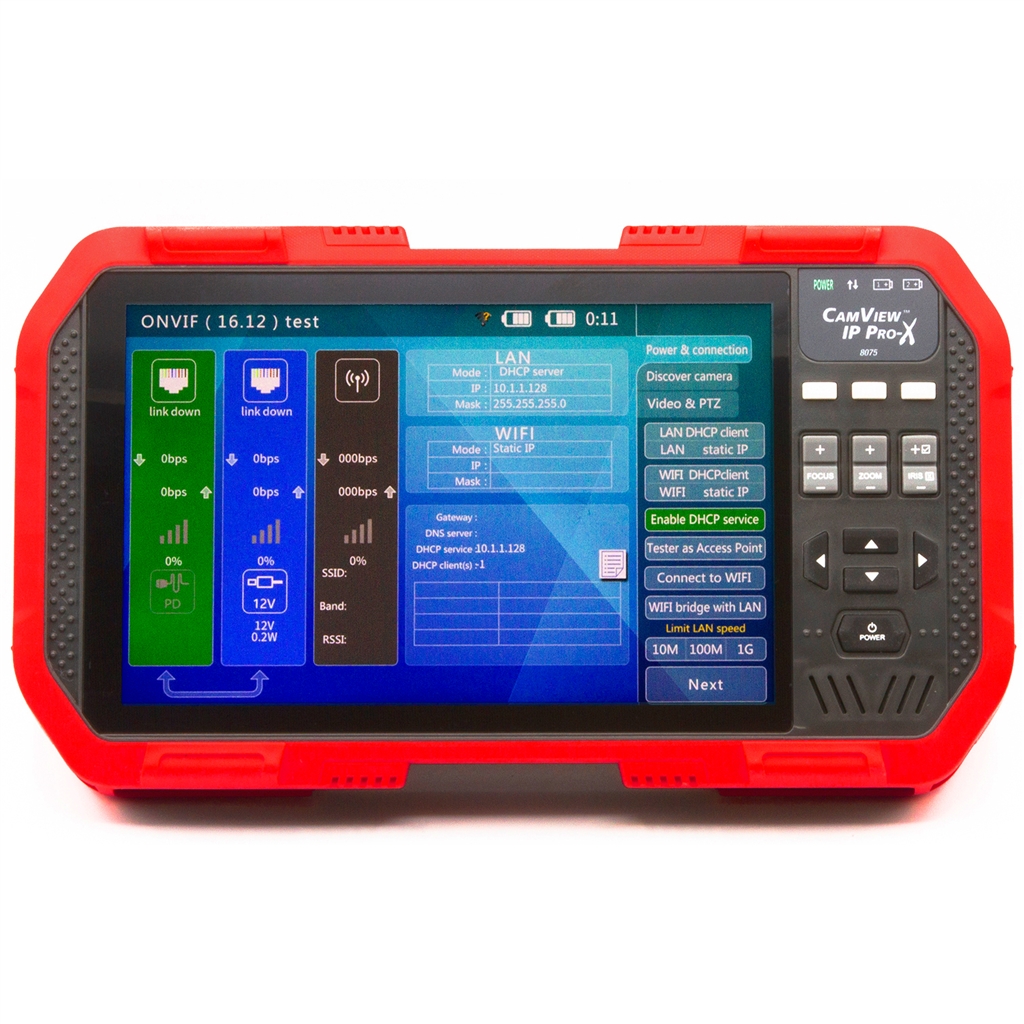

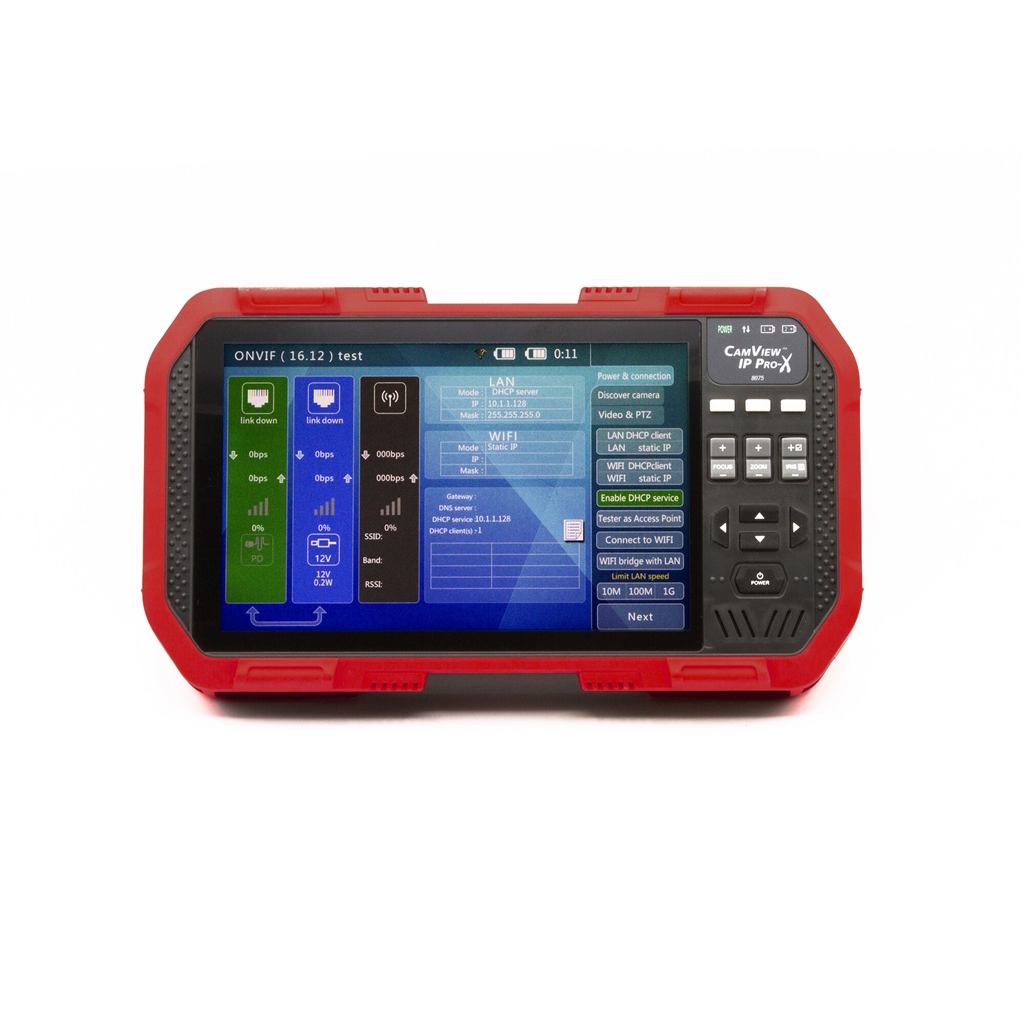

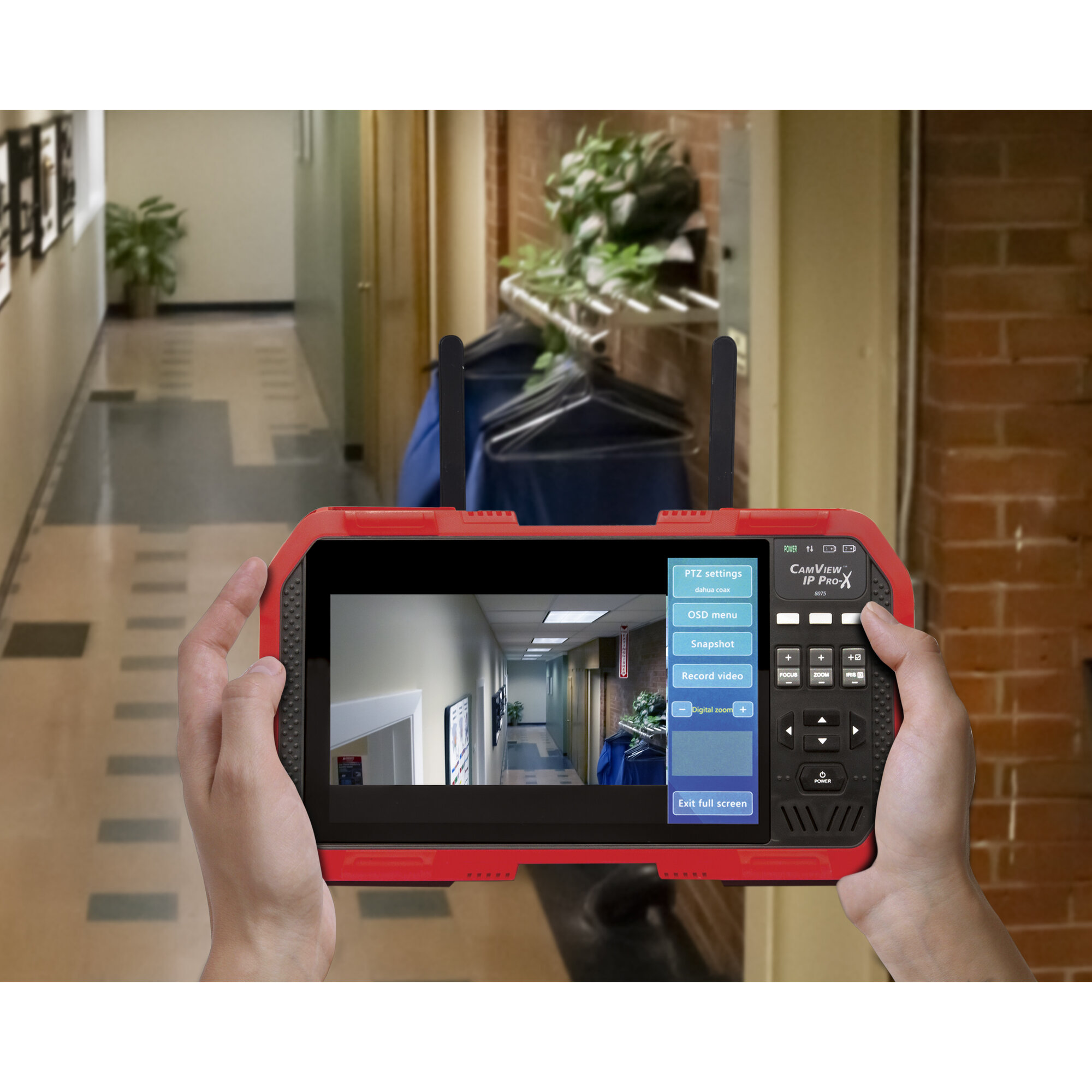

The Triplett 8075 CamView 7" IP Pro-X Security Camera Tester is a professional-grade surveillance installation and diagnostic tool engineered for CCTV installers, low-voltage contractors, security integrators, and network technicians. Designed to simplify the setup, testing, and maintenance of analog and IP video surveillance systems, the CamView IP Pro-X supports SD Analog, AHD 3.0, HD-CVI 3.0, HD-TVI 3.0, H.264, H.265, NTSC/PAL, and ONVIF-enabled IP cameras in a single portable platform.

Featuring integrated WiFi capability, 25W PoE output, built-in DHCP server functionality, PTZ control, advanced network diagnostics, and cable testing tools, the Triplett 8075 dramatically reduces installation time while improving troubleshooting efficiency in the field. Installers can power cameras directly from the tester, configure IP settings before networks are fully wired, capture still images and video for reporting, and verify audio functionality on compatible cameras. Built for demanding commercial and residential surveillance applications, the CamView IP Pro-X delivers the advanced functionality security professionals require.

• Designed for installation and maintenance of analog SD, analog HD, and network HD surveillance systems
• Supports SD Analog, AHD 3.0, HD-CVI 3.0, HD-TVI 3.0, H.264, H.265, NTSC/PAL, and all ONVIF-enabled IP cameras

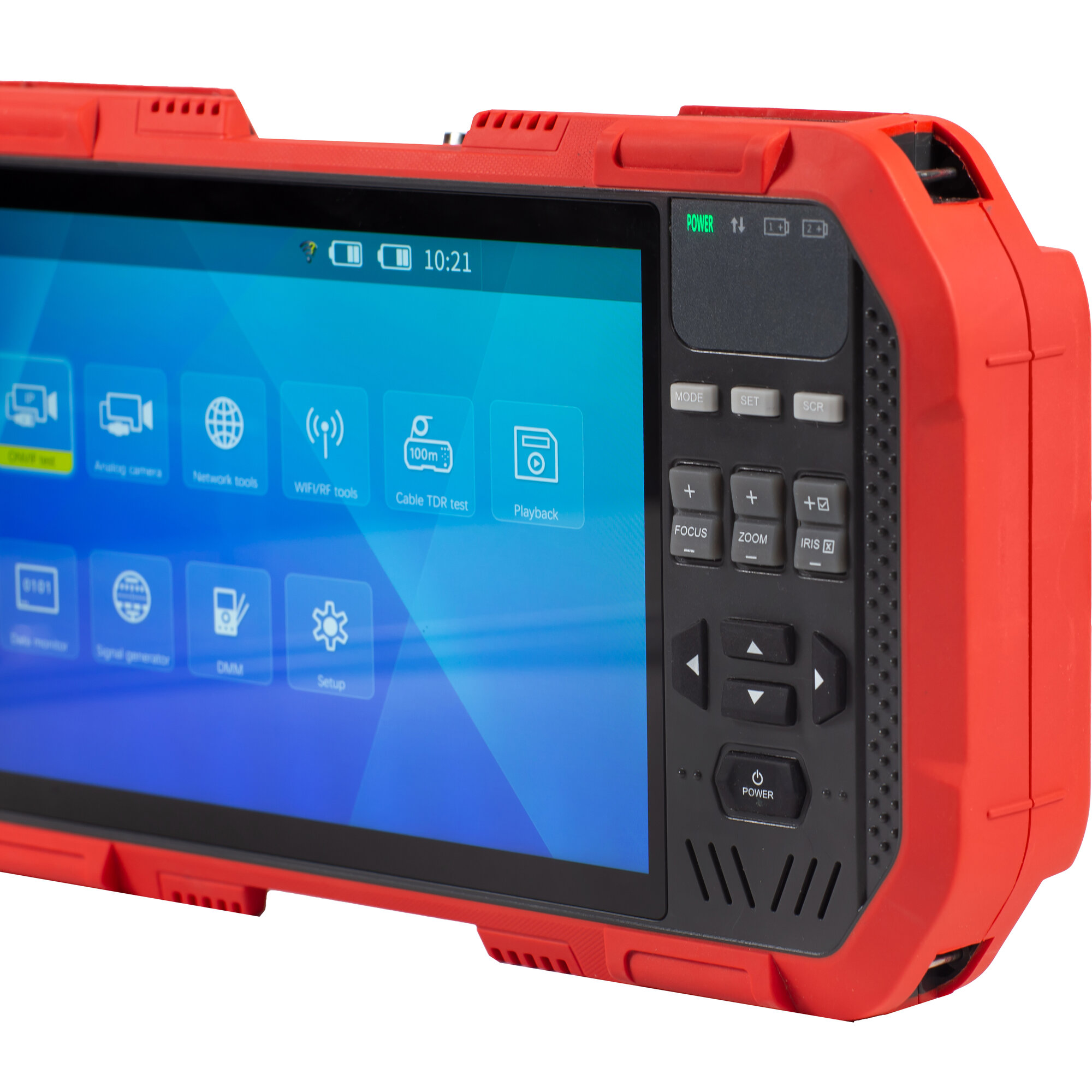

• 7" touchscreen display simplifies camera setup and diagnostics

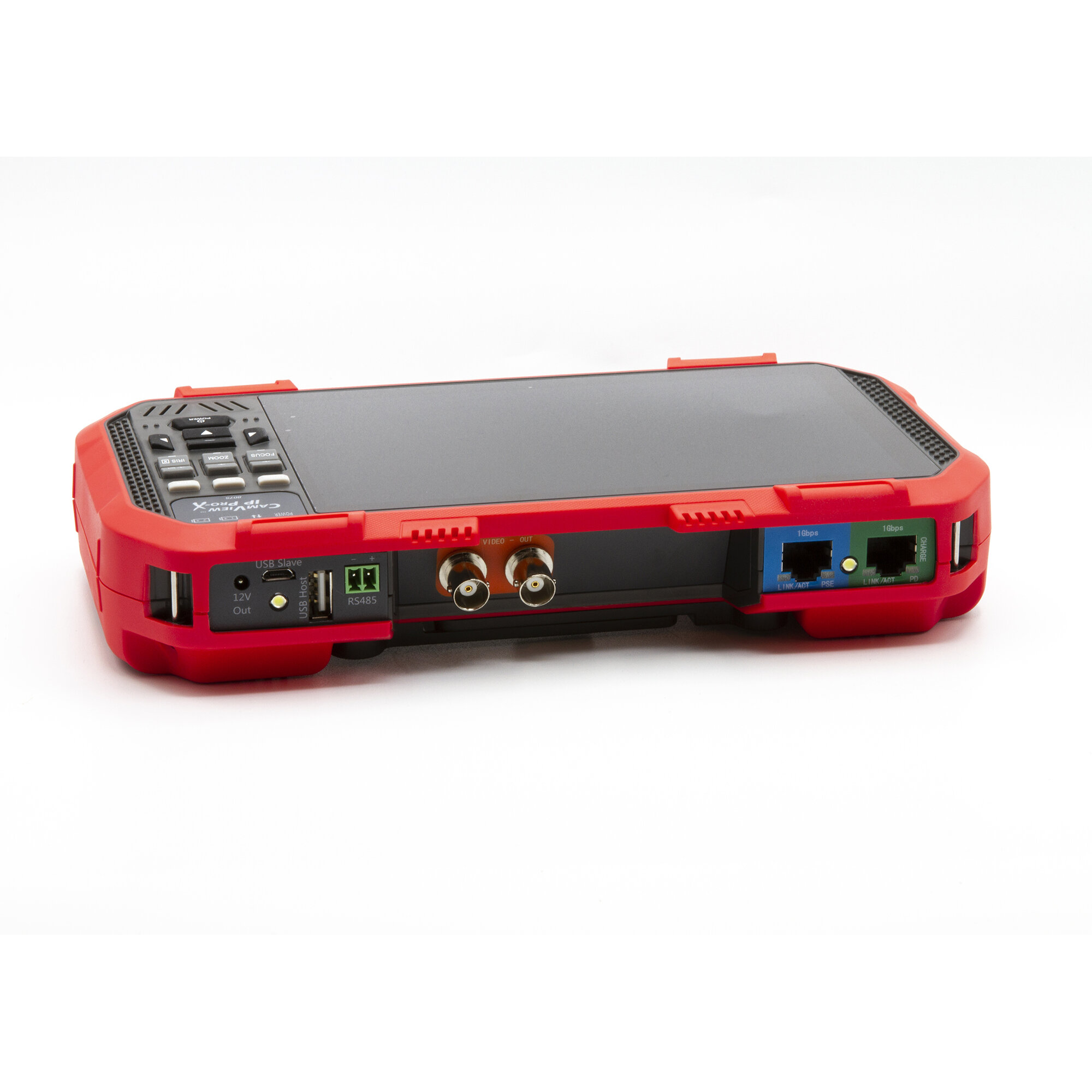

• USB, BNC, RJ45, and HDMI ports for versatile connectivity
• Integrated WiFi for connecting to WiFi cameras and creating WiFi hotspots
• 25W PoE output powers compatible IP cameras directly from the tester
• 12VDC camera output for powering non-PoE cameras
• Built-in DHCP server allows IP camera setup before network wiring is completed
• RS485 PTZ control for pan, tilt, and zoom camera operation
• Advanced network testing tools including Network Sniff, Subnet List, and Ping Test
• TDR and RJ45 cable testing functions for troubleshooting network cabling
• Built-in Video Test Image Generator
• Capture still images, videos, and camera settings for documentation and report creation
• Check audio functionality on cameras equipped with microphones
• Professional portable design for field installation and service applications

• Manufacturer: Triplett
• Model: 8075
• Series: CamView IP Pro-X
• UPC: 614395002374
• Product Type: Security Camera Tester
• Supported Camera Types: SD Analog, AHD 3.0, HD-CVI 3.0, HD-TVI 3.0, H.264, H.265, ONVIF IP Cameras
• Video Standards: NTSC/PAL
• PoE Output: 25W
• Camera Power Output: 12VDC
• Ports: USB, BNC, RJ45, HDMI
• WiFi: Yes
• PTZ Control: RS485
• Battery Type: Lithium Ion
• Country of Origin: China
• ECCN: EAR99
• HTS Code: 8471.30.0100
• Shipping Weight: 3.75 lbs.
• Dimensions: 10.75" L x 4.5" W x 6.5" H
• Package Type: Box

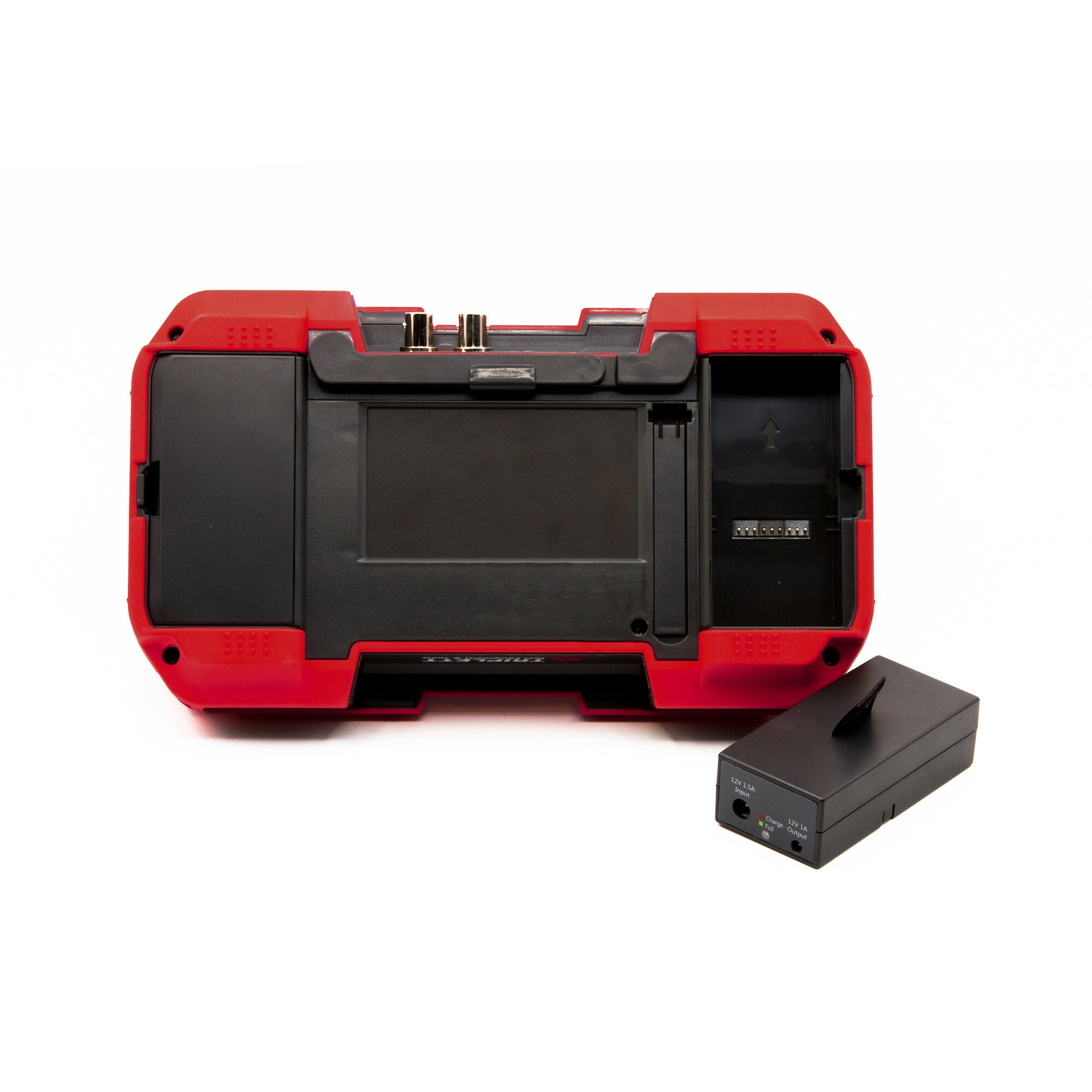

• Includes: (2) Li-ion batteries, Universal AC adapter/charger with 4 plugs, Ethernet cable, BNC/BNC cable, microUSB to USB cable, RS485 cable with extra screw terminal, audio cable, 12V camera power cable, lanyard, and carrying case
