Jonard SPARC™ SPCO-1 Core Alignment Fusion Splicer Kit - 6 Motors, 4 Sec Splice, 9 Sec Heat

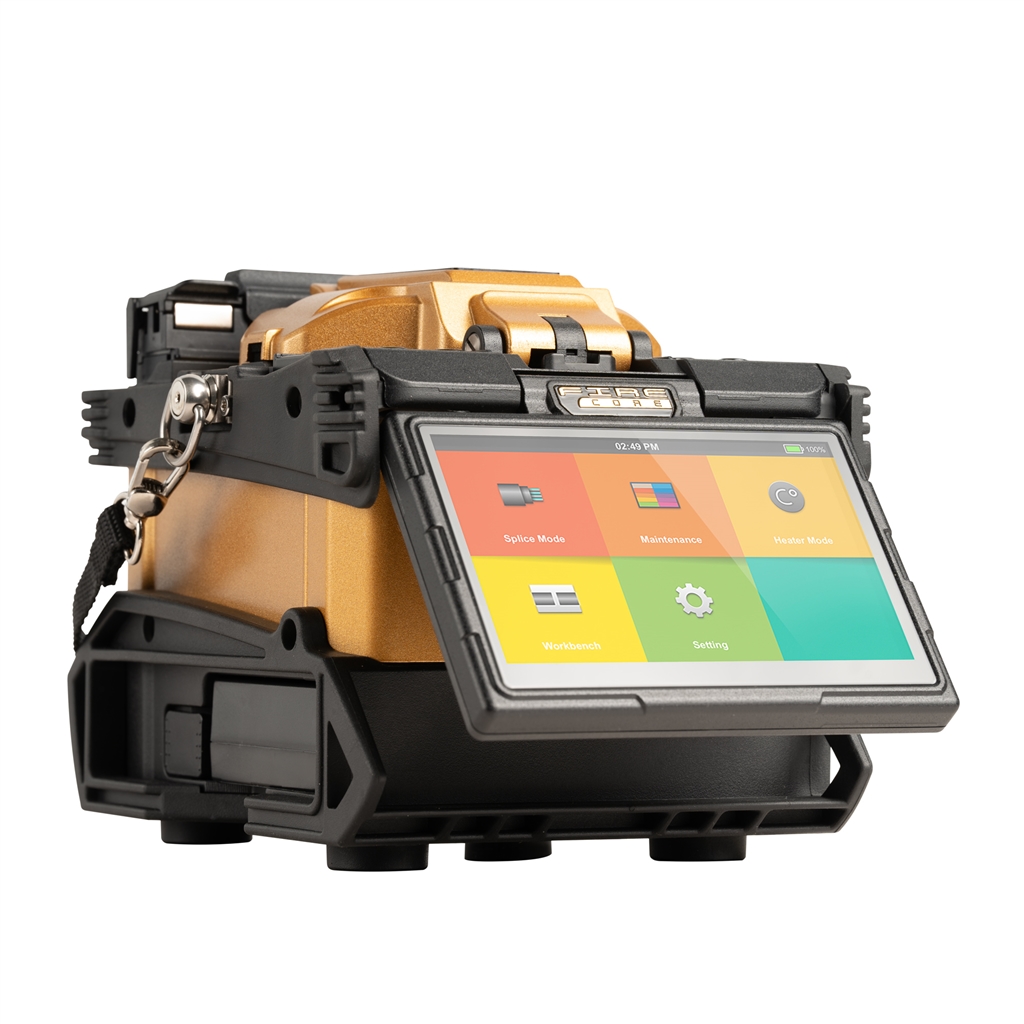

The SPARC™ Core Alignment Fusion Splicer (SPCO-1) is an advanced Core Alignment Fusion Splicer engineered for uncompromising precision, reliability, and speed. Built for professional fiber optic technicians, contractors, and network operators, this splicer is designed to deliver world-class performance across telecom, data center, and FTTH installations. Offering splice times as fast as 4 seconds and heating times as low as 9 seconds, the SPARC Core sets the standard for dependable, low-loss connections in the field.
Features:
Precision Core Alignment: Six-motor system provides highly accurate fiber alignment for minimal splice loss
Low Splice Loss: Typical loss as low as 0.01 dB (SM, MM, and G.657 fibers)
Fast Operation: Splice in 4 seconds, heat in 9 seconds with pressure heater technology
Advanced Fiber Compatibility: Handles SM, MM, DS, NZDS, and bend-insensitive fibers (G.657)
Fiber holders take coatings from 100 µm to 3 mm, covering both 250 µm and 900 µm work
High-Capacity Battery: 7000 mAh battery supports 400+ splicing/heating cycles per charge
Flexible Power: Runs on the battery, AC (100-240V) or a 9-19V DC source
Durable & Rugged: IPx2 water resistance, IP5X dust resistance, and drop-tested at 30" for jobsite reliability
Smart Interface: 5.0" full-color LCD touchscreen with intuitive navigation
Massive Storage: Save up to 20,000 splice records or 10,000 splice images onboard, exported over USB-C
Automatic Calibration: Arc calibration compensates automatically for changes in air pressure and temperature
Kit Includes:
1 x FSP-CO SPARC Core Alignment Fusion Splicer
1 x FC-600 One Step Fiber Optic Cleaver with Auto-Rotating Blade
1 x JIC-375 Fiber Optic Stripper, Three Hole
1 x JIC-186 Wire & Kevlar® Cutting Shears
1 x PSI-15 Quick Sleever®
1 x FDC-66 Fiber Scraps Disposal Can
1 x CWP-125 Pointed Cotton Swabs (125 pack)
2 x FW-5 Fiber Wipes, Wet (5 pack)
1 x H-2000 SPARC Carrying Case
1 x FSP-SOC SPARC SOC Holder
1 x FSP-SOCSC SPARC SOC Heater Holder
1 x FSP-ADP-65JH SPARC AC Adapter
1 x FSP-ADP-PC SPARC Power Cable
1 x FSP-B7000 SPARC Battery Pack
1 x FSP-E50 SPARC Electrodes (1 spare set)
1 x FSP-SCT Screw-on Cooling Tray
1 x FSP-DC Data Transfer USB Cable
1 x FSP-STP SPARC Shoulder Strap
1 x FSP-FT Fiber Tray
1 x FSP-FTP Fiber Tray Shoulder Strap
1 x FSP-SC Splicer Set Screw
1 x FC-SC Cleaver Set Screw
1 x FSP-SBB Soft Bristle Cleaning Brush
1 x FSP-FBB Firm Bristle Cleaning Brush
1 x FSP-SFH Splicing Fiber Holder (installed)
1 x FSP-SHH Heater Fiber Holder (installed)
Specifications:
Alignment Method: Core Alignment
Number of Fibers: Single
Motors: 6
Applicable Fibers: SM (ITU-T G.652 & G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655)
Cladding Diameter: 80-150 µm
Coating Diameter: 100 µm-3 mm
Cleave Length: 5-16 mm
Typical Splice Loss: SM: 0.01 dB | MM: 0.01 dB | DS: 0.03 dB | NZDS: 0.03 dB | G.657: 0.01 dB
Return Loss: > 60 dB
Splice Time: Quick mode avg. 4 sec | SM mode avg. 5 sec | Auto mode avg. 7 sec
Heating Time: Quick 9 sec | Average 13 sec
Splice Programs: Up to 128 modes
Heating Programs: Up to 32 modes
Electrode Life: 6000 arc discharges
Magnification: x360, x520
Protection Sleeve Length: 20-60 mm
Pull Test: 1.96 - 2.25 N
Splice Memory: 20,000 splice records / 10,000 splice images
Data Output: USB-C
Battery: 7000 mAh | 400+ splice/heating cycles
Power Supply: AC input 100 - 240V, DC input 9 - 19V
Monitor: 5.0" color LCD touchscreen
Dimensions: 6.5" x 6.2" x 6" (16.51 cm x 15.75 cm x 15.24 cm)
Weight: 5.2 lb (2358 g)
UPC: 810132437922
Model: SPCO-1
