Jonard Fusion Splicing Protection Sleeve Insertion Tool

Jonard Fusion Splicing Protection Sleeve Insertion Tool




Alternative Views:


TTS PRICE: $24.99

STATUS:  IN STOCK



Availability:
Normally Ships Same Day

PRODUCT CODE: JON-PSI-15
QUANTITY:

PRODUCT DESCRIPTION

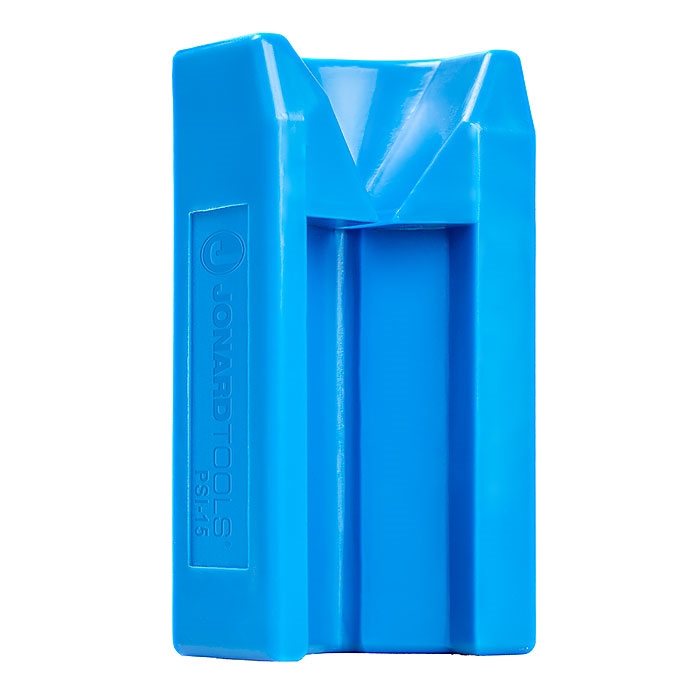

Loading a protection sleeve onto a fiber can be tedious, even for the most experienced technicians. Plus, if they have physical impairments such as poor eyesight then it can become nearly impossible. Designed to make loading protection sleeves onto fiber quick and easy, the PSI-15 Quick Sleever tool is ideal for aligning fiber to the holes of protection sleeves and is a real timesaver.

Features:

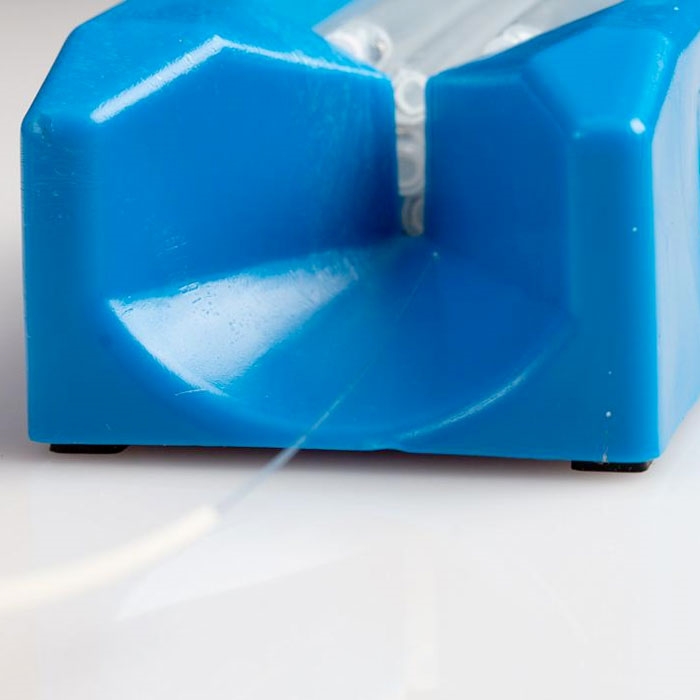

  • Conical fiber feed surface guides fiber directly to protection sleeve (patent pending)

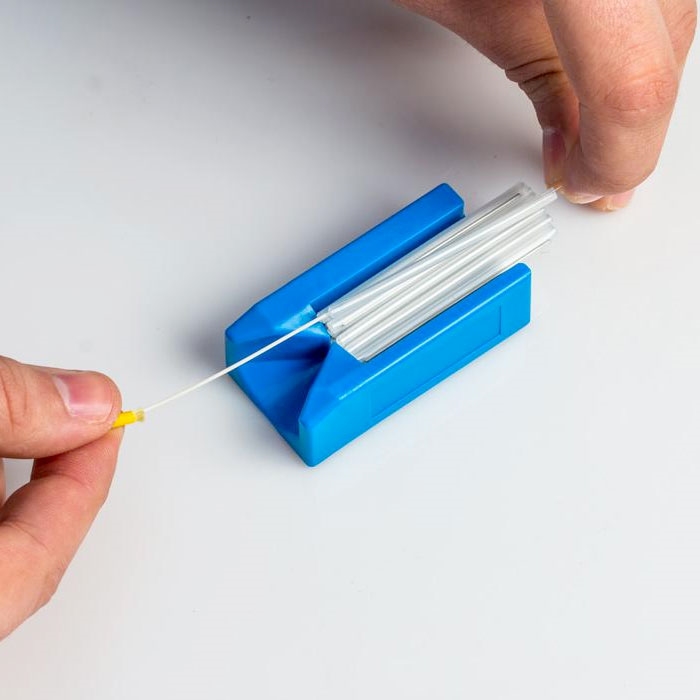

  • Facilitates fiber loading by providing a guide for the fiber to load right into the protection sleeve

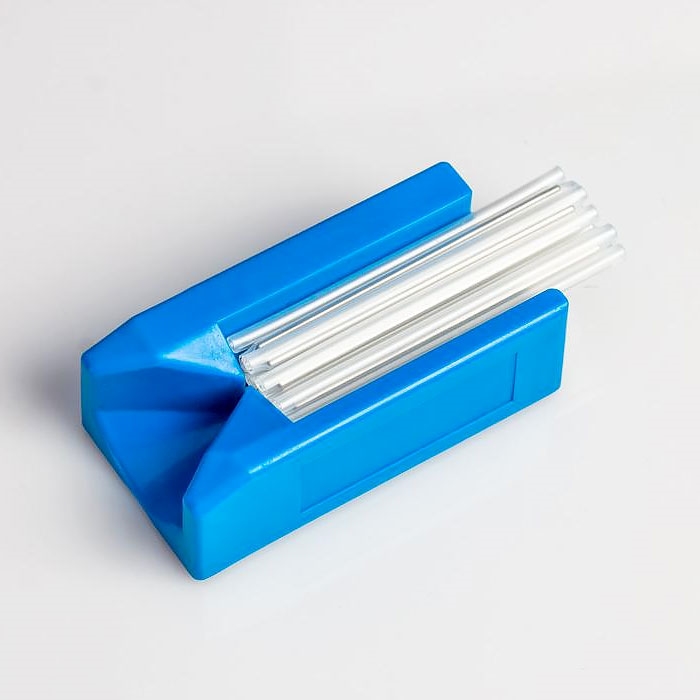

  • Holds up to 15 protection sleeves, each ranging from 1.57" to 2.36" (40 mm to 60 mm) long

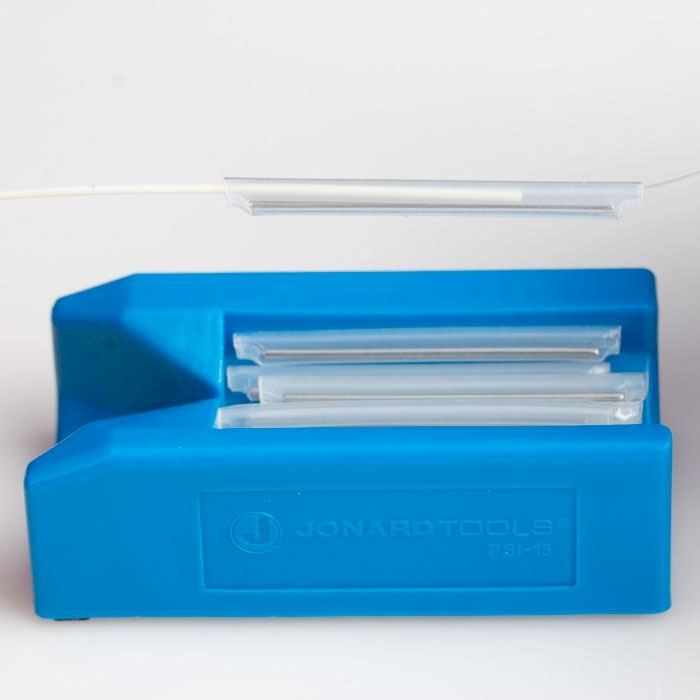

  • When one sleeve is loaded and removed, another automatically falls into place
  • Compact and lightweight design for easy storage and portability
  • Remember to sleeve it before you cleave it!

  • Specifications:
  • Cable Type: Fiber Optic
  • Maximum Capacity: 15 Protection Sleeves
  • Sleeve Length: 1.57"-2.36" (40 mm-60 mm)
  • Dimensions: 2.6" x 1.34" x 0.83" (66 mm x 34 mm x 21 mm)

    Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 1 WRITE A REVIEW

      So far, this Product Review was helpful to 0 TTS Customers.

    5 of 5 Sleeve insertion tool January 12, 2022
    Reviewer: Mark from Nc
    Best 20 bucks you could ever spend so easy a kid can do it.
