Klein AFCI /GFCI Outlet Tester

Klein AFCI /GFCI Outlet Tester

Alternative Views:

TTS PRICE: $39.97


Normally Ships Same Day

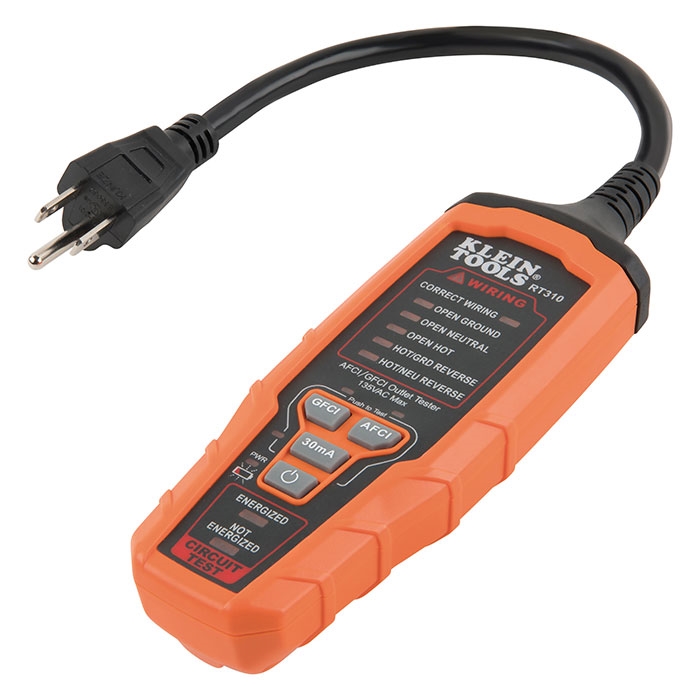

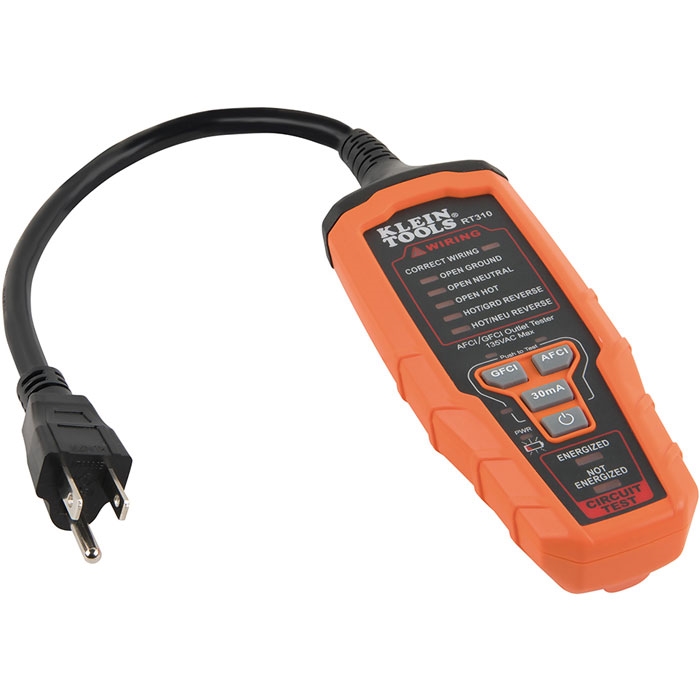

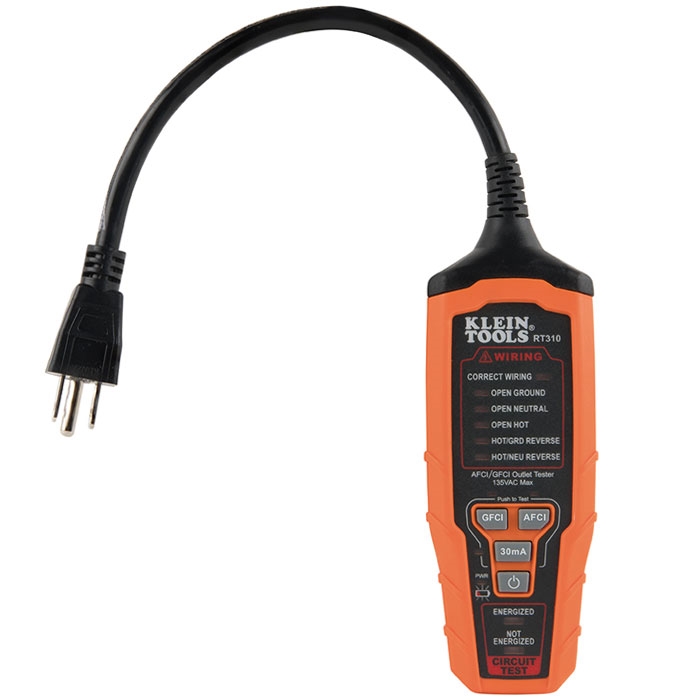

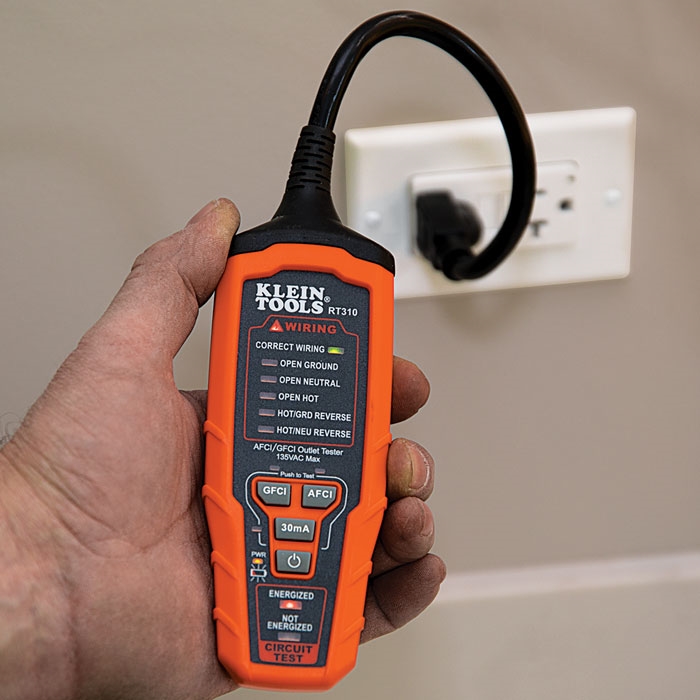

The RT310 from Klein Tools is an electrical tester that tests the wiring condition at an electrical outlet, and inspects and checks AFCI and GFCI devices. It is designed for use with North American 120V electrical outlets. It can detect and identify common wiring faults.

  • Detects the most common wiring faults in standard, AFCI, and GFCI electrical outlets
  • Test AFCI devices by simulating arc fault conditions
  • Test GFCI devices by simulating ground fault conditions
  • Capable of detecting a dual-open wiring fault with simultaneous open neutral and open ground wires (patent pending technology)
  • Tester delivers clear visual indication of the wiring condition at the electrical outlet
  • Designed to test North American-style grounded electrical outlets in 120V AC circuits (incorporates a three-pin plug)
  • Electrical plug is on a 10-Inch (254 mm) flexible electrical cord to access electrical outlets in difficult to reach locations
  • Low battery indicator and easily accessible battery compartment; Uses 3 x 1.5V AAA alkaline batteries (included)
  • Powers off automatically after approximately 2 minutes of non-use to conserve battery life
  • Built to withstand a 6.6-Foot (2 m) drop
  • CATIII 135V safety rating
  • Measurement category III is applicable to test and measuring circuits connected to the distribution part of the building’s low-voltage MAINS installation
  • The RT310 features a patent pending AFCI test method that is unique to Klein Tools

  • Specifications:
  • Type: AFCI/GFCI Electrical Battery Operated Outlet Tester
  • Application: RT310 is an electrical outlet tester that tests for wiring faults in electrical outlets, and Tests AFCI and GFCI Devices
  • Special Features: Tests AFCI and GFCI, Simulates Ground Fault and Arc Flash Conditions, Detects Dual-Open Wiring Fault
  • Material: PC/ABS Housing with Electronic Components
  • Drop Protection: 6.6' (2.0 m)
  • AFCI: Yes
  • GFCI: Yes
  • Voltage: 120V AC in 3-Wire Grounded Electrical Outlet
  • Batteries: 3 x 1.5V AAA Batteries (included)
  • Standard: CATIII 135V
  • Overall Length: 7.4'' (188.0 mm)
  • Overall Height: 1.3'' (33.0 mm)
  • Overall Width: 2.3'' (58.4 mm)
  • Weight: 8.5 oz (241 g)
