Klein Tools ET920 USB Digital Meter - USB-A & USB-C, 3-20V DC, up to 5A

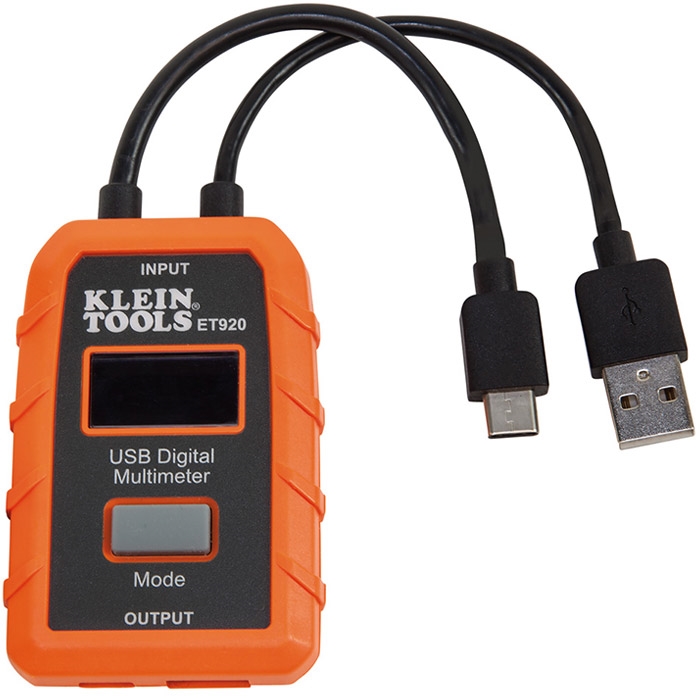

The Klein Tools ET920 is a USB digital meter for Type-A and Type-C ports. It accurately and reliably measures and displays the USB port voltage, current, capacity, energy, and resistance simultaneously. It can function with any USB-A and most USB-C ports, including Qualcomm Quick Charge® ports that have the ability to deliver power. It requires NO batteries as it draws power from the power source to function.
Features:
3 to 20V DC; Current: 0.05 to 3A (USB-A); 3 to 20V DC; Current: 0.05 to 5A (USB-C)

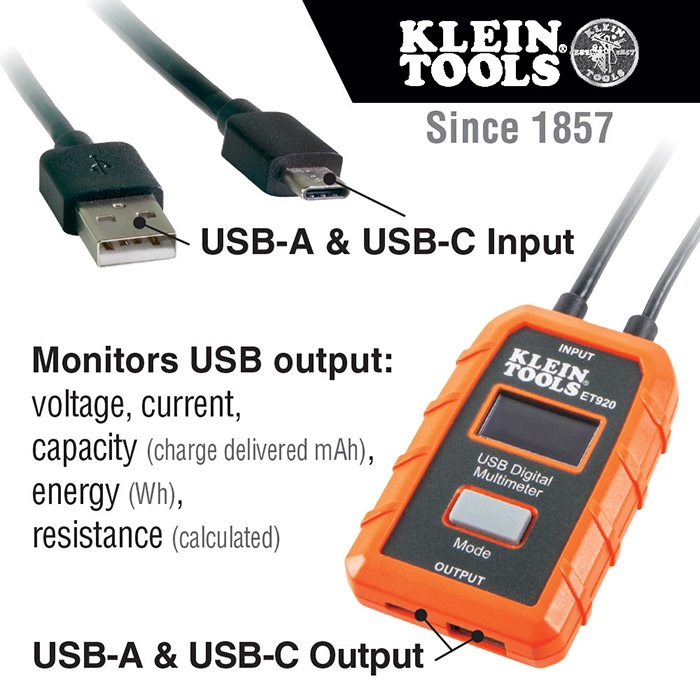

Continuously monitor up to 1000 hours of voltage, current, capacity/charge delivered, energy, and resistance (calculated)
Tests most common standard USB-A or USB-C ports, including Qualcomm Quick Charge® ports
Store and recall up to 10 readings
Voltage and current overload detection
Hi-resolution LCD for clear visibility in environments with low ambient lighting

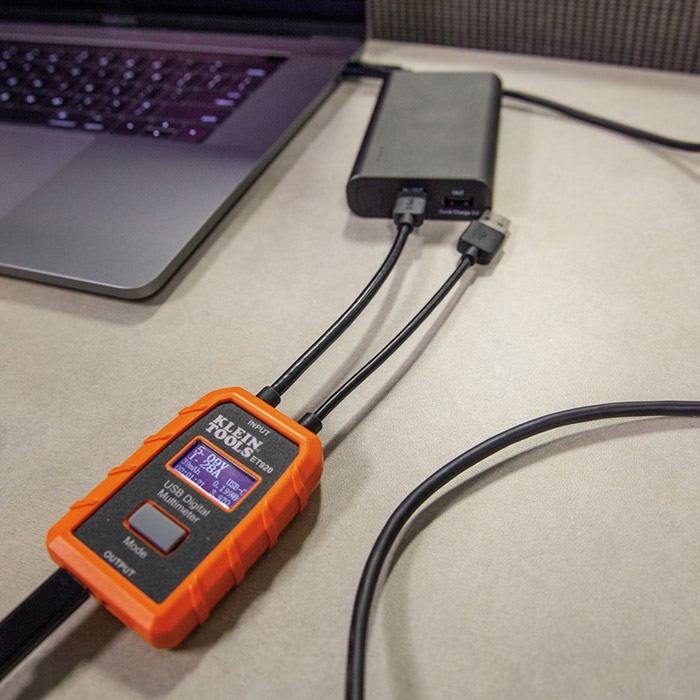

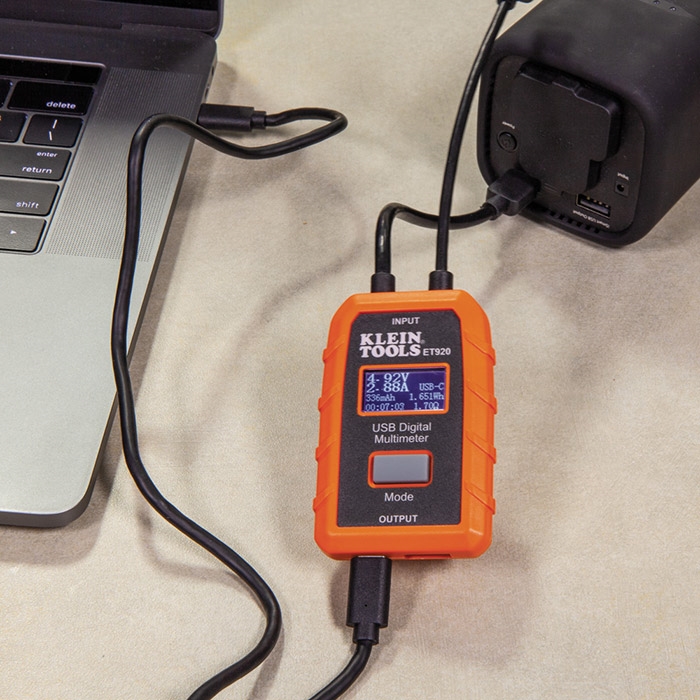

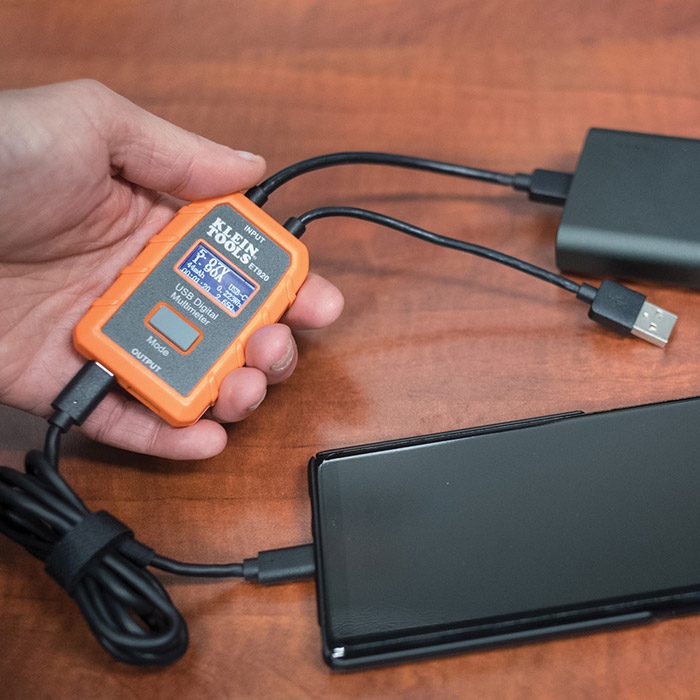

Device must be used in line between the source being measured and the power source
Durable cables to allow easy access to hard-to-reach ports
Rugged, pocket-sized, and light weight Klein industrial design stands up to jobsite demands
Built to withstand a 6.6-foot (2m) drop
No batteries needed; powered by the USB port being tested
Specifications:
Type: USB-A (Type A) and USB-C (Type C)
Application: USB Port Voltage, Current, Capacity, Energy and Resistance (Calculated)
Special Features: Fits Any USB-A and USB-C Ports
Voltage: 3 to 20V DC
Current: USB-A: 0.05 to 3A; USB-C: 0.05-5A
Capacity Used: 99,999mAh Maximum
Energy Delivered: 999Wh Maximum
Resistance: 400 ohms Maximum
Elapsed Time: Up to 999 Hours, 59 Min, 59 Secs
USB Compatibility: USB-A, USB-C; Qualcomm Quick Charge® Compatible
Drop Protection: 2 m (6.6')
Ingress Protection: IP20
Display: LCD
Material: Polymer
Overall Length: 2.96" (7.5 cm)
Overall Height: 0.6" (1.5 cm)
Overall Width: 1.96" (5 cm)
Weight: 1.7 oz (48 g)
Model: ET920
