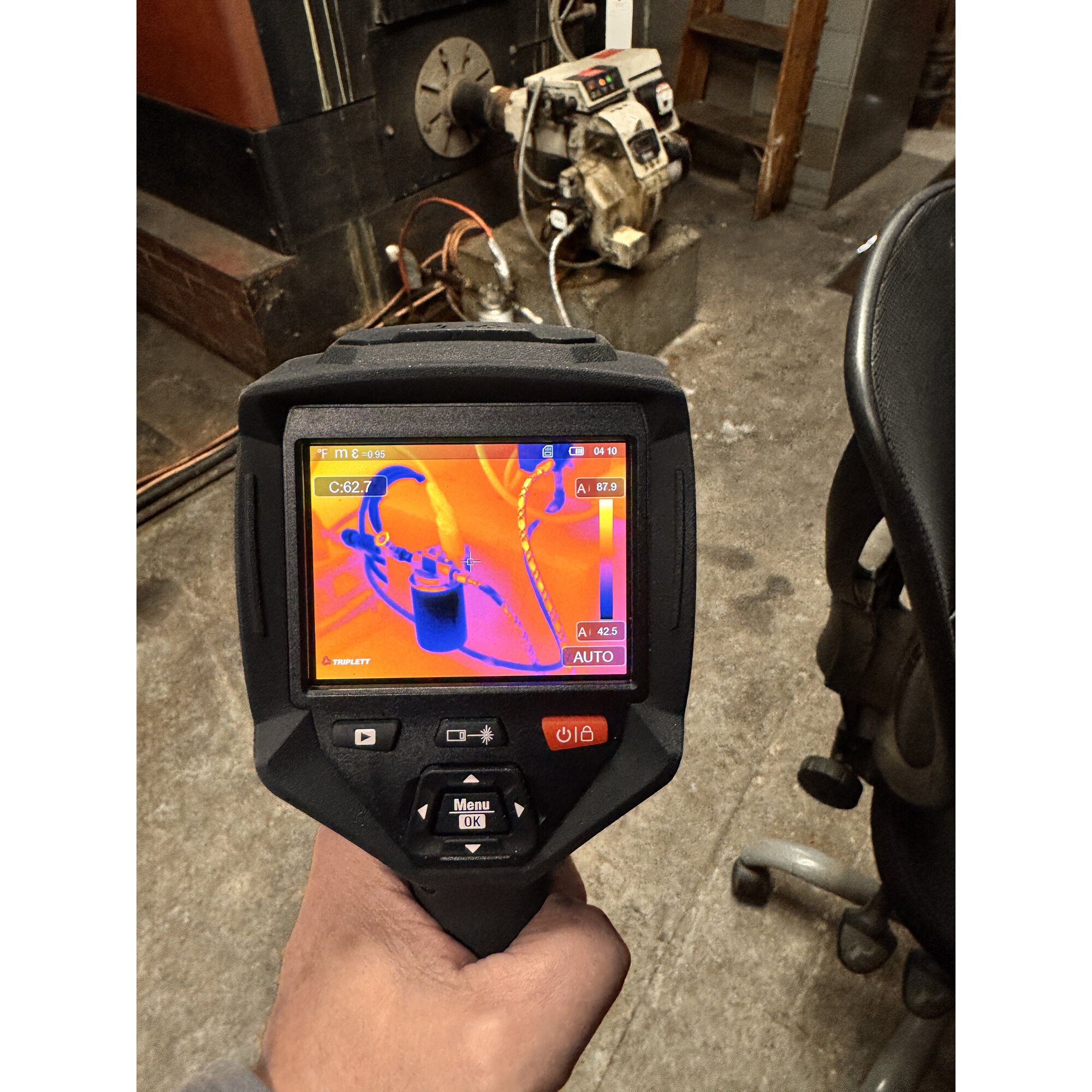

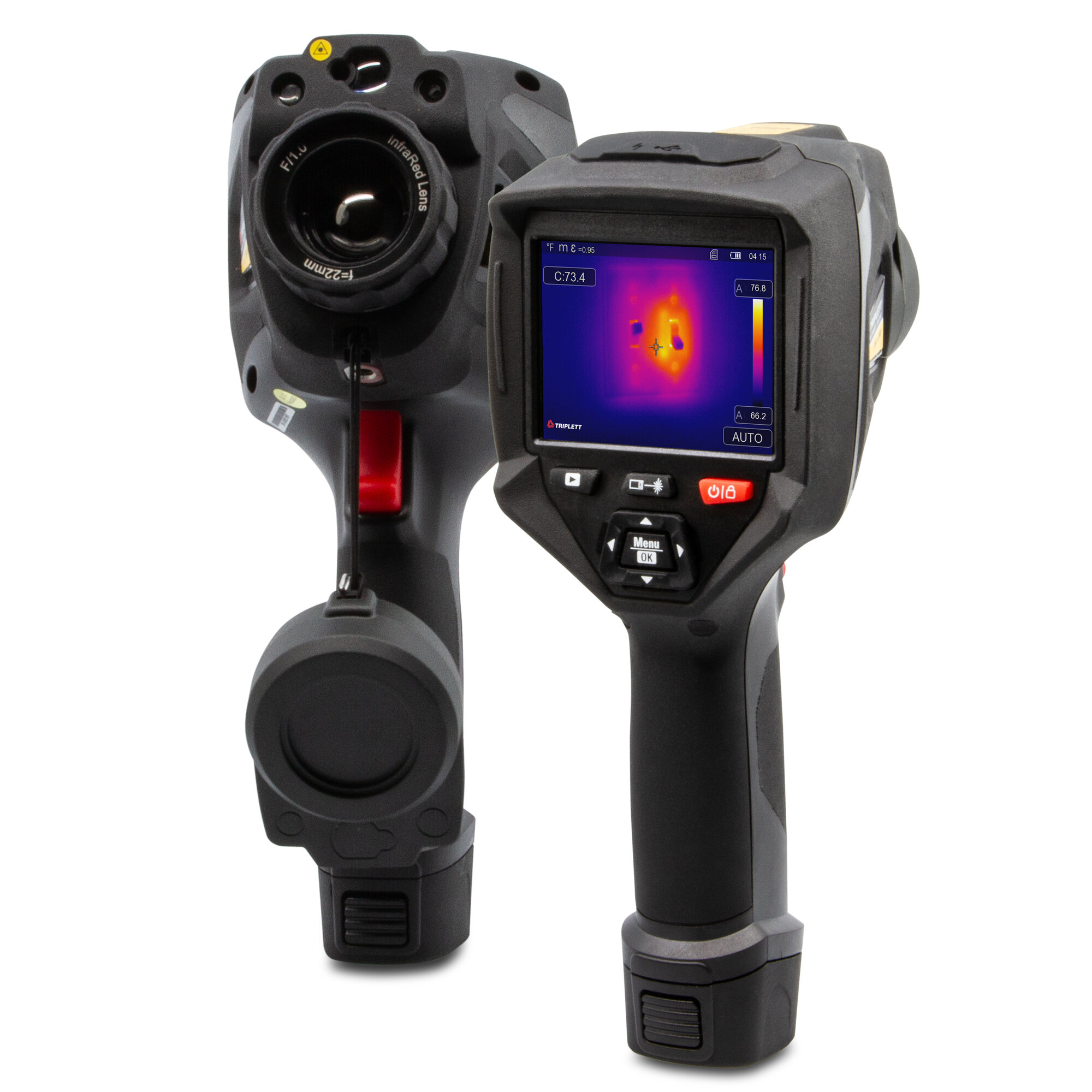

The Triplett IRTC950 Professional Thermal Imaging Camera is a high-performance diagnostic tool designed for electricians, HVAC technicians, maintenance professionals, building inspectors, automotive technicians, and industrial contractors. Engineered for advanced thermal analysis and preventative maintenance, the IRTC950 helps quickly identify hidden hot spots, electrical faults, mechanical failures, water intrusion, insulation deficiencies, and energy loss without invasive inspection methods.

Featuring a high-resolution 384 x 288 infrared detector with ≤40mK thermal sensitivity, the Triplett IRTC950 delivers detailed thermal imaging with exceptional accuracy and clarity. The built-in 5MP visible light camera supports Infrared, Visible Light, Picture-in-Picture, and Fusion display modes, while advanced analysis tools including spot, area, and line temperature monitoring help professionals diagnose issues faster. Designed for demanding field environments, the IRTC950 includes HDMI output, WiFi connectivity, digital zoom, voice and text annotation, onboard storage, and live streaming capabilities for professional reporting and analysis.

• Professional thermal imaging camera for preventative maintenance and troubleshooting applications
• 384 x 288 infrared thermal detector with 110,592 pixels
• ≤40mK Thermal Sensitivity (NETD) for detecting subtle temperature differences
• Built-in 5MP visible light camera
• Infrared, Visible Light, Picture-in-Picture, and Fusion display modes
• Auto Fusion automatically adjusts the mix ratio between infrared and visible images
• 3.5" manual focus touchscreen LCD with 640 x 480 resolution
• Center spot, 3 manual spots, 3 areas, and 2 line analysis temperature measurement tools
• Automatic hot and cold temperature markers
• 1X to 32X continuous digital zoom
• Voice and text image annotation capability (external microphone required)
• Built-in laser distance meter with range from 0.15 to 98ft (0.05 to 30m)
• Stores video (.mp4) and image (.jpg/.HRI) files
• USB and WiFi connectivity for transferring files and live stream viewing on PC
• HDMI output for external monitor or recording device connection
• Supports six languages: English, Italian, Spanish, French, German, and Chinese
• Ideal for electrical systems, HVAC diagnostics, mechanical troubleshooting, moisture detection, insulation analysis, automotive repair, and energy audits

• Manufacturer: Triplett
• Model: IRTC950
• UPC: 614395005801
• Product Type: Professional Thermal Imaging Camera
• Infrared Resolution: 384 x 288
• Total Thermal Pixels: 110,592
• Thermal Sensitivity (NETD): ≤40mK
• Visible Camera Resolution: 5MP
• Display Size: 3.5" Touchscreen LCD
• Display Resolution: 640 x 480
• Focus Type: Manual Focus
• Display Modes: Infrared, Visible Light, Picture-in-Picture, Fusion
• Digital Zoom: 1X to 32X
• Laser Distance Meter Range: 0.15 to 98ft (0.05 to 30m)
• Video Format: MP4
• Image Formats: JPG / HRI
• Connectivity: USB, WiFi (Android OS only), HDMI
• Languages Supported: English, Italian, Spanish, French, German, Chinese
• Battery Type: Li-ion Battery / Lithium Metal Batteries
• Country of Origin: China
• ECCN: EAR99
• HTS Code: 9027.50.4020
• Shipping Weight: 8.6 lbs.
• Dimensions: 15" L x 6.5" W x 13" H
• Package Type: Box

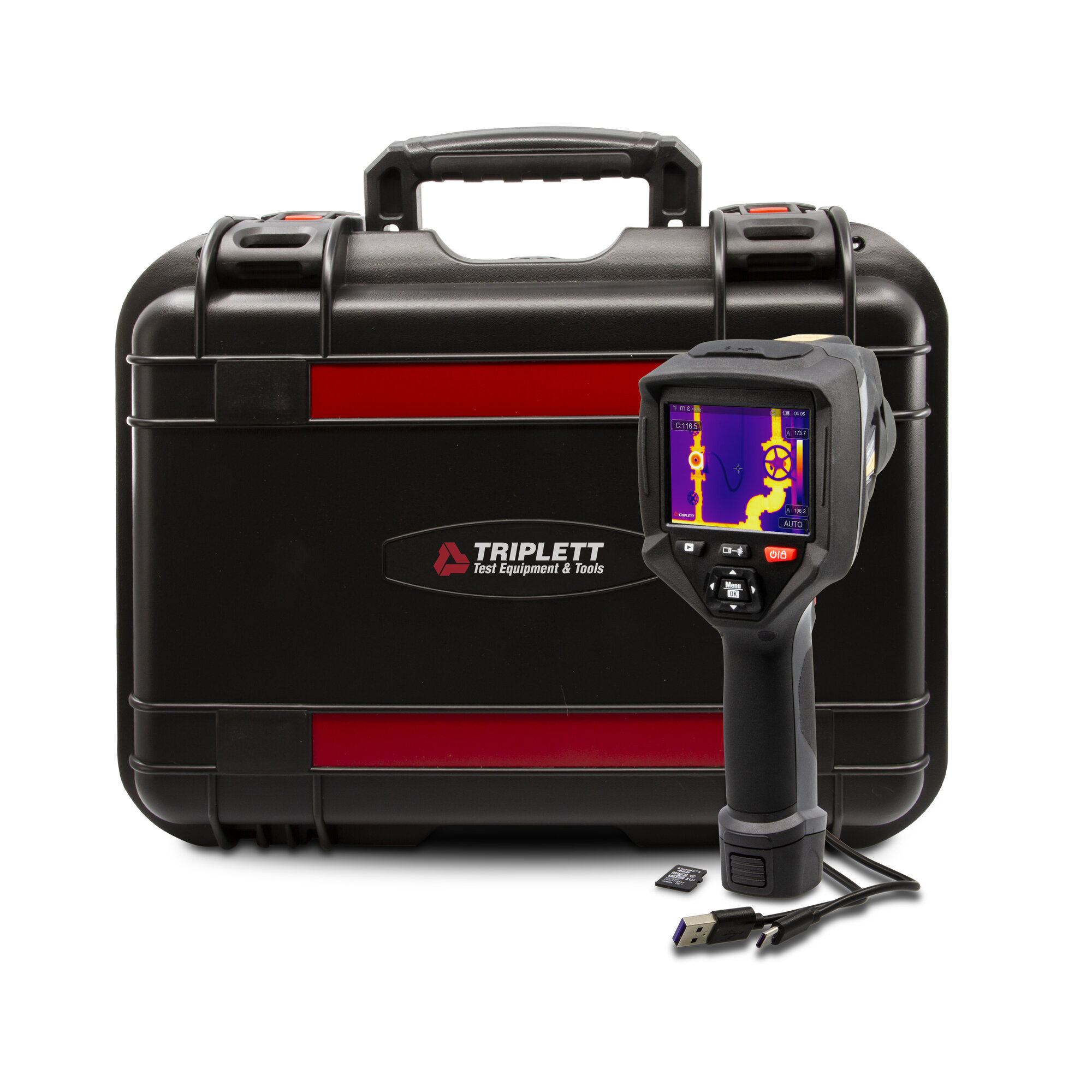

• Includes: Rechargeable Lithium Ion battery, 120/240VAC adapter/charger with US/UK/EU/AU plugs, SD card, HDMI cable, USB cable, software CD, and carrying case
• Warranty: 1 Year
