Platinum Tools T130 VDV MapMaster 3.0 Cable Tester - Twisted Pair & Coax, Main Unit & Remote

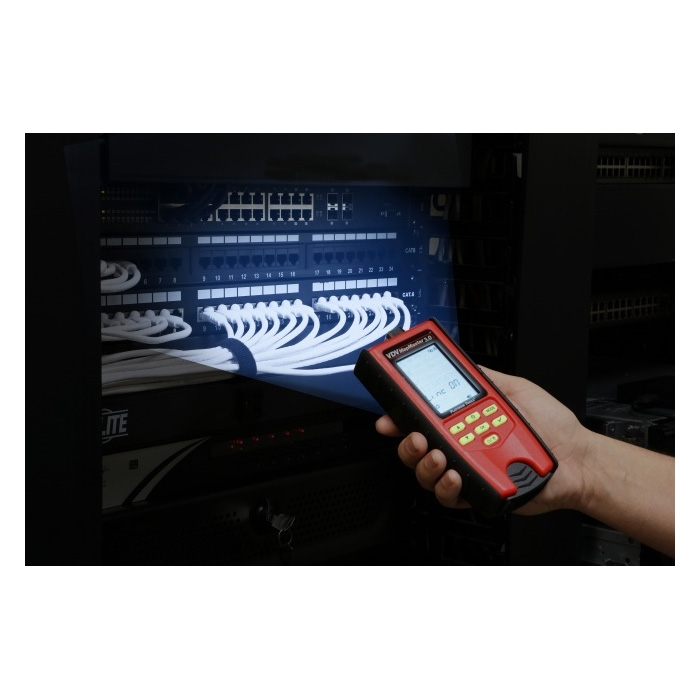

The VDV MapMaster 3.0 from Platinum Tools combines continuity testing, mapping, generating tones and length measurement functions into a single easy-to-use unit for installation, troubleshooting, and maintenance for telco, network, or coax cable. The backlit display, glow-in-the-dark keypad and a built-in flashlight help you work in the dark.
Whether your jobs are commercial or residential, the versatility and added features of the VDV MapMaster 3.0 make it a great cable verifier for the professional installer.
Features:
Detects opens, shorts, miswires, reverses and split pairs - tests to T568A/B wiremap configuration
Single-ended testing for shorts & split pairs
Measures cable length, distance to opens and breaks on specific wires, pairs or all wires simultaneously, in feet or meters
Identifies cable location on active ports using flashing Port Link Light
Identify up to 20 network or coax cable runs at a time
Verifies continuity for multiple cable types (LAN, phone and video)
Audible tone generator with 4 selectable cadences

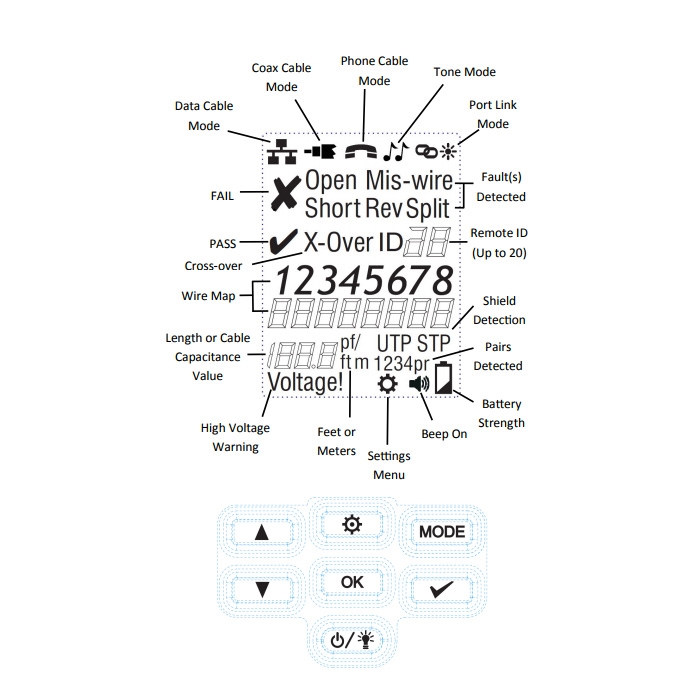

Easy-to-read backlit LCD with large icons, glow-in-the-dark keypad and built-in LED flashlight for dark areas
Audible beep for additional feedback
Voltage detection warning icon
Continuous loop test mode for troubleshooting
Master remote stored in main unit
Auto-off and timed backlight in any mode for low power consumption and long battery life

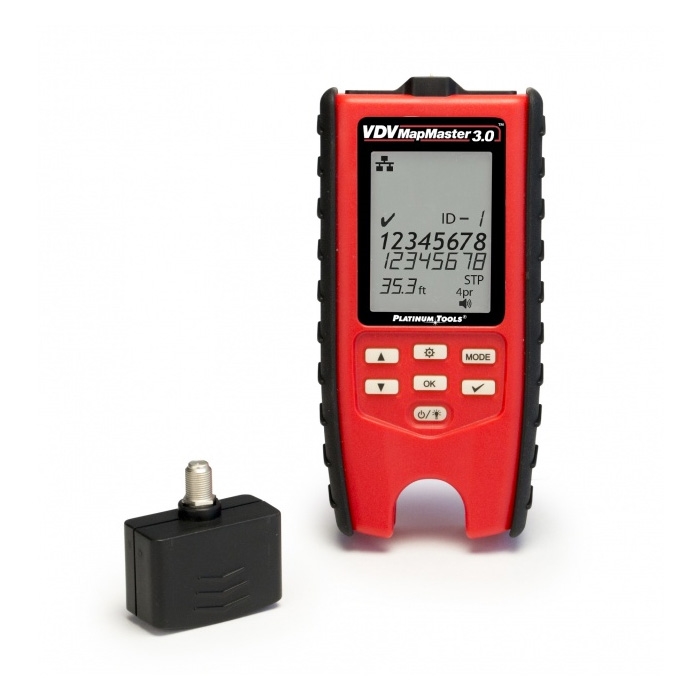

Includes:

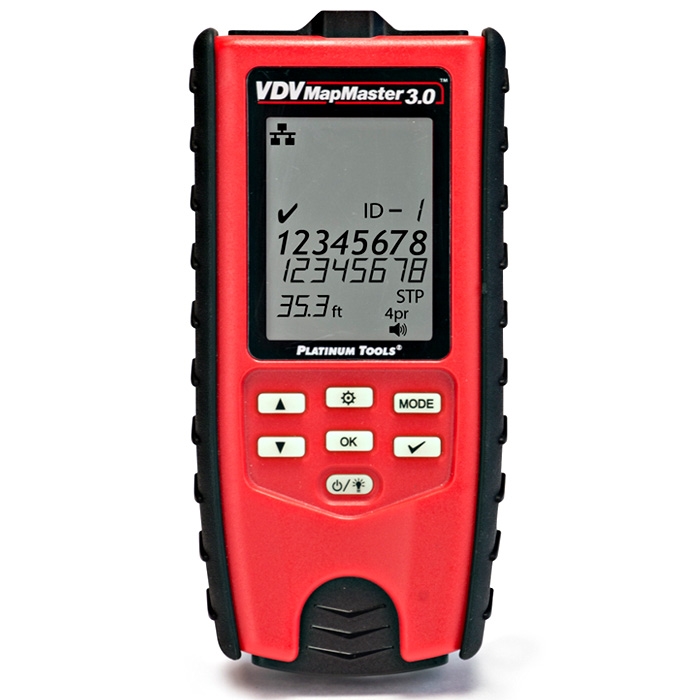

1 x VDV MapMaster 3.0 main unit
1 x Master remote (stores in main unit)
Specifications:
Type: Twisted Pair and Coax Cable Tester
Display: Large 2.75" backlit monochrome LCD
Maximum Voltage (between any two connector pins without damage) RJ12/RJ45/F: 50V DC or AC
Battery: 9V alkaline; typical life Standby 4 years / Active 425 hours
Low Battery Icon: Flashes when battery voltage falls below 6V
Cable Types: Shielded or Unshielded; CAT7, CAT6A, CAT5e, CAT5, CAT4, CAT3, Coax
Maximum RJ Cable Length Testing: 0 to 1,000 ft (305 m)
Minimum Cable Length for Split Pair Detection: 1.5 ft (0.5 m)
Maximum Coax Cable Length: Varies with cable resistance
Measurement Technology: Capacitance testing
Length Accuracy Without Length Constant: +/- 3% + 1 ft
Default Length Constants (restored with power-on reset): Voice (twisted pair) 17.4 pF/ft; Video (coax) 16.5 pF/ft; Data (twisted pair) 15 pF/ft
Humidity: 10% to 90%, non-condensing
Operating Temperature: 0°C/32°F to 50°C/122°F
Storage Temperature: -20°C/-4°F to 60°C/140°F
Dimensions: 6.8" x 3.2" x 1.4" (17.3 x 8.1 x 3.5 cm)
Weight: 10.8 oz (305 g) with battery and remote
Color: Black, Red
Packaging: Box
Model: T130
Kit Versions:
| Part # | Platinum # | Description |
|---|
| PLA-T130K1 | T130K1 | Kit - adds ID-only remotes #1-#20, adapters, patch cables and pouch |
