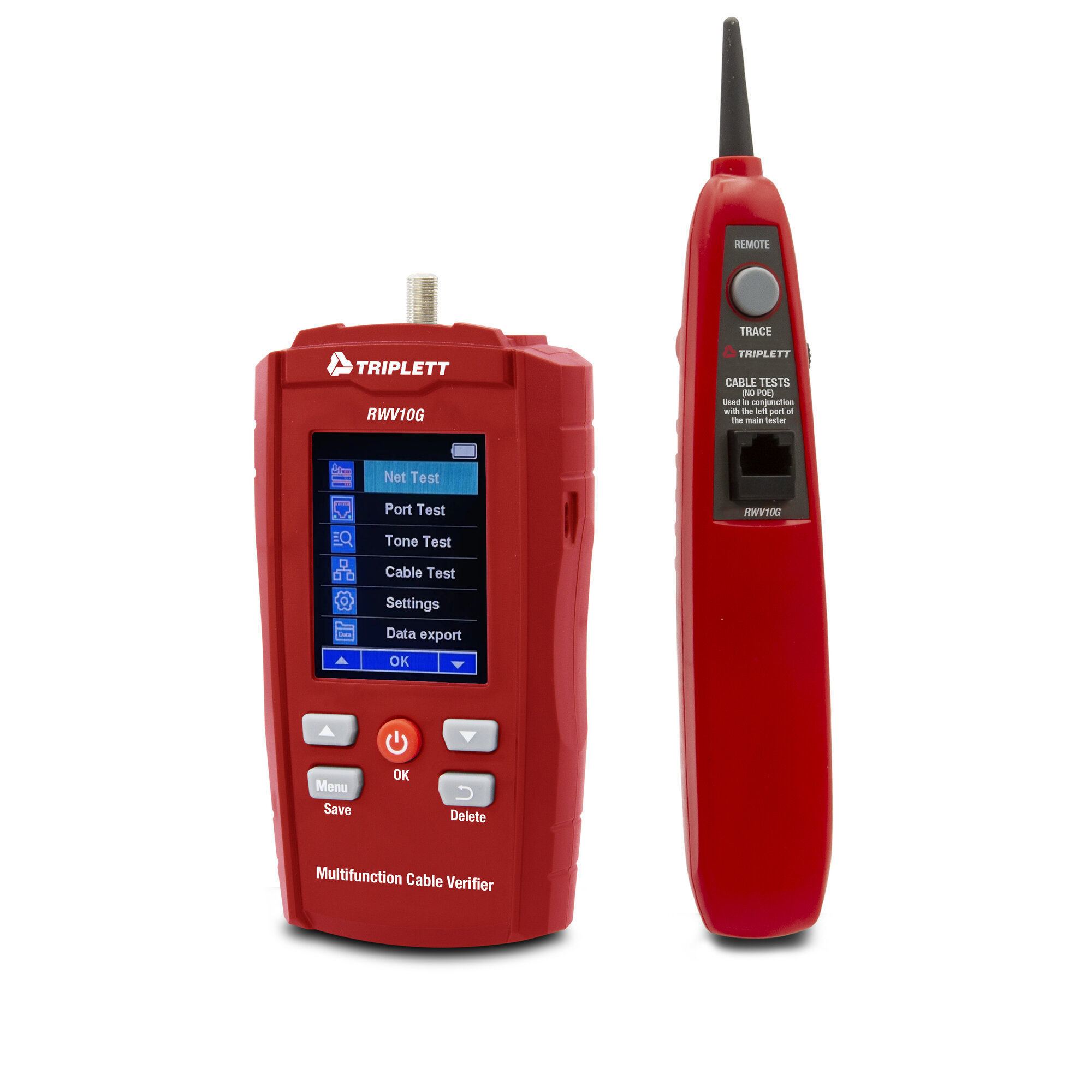

The Triplett RWV10G Real World LAN and Cable Verifier is an advanced professional network testing and cable verification tool designed for structured cabling installers, network technicians, low-voltage contractors, IT professionals, and data infrastructure specialists. Utilizing breakthrough digital testing technology, the RWV10G performs comprehensive LAN and cable analysis far beyond traditional cable testers by verifying real-world cable and network performance using live network data.

Designed for modern Ethernet environments, the Triplett RWV10G tests UTP and Ethernet networks for cable integrity, category compliance, bandwidth capability, network speed, duplex negotiation, PoE presence, and cable faults. With support for CAT3, CAT5, CAT5E, CAT6, CAT6A, CAT7, UTP, STP, and coax cabling, the RWV10G provides detailed diagnostics including cable length, opens, shorts, split pairs, skew, propagation delay, and crosstalk analysis. Its ability to perform live inline network testing using connected switches, hubs, and PCs makes it an invaluable tool for troubleshooting real-world network installations and verifying high-speed network performance up to 10 Gigabit Ethernet.

• Advanced real-world LAN and cable verifier for professional network diagnostics
• Tests UTP and Ethernet network cabling using digital testing technology
• Supports CAT3, CAT5, CAT5E, CAT6, CAT6A, CAT7, UTP, and STP cabling
• Verifies Ethernet speed capability: 10M, 100M, 1G, and 10G
• Performs traditional TIA568 cable verification including wire map, opens, shorts, split pairs, and cable length

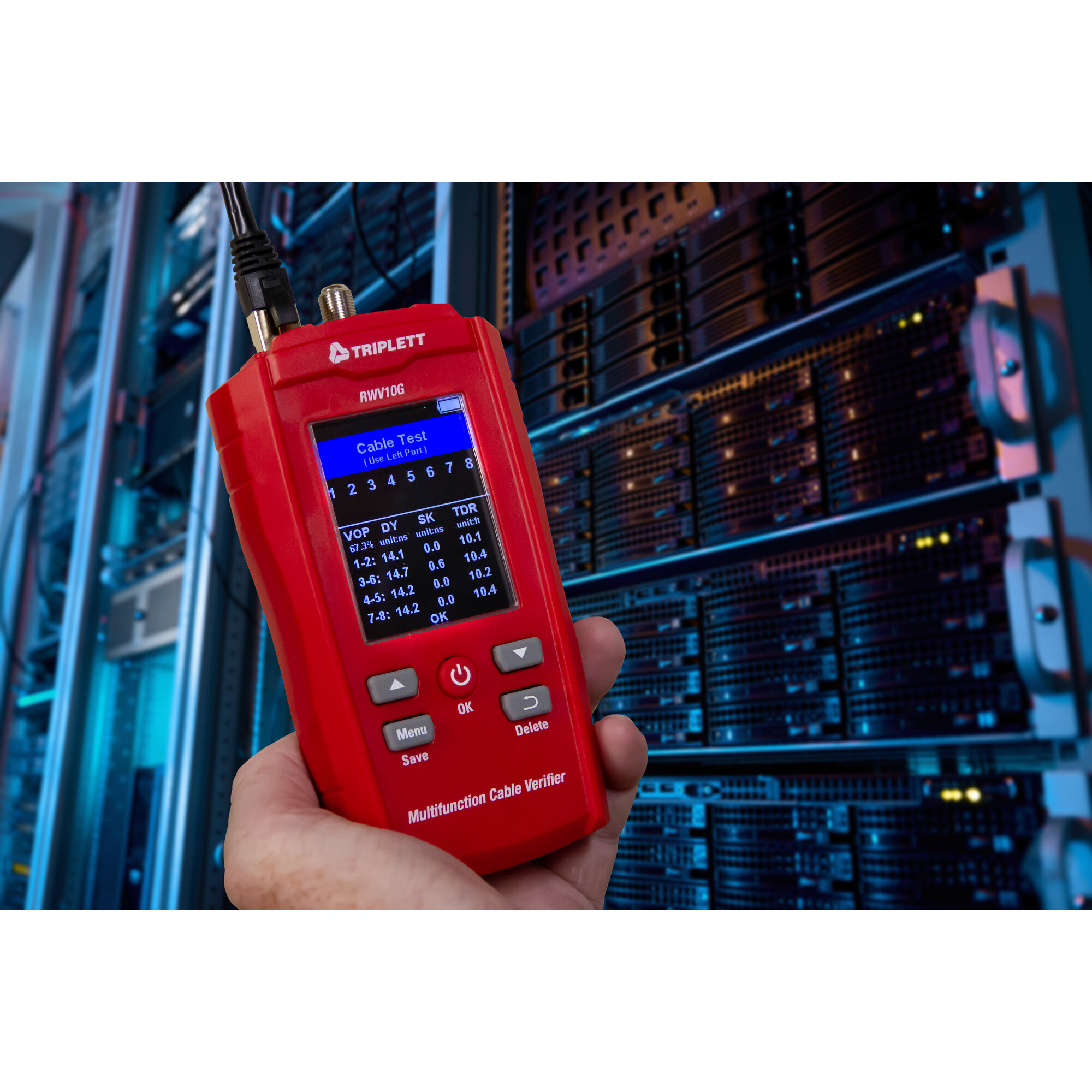

• Advanced crosstalk, timing, skew, and cable parameter analysis
• Displays port speed, duplex, and live data levels from hubs, switches, and PCs
• Inline network testing verifies negotiated Ethernet speed between devices
• 1 nanosecond TDR resolution for precise cable length and fault detection
• Tests coax cable for length, opens, shorts, wire map, and fault distance
• Tone mode simplifies cable tracing and troubleshooting
• PoE detection capability
• Port blink test for identifying switch ports
• Stores up to 250 test results for documentation and reporting
• Full color display for easy analysis and interpretation
• Ideal for structured cabling, LAN verification, network troubleshooting, and certification applications

• Manufacturer: Triplett
• Model: RWV10G
• UPC: 614395005559
• Product Type: Real World LAN and Cable Verifier
• Supported Cable Types: CAT3, CAT5, CAT5E, CAT6, CAT6A, CAT7, UTP, STP, Coax
• Ethernet Speed Verification: 10M, 100M, 1G, 10G
• Testing Functions: Wire Map, Opens, Shorts, Split Pairs, Cable Length, Crosstalk, Skew, Propagation Delay, PoE Detection
• TDR Resolution: 1 Nanosecond
• Storage Capacity: 250 Test Results
• Additional Functions: Tone Generator, Port Blink Test, Inline Network Testing
• Display Type: Full Color Display
• Power Source: (1) 9V Battery and (3) AA Batteries
• Country of Origin: China
• ECCN: EAR99
• HTS Code: 9030.89.0100
• Shipping Weight: 3.1 lbs.
• Dimensions: 11.5" L x 12" W x 3" H
• Package Type: Box

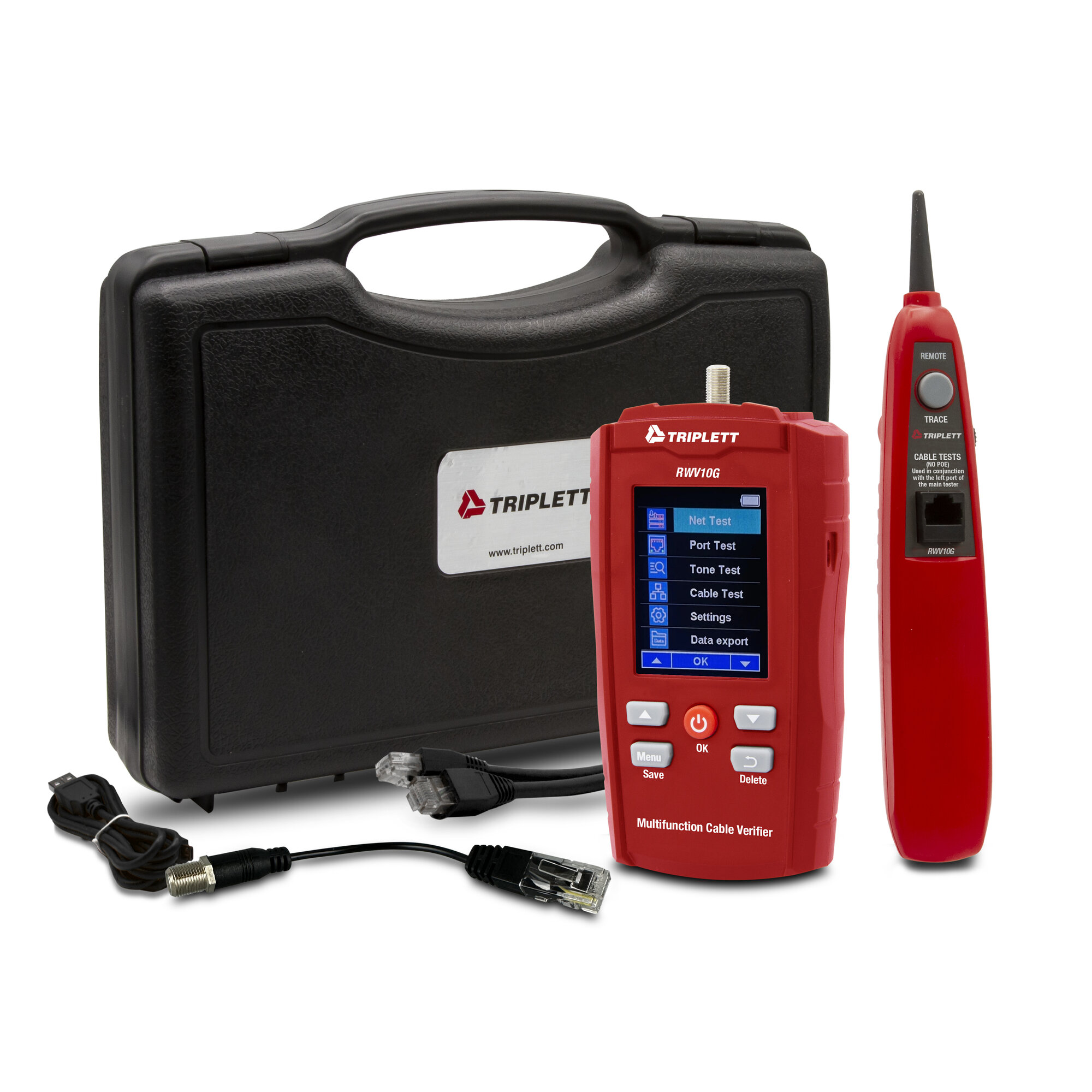

• Includes: Remote Probe, (2) RJ45 to RJ45 cables, RJ45 to F cable, USB cable, (1) 9V battery, and (3) AA batteries
• Warranty: 1 Year
