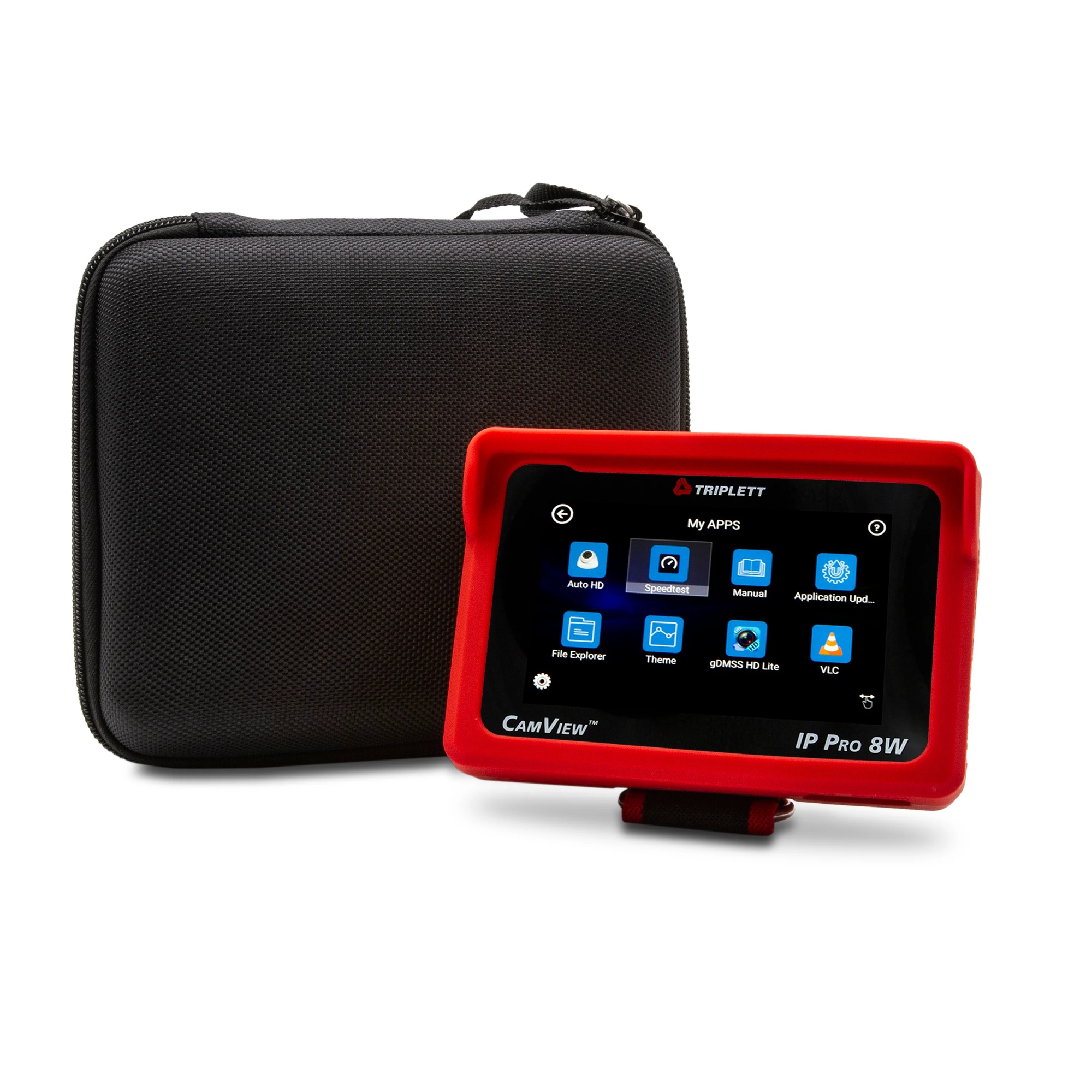

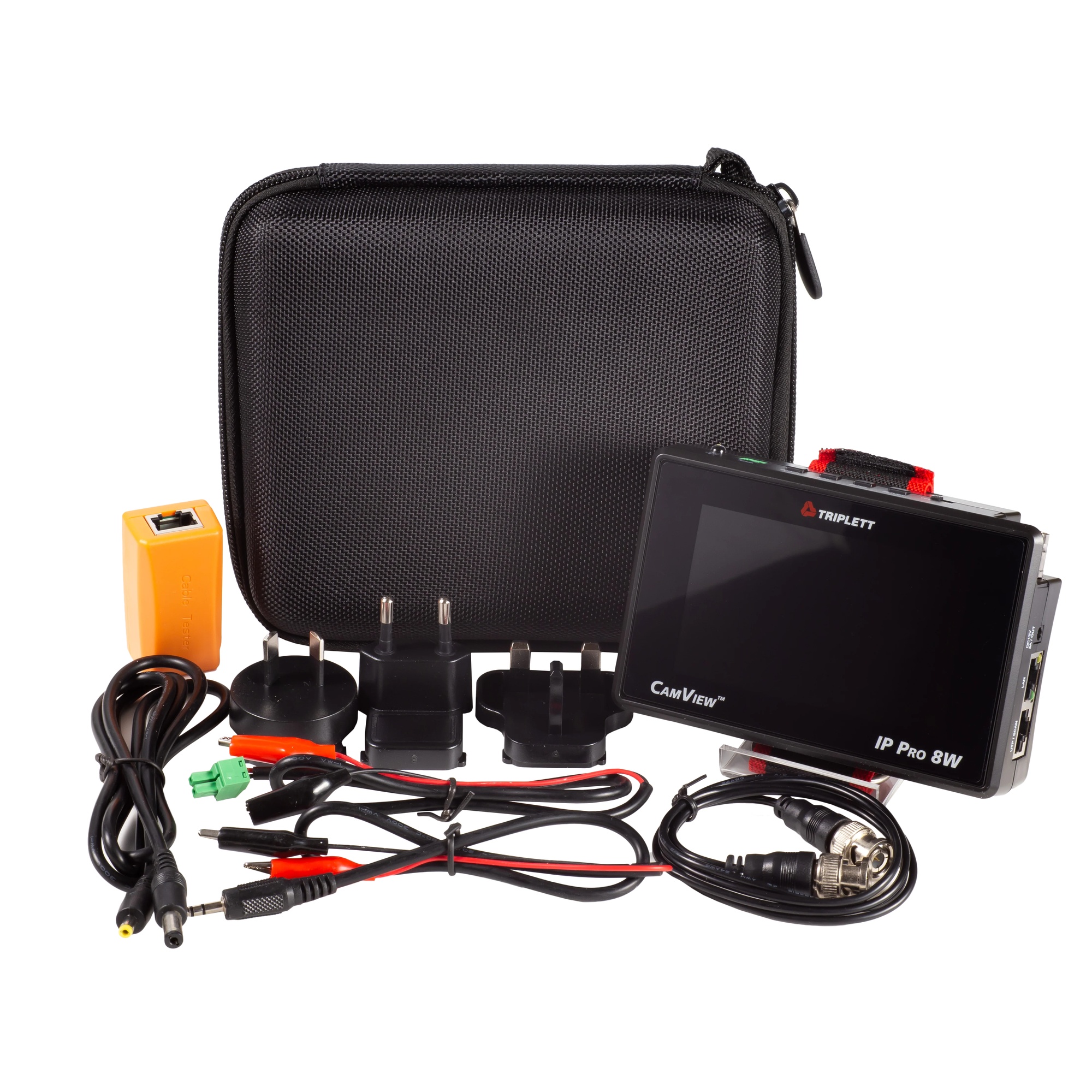

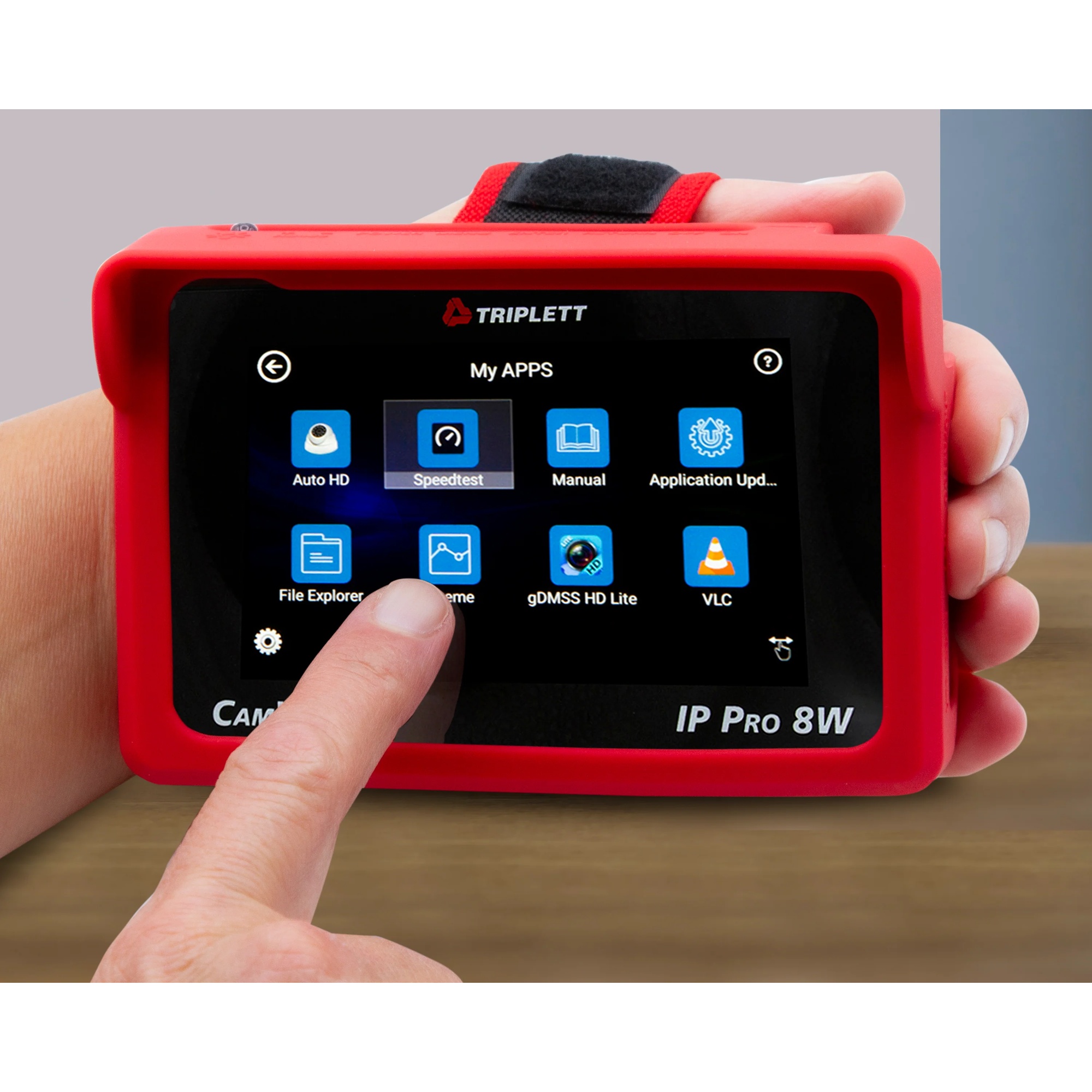

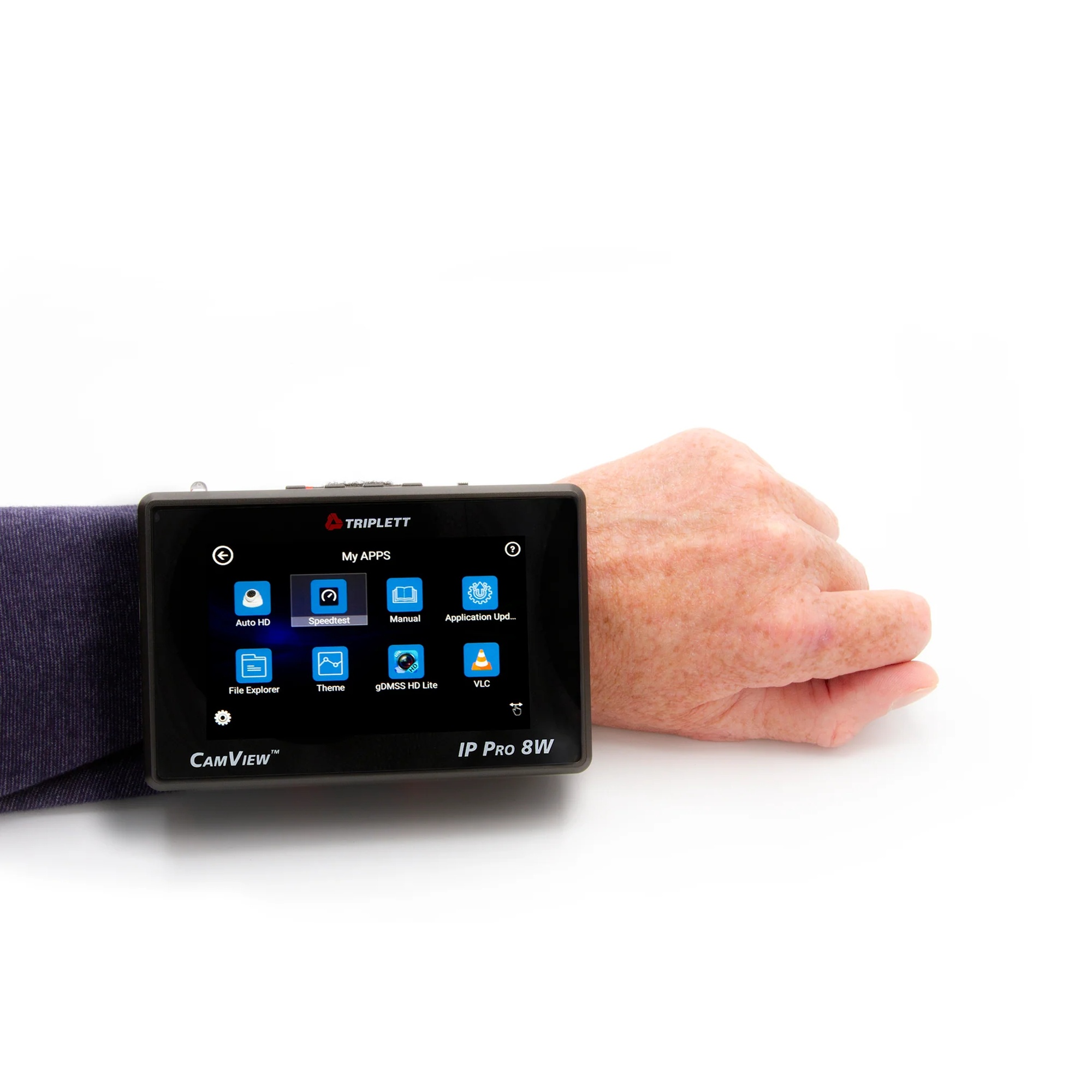

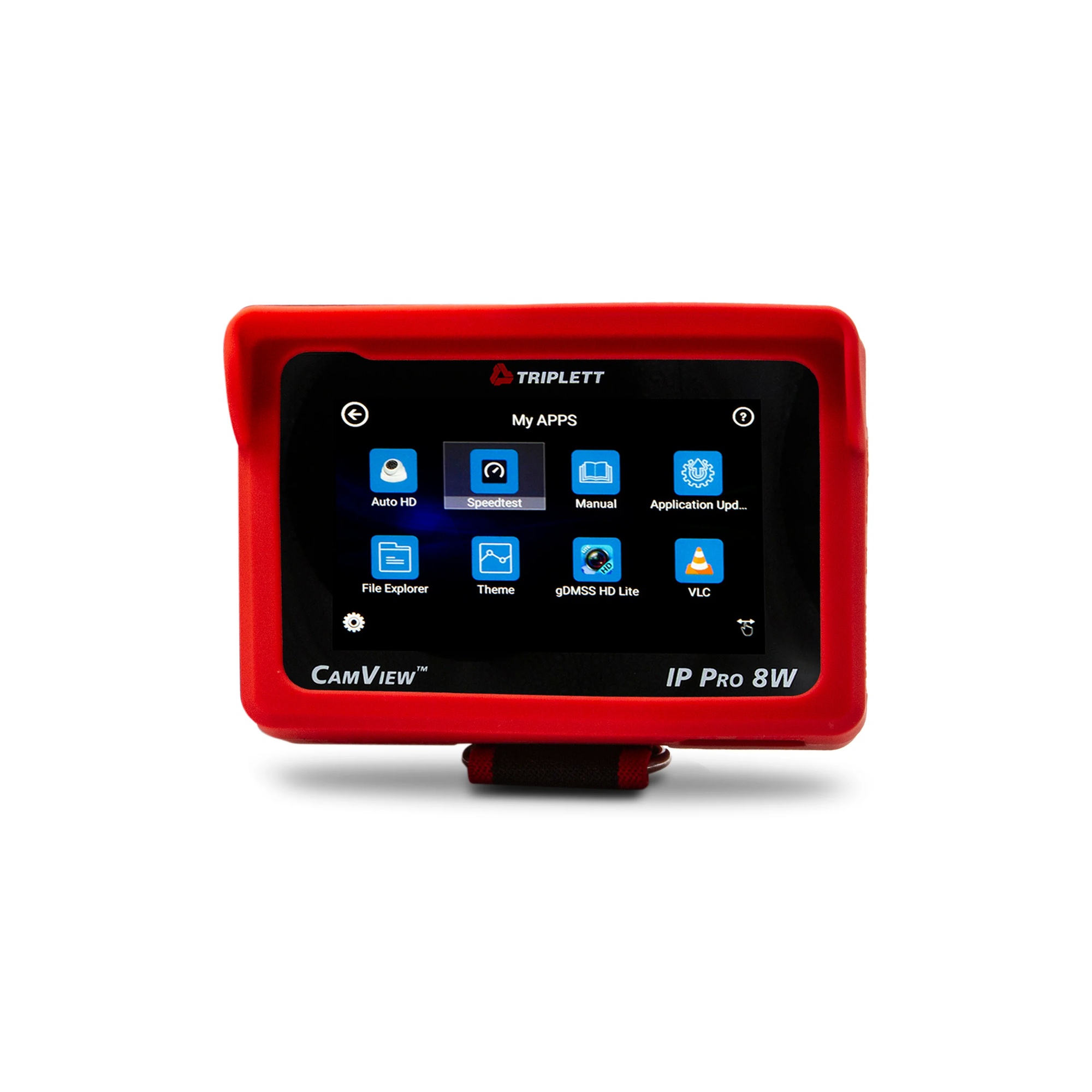

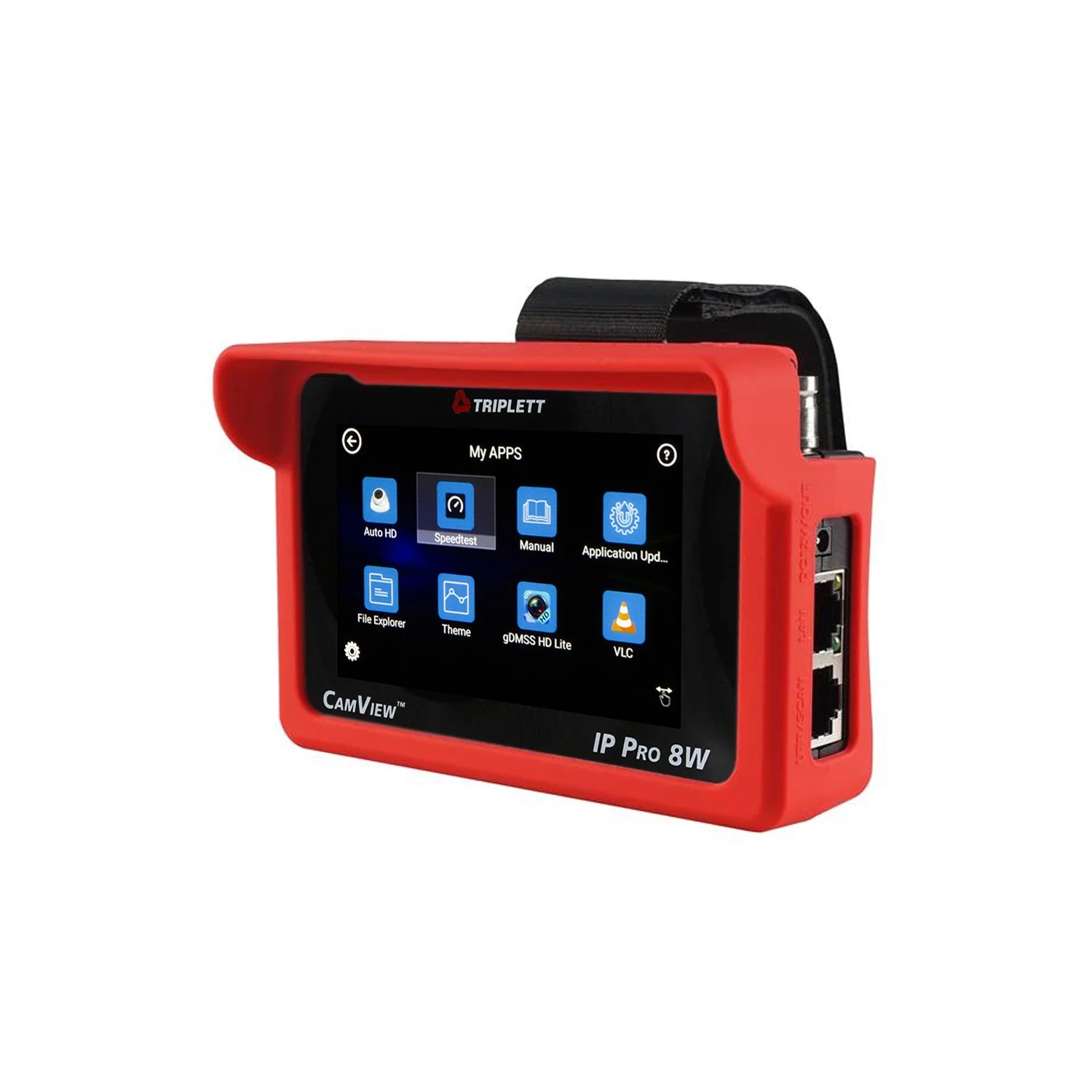

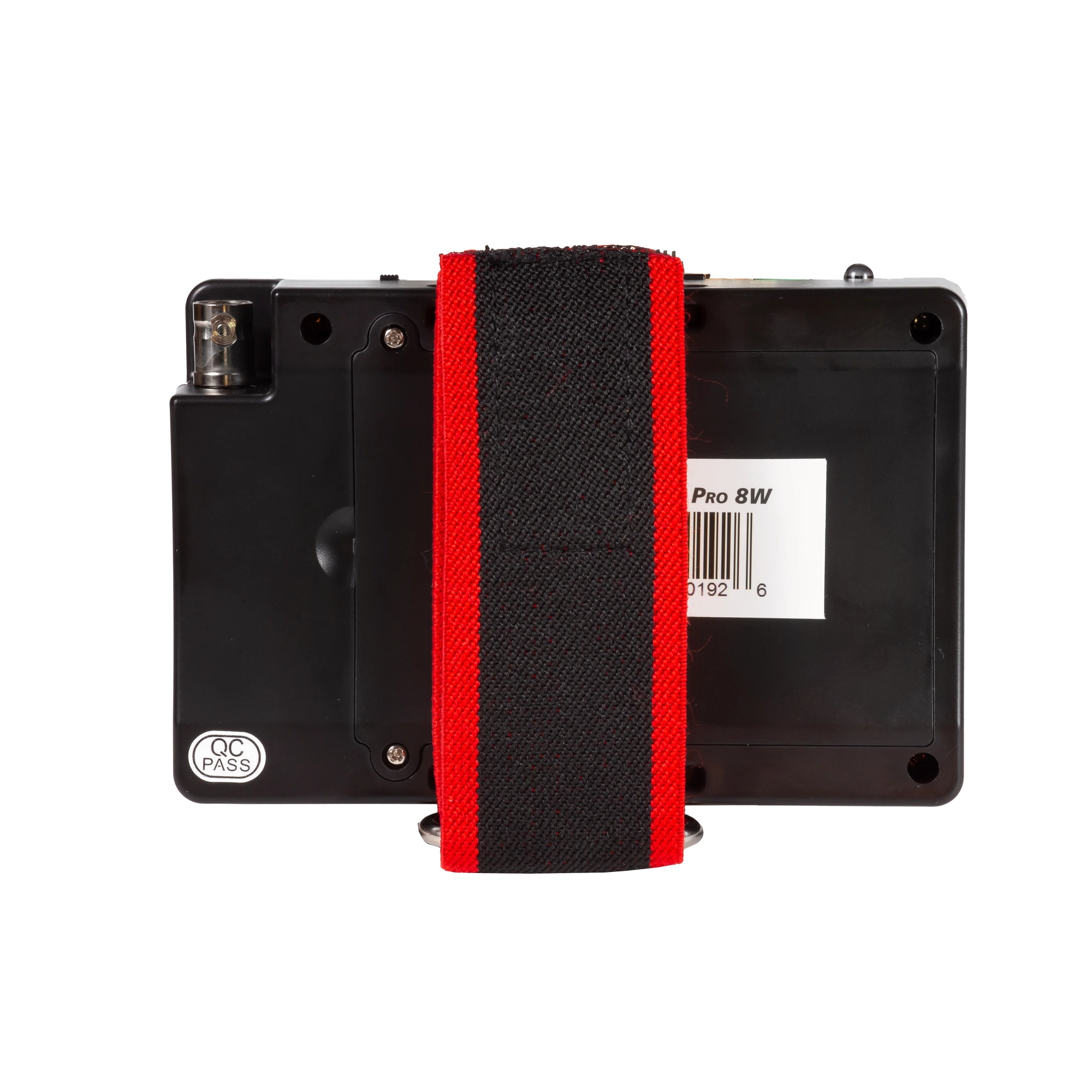

Triplett CamView IP Pro-8W Wrist Mount Camera Tester - IP & Analog, 4 in IPS Touchscreen The Triplett CamView IP Pro-8W straps to your wrist and puts a 4 in IPS touchscreen where you need it - on the ladder at the camera. It works with IP cameras (4K H.264/H.265, ONVIF), analog SD, AHD, TVI and CVI cameras. It powers the camera with 24W PoE or 12V/3A DC, controls PTZ (ONVIF and RS485, 30+ protocols), and runs network tests including ping, IP scan, port flash and link monitor, with a DHCP server, Wi-Fi speed display and hotspot, lens simulation and snapshot/video capture. Features:Works with IP (4K H.264/H.265), analog, AHD, TVI and CVI cameras4 in IPS touchscreen, 800 x 480, plus key buttonsWrist strap design keeps both hands free24W PoE output and 12V/3A DC outputONVIF PTZ and RS485 PTZ, 30+ protocols including Hikvision, Dahua and ACTiNetwork tests: ping, IP scan, port flash, link monitor, DHCP server, trace routeWi-Fi upload/download speed display and hotspotLens simulation 2.8-25mm; snapshot and video recordingAbout 8 hours of work timeIncludes:CamView IP Pro-8W testerLithium-ion batteryAC adapter/chargerBNC to BNC cableRS485 cableAudio cable12V camera power cableWrist strapCarrying caseSpecifications:Manufacturer: TriplettIPC Protocols: ONVIF, RTSP, RTPVideo Test: NTSC/PAL, HD-CVI 3.0, AHD 3.0, HD-TVI 3.0PoE Output: 48V, 24W maxDC Output: 12V/3AMemory: 3.2GB internal; microSD to 32GBDisplay: 4 in IPS touchscreen, 800 x 480Battery: lithium-ion, about 8 hoursDimensions: 5 x 3.3 x 1.3 inUPC: 614395001926Model: 8066
Related Products:
| Part # | Triplett # | Description |
|---|
| TRI-8064 | 8064 | CamView Analog Security Camera Tester |
| TRI-8071 | 8071 | CamView IP Pro+ IP & Analog Security Camera Tester |
| TRI-8075 | 8075 | CamView 7in IP Pro-X Security Camera Tester with Wifi |
| TRI-8150 | 8150 | CamView IP Pro 5 Security Camera Tester |
8066 Datasheet8066 User Manual
|
|
|
 |
|
 |
|
