Klein Digital Circuit Breaker Finder w/ GFCI

Home > Categories > Test & Measurement > Other >

Alternative Views:

TTS PRICE: $49.97

STATUS: ON ORDER

Availability:

Normally Ships Same Day

PRODUCT CODE: KLN-ET310

QUANTITY:

PRODUCT DESCRIPTION

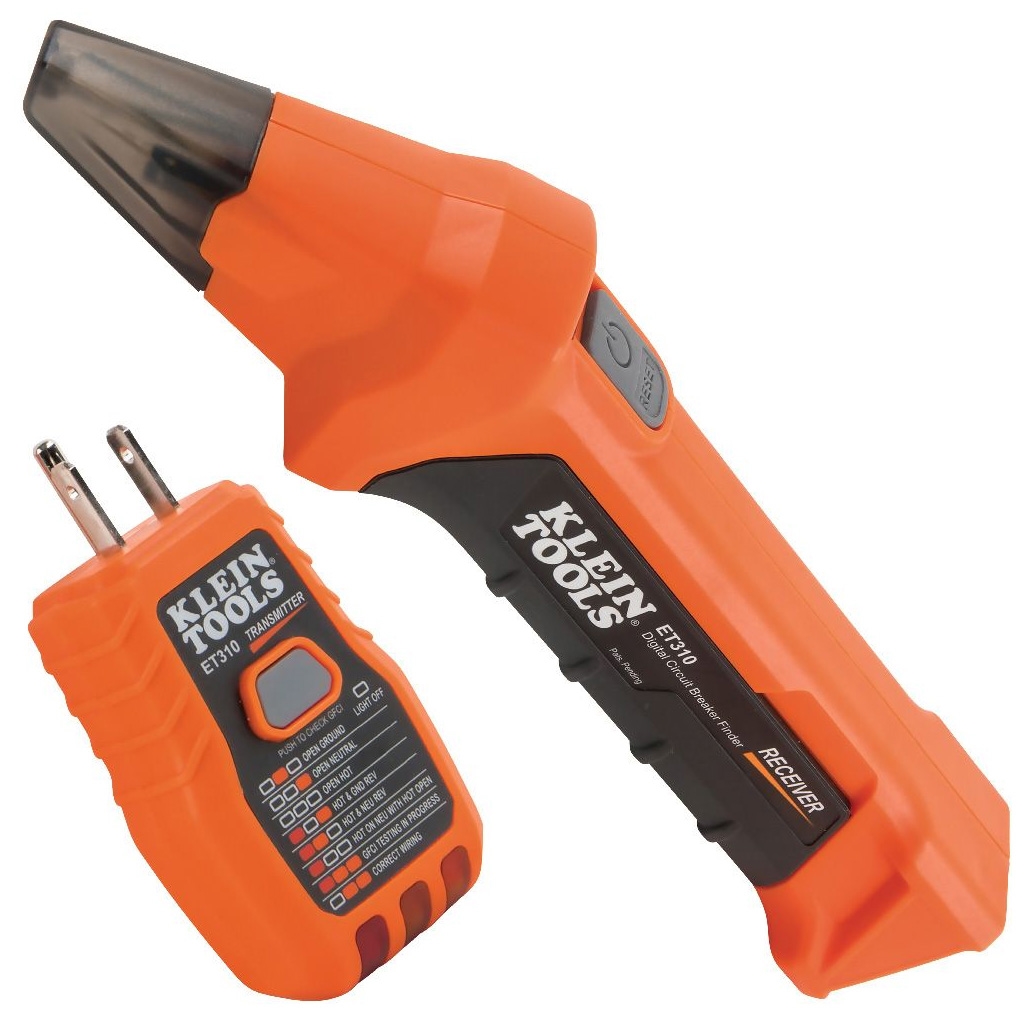

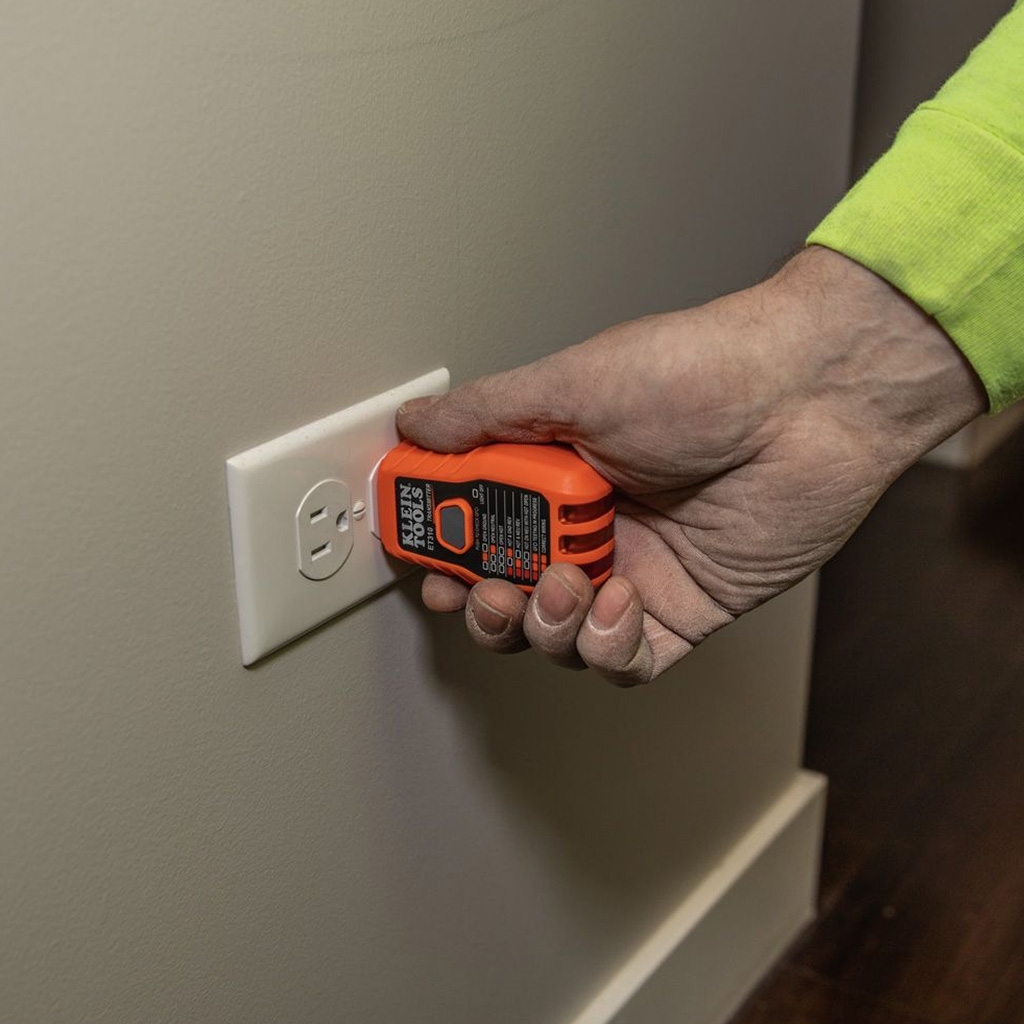

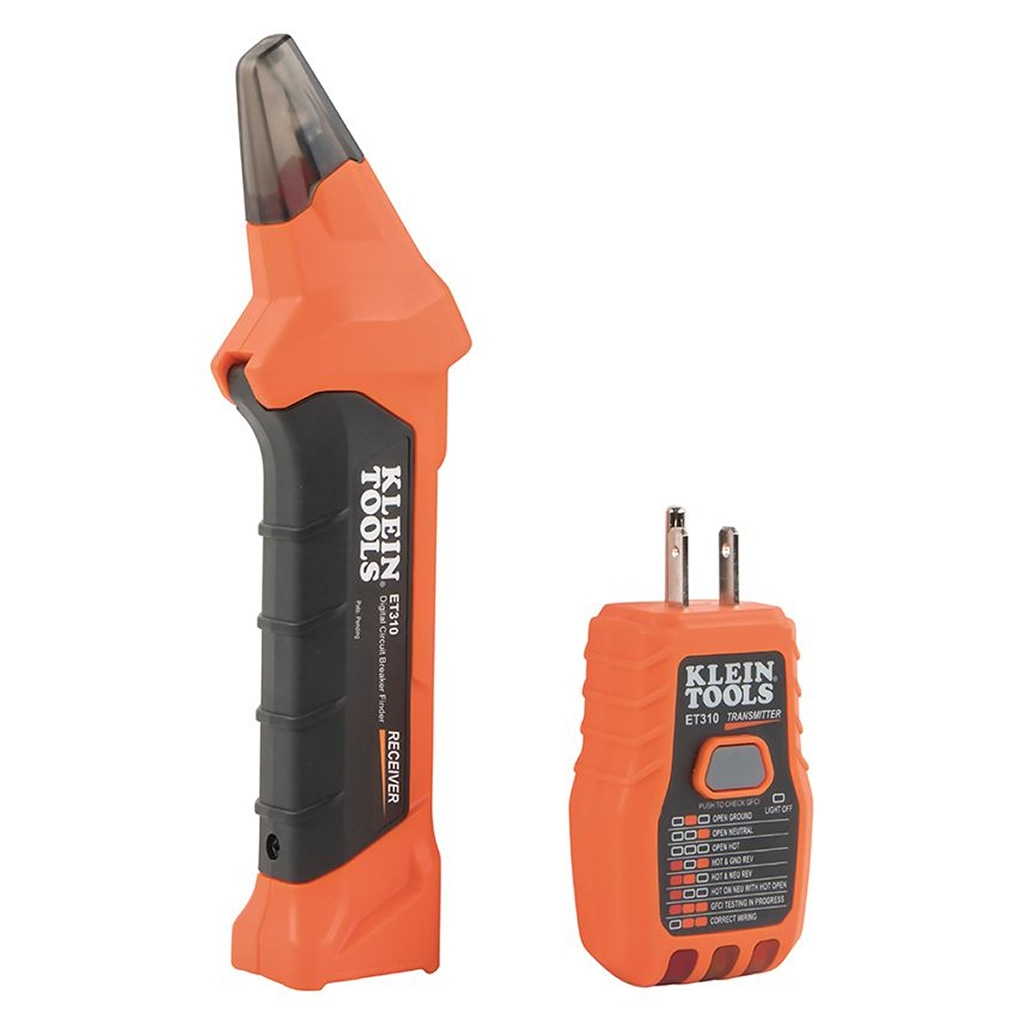

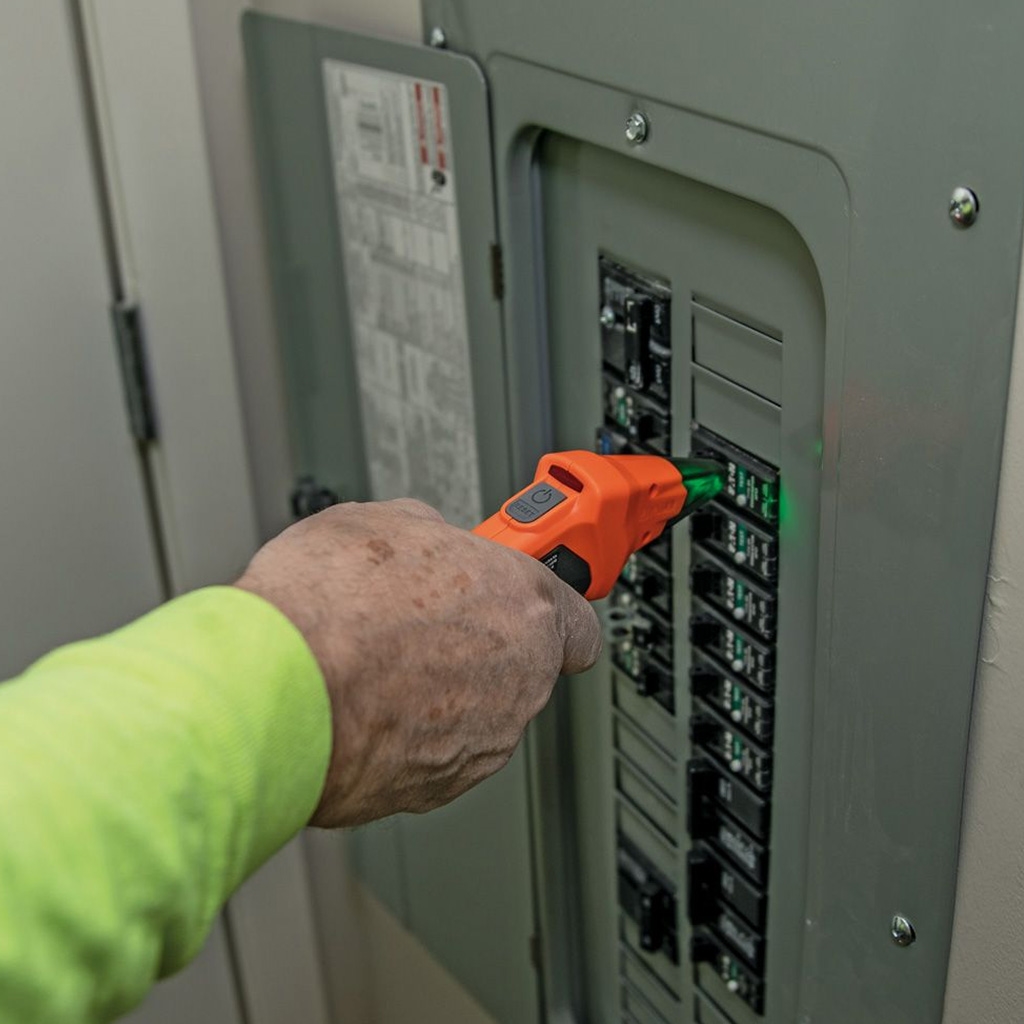

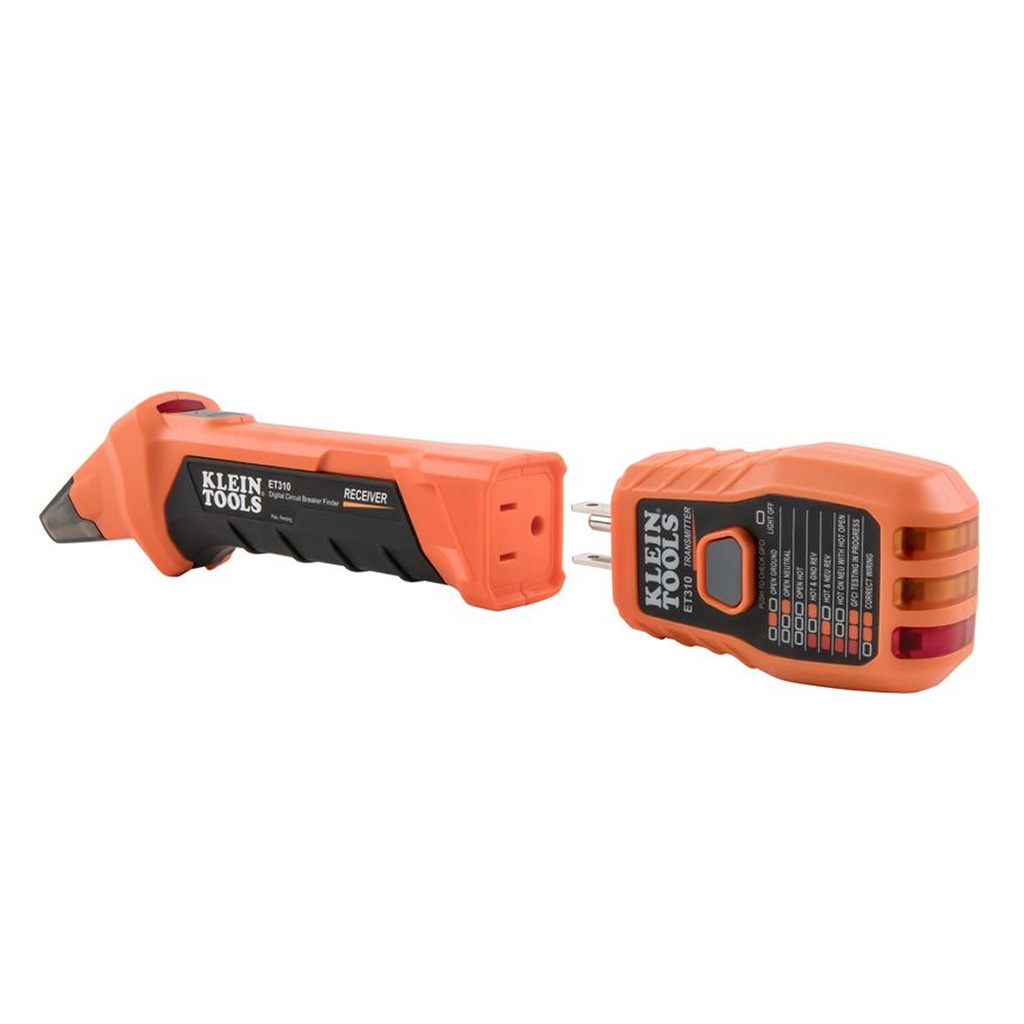

The Klein Tools ET310 Circuit Breaker Finder with Integrated GFCI Outlet Tester is a digital circuit breaker finder used to locate the correct circuit breaker in a panel to which an electrical outlet or fixture is connected. The Transmitter is connected to the electrical outlet or fixture in the circuit while the receiver is used to scan the breakers in the circuit panel. The Transmitter also features a GFCI outlet tester.

Features:

This circuit breaker finder can quickly and accurately locate the correct circuit breaker in a panel corresponding to the circuit to which an electrical outlet or fixture is connected

GFCI tester consists of two parts: a Transmitter connected to the electrical outlet or fixture, and a Receiver used to scan the panel to locate the correct breaker

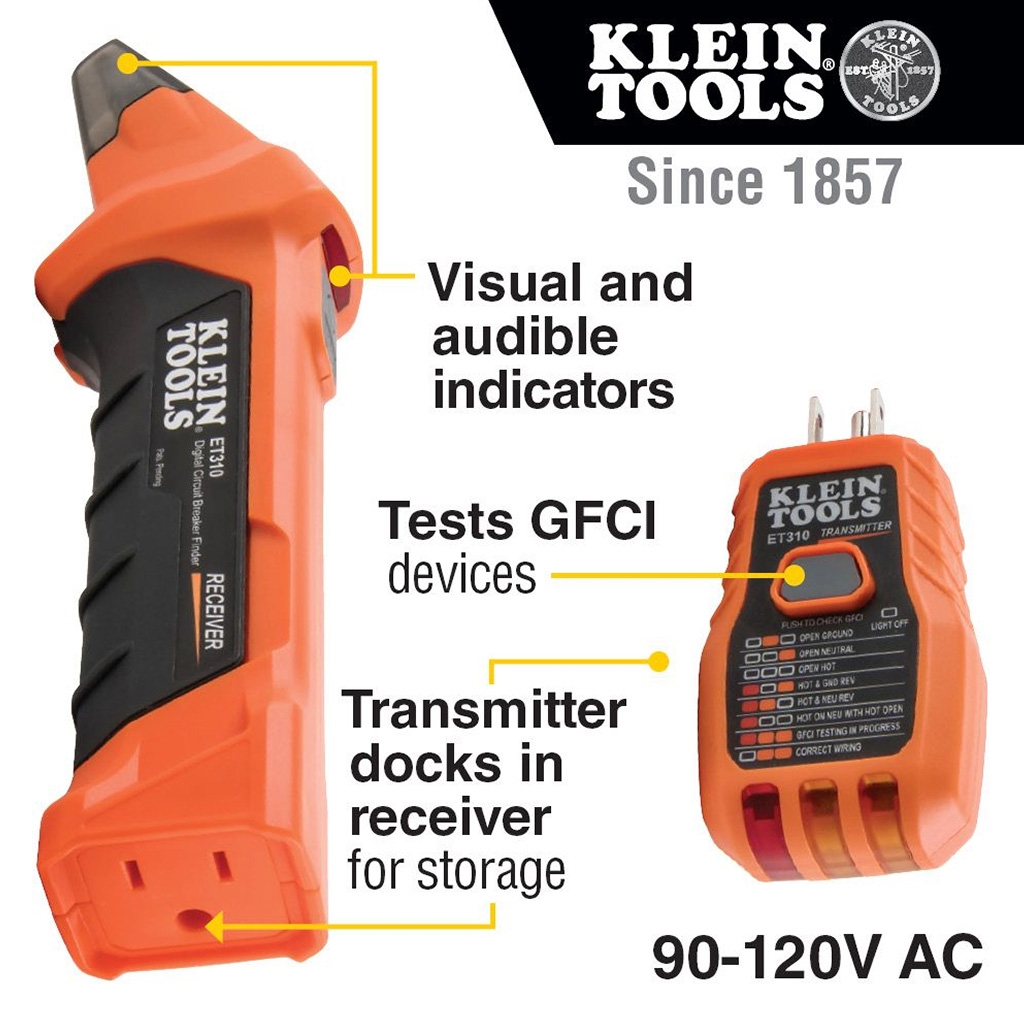

Receiver delivers clear visual and audible indications when the correct breaker has been located

Operates on 90-120V AC circuits

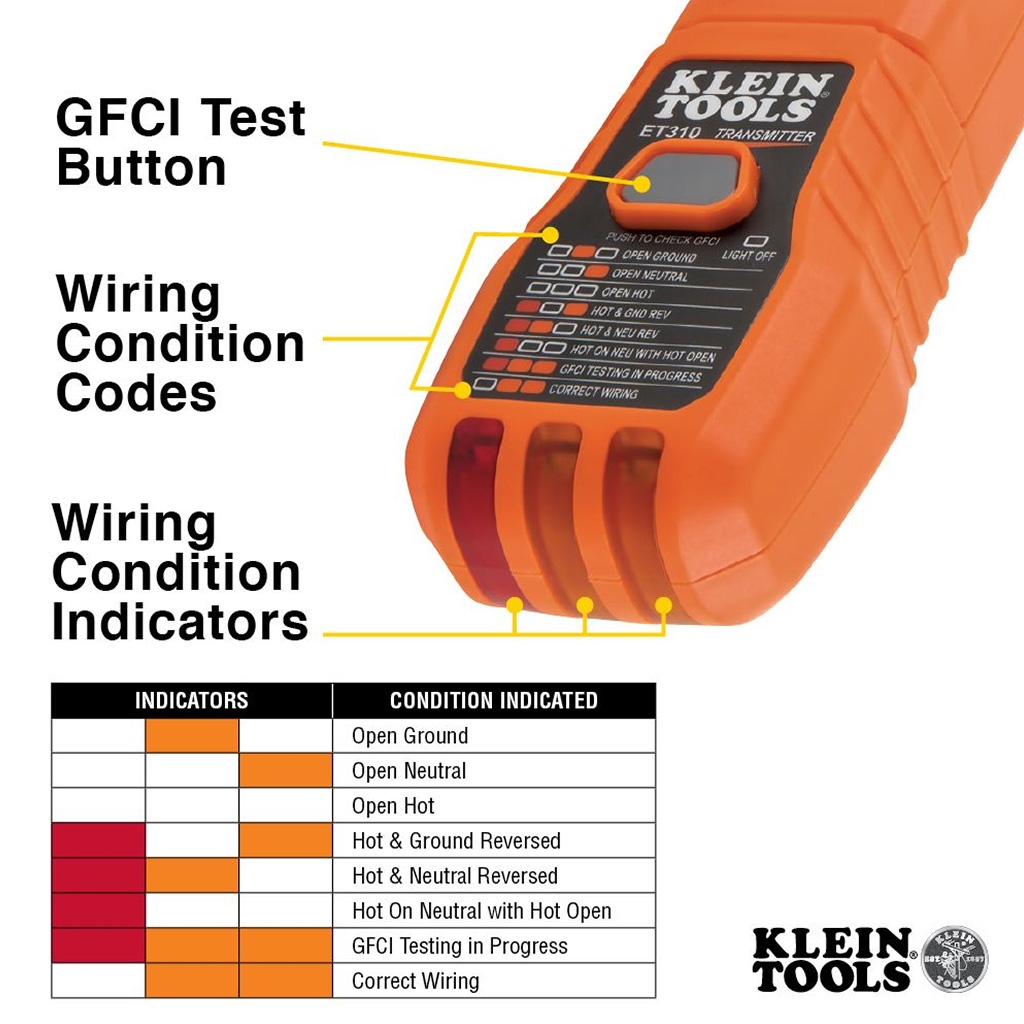

Transmitter incorporates a GFCI outlet tester to inspect the wiring condition at the electrical outlet and test GFCI devices

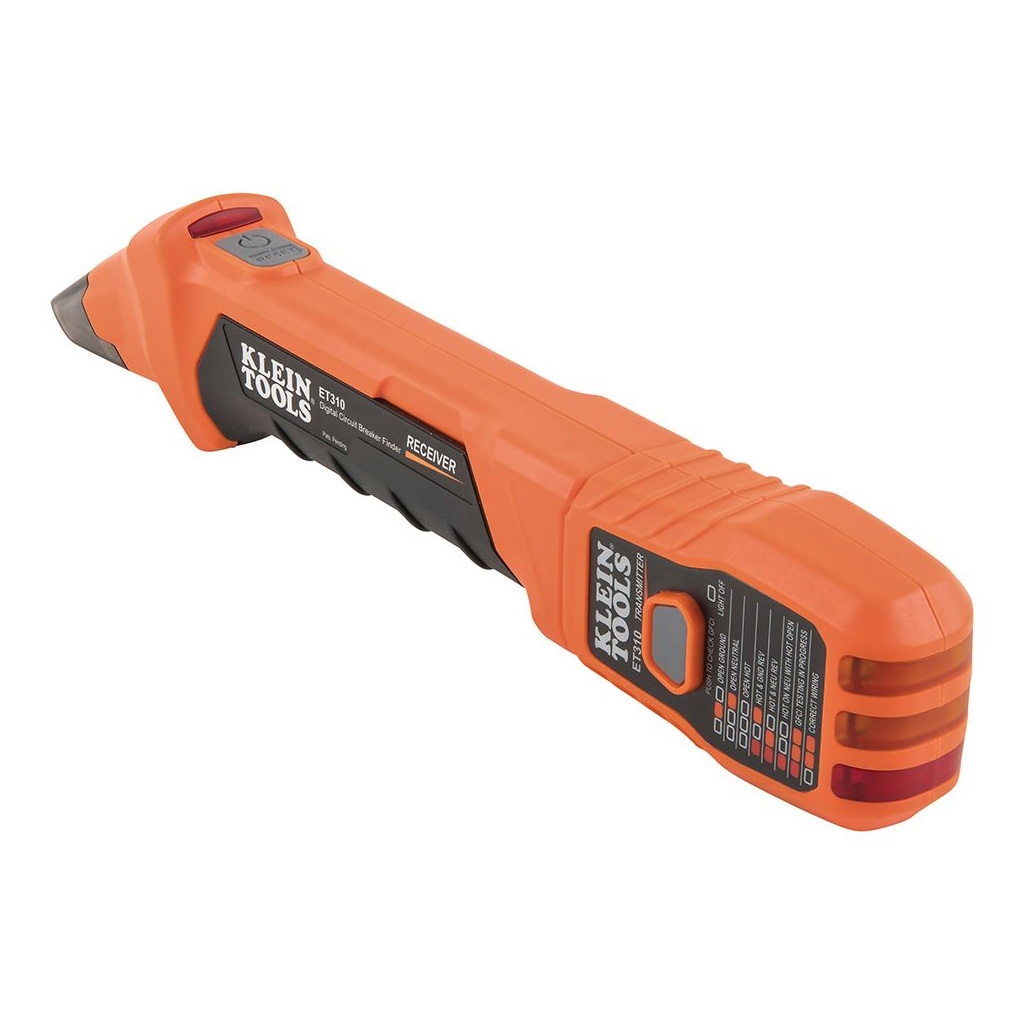

Transmitter docks in the Receiver for convenient storage as a single item when tester is not is use

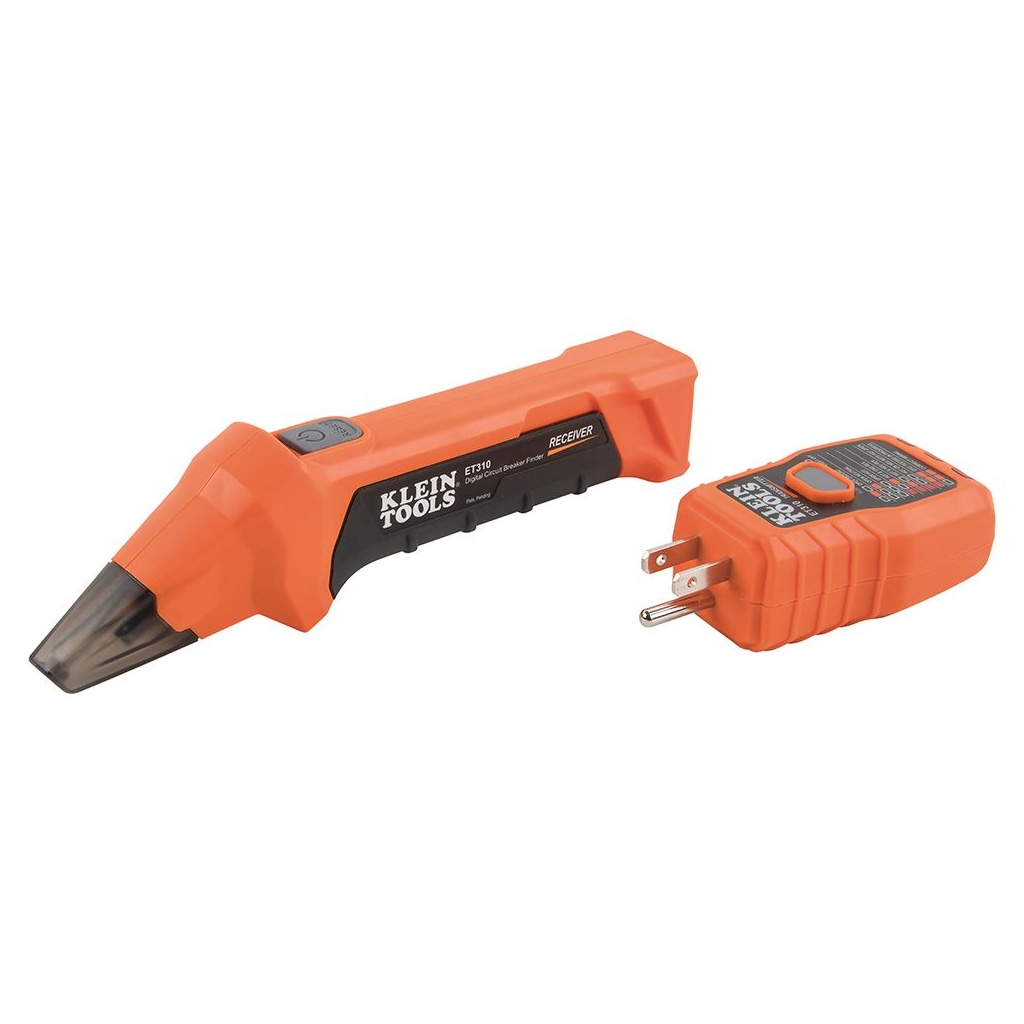

Transmitter incorporates a three-pin plug for connecting to North-American-style grounded electrical outlets

The transmitter may be connected to other electrical fixtures using optional accessories which are sold separately (Cat. No. 69411)

Receiver powers off automatically after approximately three minutes of non-use to conserve battery life

Transmitter is powered by the circuit when connected to the electrical outlet or fixture

Low battery indicator

Easily accessible battery compartment. Uses one 9V battery in receiver only; Transmitter does not require a battery

Built to withstand a 6.6-Foot (2 m) drop

CAT II 120V safety rating

Measurement Category II is applicable to test and measuring circuits connected directly to utilization points (socket outlets and similar points) of the low-voltage MAINS installation

Includes Transmitter, Receiver, user manual, and 9V battery (for Receiver)

Specifications:

Type: Electronic Tester

Application: Locate Circuit Breakers in Panel, Test GFCI Devices

Special Features: Transmitter docks in Receiver Transmitter integrated GFCI outlet tester in receiver

Overall Length: 10.96'' (27.8 cm) (With Transmitter docked in Receiver)

Overall Height: 2.16'' (5.5 cm) (With Transmitter docked in Receiver)

Overall Width: 1.39'' (3.5 cm) (With Transmitter docked in Receiver)

Material: PC & PC-ABS housing and electronic components

Batteries: 1 x 9V

Standard: CATII 120V

Included: Includes Transmitter, Receiver, user manual, and 9V battery for Receiver
