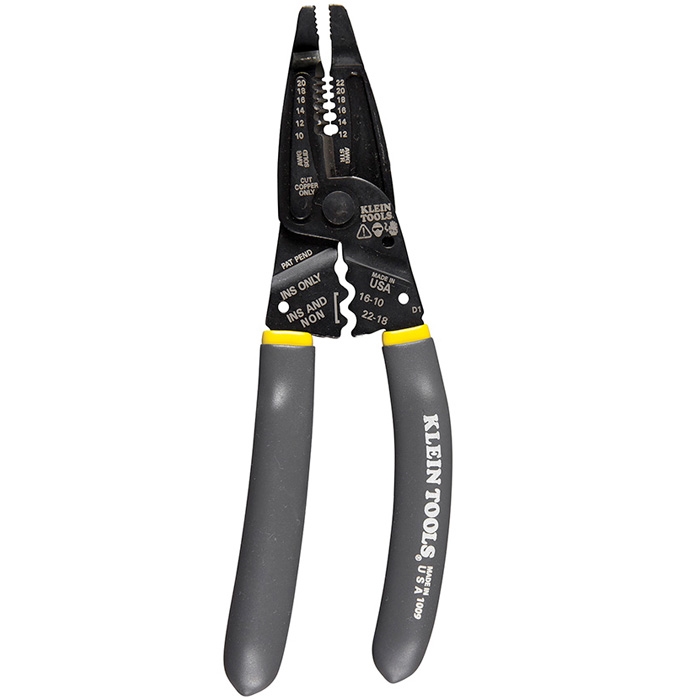

Klein Tools 1009 Klein-Kurve Long-Nose Wire Stripper/Crimper - 10-20 AWG Solid
The Klein-Kurve 1009 introduces an innovative Long-Nose Wire Stripper/Crimper to grab, pull and bend the smallest of wires. This innovative tool, ideal for both electrical and HVAC applications, makes cutting, crimping and stripping easier with optimal leverage and precision, shear-type blades.
Features:
Strips 10-20 AWG solid and 12-22 AWG stranded wire
Crimps insulated and non-insulated connectors
Tip is designed to grab, pull and bend the smallest of wires
Engineered for optimal leverage when stripping and crimping
Reinforced head design reduces flex and keeps stripping holes true to size
Precision, shear-type blades make cutting easier
Klein-Kurve handles provide comfortable grip
Made in USA
Patent US D827,403
Not designed for cutting steel wire
Specifications:
Type: Long-Nose
Application: Cuts, Strips and Crimps Wires
Special Features: Reinforced Head
Strips and Cuts: 10 - 20 AWG Solid; 12 - 22 AWG Stranded
Screw Shearing: 6-32 and 8-32
Crimping Capacity: 10 - 22 AWG (4.0 mm² - 0.34 mm²) Insulated and Non-Insulated Terminals
Cutting Capacity: 10 Solid or 12 Stranded
Jaw Capacity: 1.095" (2.8 cm)
Cutting Length: 0.5" (1.3 cm)
Overall Length: 7.75" (19.7 cm)
Handle Color: Gray/Yellow
Handle Finish: Double Dipped
Weight: 5.4 oz (153 g)
Model: 1009
Related Products:
| Part # | Klein # | Description |
|---|
| KLN-1019 | 1019 | Klein-Kurve wire stripper/crimper/cutter multi tool, 10-26 AWG solid, 4 crimpers |
