Platinum Tools 100026C EZ-RJ12/11 Pass-Through Connectors - Unshielded, 50 Pack

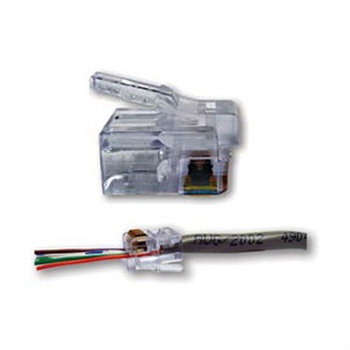

The patented EZ-RJ12/11 Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order prior to termination. Use the EZ-RJPRO Crimp Tool (P/N 100044) for single cycle crimping and trimming of the excess wire. FCC compliant and UL rated. Made in the USA.
Features:
For use in telephone & security installations
Faster, easier terminations with reduced scrap
For specialized telephone installations & communications equipment
For applications requiring custom/specific wire configurations
Works on solid or stranded wire
Standard low-profile short tab construction
Specifications:
Type: EZ-RJ12/11 Pass-Through Connector
Connector Type: RJ11/12
Shielding: Unshielded
Quantity: 50
Packaging: Retail clamshell
Material: Polycarbonate
Color: Clear
Compliance: FCC compliant, UL rated
Model: 100026C
Fits These Tools:
| Part # | Platinum # | Description |
|---|
| - | 100044 | EZ-RJPRO crimp tool - single cycle crimp and trim |
| 100004C | 100004C | EZ-RJ45 crimp tool - crimps EZ-RJ12/11 (manual trimming required) |
| PLA-100073C | 100073C | EZ-RJ12/11 die for EXO crimp frame |
