Jonard FLS-50 Optical Light Source w/ FC/SC/LC Adapters

Home > Categories > Fiber Prep & Termination > Test Equipment >

Jonard Optical Light Source w/ FC/SC/LC Adapters

Alternative Views:

TTS PRICE: $329.95

STATUS:

IN STOCK

Availability:

IN STOCK & READY TO SHIP

PRODUCT CODE: JON-FLS-50

QUANTITY:

PRODUCT DESCRIPTION

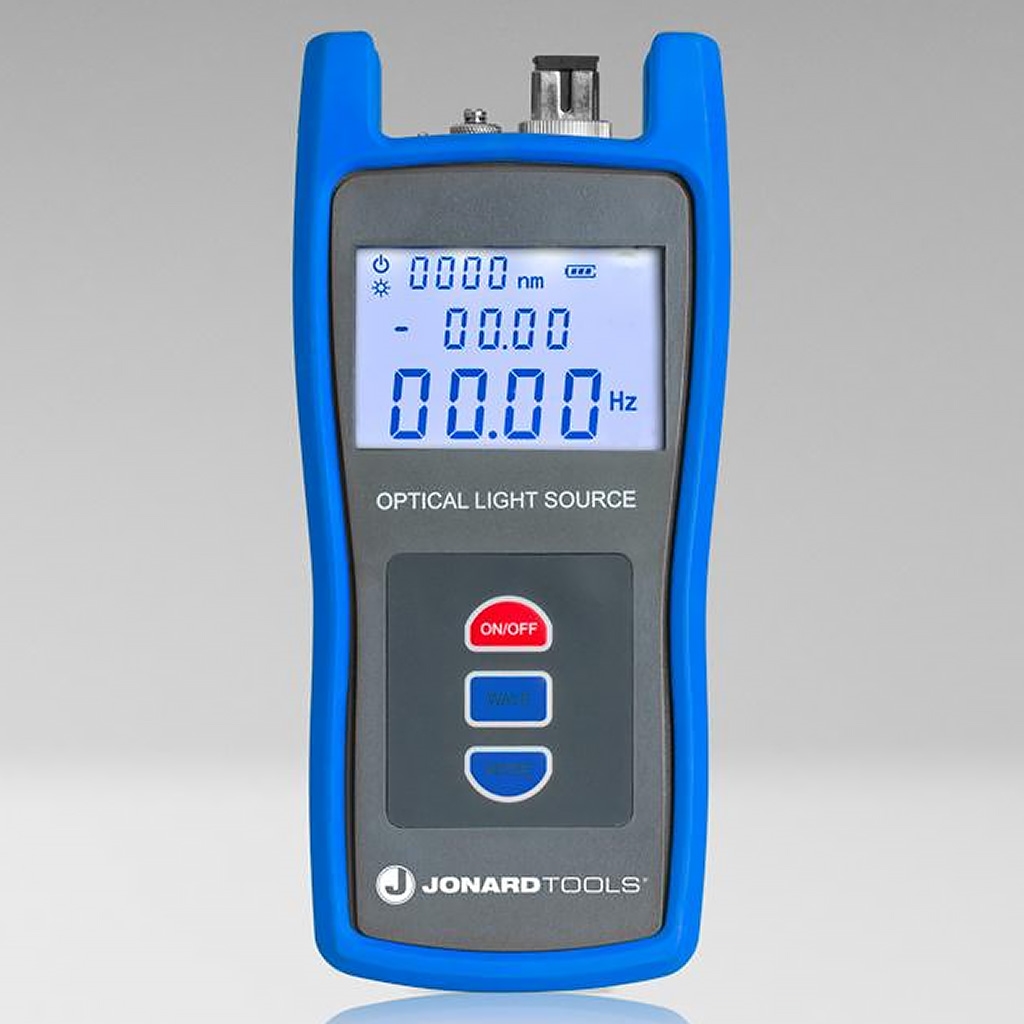

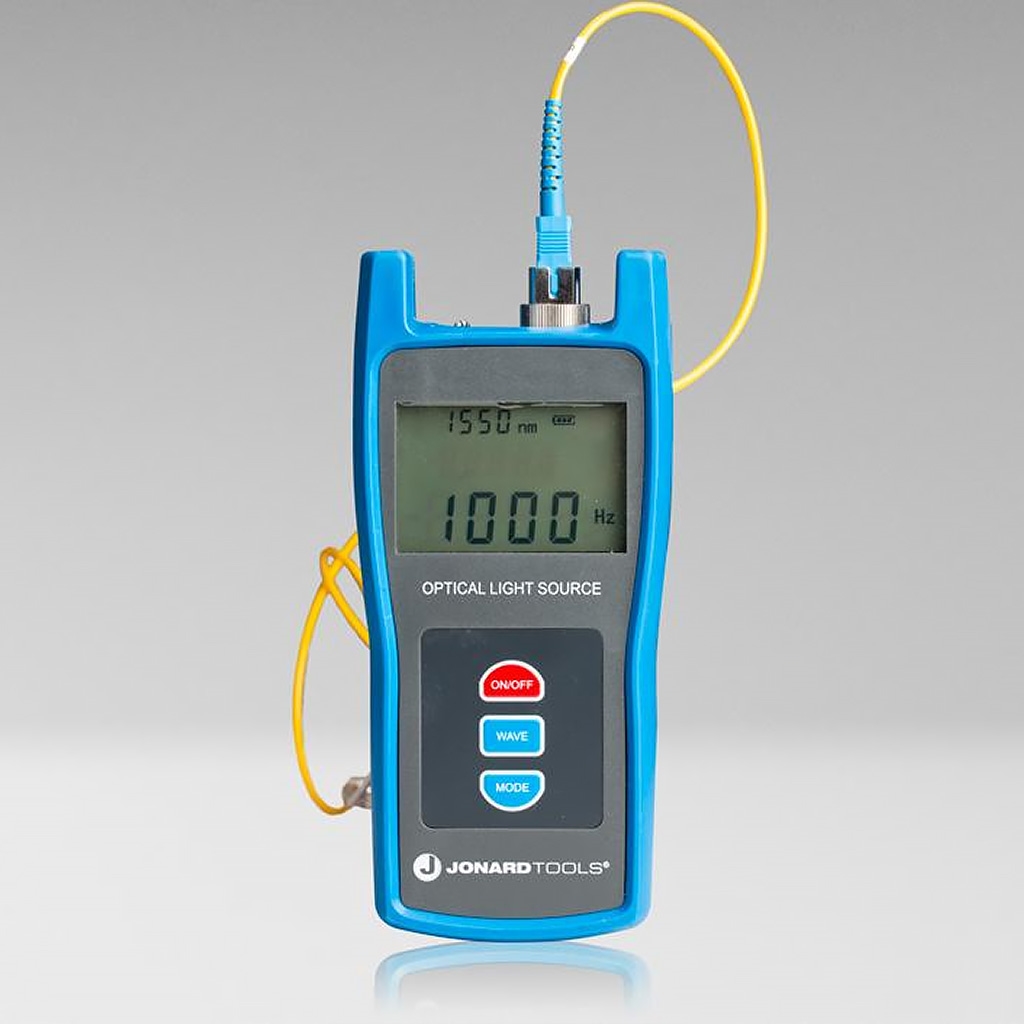

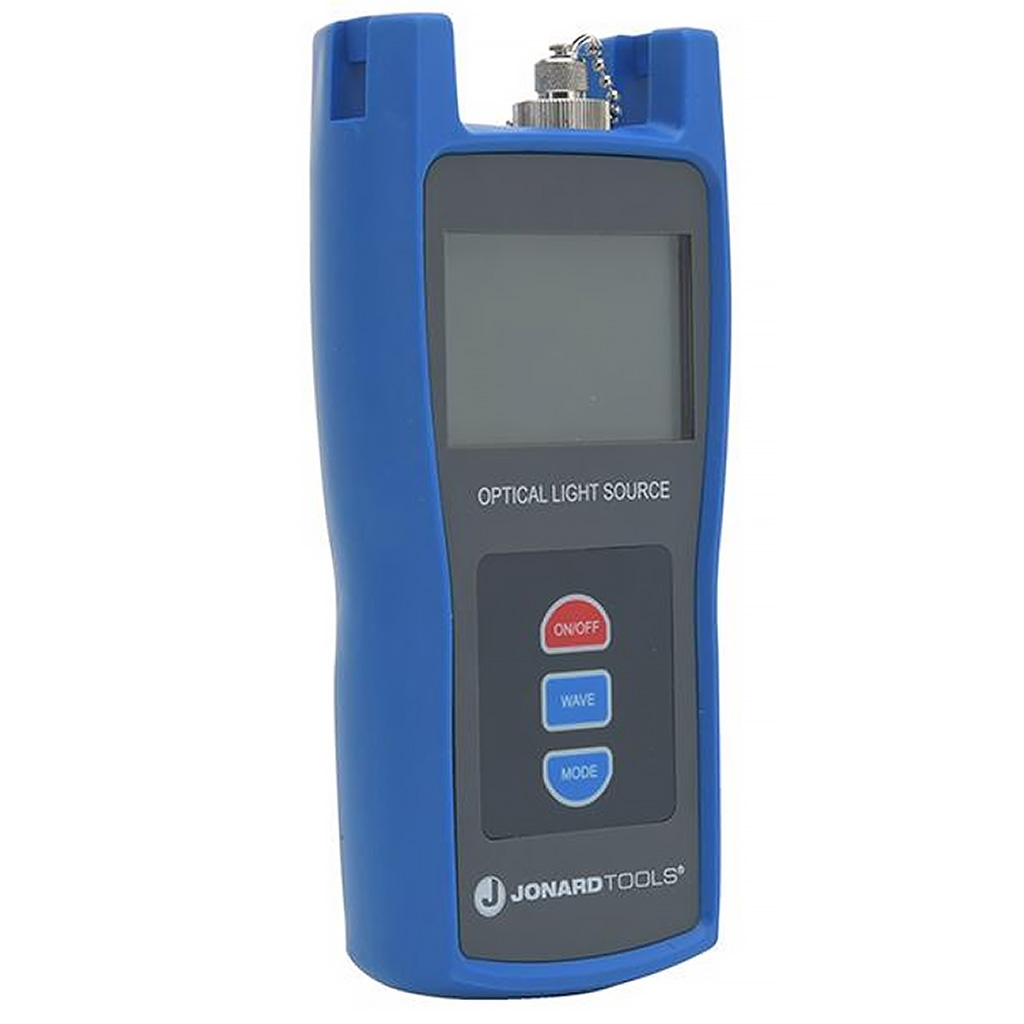

Jonard Tool's FLS-50 is designed to provide either 1310 nm or 1550 nm wavelengths, this optical light source is the perfect tool for providing a stable light source for single-mode fiber measurements.

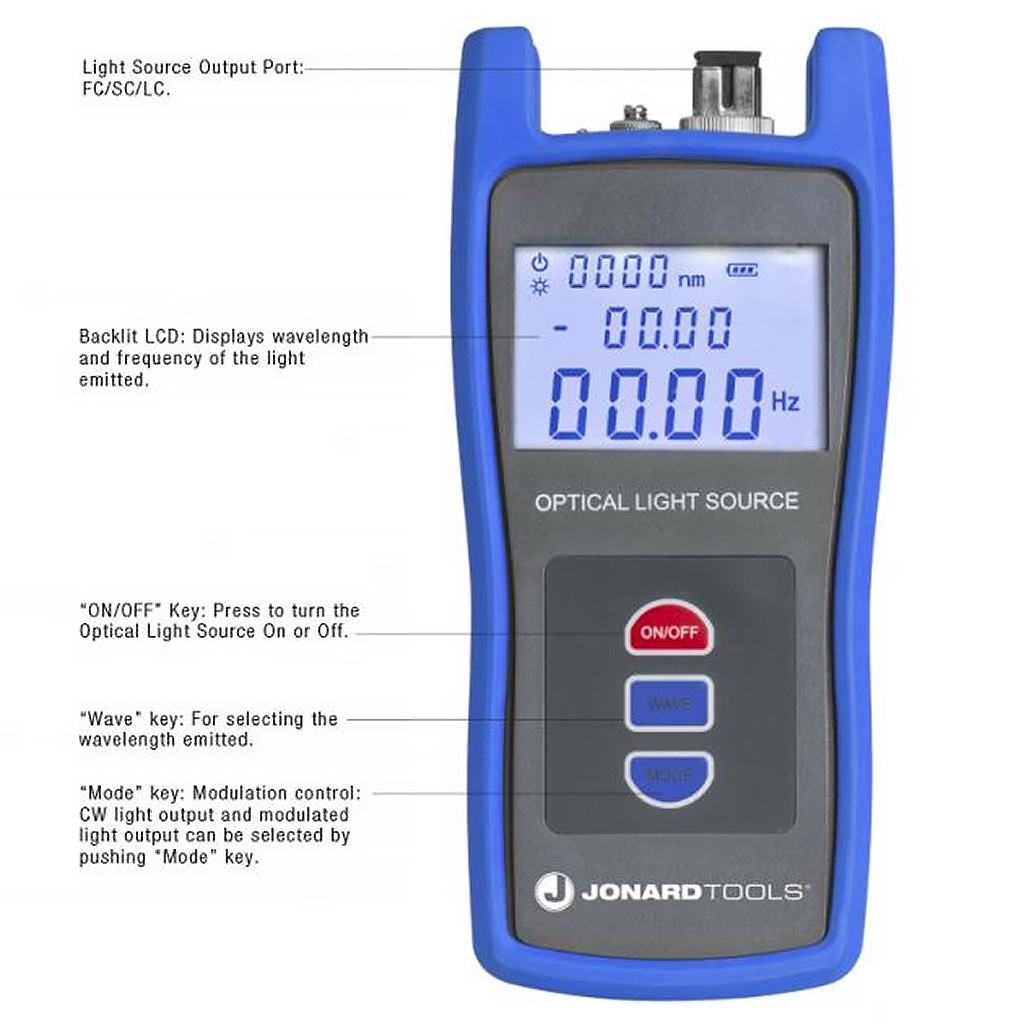

Features:

Includes FC, SC, and LC adapters to directly connect to UPC/PC FC, SC, and LC fiber connectors

Highly stable output power and wavelengths

Has four different modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz) at 1310 N-m and 1550 nm wavelengths

Flush button design makes it easy to use and prevents dust from entering the unit

Shatter-resistant sleeve protects the light source from falls or other damage

Backlit LCD screen provides a clear display, ideal for dark places

Specifications:

Connector Types: 1.25 mm LC and 2.5 mm FC/SC

Wavelengths (nm): 1310, 1550

Typical Output Power: -7 dBm

Output Stability: ± 0.05 dB / 15 min or ± 0.1 dB / 8 hr

Operating Temperature: -10 ± 60°C

Spectral Width: ≤ 10 nm

Modulation Frequencies: CW / 270 Hz / 1 kHz / 2 kHz

Battery Type: (3) AA 1.5V alkaline batteries

Storage Temperature: -25 ± 70°C

Dimensions: 7" x 3 3/16" x 1 1/4" (17.78 cm x 8.10 cm x 3.18 cm)

Weight: 0.902 lb (409 g)

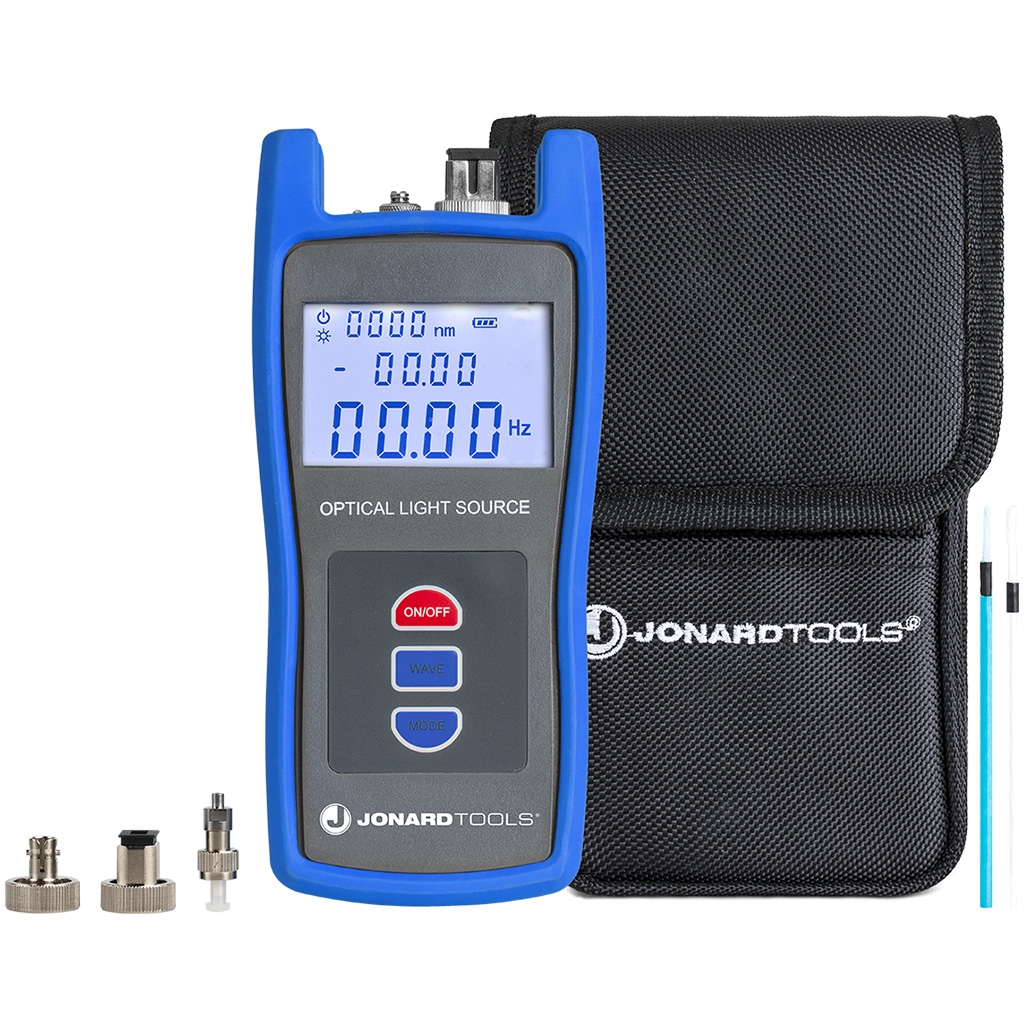

Included:

Fiber Optic Light Source

FC Adapter

LC Adapter

SC Adapter

2 - Cleaning Swabs

3 - AA Batteries (required for operation)

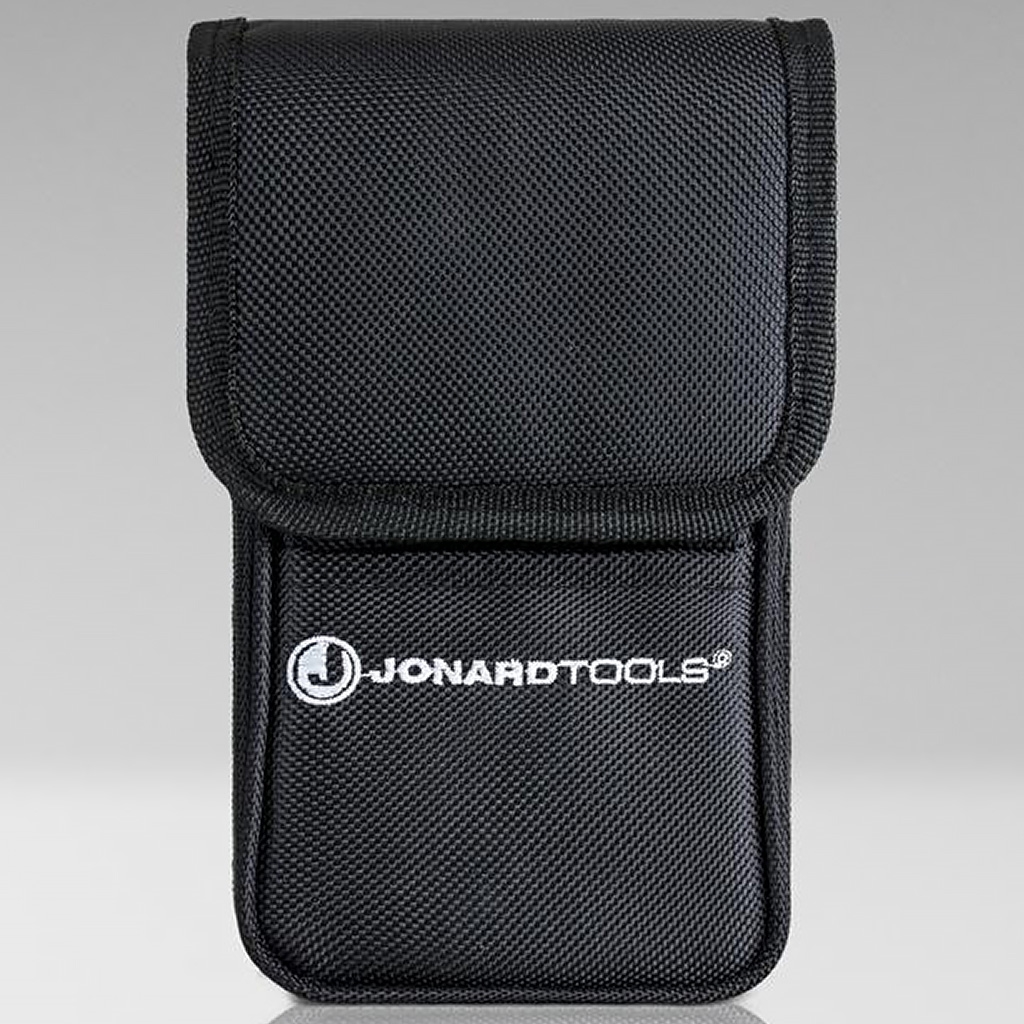

Storage Pouch

Jonards FLS-50 User Manual
