Platinum Tools ezEX-44 Shielded CAT6 Connects - Bag of 100

Platinum Tools ezEX-44 Shielded CAT6 Connects - Bag of 100


Alternative Views:
TTS PRICE: $199.18


STATUS: ON ORDER

Free Shipping

Availability:
SHIP ESTIMATE 6-8 DAYS

PRODUCT CODE: PLA-105027
QUANTITY:

PRODUCT DESCRIPTION

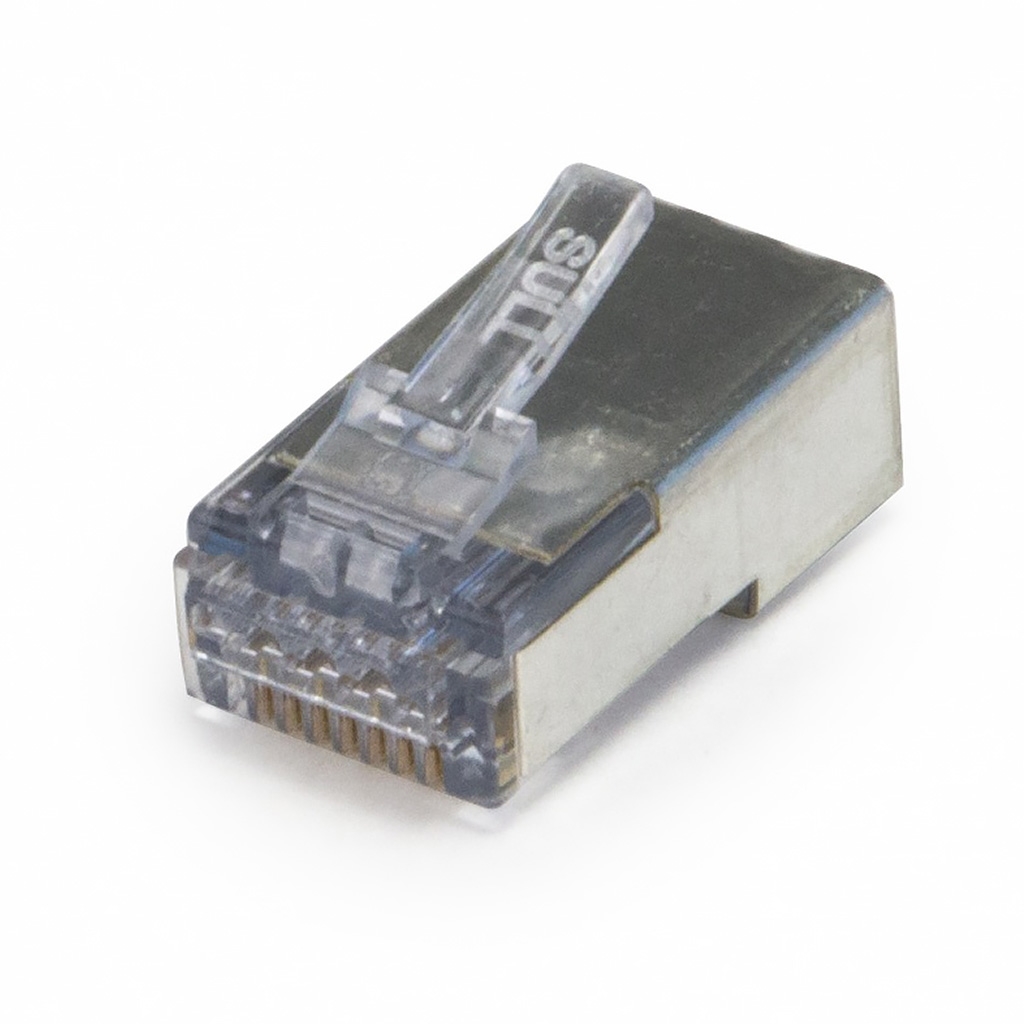

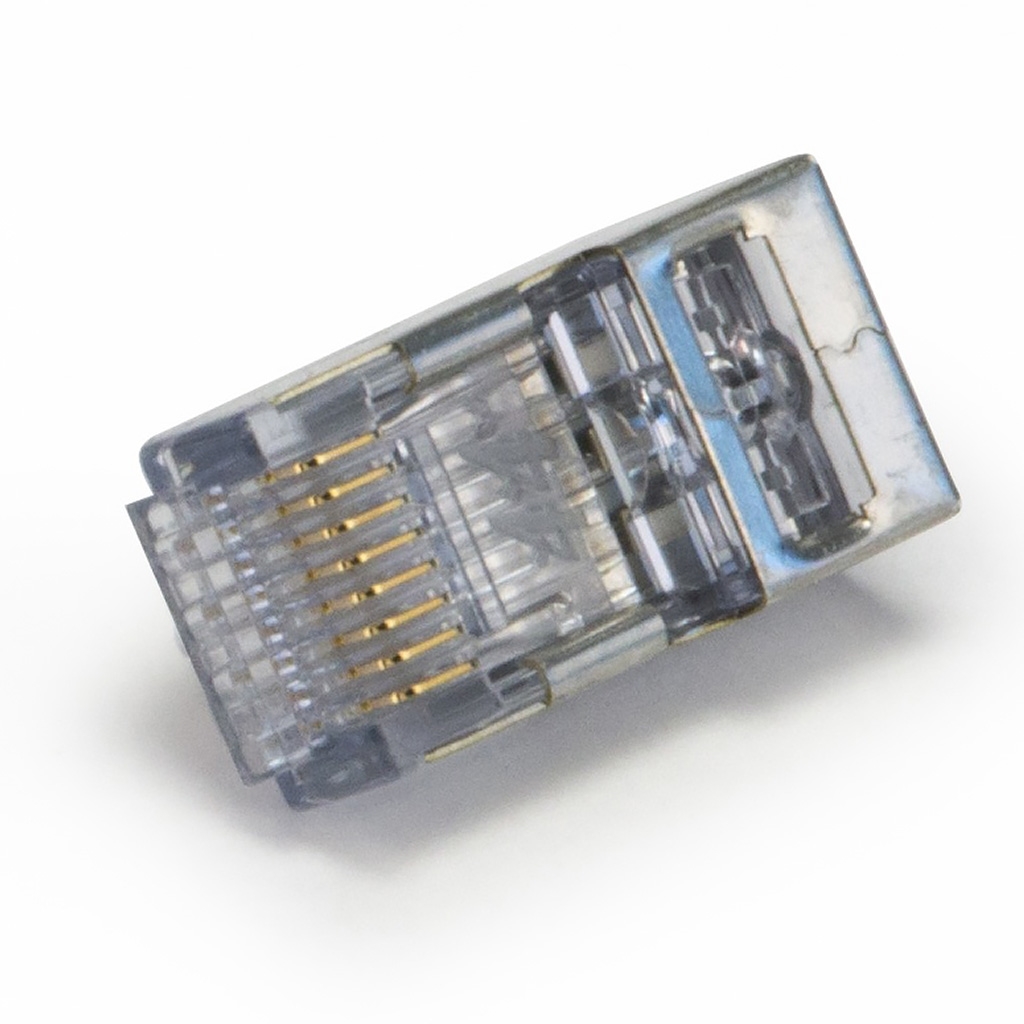

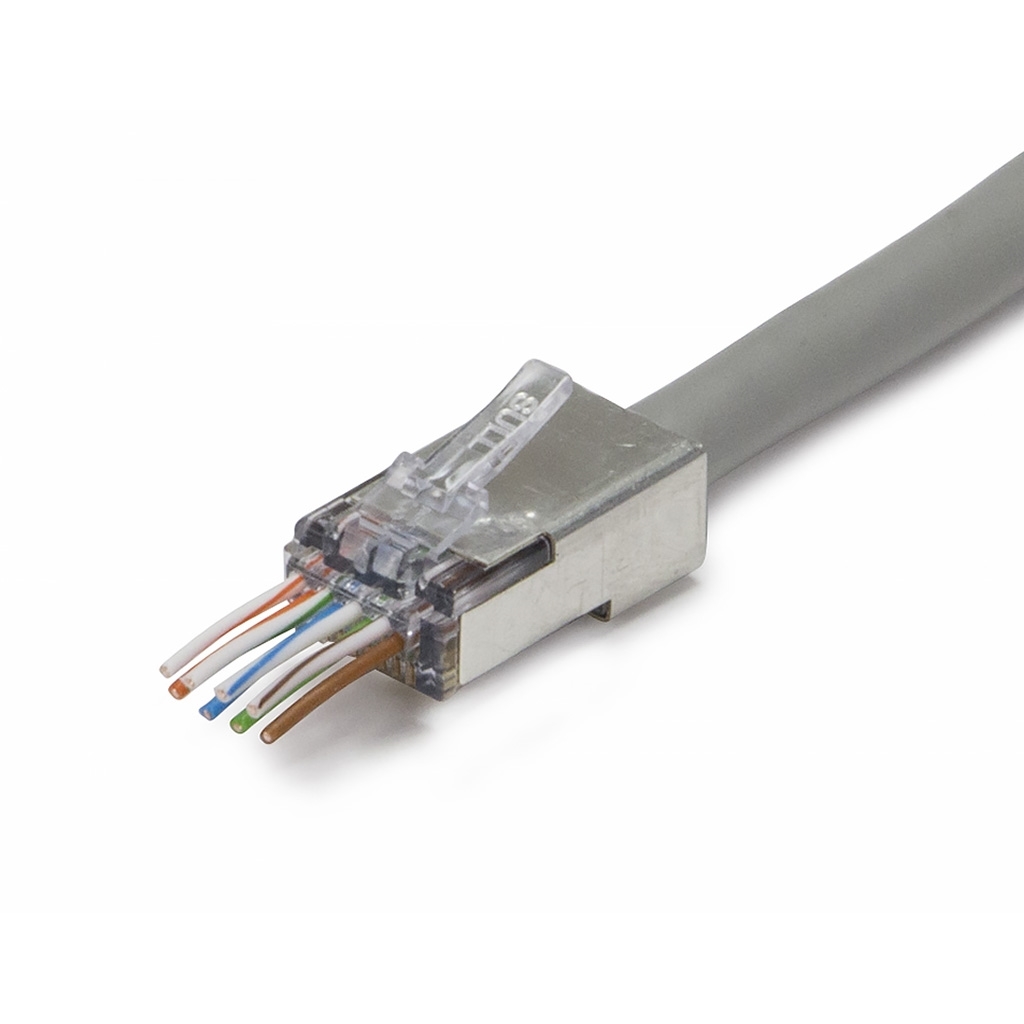

The 105027 shielded, patented ezEX-RJ45 connector from Platinum Tools is designed for larger cables and conductors. They feature a unique integrated Hi-Lo stagger load bar and allow ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating.

This connector is typically used with Cat6/6A and can only be terminated with the EXO Crimp Frame and EXO-EX Die (100061C), found here: Platinum Tools EXO Crimp Frame w/ EXO-EX Die.

Features:
  • Hi-Lo stagger to isolate each conductor
  • Simple one piece/pass through design, no bars or liners
  • Shielded 5e/6/6A complaint
  • 50 micron gold plated contacts
  • Made in the USA
  • US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents

    • Specifications:
  • Quantity: 100
  • Insulation Diameter (Conductor) - Size range: 0.039” – 0.044” (1.0 –1.12mm)
  • Max Outer Diameter: 0.280” (7.1mm)
  • Solid or Stranded: 24-22 AWG
  • Compliance: TAA, TIA, RoHS, UL & FCC

    •

    Like this product? Share your thoughts with our other customers! Be the first to write a review
