Ripley 12340-3 WS 22A Power-Driven Cable End Stripper, 1/2in Square Drive

Home > Categories > Utility & MV Cable Prep > Cable End Strippers > UtilityTool WS 22 Strippers & Bushings >

UtilityTool by Ripley Tools WS 22A Power-Driven Cable End Stripper, 1/2in Square Drive - 600V Secondary Cable, 1/0 AWG to 1000 kcmil (12340-3)

TTS PRICE: $169.99

STATUS: ON ORDER

Availability:

SHIP ESTIMATE 9-11 DAYS

PRODUCT CODE: UTIL-12340-3

QUANTITY:

PRODUCT DESCRIPTION

The UtilityTool WS 22A is a power-driven end stripper for 600 volt secondary cable, 1/0 AWG to 1000 kcmil.
This 12340-3 model has a 1/2in square drive. The guarded blade and adjustable strip stop with viewing window set strip lengths from 1in to 5in (25.4-127 mm).

Tool body only - order two WS 22 square-cut bushings sized to your cable.
Other drives are in the chart below. Replacement blade: R12302.

Features:

Power-driven end stripping for 600 V secondary cable, 1/0 AWG to 1000 kcmil

1/2in square drive

Guarded blade for safety

Adjustable strip stop with window, 1-5in (25.4-127 mm)

Concentric, compressed and compacted conductors

Uses WS 22 square-cut bushings (two required, sold separately)

Specifications:

Model: Ripley UtilityTool 12340-3

Drive: 1/2in square

Item Type: Tool body only

Length: 7.44in (189 mm)

Weight: 15 oz (426 g)

Strip Length: 1-5in (25.4-127 mm)

Max Voltage: 600 V

Available Models:

Part #	Model	Ripley #	Drive	Strip Length	Quick-Connect Collar
RIP-12340	WS 22A	R12340	3/8in drill	1-5in (25.4-127 mm)	No
UTIL-12340-1	WS 22A	12340-1	1/4in hex	1-5in (25.4-127 mm)	No
RIP-12340-2	WS 22A	12340-2	3/8in square	1-5in (25.4-127 mm)	No
UTIL-12340-3	WS 22A (this item)	12340-3	1/2in square	1-5in (25.4-127 mm)	No
RIP-40130	WS 22 SNAP	40130	3/8in drill	1.5-5.25in (38.1-133.4 mm)	Yes

Replacement Parts:

Part #	Ripley #	Description
UTIL-R12302	R12302	Replacement blade (in bushings)

Compatible Bushings:

Part #	Ripley #	Description
RIP-15-70075	15-70075	0.690" max OD, 95 mils - Concentric 3/0 AWG, Compacted 4/0 AWG
RIP-15-75075	15-75075	0.740" max OD, 95 mils - Compressed 4/0 AWG, Concentric 4/0 AWG, Compacted 250 kcmil
UTIL-15-77560	15-77560	0.765" max OD, 80 mils - Concentric 250 kcmil
UTIL-15-87590	15-87590	0.865" max OD, 110 mils - Compacted 350 kcmil
RIP-15-90090	15-90090	0.890" max OD, 110 mils
UTIL-15-100060	15-100060	0.990" max OD, 80 mils - Concentric 500 kcmil
RIP-15-102595	15-102595	1.015" max OD, 95 mils
RIP-15-105090	15-105090	1.040" max OD, 110 mils - Compressed 500 kcmil
UTIL-15-107560	15-107560	1.065" max OD, 80 mils - Concentric 600 kcmil, Compressed 600 kcmil, Compacted 700 kcmil
UTIL-15-110090	15-110090	1.090" max OD, 110 mils - Compacted 600 kcmil
UTIL-15-112590	15-112590	1.115" max OD, 110 mils - Compressed 600 kcmil
UTIL-15-1150110	15-1150110	1.140" max OD, 110 mils
UTIL-15-115075	15-115075	1.140" max OD, 95 mils - Compacted 750 kcmil
UTIL-15-117560	15-117560	1.165" max OD, 80 mils - Concentric 700 kcmil, Compressed 750 kcmil
UTIL-15-120060	15-120060	1.190" max OD, 80 mils - Concentric 750 kcmil, Compressed 800 kcmil, Compacted 900 kcmil
UTIL-15-120090	15-120090	1.190" max OD, 110 mils - Compressed 700 kcmil, Compacted 800 kcmil
RIP-15-122590	15-122590	110 mils - Concentric 700 kcmil, Compressed 750 kcmil
UTIL-15-135060	15-135060	1.340" max OD, 80 mils - Concentric 1000 kcmil
UTIL-15-140090	15-140090	1.390" max OD, 110 mils - Concentric 1000 kcmil

PV Wire Bushings (US08):

Part #	Ripley #	Description
UTIL-US08-32560	US08-32560	US08 square-cut bushing - #8 AWG 2kV aluminum PV wire
UTIL-US08-35560	US08-35560	US08 square-cut bushing - #6 AWG 2kV aluminum PV wire
UTIL-US08-40560	US08-40560	US08 square-cut bushing - #4 AWG 2kV aluminum PV wire
UTIL-US08-46060	US08-46060	US08 square-cut bushing - #2 AWG 2kV aluminum PV wire
UTIL-US08-54075	US08-54075	US08 square-cut bushing - #1 AWG 2kV aluminum PV wire
UTIL-US08-57075	US08-57075	US08 square-cut bushing - 1/0 AWG 2kV aluminum PV wire
UTIL-US08-61575	US08-61575	US08 square-cut bushing - 2/0 AWG 2kV aluminum PV wire
RIP-US08-73075	US08-73075	US08 square-cut bushing - 4/0 AWG 2kV aluminum PV wire
UTIL-US08-79090	US08-79090	US08 square-cut bushing - 250 kcmil 2kV aluminum PV wire
UTIL-US08-84090	US08-84090	US08 square-cut bushing - 300 kcmil 2kV aluminum PV wire
RIP-US08-90090	US08-90090	US08 square-cut bushing - 350 kcmil 2kV aluminum PV wire
UTIL-US08-94090	US08-94090	US08 square-cut bushing - 400 kcmil 2kV aluminum PV wire
RIP-US08-102595	US08-102595	US08 square-cut bushing - 500 kcmil 2kV aluminum PV wire
RIP-US08-1150110	US08-1150110	US08 square-cut bushing - 600 kcmil 2kV aluminum PV wire
RIP-US08-1215105	US08-1215105	US08 square-cut bushing - 750 kcmil 2kV aluminum PV wire
UTIL-US08-1350125	US08-1350125	US08 square-cut bushing - 900 kcmil 2kV aluminum PV wire
RIP-US08-1380105	US08-1380105	US08 square-cut bushing - 1000 kcmil 2kV aluminum PV wire

Like this product? Share your thoughts with our other customers! Be the first to write a review

Browse for more products in the same category as this item:

Categories > Utility & MV Cable Prep > Cable End Strippers > UtilityTool WS 22 Strippers & Bushings
Categories > Utility & MV Cable Prep > Cable End Strippers
Categories > Utility & MV Cable Prep
Categories

	UtilityTool by Ripley Tools US01 w/ Stop Bar Adjustable Mid-Span & End Cable Stripper, 0.5-2.5in, 600V-35kV $930.99

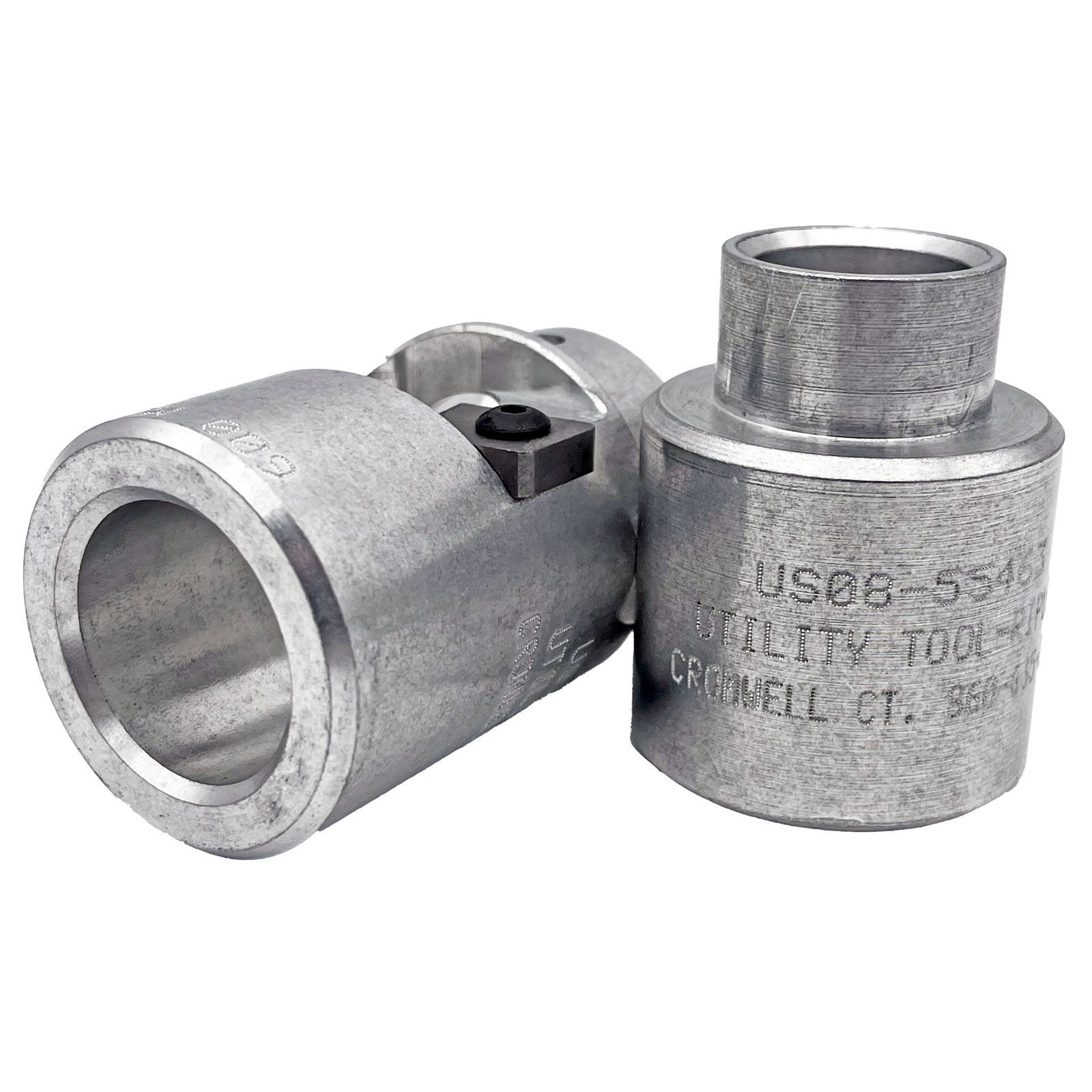

	UtilityTool by Ripley Tools US08 Square-Cut PV Wire Bushing - 250 kcmil, 2kV Aluminum (US08-79090) $109.99
