Ripley 43651 SCS V2 Semi-Con Scoring Tool

Home > Categories > Utility & MV Cable Prep > Semi-Con Scoring Tools >

UtilityTool by Ripley Tools SCS V2 Semi-Con Scoring Tool, 5-35kV - Imperial Scale, Narrow Cable Guide

TTS PRICE: $393.09

STATUS: ON ORDER

Availability:

SHIP ESTIMATE 6-8 DAYS

PRODUCT CODE: UTIL-43651

QUANTITY:

PRODUCT DESCRIPTION

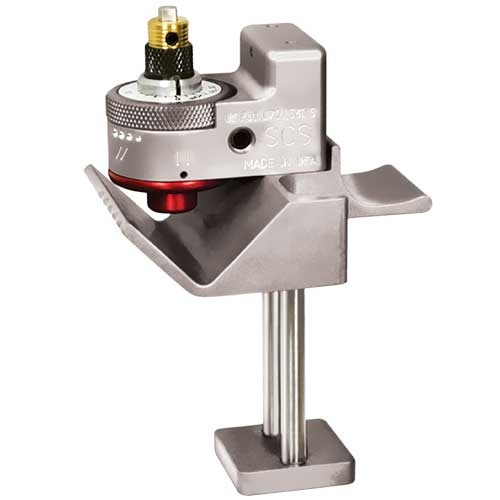

Ripley UtilityTool SCS V2 Semi-Con Scoring Tool - 5-35 kV, Imperial Scale

The SCS is a compact, easy-to-use tool that scores the semi-con on 5 to 35 kV medium-voltage cable without damaging the insulation. It makes longitudinal, spiral and calibrated square cuts on cable from 0.31" to 2.0" (8 to 51 mm) and works in a 2" (51 mm) envelope on larger cables.

This V2 model has a narrowed cable guide for sheathed and jacketed 3-phase assemblies and better control on highly bowed or curved cable. Blade depth is set on a imperial scale in 0.002in steps.

Features:

Scores semi-con on 5-35 kV cables without damaging insulation

Longitudinal, spiral and calibrated square cuts

Cable diameter 0.31-2.0in

Precise blade depth adjustment (0-0.16in)

Narrowed cable guide for sheathed / jacketed 3-phase assemblies

Easy blade replacement

Specifications:

Model: Ripley UtilityTool SCS V2 (Inch) (Ripley Part # 43651)

Scale: Imperial, 0.002in increments

Cable OD: 0.31-2.0in

Blade Depth: 0-0.16in

Voltage: 5 kV - 35 kV

Cutting Type: Spiral, Longitudinal, Calibrated Square

Length: 5in (127 mm)

Weight: 9.6 oz (270 g)

Patent: U.S. Patent No. D721,563

Available Models:

Part #	Model	Ripley #	Scale	Increments	Cable OD	Blade Depth	Cable Guide
UTIL-43630	SCS (Inch)	43630	Imperial	0.002in	0.31-2.0in	0-0.16in	Standard
UTIL-43625	SCS (Metric)	43625	Metric	0.05 mm	8-51 mm	0-4 mm	Standard
UTIL-43651	SCS V2 (Inch) (this item)	43651	Imperial	0.002in	0.31-2.0in	0-0.16in	Narrowed
UTIL-43650	SCS V2 (Metric)	43650	Metric	0.05 mm	8-51 mm	0-4 mm	Narrowed

Replacement Parts:

Part #	Ripley #	Description
UTIL-43645	43645	SCS replacement blade assembly

Accessories:

Part #	Ripley #	Description
UTIL-43965	43965	SCS-C light-duty aluminum stop clamp

SCS Instruction Sheet

Like this product? Share your thoughts with our other customers! Be the first to write a review

Browse for more products in the same category as this item:

Categories > Utility & MV Cable Prep > Semi-Con Scoring Tools
Categories > Utility & MV Cable Prep > Cable End Strippers > UtilityTool SCS Semi-Con Scorers
Categories > Utility & MV Cable Prep
Categories
Categories > Utility & MV Cable Prep > Cable End Strippers

	UtilityTool by Ripley Tools SCS Semi-Con Scoring Tool, 5-35kV - Metric Scale $425.09

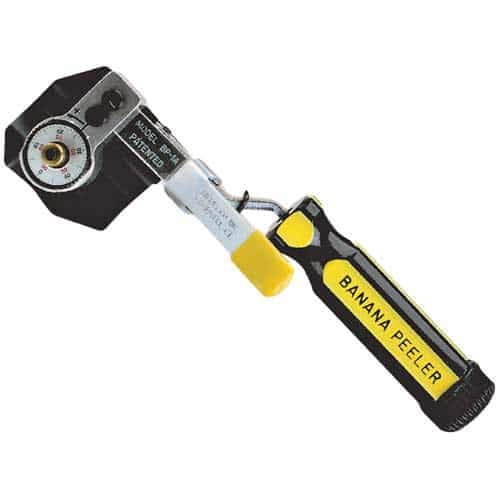

	UtilityTool by Ripley Tools BP 2AK Banana Peeler Semi-Con Scoring Tool - 1.95-2.00in Semi-Con, 5-35kV $425.99
