New!  UtilityTool by Ripley Tools SCS MAX Semi-Con Scoring Tool - 38-78mm Cable, Metric Scale

UtilityTool by Ripley Tools SCS MAX Semi-Con Scoring Tool - 38-78mm Cable, Metric Scale


Alternative Views:
TTS PRICE: $707.07

STATUS: ON ORDER

Free Shipping

Availability:
SHIP ESTIMATE 6-8 DAYS

PRODUCT CODE: UTIL-US05-7101
QUANTITY:

PRODUCT DESCRIPTION

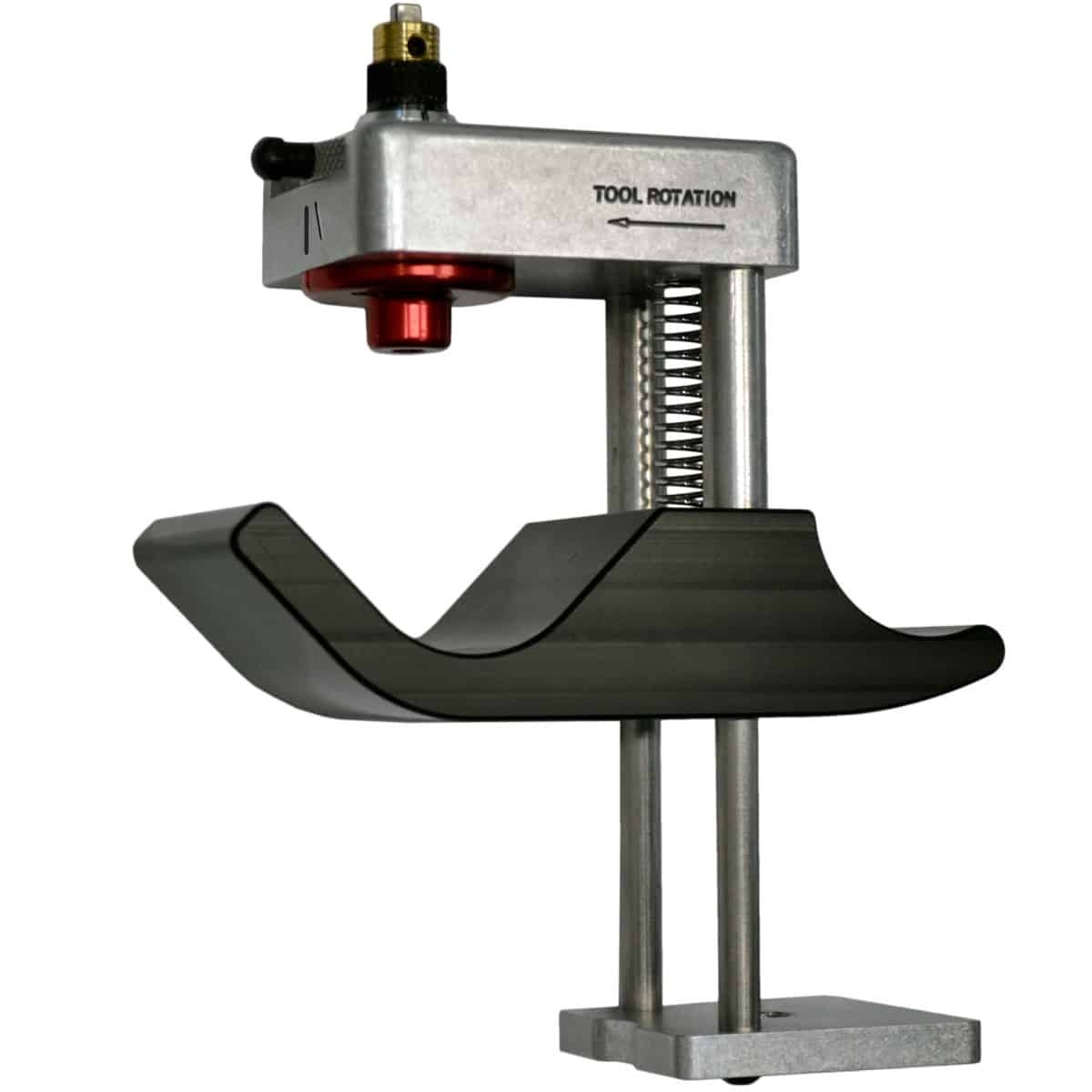

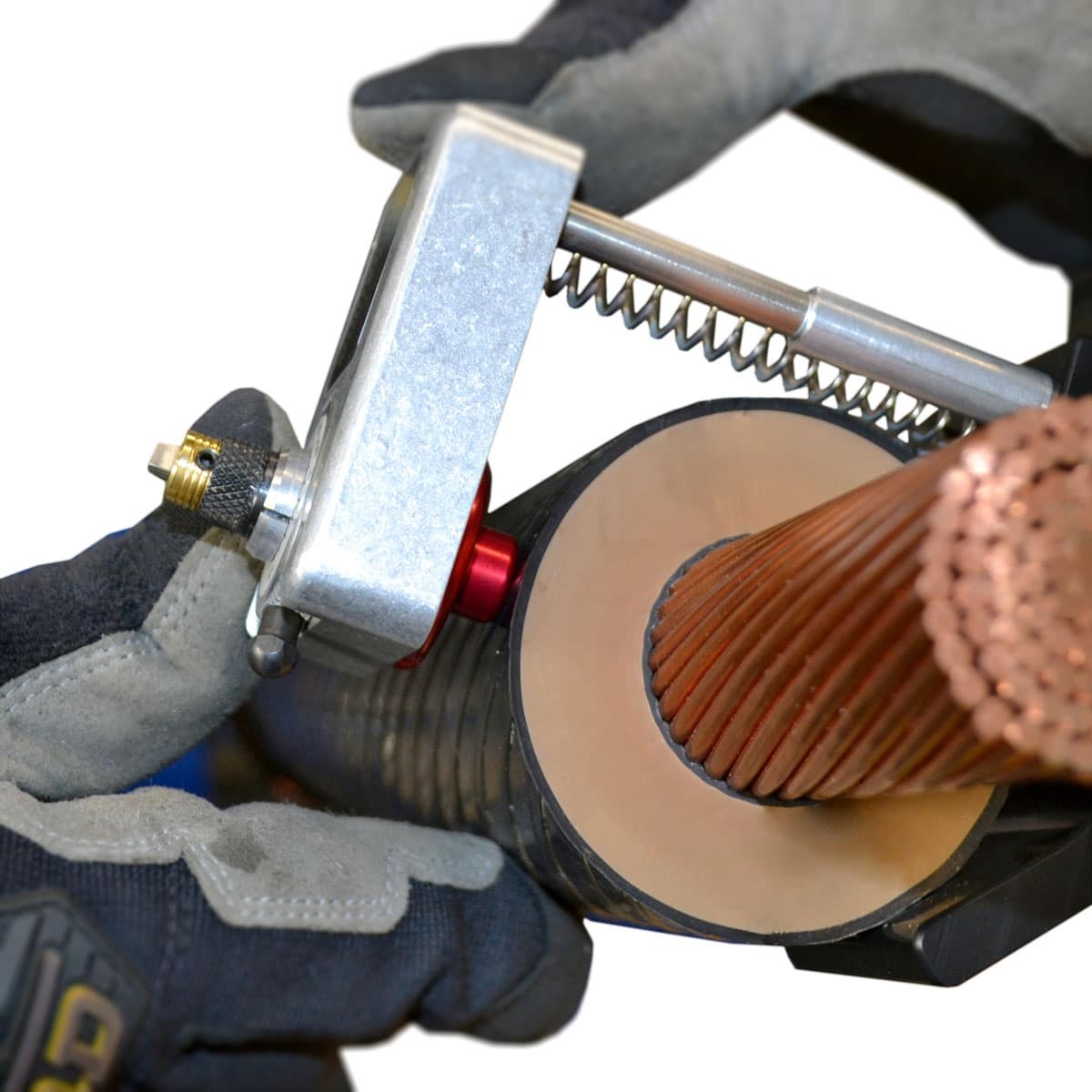

The UtilityTool SCS MAX makes precision score-depth cuts on large diameter power cable with strippable semi-con.
It handles 38 to 78 mm (1.50-3.07in) over the semi-con screen and scores up to 4 mm (0.16in) deep - without damaging the insulation and without a stripping knife.

This US05-7101 has the metric cable guide scale, in 0.05 mm steps.
Inch version: US05-7100.

Features:
  • Spiral and calibrated square cuts on 38-78 mm (1.50-3.07in) cable
  • Blade depth 0-4 mm in 0.05 mm increments
  • Scores semi-con without damaging the insulation
  • Eliminates stripping knives and the cut risk that comes with them
  • Works within a 4in (101.6 mm) envelope
  • Metric (mm) cable guide scale

Specifications:
  • Model: Ripley UtilityTool US05-7101
  • Cable OD: 38-78 mm (1.50-3.07in)
  • Blade Depth: 0-4 mm, 0.05 mm increments
  • Scale: Metric
  • Cutting Type: Radial, Spiral
  • Dimensions: 8.94 x 4.99 x 2in
  • Weight: 12 oz (340 g)
  • Replacement Blade: 43645

Available Sizes:
ModelPart #ScaleCable OD
SCS MAX (Inch)US05-7100Inch, 0.002in increments1.50-3.07in
SCS MAX (Metric)US05-7101Metric, 0.05 mm increments38-78 mm (this item)
