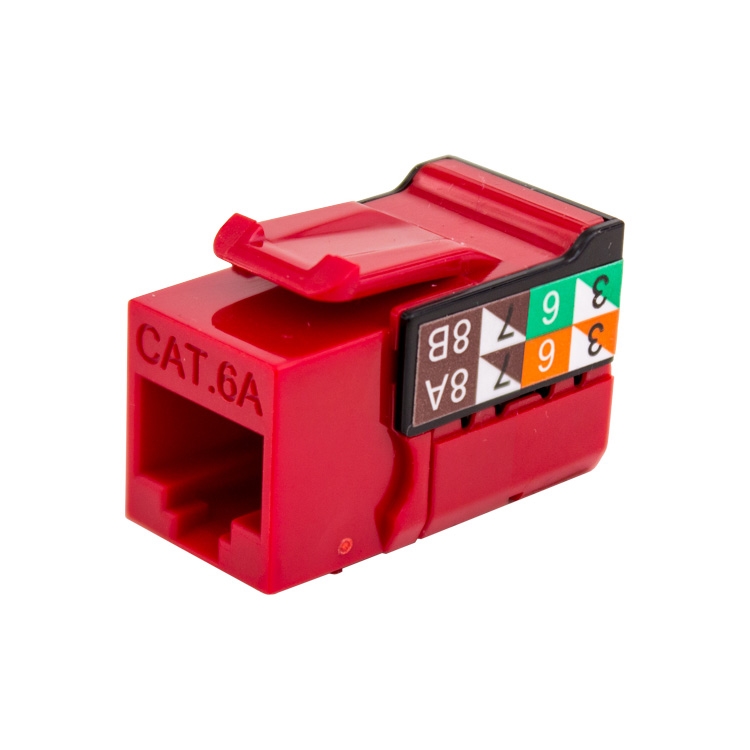

Vertical Cable CAT6A Keystone Jack - Red

Vertical Cable CAT6A Keystone Jack - Red


TTS PRICE: $4.49

STATUS:  IN STOCK

Free Shipping

Availability:
IN STOCK & READY TO SHIP

PRODUCT CODE: VC-353-V2812-C6ARD
QUANTITY:

PRODUCT DESCRIPTION


Vertical Cable CAT6A Jacks are compatible with all Vertical Cable CAT6A cables. Additionally, all CAT6A Jacks are compatible with the I-Punch Tool.

Features:
  • 8 Conductor solder-plated phosphor bronze 110-IDC contacts
  • Improved PCB Design and IDC Geometry provide superior performance
  • TIA/EIA 568C.2, IEEE802.3an for 10GBase-T Requirements
  • ISO 11801, EN 50173-1 Class EA Specification
  • UL94V-0 Thermoplastic ABS Housing
  • UL Listed, ETL Listed, RoHS Compliant

    • Specifications :
  • Quantity: 1
  • Color: Red
  • Dimensions: (mm) 19.75H x 17W x 31.1D
  • Housing: High-Impact Thermoplastic (UL 94 V-0)
  • DC Housing: Polycarbonate (UL 94 V-0)
  • IDC 110 Contacts: Solder-Plated Phosphor Bronze
  • Nose Contacts: 50μ of gold plating over nickel plating
  • Operating Life: Minimum 750 insertions
  • Compatibility: 22 to 26 AWG Solid
  • PBC: FR-4 1.6mm thickness
  • Cap: High-Impact Thermoplastic (UL 94 V-0)

    • Applications:
  • 10GBase-T Ethernet
  • 1000Base-Tx Gigabit Ethernet
  • 100Base-Tx Fast Ethernet
    •
