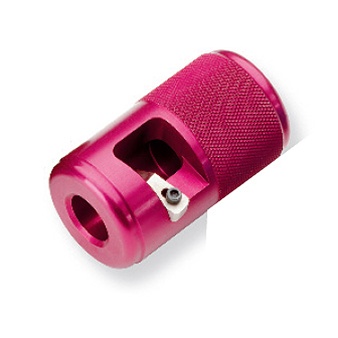

Ripley Cablematic JST 500 Jacket Stripper - 500 kcmil, Red
Ripley's Jacket Stripping Tools are sure-shot tools to get fast and efficient removal of jackets from trunk and distribution coaxial cables including over-sized jackets and flooded cables. The JST 500 is for use on 500 kcmil CommScope® P3 and Times Fiber T10 cable.
Features:
Anodized, color-coded bodies match the guide sleeves of Ripley coring & stripping tools
Preset JST blade assures there is no scoring or nicking of the aluminum sheath
Knurled body for sure grip
Replaceable jacket blade (see Replacement Blade below)
Specifications:
Model Name: JST 500
Cable Size: 500 kcmil
Cable Compatibility: CommScope® P3; Times Fiber T10
Color: Red
Cable Access: End
Material: Aluminum
Length: 2.63" (67 mm)
Weight: 6 oz (170 g)
Model: 12500
Available Sizes:
| Part # | Model | Ripley # | Cable Size (kcmil) | Cable Compatibility | Color |
|---|
| JST-412 | JST 412 | R11900 | 412 | CommScope® P3; Times Fiber T10 | Black |
| JST-500 | JST 500 (this item) | R12500 | 500 | CommScope® P3; Times Fiber T10 | Red |
| JST-565 | JST 565 | 32400 | 565 | CommScope® P3 Times Fiber TX | Red |
| JST-625 | JST 625 | 28900 | 625 | CommScope® P3; Times Fiber T10 | Blue |
| JST-750 | JST 750 | R12600 | 750 | CommScope® P3; Times Fiber T10 | Green |
| JST-750MC | JST 750MC | 33790 | 750 | CommScope® MC | - |
| JST-875 | JST 875 | 21500 | 875 | CommScope® P3; Times Fiber T10 | Yellow |
| JST-1000 | JST 1000 | 21000 | 1000 | CommScope® P3 Times Fiber T10 | Orange |
| JST-540DJ | JST 540 DJ | 35470 | 540 | CommScope® QR Dual Jacket | - |
| RIP-JST-540QR | JST 540 QR | 33955 | 540 | CommScope® QR | - |
| RIP-36100-112 | JST 700 TXJBX | 36100-112 | 700 | CommScope® P3 Thick; Times Fiber T10 Thick | - |
| RIP-JST-860QR | JST 860 QR | 33385 | 860 | CommScope® QR | - |
Replacement Parts:
| Part # | Ripley # | Description |
|---|
| RIP-CB-6667-H | 19212 | Jacket blade, CB 6667H |
