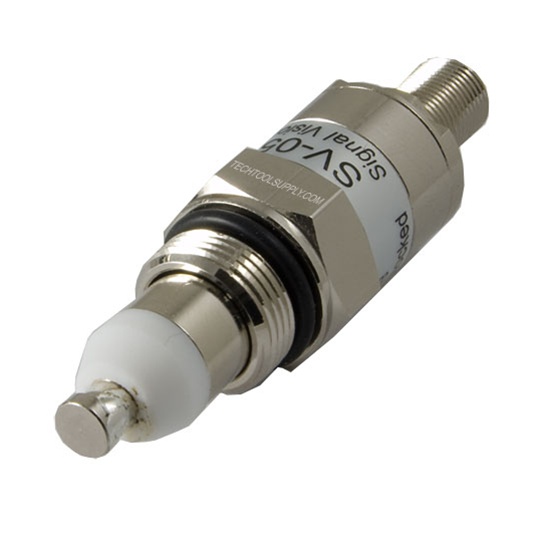

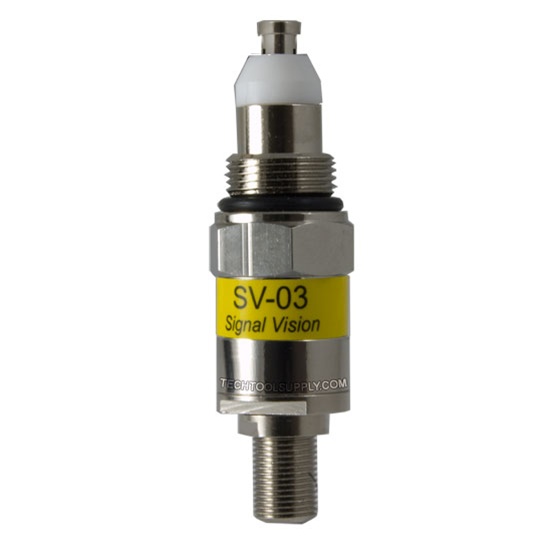

Signal Vision SV-03 5/8in to F Test Probe - AC Passing

Signal Vision SV-03 5/8in to F Test Probe - AC Passing

Alternative Views:

TTS PRICE: $44.39


Normally Ships Same Day

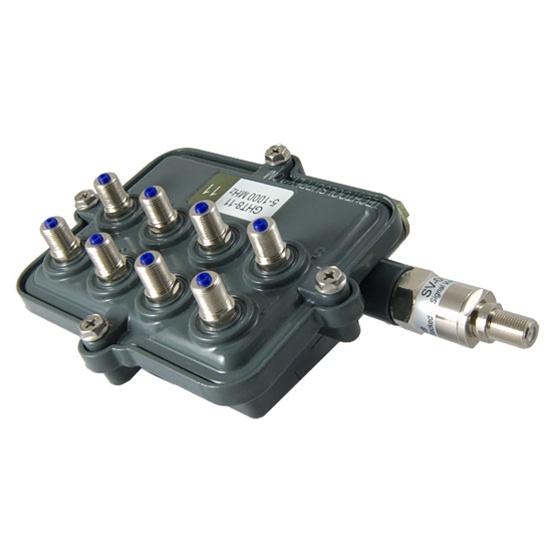

Signal Visions SV-03 is designed for technicians working on Taps, Line Extenders, Directional Couplers, Splitters, or any other component that uses 5/8" entry ports. With the SV-03 Test Probe adapter, you can quickly and easily measure a reading directly from the component! This unit passes AC voltage so it is recommended it only be used with Signal Meters that are capable of reading AC Voltage.

The SV-03 unit is also great for use when bypassing a Tap for replacement or testing. Tech Tool Supply offers the SV-03-KIT which comes equipped with everything you need to bypass a Tap!

  • All brass construction
  • Spring loaded, Teflon protected tip ensures accurate and safe measurements
  • Fits 5/8" entry ports
  • AC Passive

  • Specifications:
  • Impedance: 75 ohm
  • Operating Frequency Band: 0 1002 MHz
  • Insertion Loss: 1.20 dB
  • Return Loss, input, minimum: 18 dB
  • ac Resistance: Minimal
  • Operating Current at Voltage: 7 A @ 90 Vac
  • Operating Current at Voltage Note: Maximum duration of 15 minutes
  • Hum Modulation at Operating Frequency: 65 dB @ 5 MHz, 6 A
  • Shielding Effectiveness, minimum: 100 dB
  • Safety Standard: CE | EN 60728?4 | SCTE
  • RoHS 2011/65/EU Complaint
  • ISO 9001:2008
