Tempo 501 Tracker II Cable and Pipe Locator

Tempo 501 Tracker II Cable and Pipe Locator


Alternative Views:
TTS PRICE: $748.09

STATUS: ON ORDER


Availability:
SHIP ESTIMATE 5-7 DAYS

PRODUCT CODE: 501
QUANTITY:

PRODUCT DESCRIPTION


Tempo 501 Tracker II Cable & Pipe Locator - Traces to 4,000 ft, Depth to 7 ft

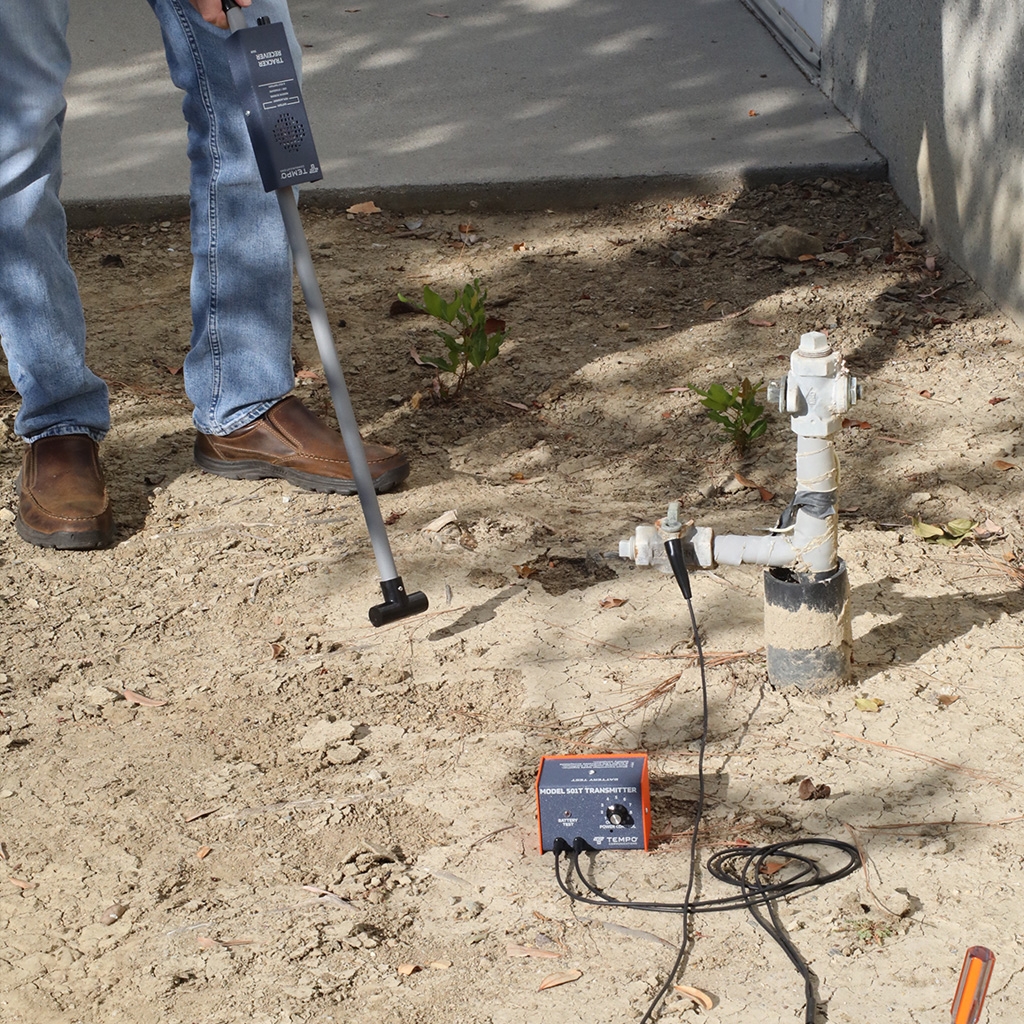

Trace buried cables and pipes with speed and accuracy. The Tempo Tracker II (501) is a professional-grade locator that works on both live and de-energized systems. Using inductive signal detection, it quickly identifies the path and depth of buried wires, cables, metallic pipes or conduit - even locating the ends of cut cables without shutting systems down.

Rugged, reliable and built for field use, the Tracker II saves contractors and maintenance crews hours on troubleshooting and repair jobs. Adjustable controls, multiple connection methods and a lightweight receiver make it easy to get precise results in any environment.

Features:
  • Trace and measure depth of buried conductors up to 7 ft (2.2 m)
  • Trace up to 4,000 ft (1.2 km)
  • Works on active or inactive systems
  • Adjustable transmitter output and receiver sensitivity for accuracy
  • Lightweight receiver with audible and visual signal strength indicators

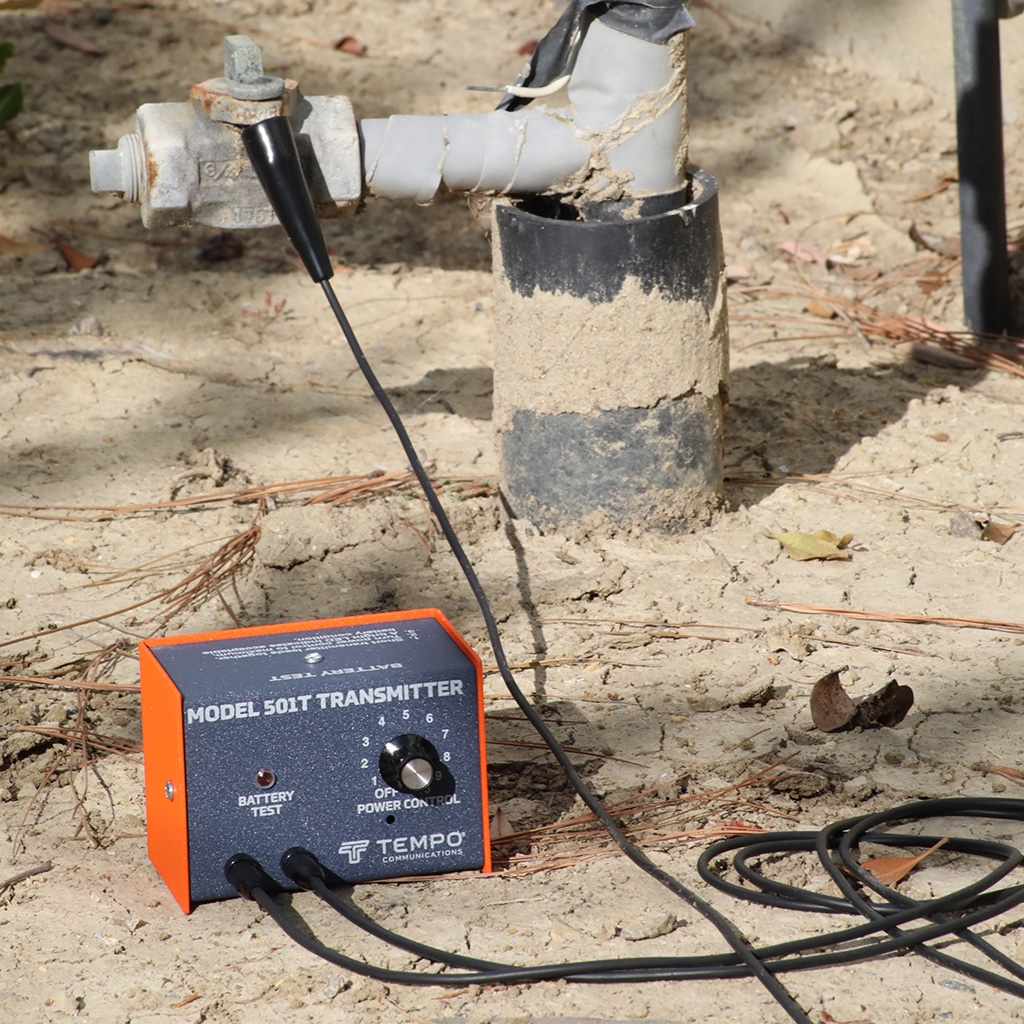

  • Three connection options: direct, inductive coupler, or built-in inductive antenna

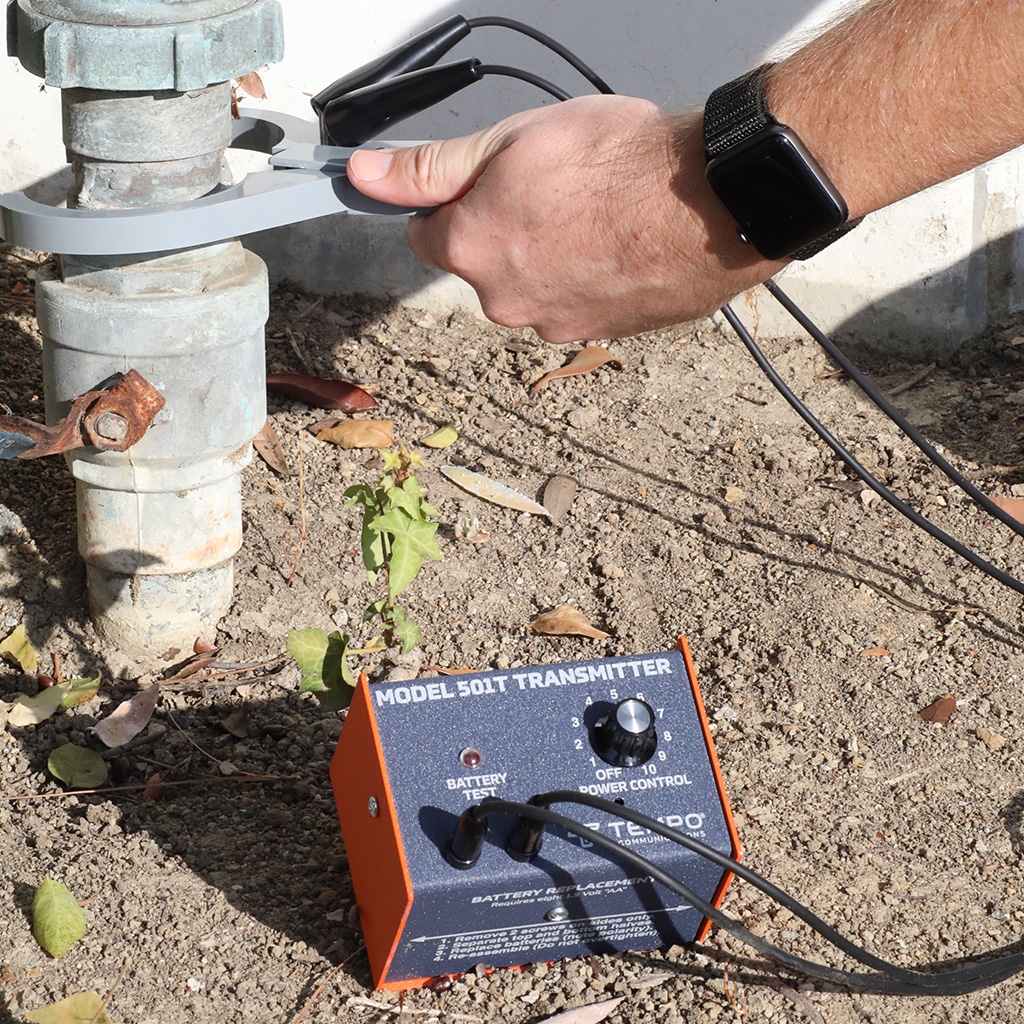

  • Inductive coupler clamps around the wire or pipe for live lines or where the line cannot be isolated
  • Built-in antenna lets you set the transmitter on the ground over the wire path to radiate a signal onto the conductor
  • Locates electrical, communications, coax, telephone and utility lines, dog fence and invisible fence wires, landscape lighting cables, fish tape and metallic pipes
  • Automatic shutoff after 90 minutes
  • Battery operated (8 AA and 1 9V, not included)

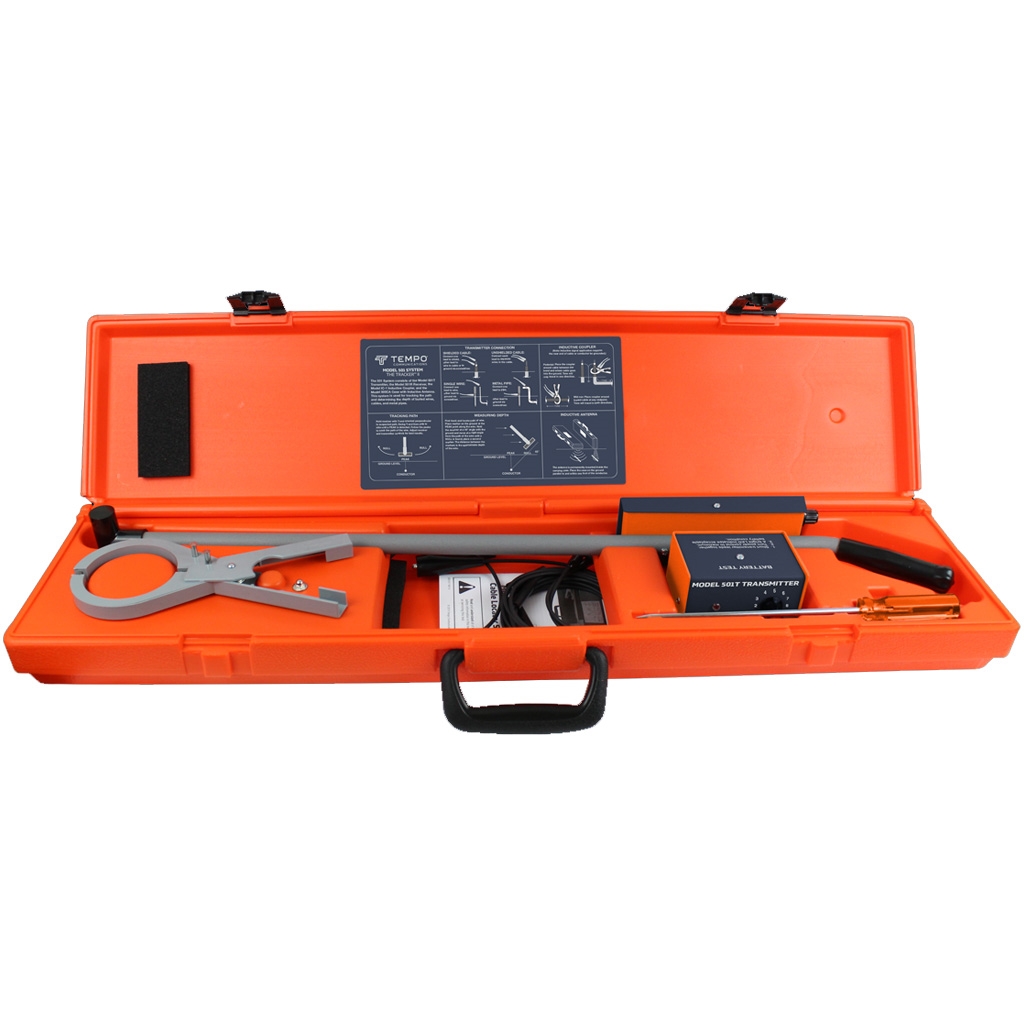

    • Includes:

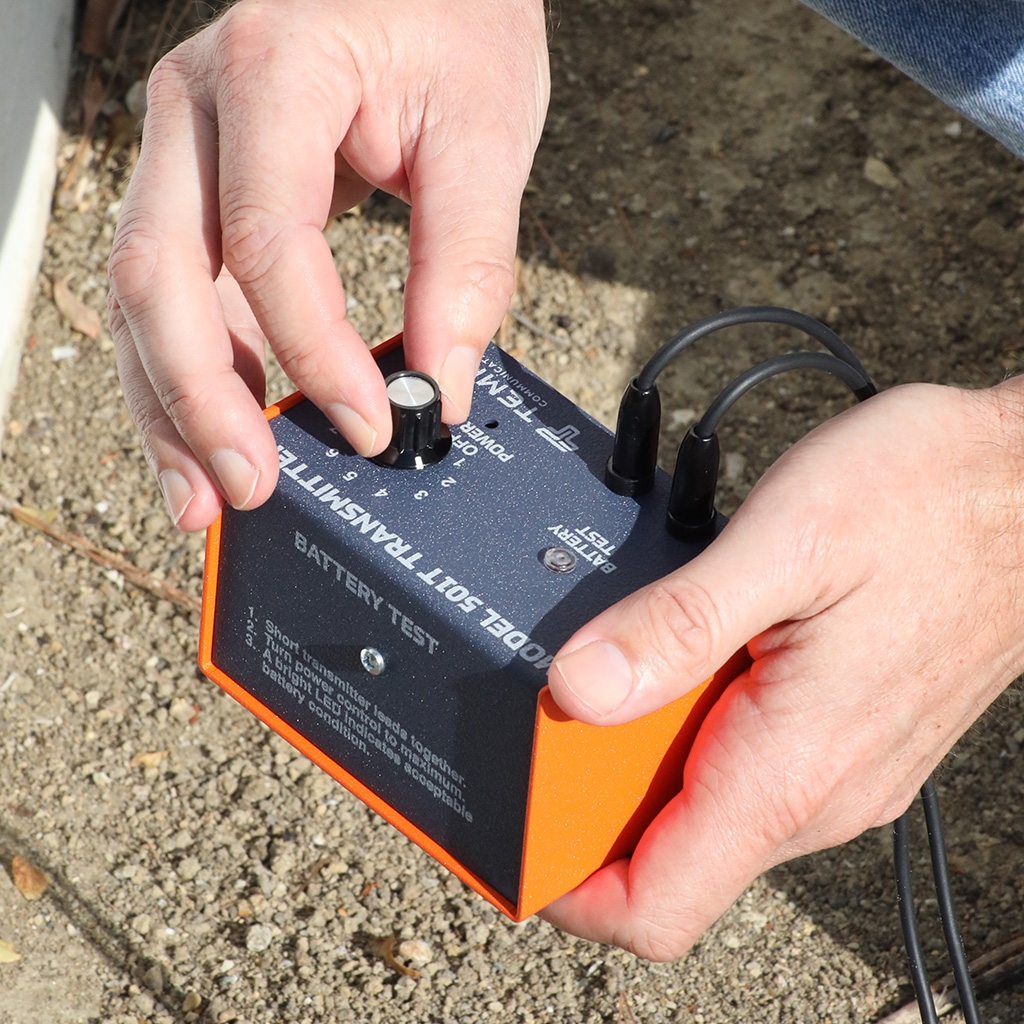

  • 1 x Transmitter assembly with built-in inductive antenna
  • 1 x Receiver assembly
  • 1 x Inductive coupler (clamp)
  • 2 x 8 ft (2.4 m) test leads with heavy-duty alligator clips

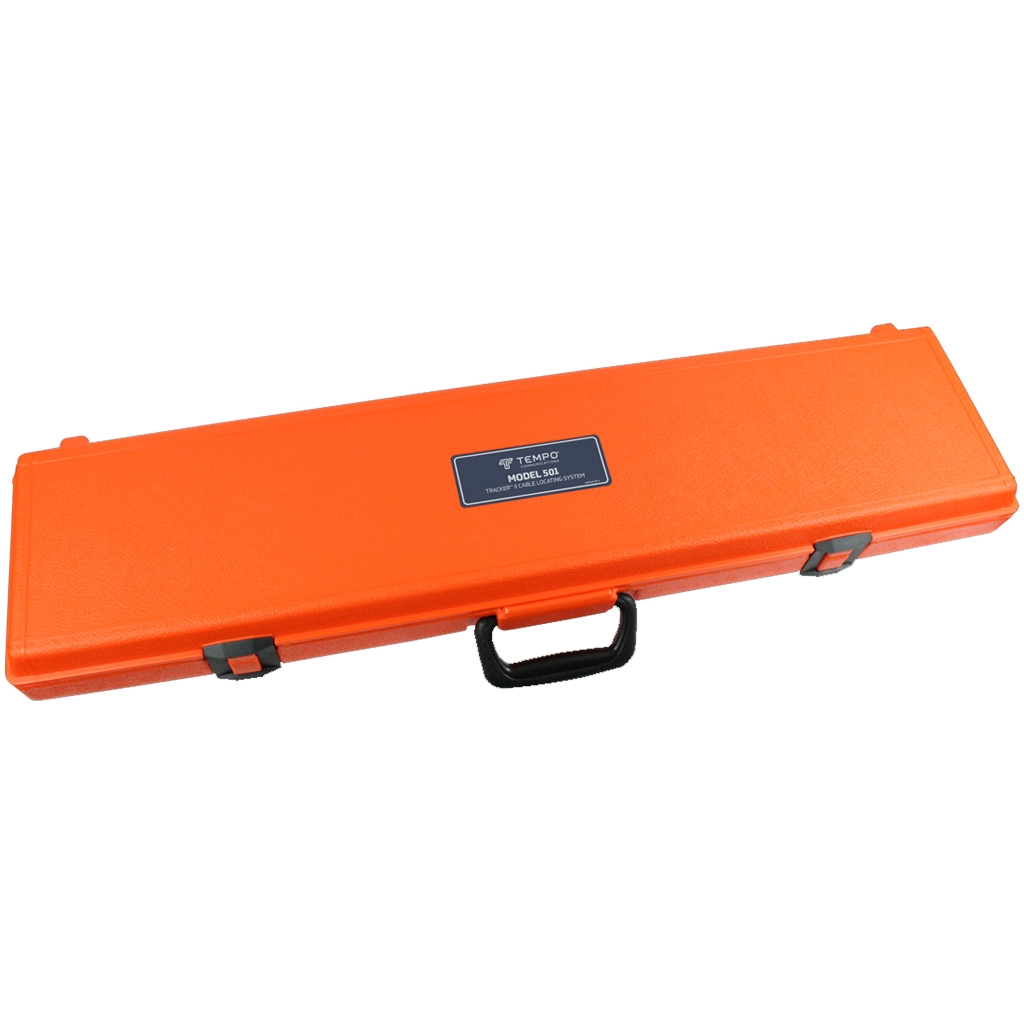

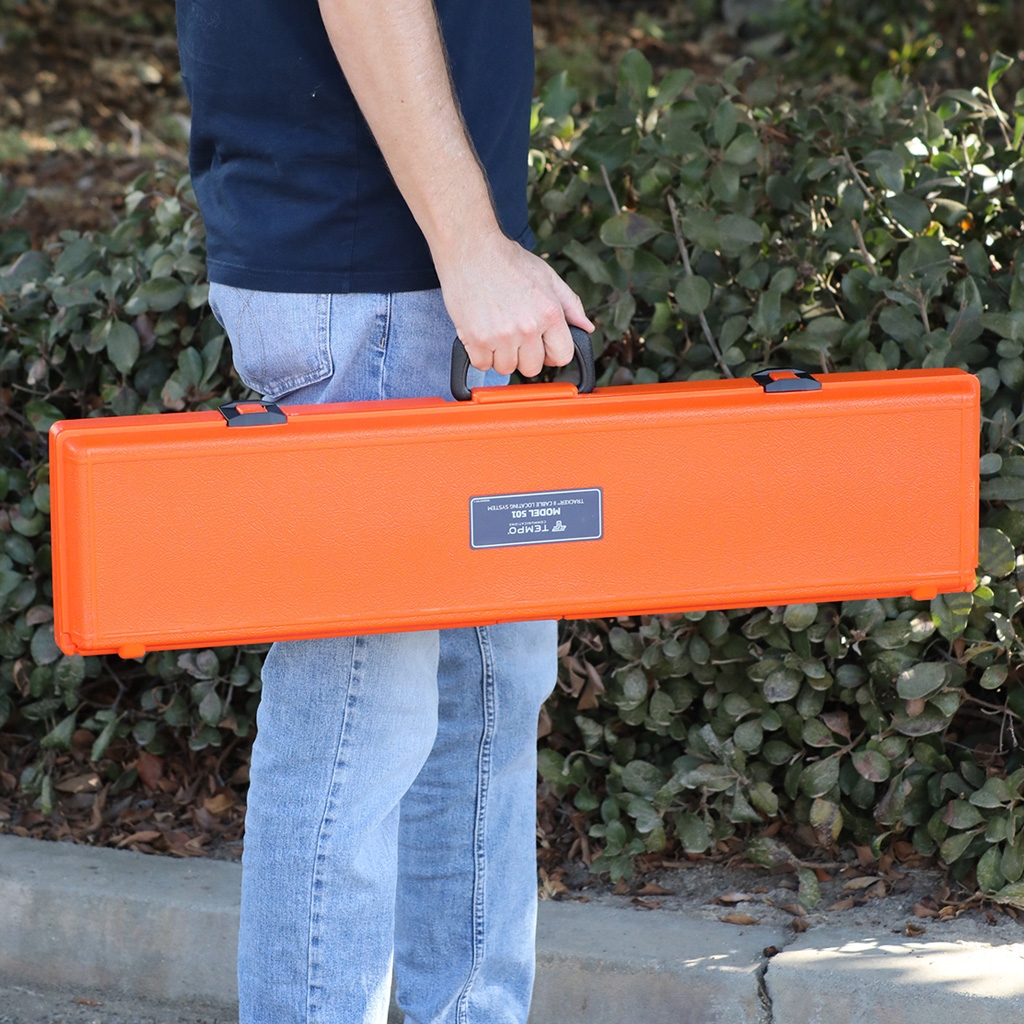

  • 1 x Durable vacuum-formed polyethylene carry case

    • Specifications:
  • Transmitter Frequency: 447.5 kHz
  • Transmitter Power: 40Vp-p (140mW) maximum
  • Voltage Protection: 240VAC / 500VDC
  • Power: Transmitter - eight AA batteries; Receiver - one 9V battery
  • Battery Life: Transmitter ~30 hrs; Receiver ~10 hrs (nominal)
  • Automatic Shutoff: 90 min (transmitter and receiver)
  • Construction: Powder-coated aluminum transmitter and receiver; vacuum-formed polyethylene case
  • Transmitter Dimensions: 4.25" x 3" x 3.25"
  • Dimensions: 28" x 12.6" x 4.1" (711 x 321 x 104 mm)
  • Weight: 8 lb
  • Model: 501

    • 501 Tracker Data Sheet 501 Tracker II User Manual
