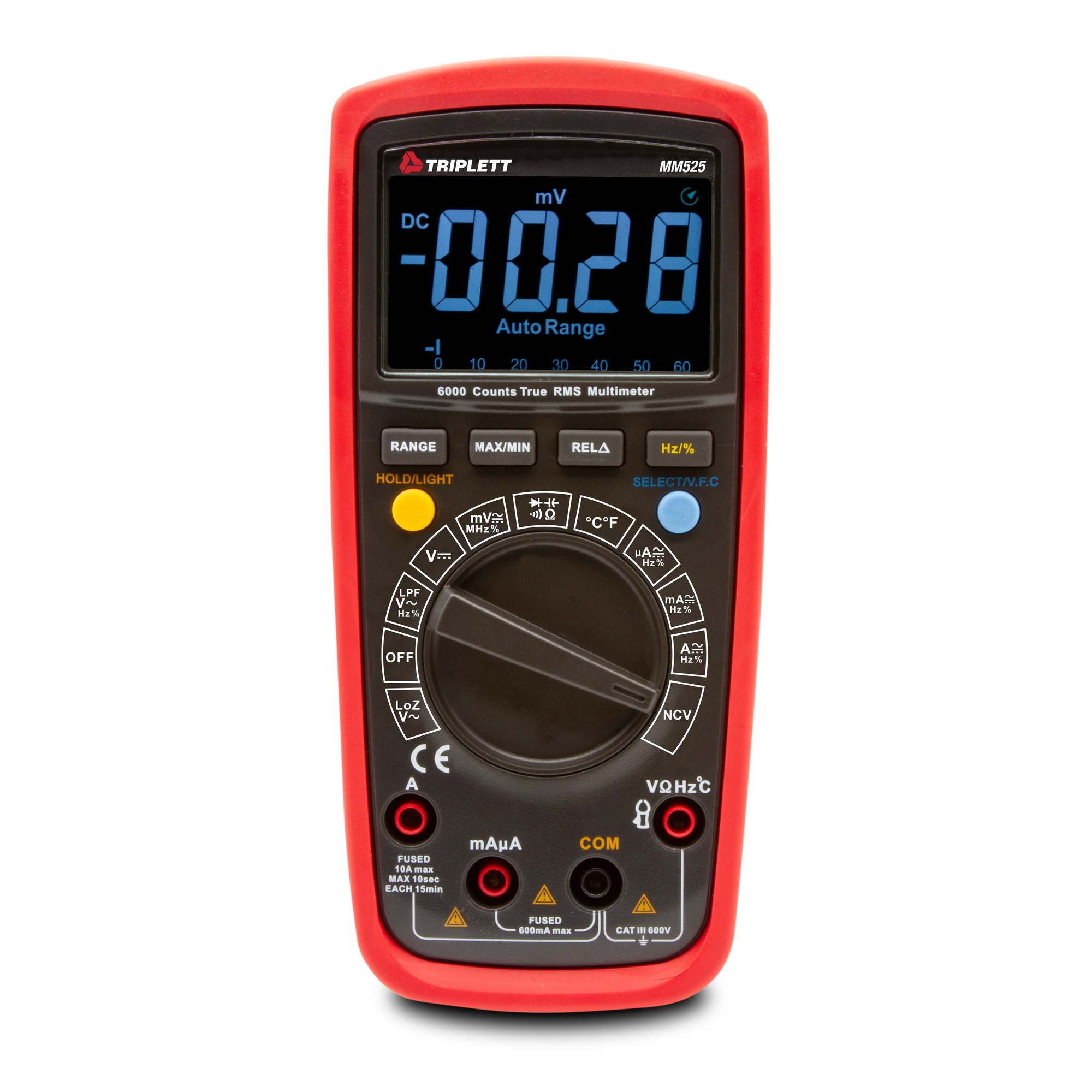

Triplett MM525 True RMS Digital Multimeter - 6,000 Count, Lo Z, Low Pass Filter, CAT III 600V
The Triplett MM525 is a 6,000-count True RMS multimeter for electrical, HVAC, security and low-voltage work. Lo Z mode clears ghost voltages, the low pass filter steadies readings on variable frequency drives, and AC/DC microamp ranges add low-current measurement.
It measures voltage, current, resistance, temperature, frequency and capacitance with continuity and diode test, has an EBTN display with 31-segment bargraph, a built-in NCV detector, and an overmolded, ETL-listed CAT III 600V housing.
Features:True RMS for accurate readings on non-sinusoidal or noisy waveforms6,000-count EBTN display with 31-segment bargraphLo Z (low impedance) mode for ghost voltagesLow pass filter for variable frequency drivesAC/DC uA current measurementBuilt-in NCV detectorData hold, relative, min/max and auto power offCAT III 600V, ETL listedIncludes:MM525 multimeterTest leadsTemperature probePouch case(2) AA batteriesSpecifications:Manufacturer: TriplettDisplay: 6,000 count EBTN with bargraphBasic Accuracy: +/-0.7%AC/DC Voltage: 600VAC/DC Current: 10A; 600uAResistance: 60M ohmTemperature: -40 to 1832 °F (-40 to 1000 °C)Capacitance: 100mFFrequency: 10MHzSafety Category: CAT III 600VDimensions: 6.9 x 3.2 x 1.9 inWeight: 12.2 ozWarranty: 1 yearUPC: 614395002978Model: MM525
Related Products:
| Part # | Triplett # | Description |
|---|
| TRI-MM350 | MM350 | True RMS Auto Ranging Digital Multimeter |
| TRI-MM870 | MM870 | Precision Multimeter |
| TRI-CM1050 | CM1050 | 1000A True RMS AC/DC Clamp Meter |
MM525 DatasheetMM525 User Manual
