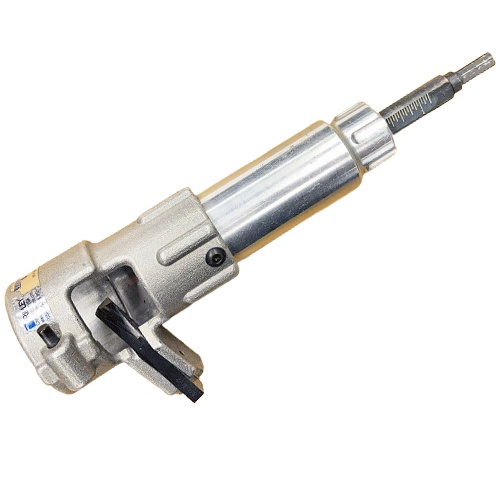

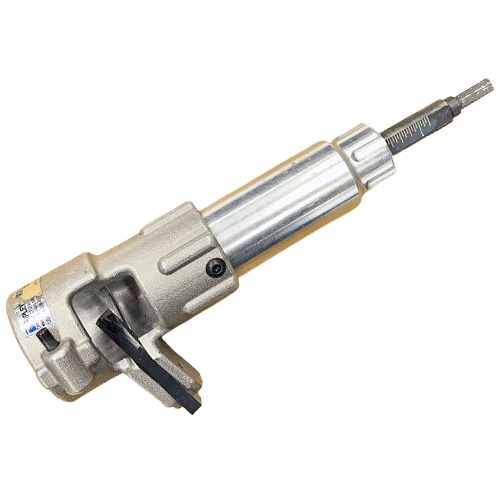

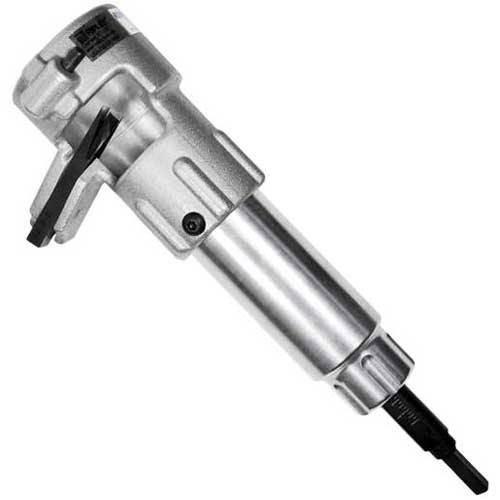

UtilityTool by Ripley Tools WS 6DA-M Drill-Driven Cable End Stripper with WA 3 Adapter - 15-46kV, Metric

UtilityTool by Ripley Tools WS 6DA-M Drill-Driven Cable End Stripper with WA 3 Adapter - 15-46kV, Metric


Alternative Views:


TTS PRICE: $525.79

STATUS: ON ORDER

Free Shipping

Availability:
SHIP ESTIMATE 6-8 DAYS

PRODUCT CODE: UTIL-12960
QUANTITY:

PRODUCT DESCRIPTION


The UtilityTool WS 6 strips XLPE, polyethylene and EPR insulation on 15-46 kV cable without damaging the conductor.
It is a rugged, all-metal tool with a guarded blade, and bushings fit it to the insulation and semi-con diameter (0.9-2.03in / 22.86-51.56 mm).

The WS 6DA-M is the extended, drill-driven WS 6 with the WA 3 adapter, marked in metric.
The WA 3 adapter extends the strip length to 146.1 mm (5.75in) and adds SW-2 ratchet wrench compatibility.

Features:
  • Strips XLPE, PE and EPR insulation, 15-46 kV
  • Cable OD 0.9-2.03in (22.86-51.56 mm) with WS 6 series bushings
  • Rugged all-metal construction
  • Guarded cutting blade protects the user and the blade
  • Shaves semi-con
  • Adjustable strip stop bar for preset lengths
  • Replacement blade 12903

Specifications:
  • Model: Ripley UtilityTool 12960
  • Drive: Manual, SW-2 ratchet wrench or drill
  • Strip Length: 12.7-146.1 mm (0.5-5.75in)
  • Scale: Metric
  • Voltage: 15-46 kV
  • Insulation Thickness: Up to 400 mils
  • Weight: 2.1 lb
  • Replacement Blade: 12903

Available Sizes:
ModelPart #DriveStrip LengthScale
WS 612900Manual0.5-2.125inInch
WS 6DA12950Manual, Drill0.5-2.125inInch
WS 6DA-M with WA 312960Manual, Wrench, Drill12.7-146.1 mmMetric (this item)
