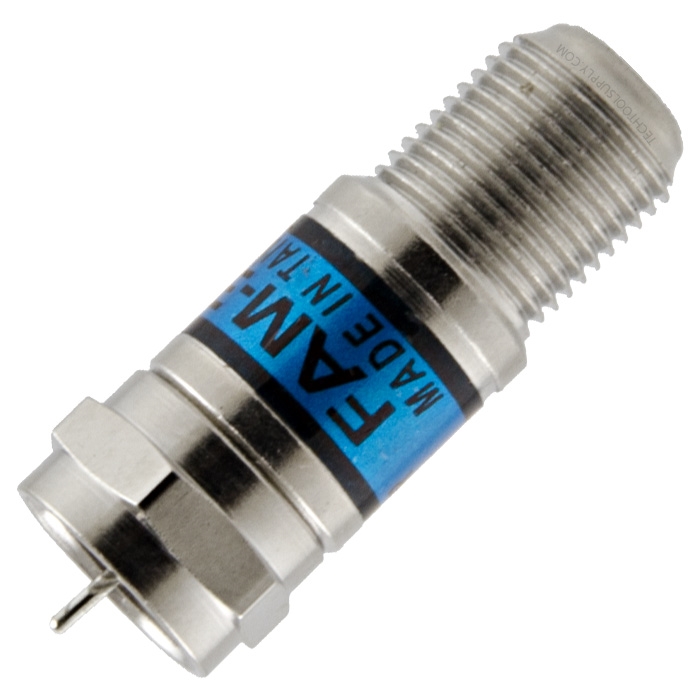

56dB Attenuator 5Mhz-3Ghz

56dB Attenuator 5Mhz-3Ghz




TTS PRICE: $4.29

STATUS: ON ORDER


Availability:
Normally Ships Same Day

PRODUCT CODE: HOL-FAM-56
QUANTITY:

PRODUCT DESCRIPTION


Holland Electronics Attenuator series has been developed to meet the requirements and improve performance of CATV, Off-Air, SMATV, and other RF distribution systems. The FAM-56 In-line attenuator can be inserted in coaxial cable feeds to reduce signal levels. Combinations of attenuators may be used together to create the exact signal loss needed.

Specifications:
  • Frequency Range: 5MHz-3GHz
  • High Accuracy (5%)
  • Attenuator Value: 56dB
  • Flatness: .8
  • Return Loss (.5 GHz / 1 GHz / 2 GHz): 25 / 22 / 18 (dB)
  • Body Material: Brass - C3602
  • Plating: 4um Nickel
  • Center Pin: 8mm Steel
