Jonard FPL-5555 Fiber Power Meter w/ Data Storage

Jonard FPL-5555 Fiber Power Meter w/ Data Storage


Alternative Views:
TTS PRICE: $1,049.95

STATUS: ON ORDER

Free Shipping

Availability:
SHIP ESTIMATE 1-2 DAYS

PRODUCT CODE: JON-FPL-5555
QUANTITY:

PRODUCT DESCRIPTION

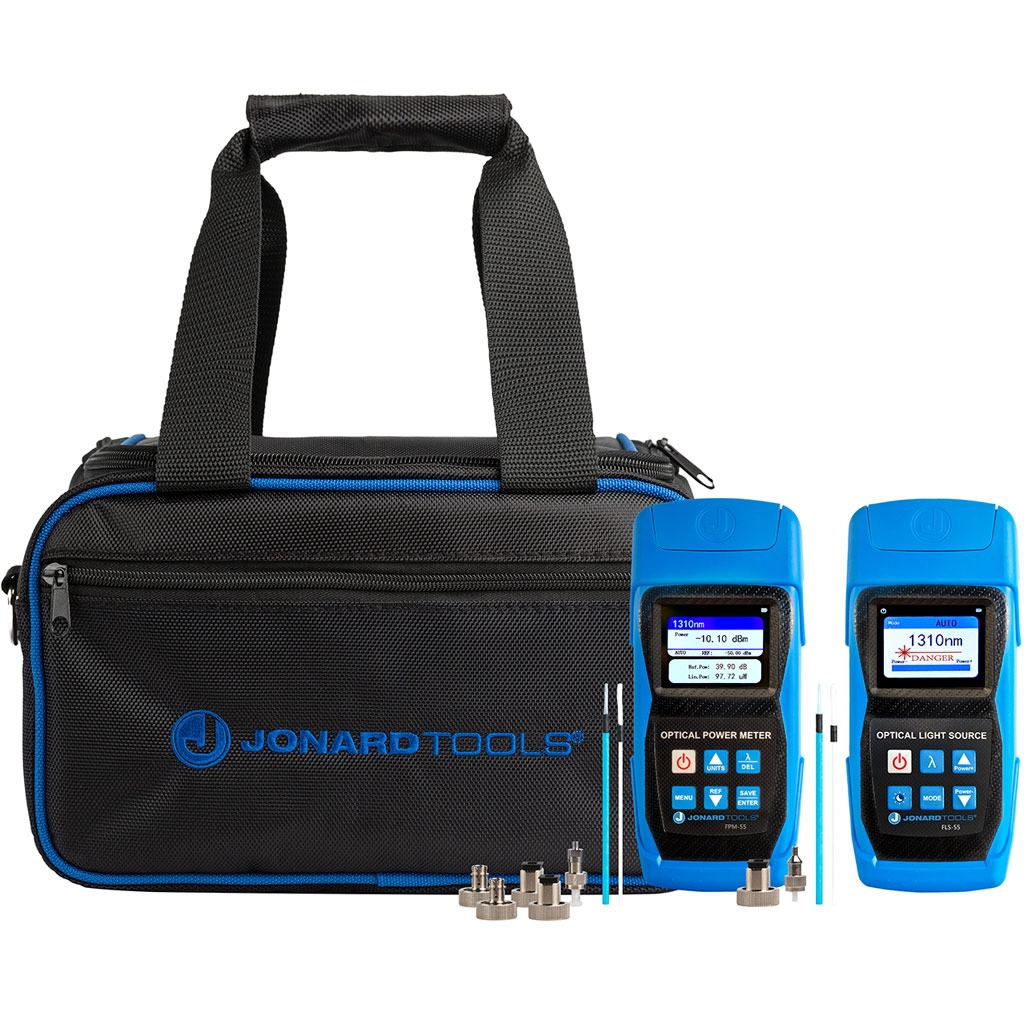

The FPL-5555 from Jonard Tools tool kit provides everything you need to measure power and provide a stable light source for fiber optic cable testing.

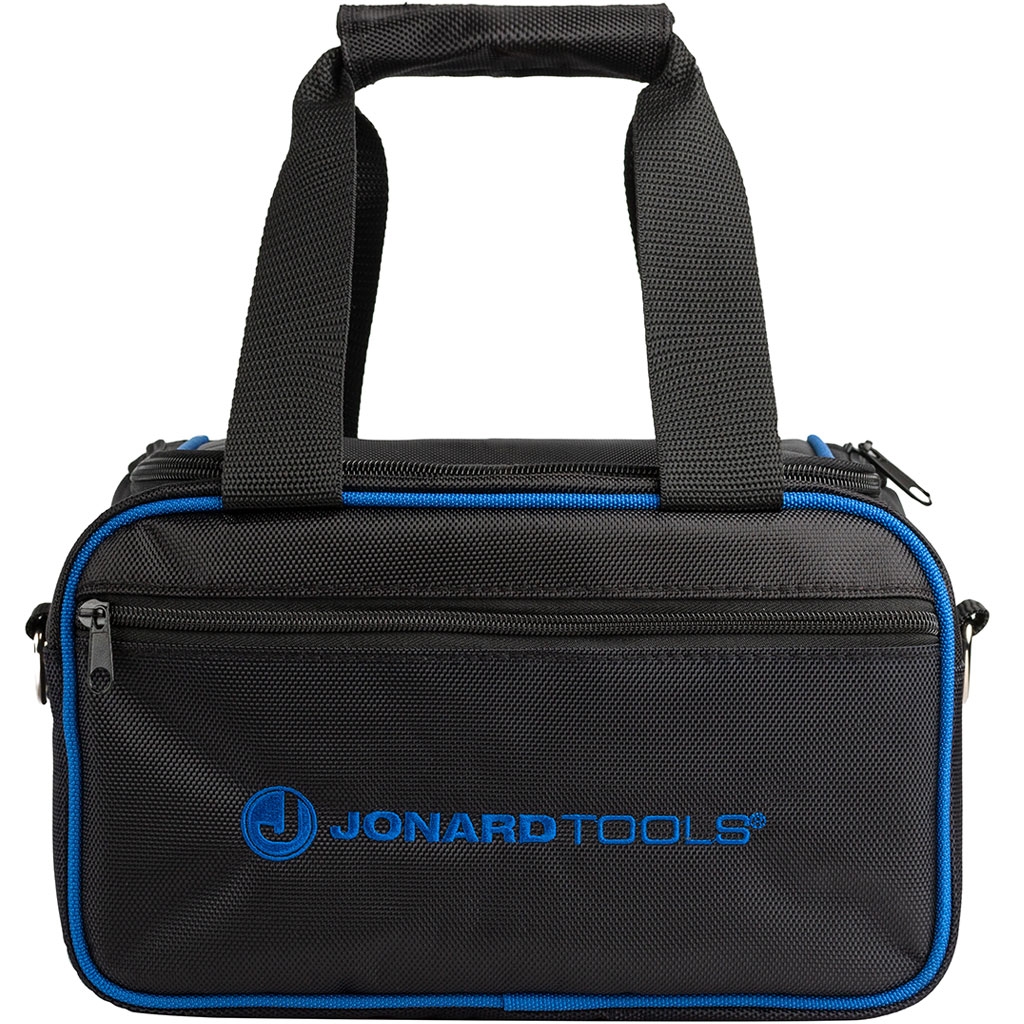

The FPM-55 is the perfect power meter for measuring and recording both the absolute optical power and relative power loss in fiber optic cables (-50 to +26 dBm). While the FLS-55 provides a stable light source for singlemode and multimode fiber in 850/1300/1310/1550 nm wavelengths. Both are provided with a rugged carrying case with a strap for storage.

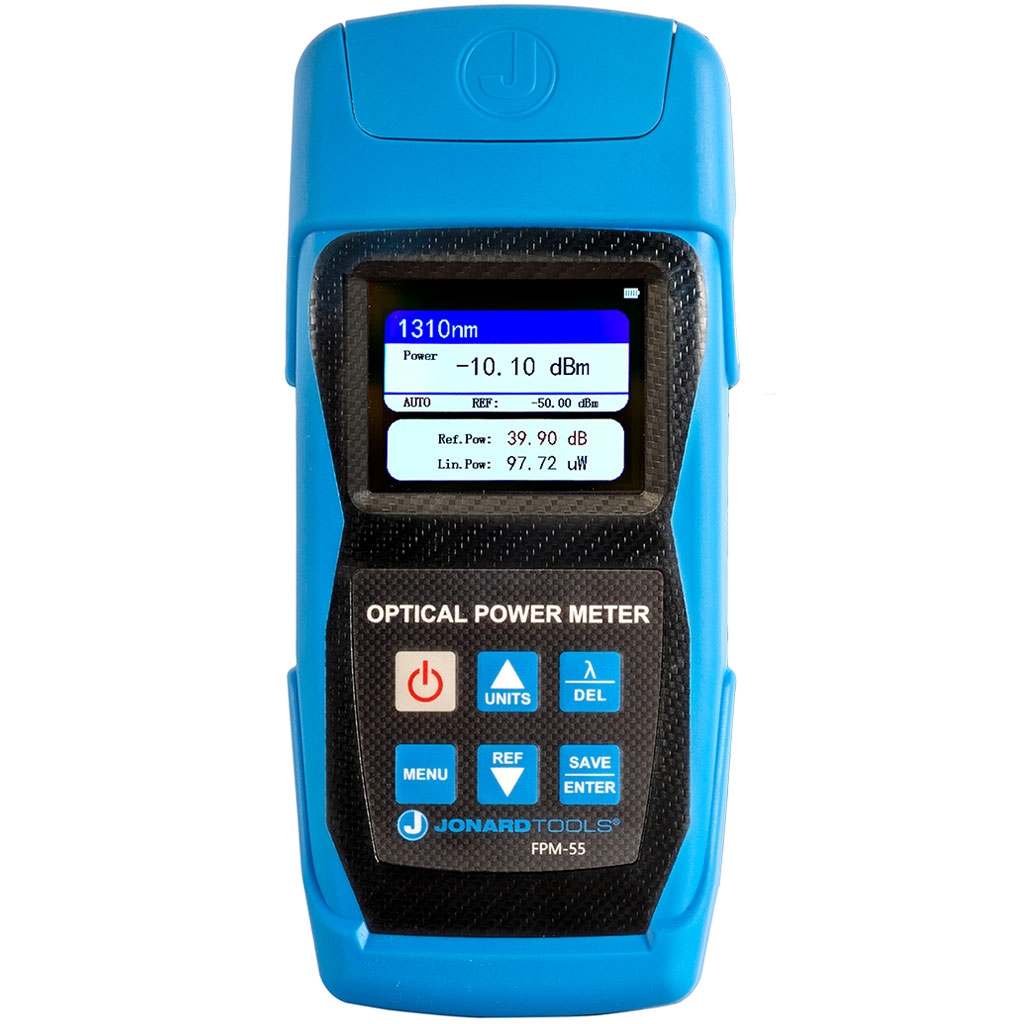

FPM-55 Features:
  • Measures a wide variety of wavelengths
  • Determines absolute or relative power
  • Stores up to 1,000 data entries
  • Intelligent backlit control reduces power consumption
  • Auto-off function can be turned on or off
  • Automatic wavelength detection function when used with the FLS-50 or FLS-55
  • Color LCD Display
  • Backside Kickstand

    • FPM-55 Specifications:
  • Detector Type: InGaAs
  • Wavelength Test Range (nm): 800 ~ 1700
  • Measurement Range (dBm): +26 ~ -50
  • Default Calibration Wavelength (nm): 850/980/1300/1310/1490/1550/1625/1650
  • Minimum Display Resolution (dB): 0.01
  • Linearity (dB): ≤ 0.1
  • Uncertainty: ± 0.15
  • Frequency Identification (Hz): CW, 270 Hz, 330 Hz, 1000 Hz, 2000 Hz
  • Measurement Unit: dBm, dB, xW
  • Optical Connector: FC, SC
  • Communication Interface: USB-C
  • Data Storage (no. of entries): 2000
  • Wavelength Identification: Yes, using our FLS-50 or FLS-55
  • Display Size: 2.4-inch LCD
  • Power Supply: 1.5V*3 AA alkaline batteries
  • Continuous Working time: ≥50 hr
  • Auto turn-off (min): OFF, 10, 20, 30
  • Operating Temperature (°C): -10 ~ +60
  • Storage Temperature (°C): -25 ~ +70
  • Dimensions: 9.1 in x 7.25 in x 3.3 in (23.11 cm x 18.42 cm x 8.38 cm)
  • Weight: 1.74 lb (789.96 g)

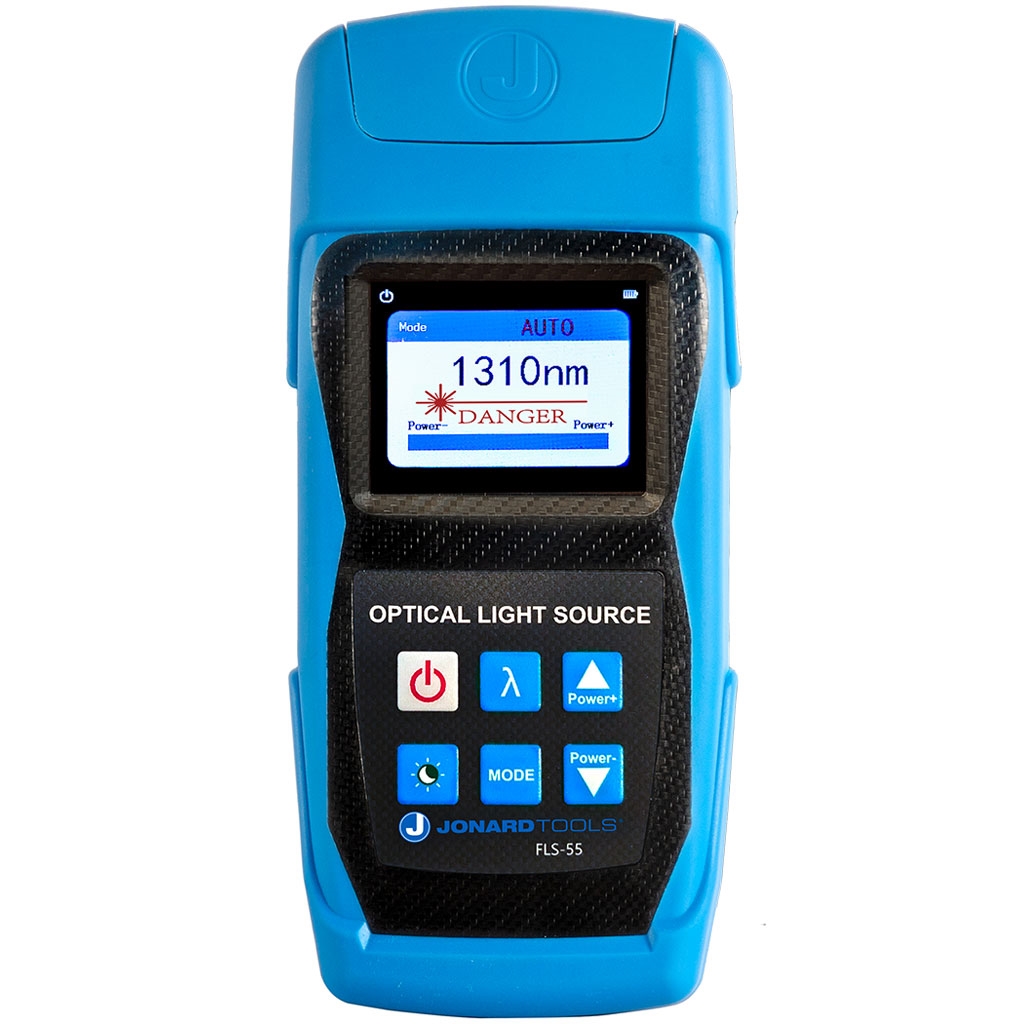

    • FLS-55 Features:
  • Highly stable output power and wavelengths
  • Four modulation outputs at 850/1300 nm multimode, 1310/1550 nm singlemode
  • Intelligent backlight control reduces power consumption
  • Auto-off function can be turned on or off
  • Automatic wavelength detection function when used with the FPM-50A or FPM-55
  • SC/UPC, ST/UPC, FC/UPC & Singlemode

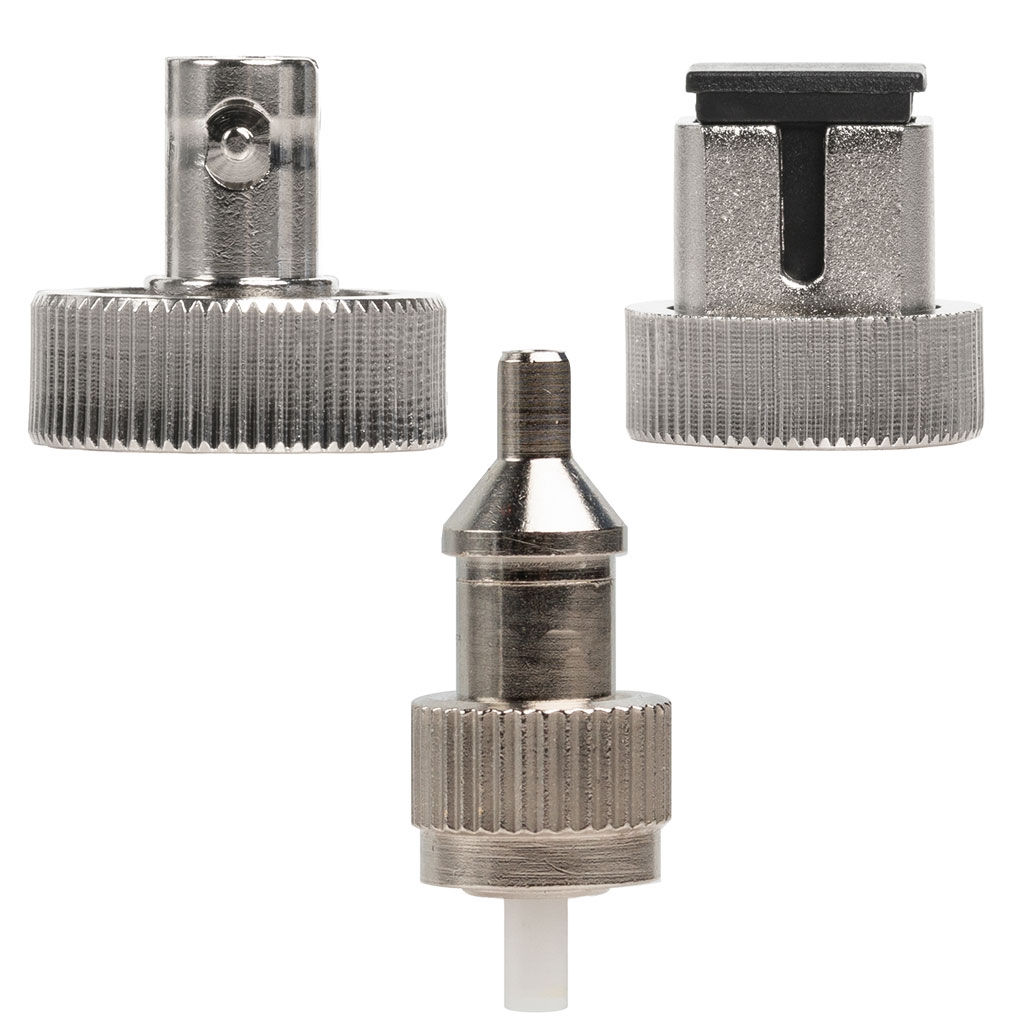

  • FC-LC/UPC adapters included
  • Color LCD Display
  • Backside Kickstand

    • FLS-55 Specifications:
  • Wavelength (nm): 850, 1300, 1310, 1550
  • Spectral Width (nm): ≤5
  • Typical Output (dBm): -7
  • Stability (dB, 15 Min): ≤0.05
  • Typical Output Power Adjustable Range (dB): -5~-12
  • Modulation Frequency (Hz): CW, 270, 330, 1K, 2K
  • Interface Type: FC/SC/ST/LC (UPC)
  • Display Size: 2.4-inch LCD
  • Power Supply: 1.5V* 3 AA alkaline batteries
  • Auto-Off (Min): 10
  • Continuous Working Hours (Hr): ≥25
  • Operating Temperature (C °): -10~+60
  • Storage Temperature (C °): -25~+70
  • Dimensions: 7.44” x 3.31” x 1.85” (189mm x 84mm x 47mm)
  • Weight: 0.64 lb (290 g)

    • FPL-5555 Specifications:
  • Dimensions: 11.13” x 9.13” x 6.63” (28.3 cm x 23.2 cm x 16.8 cm)
  • Weight: 4.22 lb (1917.696 g)

    • FPM-55 Instruction Manual
    FLS-55 Instruction Manual
