Jonard XGS-1577 PON Power Meter - XGSPON / XGPON / BPON / EPON / GPON, SC/APC & FC/APC

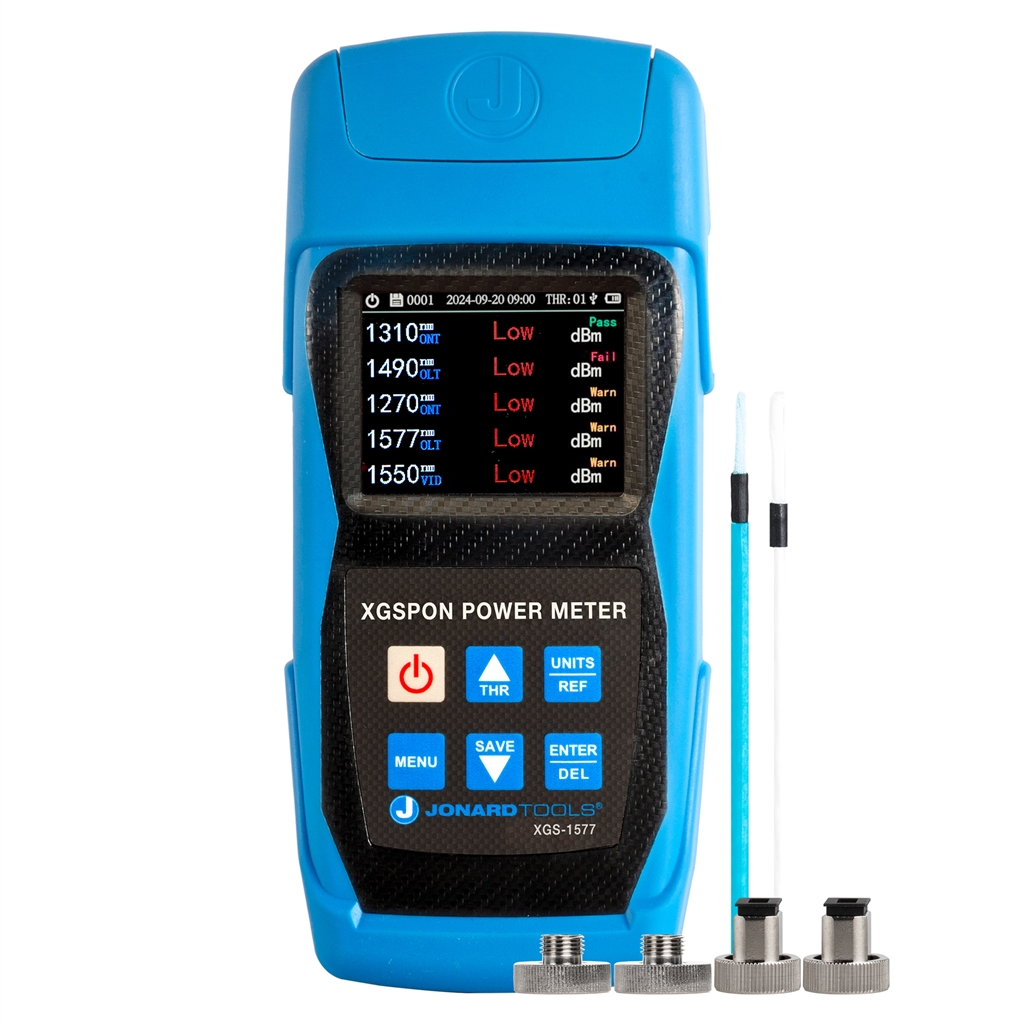

The XGS-1577 XGSPON Meter is a high-performance testing tool built for precise, simultaneous upstream and downstream measurements in today's optical networks. Supporting 1270 nm and 1310 nm upstream, plus 1490 nm, 1550 nm, and 1577 nm downstream, it's the right choice for EPON, BPON, GPON, XG-PON, and XGS-PON installations and maintenance. A bright color LCD with adjustable brightness ensures easy data viewing in any environment, while SC/APC and FC/APC adapters provide wide compatibility. With storage for up to 1,000 test results and a field-ready design powered by three AA batteries, the XGS-1577 delivers reliable performance wherever the job takes you.
Features:
Simultaneous measurement of 1270/1310 nm upstream and 1490/1550/1577 nm downstream wavelengths
Compatible with EPON, BPON, GPON, XG-PON, and XGS-PON networks

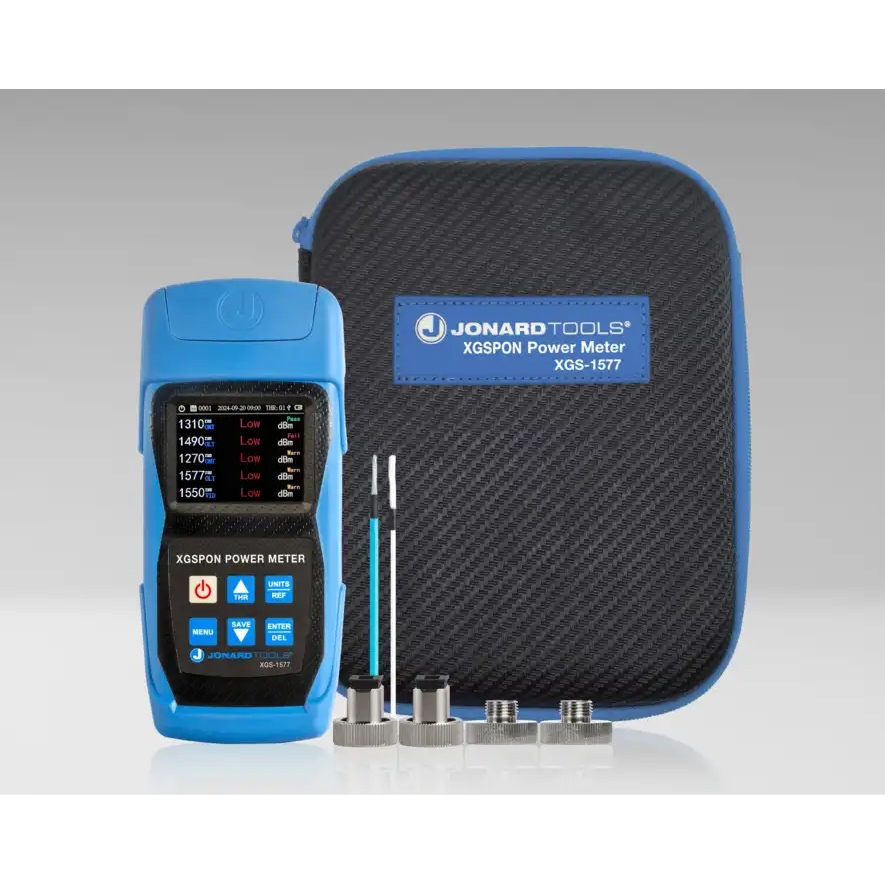

Includes SC/APC and FC/APC adapters for flexible connections
Color LCD with adjustable brightness for easy reading

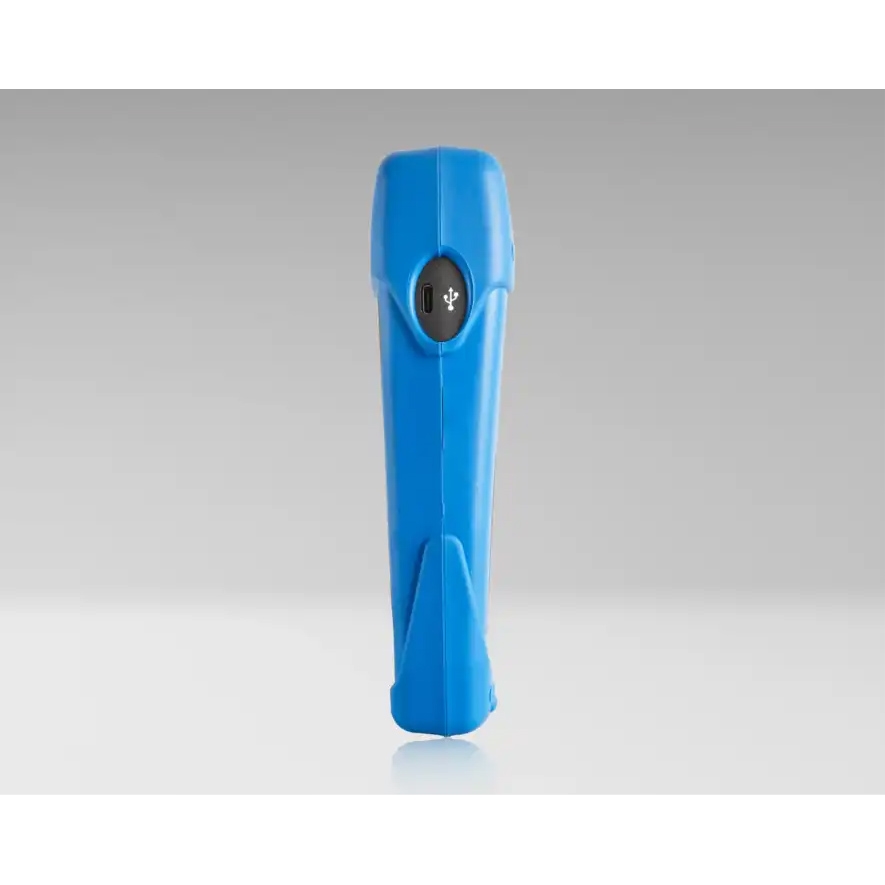

Saves up to 1,000 test results for later PC evaluation via USB-C

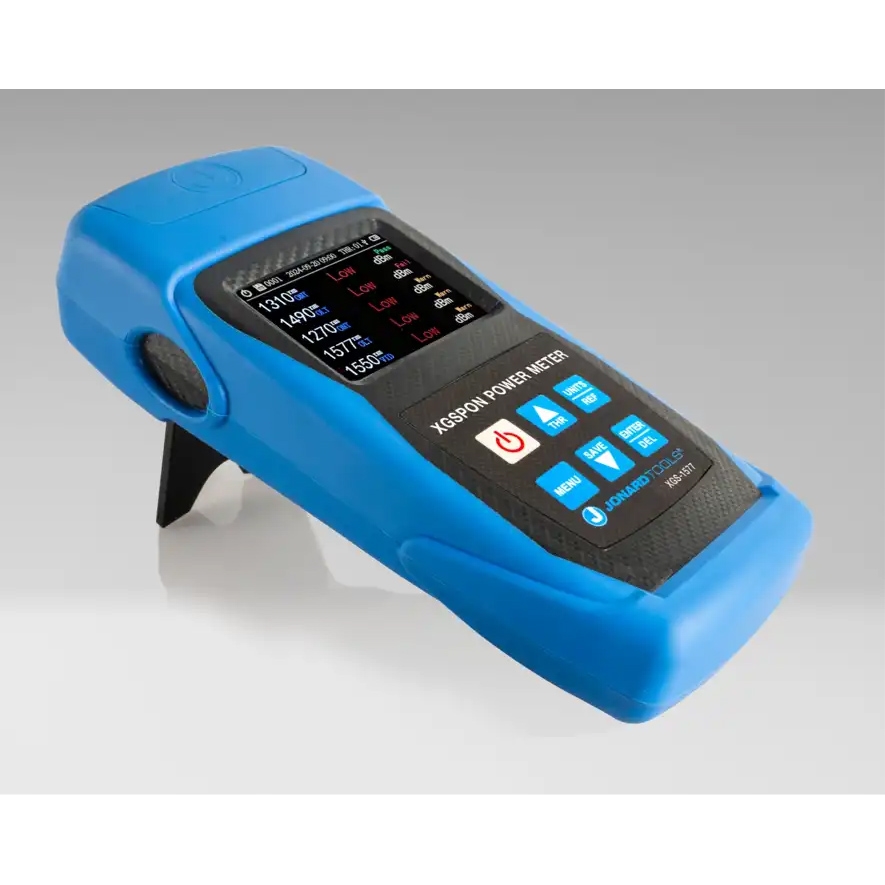

Built-in kickstand for comfortable viewing angle
Runs on (3) AA batteries with up to 90 hours of use
Specifications:
Network Types: XGSPON, XGPON, BPON, EPON, GPON

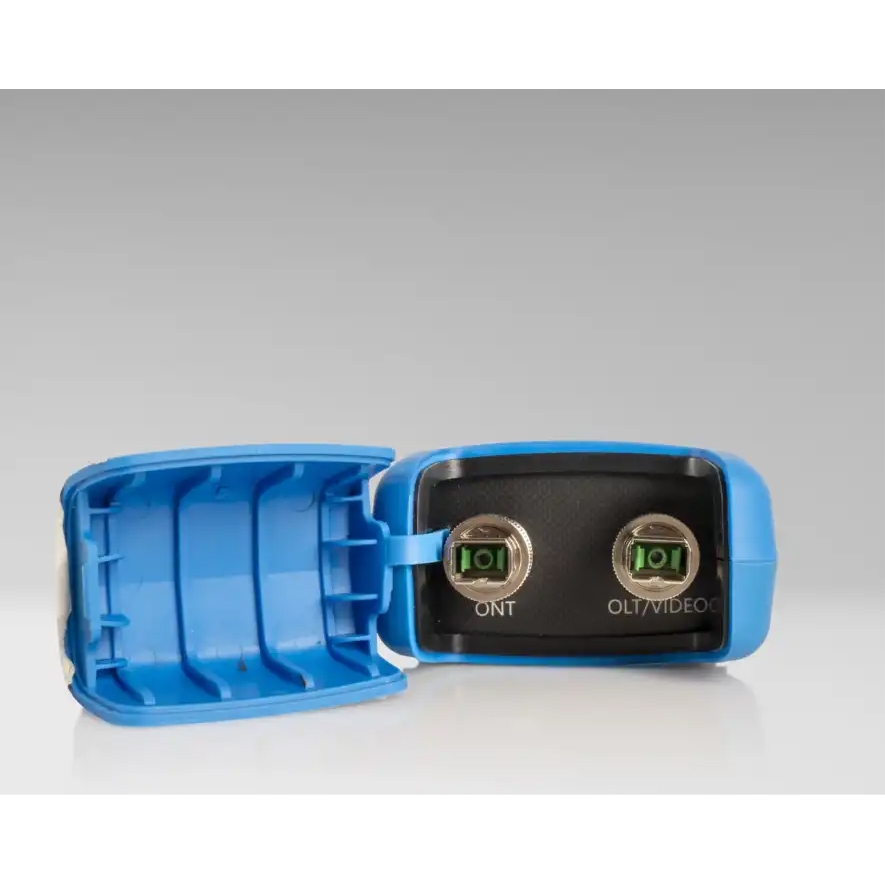

Connector Types: SC/APC, FC/APC
Upstream Wavelengths: 1270±10 nm, 1310±20 nm
Downstream Wavelengths: 1490±10 nm, 1550±10 nm, 1577±6 nm
Downstream Range: +13 to -40 dBm @ 1270/1310 nm
Upstream Range: +13 to -50 dBm @ 1490 nm, +25 to -50 dBm @ 1550 nm, +10 to -50 dBm @ 1577 nm
Insertion Loss: ≤1.5 dB
Uncertainty: ≤0.5 dB
Data Storage: 1000 entries
PC Interface: USB-C
Auto-Off Settings: Off, 10 min, 20 min, 30 min
Batteries: (3) 1.5V AA
Battery Life: Up to 90 hours
UPC: 810132437847
Model: XGS-1577
