RMT Optical Power Meter -70 to +3

RMT Optical Power Meter -70 to +3




Alternative Views:


TTS PRICE: $99.99

STATUS:  IN STOCK



Availability:
Normally Ships Same Day

PRODUCT CODE: RMT-ST800K-C
QUANTITY:

PRODUCT DESCRIPTION


With a wide range of functions, ST800K optical power meter is a powerful tool for use in fiber-optic installation and maintenance. Its rugged, durable construction makes it the perfect choice for a wide range of field applications.

The ST800K Optical Power Meter can test optical power within the range of 800~1700nm wave length. There are six kinds of wavelength calibration points: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm. The ST800K can be used for linearity and non-linearity testing and can display both direct and relative testing of optical power.

Features:
  • Multi-Wavelength Precise Measurement
  • Absolute Power Measurement of dBm or xW
  • Relative Power Measurement of dB
  • Auto-Off Function
  • 270, 330, 1K, 2KHz Frequency Light Identification and Indication
  • Low Voltage Indication

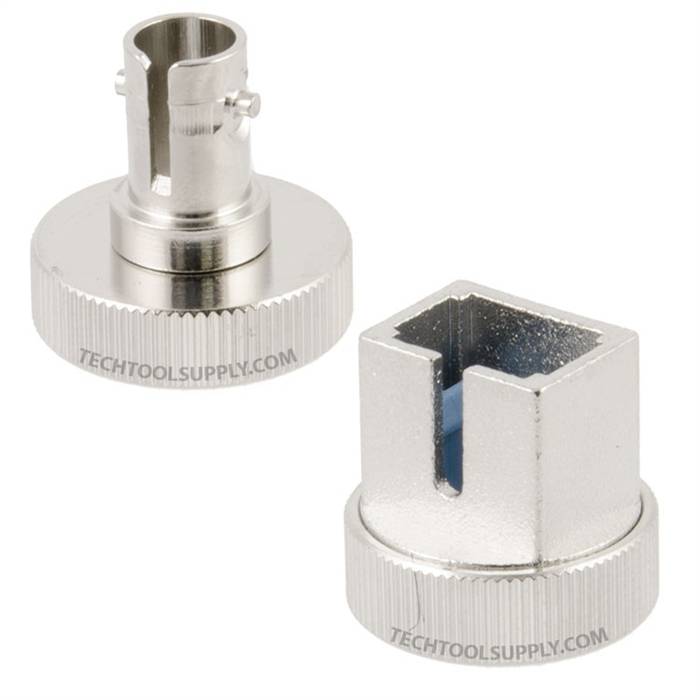

  • Versatile Adapters Work With: FC, ST, and SC
  • Handheld, Large LCD Backlight Display, Easy-to-Use
  • 1 Year Warranty

  • Specifications:
  • Power testing range (dBm): -70 to +3
  • Wavelength range (nm): 800-1700nm
  • Detector type: InGaAs
  • Standard wavelength(nm): 850, 1300, 1310, 1490, 1550, 1625
  • Tolerance: ±5%
  • Resolution: Linearity: 0.1%, Logarithm: 0.01dBm
  • Connectors: FC, ST, and SC
  • Working Temperature (°C): -10 to +50
  • Storage Temperature (°C): -30 to +60
  • Weight(g): .95lbs (430g) (without Batteries)
  • Dimension (mm): 7.87in x 3.54in x 1.69in (200mm x 90mm x 43mm)
  • Battery Type: 4x AA
  • Working Battery Duration: 150 Hours
  • Auto-Off: 10 Minutes
  • If you are looking for a kit that also includes all of the necessary tools for installing fiber connectors, have a look at the RMT-ST3900 Kit

    In need of new adapters for your RMT-ST800K-C? See ST800K A/C Adapters - FC SC ST.

    RMT Optical Power Meter User Manual
