Jonard FPM-70 Fiber Optic Power Meter w/ Adapters

Home > Categories > Fiber Prep & Termination > Power Meters >

Jonard Fiber Optic Power Meter w/ Adapters

Alternative Views:

TTS PRICE: $293.10

STATUS: ON ORDER

Availability:

SHIP ESTIMATE 1-2 DAYS

PRODUCT CODE: JON-FPM-70

QUANTITY:

PRODUCT DESCRIPTION

Jonard FPM-70 Fiber Optic Power Meter, -70 to +6 dBm, with FC/SC/LC Adapters

Primarily used in long haul applications, Jonard's FPM-70 fiber optic power meter is perfect for measuring both the absolute optical power and relative power loss in fiber optic cables.

Features:

Power measurement range of -70 dBm to +6 dBm, perfect for long distance or long haul telecom and fiber optic links with high loss

Measures a wide variety of wavelengths from 800-1700 nm, with a mere 0.01 dB resolution

Measures 8 preset calibrated wavelengths (850 to 1650 nm) with high precision to determine absolute or relative power

Identifies the wavelength automatically when paired with the FLS-50 or FLS-55 light source

Special function of the unit allows the device to be manually calibrated as needed

Includes FC and SC adapters to connect to PC/UPC/APC FC and SC connectors, plus an FC-LC adapter for PC/UPC singlemode connectors

Backlit 2.4" color LCD for viewing in low light locations, with a backside kickstand; 10 minute auto-off can be turned on or off

Dust-proof button design and shatter-resistant sleeve protect the tool

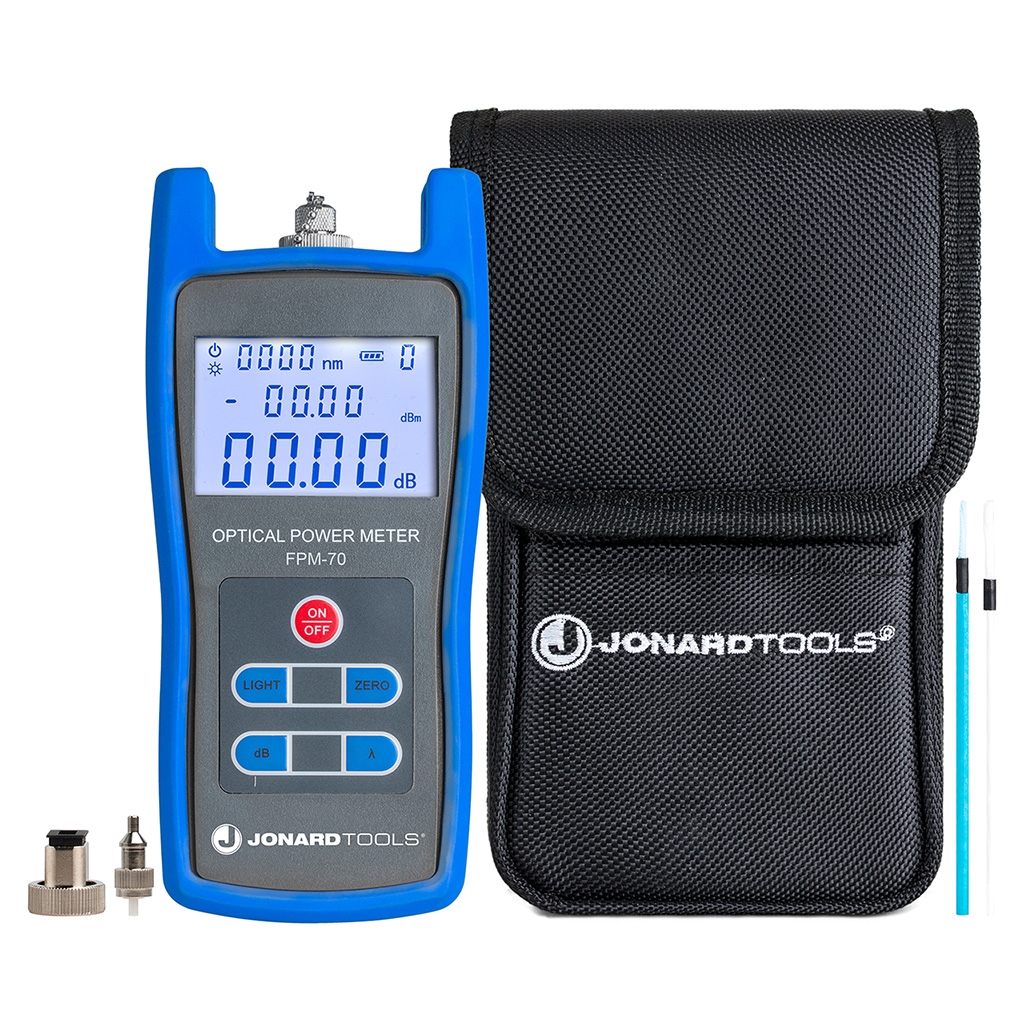

Includes:

1 x FPM-70 Fiber Optic Power Meter

1 x FC Adapter

1 x SC Adapter

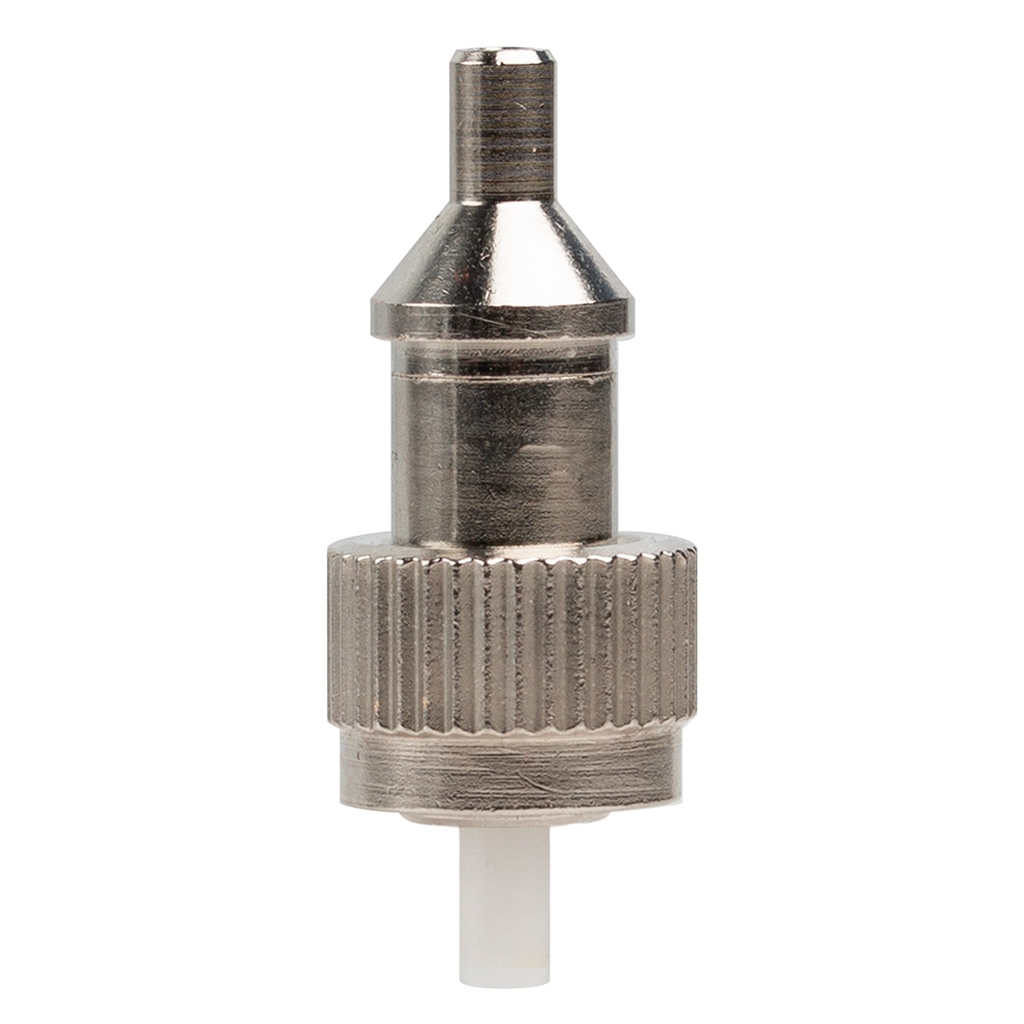

1 x FC-LC Adapter (singlemode only)

2 x Cleaning Swabs

3 x AA Batteries (required for operation)

1 x Protective Carrying Case

Specifications:

Detector Type: InGaAs

Wavelength Test Range: 800-1700 nm

Calibrated Wavelengths (nm): 850, 980, 1300, 1310, 1490, 1550, 1625, 1650

Measurement Range: -70 dBm to +6 dBm

Resolution: 0.01 dB

Linearity: ≤ 0.12 dB

Uncertainty: ± 0.2 dB

Frequency Identification: CW, 270 Hz, 330 Hz, 1000 Hz, 2000 Hz

Measurement Units: dBm, dB, xW

Connector Types: FC, SC (APC/PC/UPC) & FC-LC (PC/UPC, singlemode only)

Display: 2.4" LCD

Battery Type: (3) AA 1.5V alkaline batteries

Operating Time: ≥ 50 hours

Auto-Off: 10 min

Operating Temperature: -10 to +60 °C

Storage Temperature: -25 to +70 °C

Dimensions: 7" x 3.25" x 1.5" (17.78 cm x 8.26 cm x 3.81 cm)

Weight: 0.64 lb (291 g)

Model: FPM-70

Available Models:

Part #	Jonard #	Description	Measurement Range (dBm)
JON-FPM-50A	FPM-50A	Fiber Optic Power Meter (-50 to +26 dBm) with FC/SC/LC Adapters	+26 ~ -50
JON-FPM-55	FPM-55	Fiber Optic Power Meter with Data Storage (-50 to +26 dBm) and FC/SC/LC Adapters	+26 ~ -50
JON-FPM-70	FPM-70 (this item)	Fiber Optic Power Meter (-70 to +6 dBm) with FC/SC/LC Adapters	+10 ~ -70

Related Products:

Part #	Jonard #	Description
JON-FLS-50	FLS-50	Singlemode light source, 1310/1550 nm - automatic wavelength ID
JON-FLS-55	FLS-55	Multimode & singlemode light source - automatic wavelength ID
JON-FPM-50A	FPM-50A	Standard power meter, -50 to +26 dBm

FPM-70 - Fiber Optic Power Meter (-70 to +6 dBm) with FC/SC/LC Adapters - Data Sheet Jonard Tools FPM-70 Instruction Manual Power Meter Calibration Steps Light Source Setup Quick Reference Card
