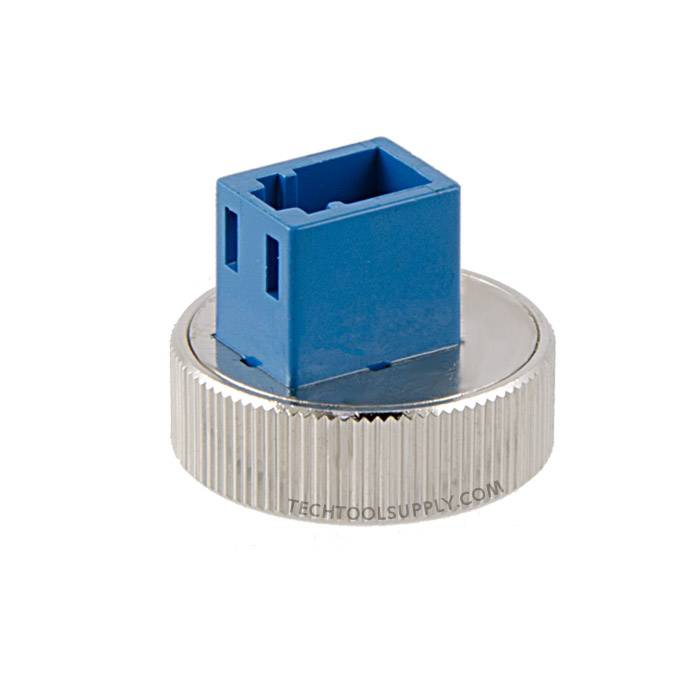

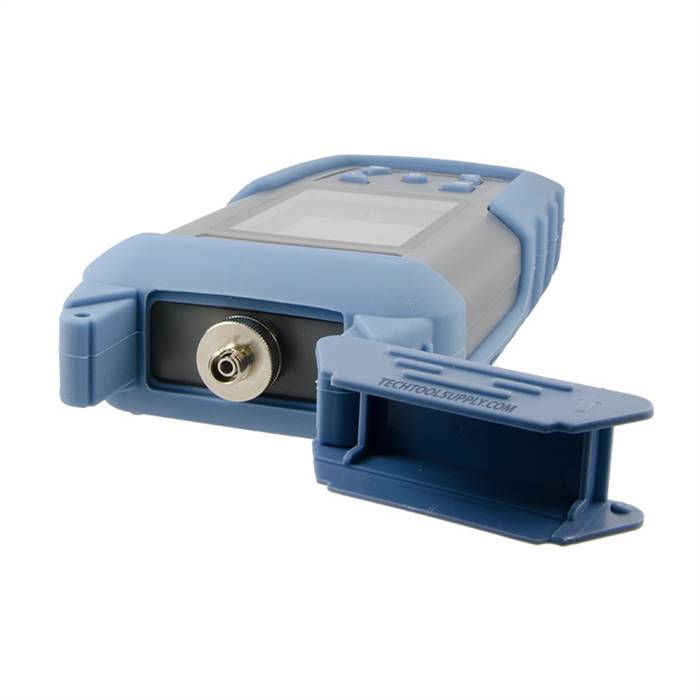

In addition to working with FC, ST, and SC connectors, the ST800K-D Power Meter has an upgraded style Laser head which is compatible with LC connectors (adapter included).

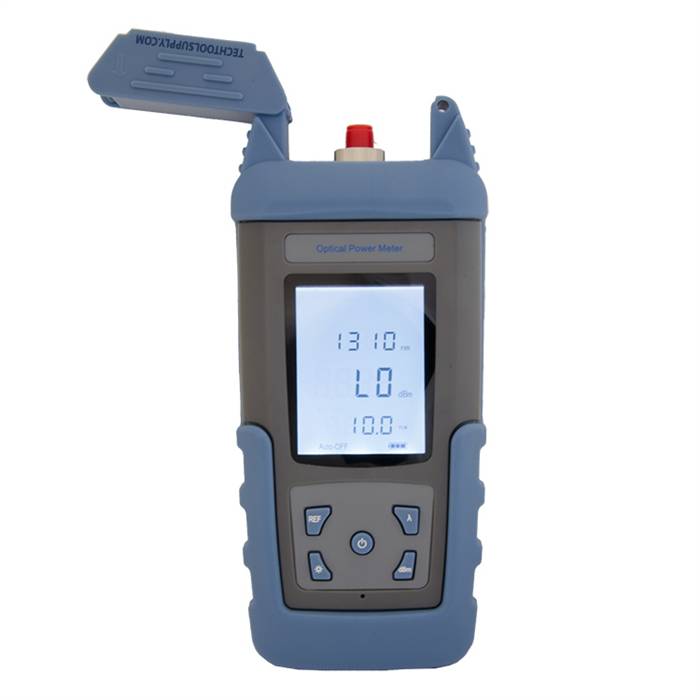

With a wide range of functions, ST800K optical power meter is a powerful tool for use in fiber-optic installation and maintenance. Its rugged, durable construction makes it the perfect choice for a wide range of field applications.
The ST800K Optical Power Meter can test optical power within the range of 800~1700nm wave length. There are six kinds of wavelength calibration points: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm. The ST800K can be used for linearity and non-linearity testing and can display both direct and relative testing of optical power.
Features:
Multi-Wavelength Precise Measurement
Absolute Power Measurement of dBm or xW
Relative Power Measurement of dB
Auto-Off Function
270, 330, 1K, 2KHz Frequency Light Identification and Indication
Low Voltage Indication

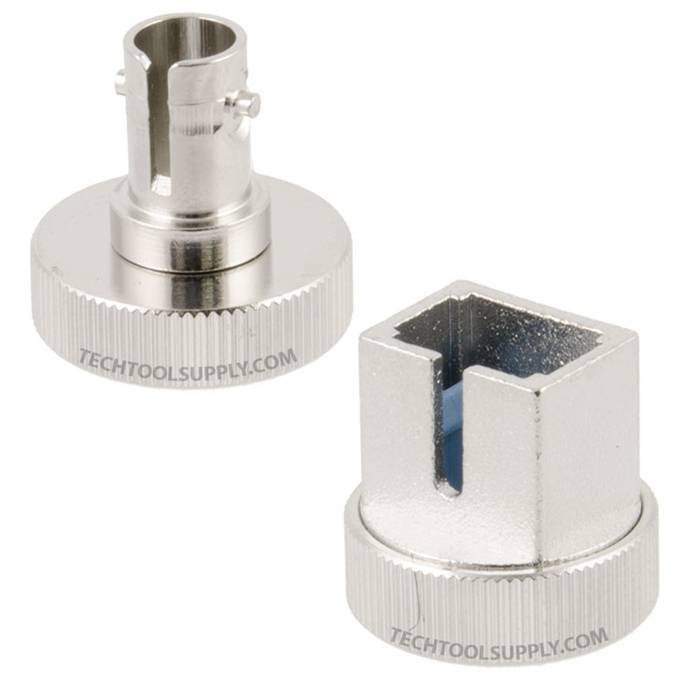

Versatile Adapters Work With: LC, FC, ST, and SC

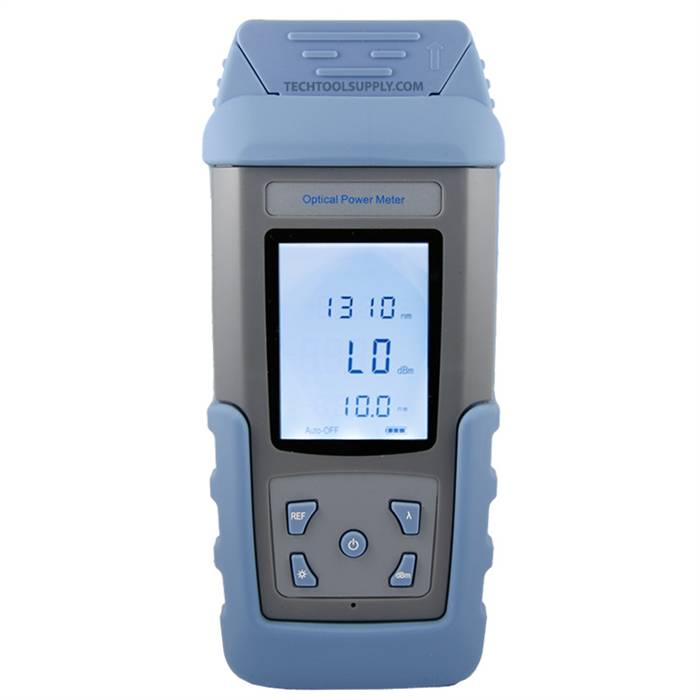

Handheld, Large LCD Backlight Display, Easy-to-Use
1 Year Warranty
Specifications:
Power testing range (dBm): -70 to +3
Wavelength range (nm): 800-1700nm
Detector type: InGaAs
Standard wavelength(nm): 850, 1300, 1310, 1490, 1550, 1625
Tolerance: ±5%
Resolution: Linearity: 0.1%, Logarithm: 0.01dBm
Connectors: FC, ST, and SC
Working Temperature (°C): -10 to +50
Storage Temperature (°C): -30 to +60
Weight(g): .95lbs (430g) (without Batteries)
Dimension (mm): 7.87in x 3.54in x 1.69in (200mm x 90mm x 43mm)
Battery Type: 4x AA
Working Battery Duration: 150 Hours
Auto-Off: 10 Minutes
In need of new adapters for your RMT-ST800K-D? See
ST800K B/D Adapters - FC SC ST LC.
