Klein Tools Pass-Thru Modular Crimper

Klein Tools Pass-Thru Modular Crimper

Alternative Views:

TTS PRICE: $44.97


Normally Ships Same Day

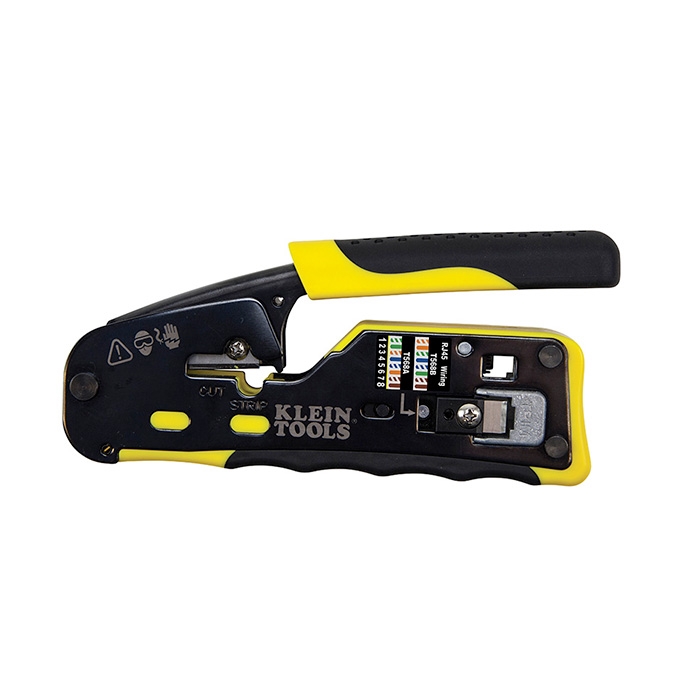

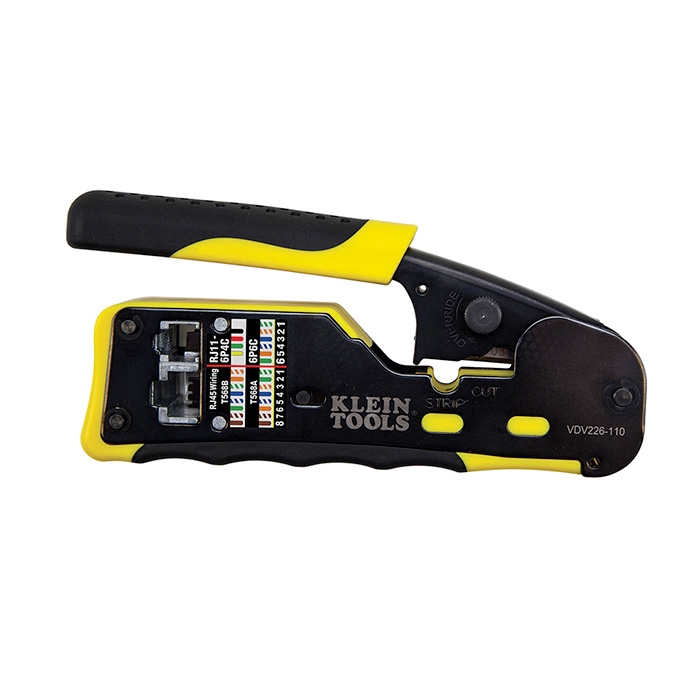

Klein Tool's VDV226-110 is a premium, long lasting tool that cuts, strips and crimps! Pass-Thru technology significantly reduces prep work time; tool wiring diagram on tool helps eliminate rework and wasted materials. Compact, non-slip comfort grip reduces hand strain and stores easily.

  • Fast, reliable modular crimp-connector installation for voice and data applications
  • All-in-one tool cuts, strips and crimps paired-conductor cables (round STP/UTP and flat-satin phone cables)
  • Crimps RJ11/RJ12 standard modular connectors and crimps and trims Klein Tools RJ45 Pass-Thru Connectors
  • Full-cycle ratchet mechanism ensures complete connector termination
  • Cable parameters: 28-22 AWG flat or round; solid or stranded telephone and data
  • Trims flush to end face of connector to eliminate unintended contact between conductors

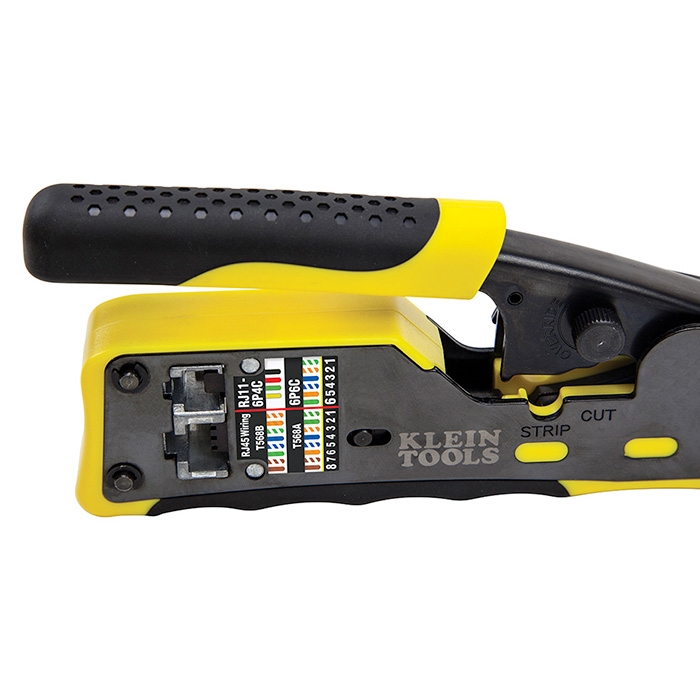

  • On-tool wiring guide helps minimize wiring errors
  • Not for use with standard (non-pass through) connectors

  • Specifications:
  • Handle Color: Yellow/Black
  • Handle Finish: Dual Material Cushion Overlay
  • Position/Pair/Conductors: 4, 6, and 8-position RJ11/RJ12 Standard
  • Crimps: RJ11/RJ12 Standard; Klein Tools Pass-Thru Connectors
  • Cuts & Strips: STP/UTP and Flat Satin Phone Cable
  • Overall Length: 6-3/32" (154.8 mm)
  • Weight: 0.90 lb (0.41 kg)
