Jonard PON-50 Passive Optical Network Power Meter for BPON/EPON/GPON

Home > Categories > Fiber Prep & Termination > Test Equipment >

Jonard Passive Optical Network Power Meter for BPON/EPON/GPON

TTS PRICE: $450.95

STATUS: ON ORDER

Availability:

SHIP ESTIMATE 1-2 DAYS

PRODUCT CODE: JON-PON-50

QUANTITY:

PRODUCT DESCRIPTION

Jonard's PON-50 is designed to perform live testing with OLT equipment. This PON Power Meter is perfect for use during FTTx/PON service tune-up or maintenance. It can simultaneously test and measure the signal power of voice, data, and video connections and is essential for constructing and maintaining PON systems.

Features:

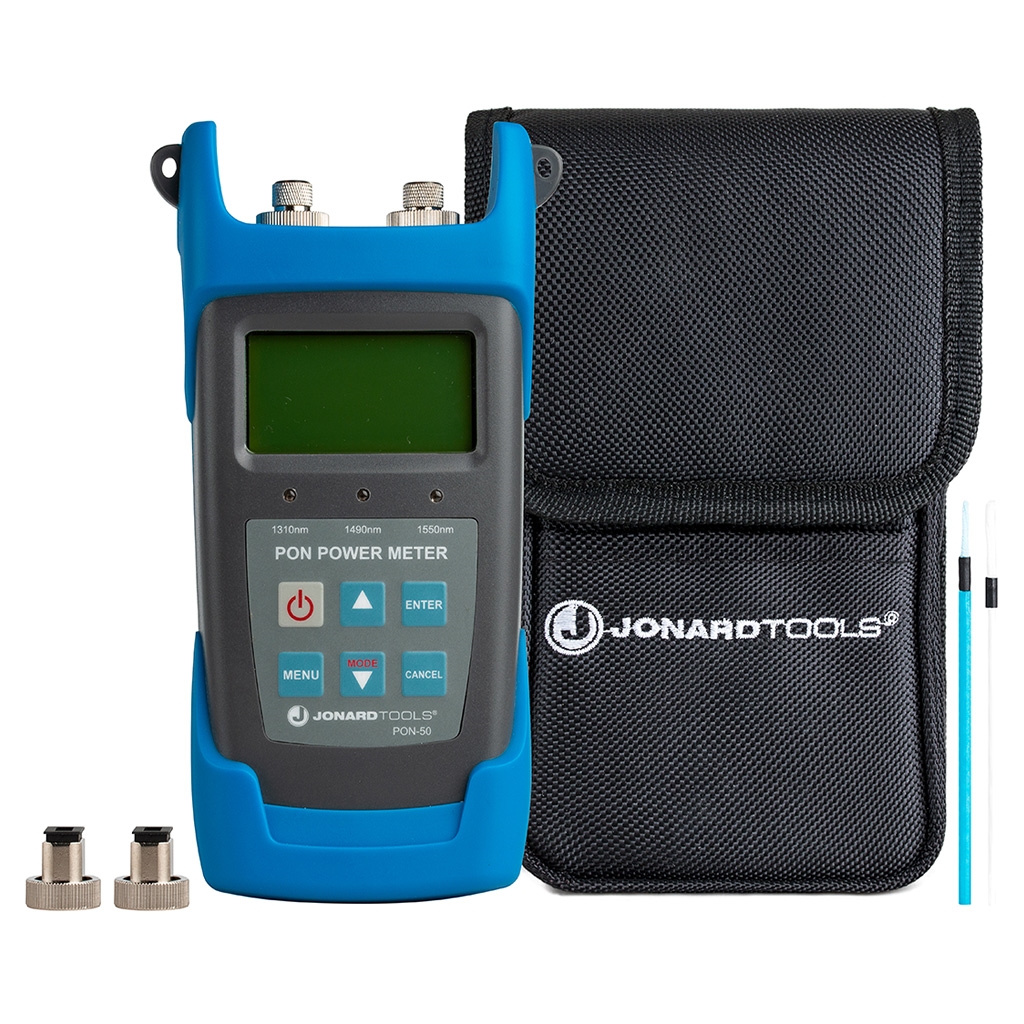

Includes carrying case, instruction manual, and FC and SC adapters to directly connect to UPC/PC FC and SC fiber connectors

Analyzes voice, data, and video signals in BPON/EPON/GPON FTTx systems

Concurrently measures 1310 nm Upstream Burst Signals and 1490/1550 nm Downstream Signal Measurements anywhere in the network

Three pass, warning, and fail LED indicators to allow you to quickly assess your network's power level

Supports 1310 nm Upstream Burst Signal and 1490/1550 nm Downstream Signal Measurements

USB port allows quick transfer of data, and up to 1,000 measurement items can be saved at once

Optional 10 minute auto-off can be activated or deactivated

Shatter-resistant sleeve protects it from accidental falls or other damage

Included software allows you to set the thresholds, transfer data, and calibrate the wavelength from your PC

Specifications:

Network Types: BPON/EPON/GPON

Connector Types: FC/SC

Wavelengths: 1310 nm, 1490 nm, 1550 nm

Measurement Range: -35 dBm～+10 dBm @ 1310/1490 nm, -35dBm～+10dBm @ 1550 nm

Max Output Power: 15 dBm @ 1310/1490/1550 nm

Detector Type: InGaAs

Connatural Uncertainty (dB): ±0.5 dB

Linearity (dB): ±0.1 dB

Batteries: (3) 1.5V AA

Battery Life: 90 Hours

Operation Temperature: -10℃～60℃

Dimensions: 6.25" x 9" x 2.8" (15.88 cm x 22.86 cm x 7.11 cm)

Weight: 0.93 lb (0.423 kg)
