Platinum Tools 202048J ezEX48 Pass-Through RJ45 Connectors - Cat6A, Unshielded, Jar of 100

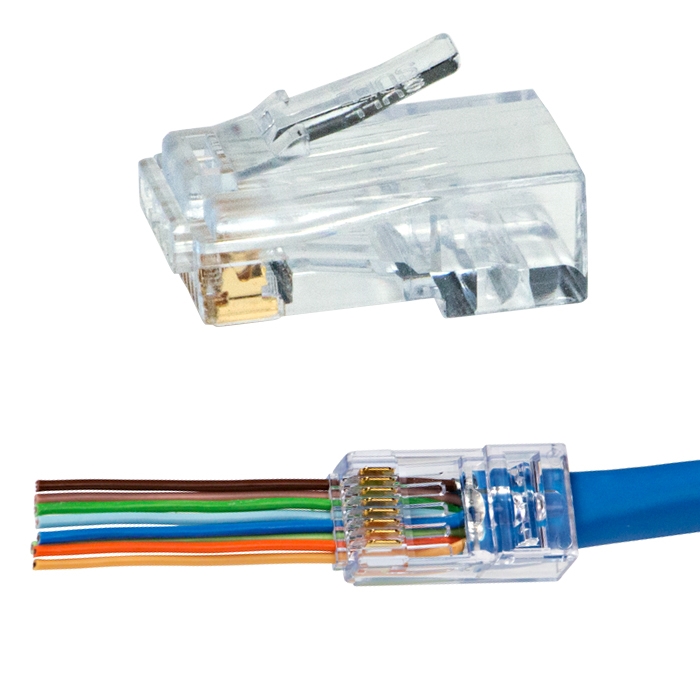

These ezEX48 connectors from Platinum Tools are designed for larger cables and conductors (typically Cat6a). They feature a unique integrated Hi-Lo stagger load bar and allow larger conductors to pass through the front end of the connector, making it easy to verify the wiring sequence before terminating.
These connectors can ONLY be terminated with the EXO Crimp Frame and EXO-EX Die (PLA-100061C).
Features:

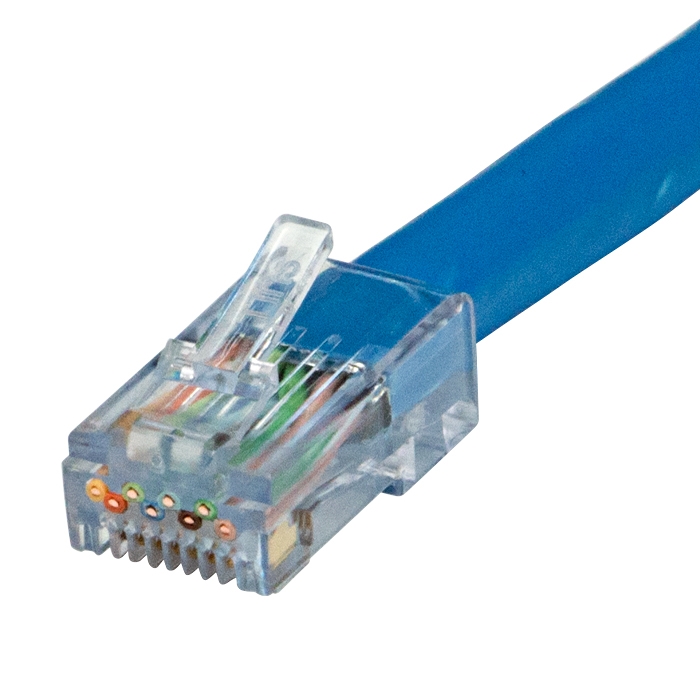

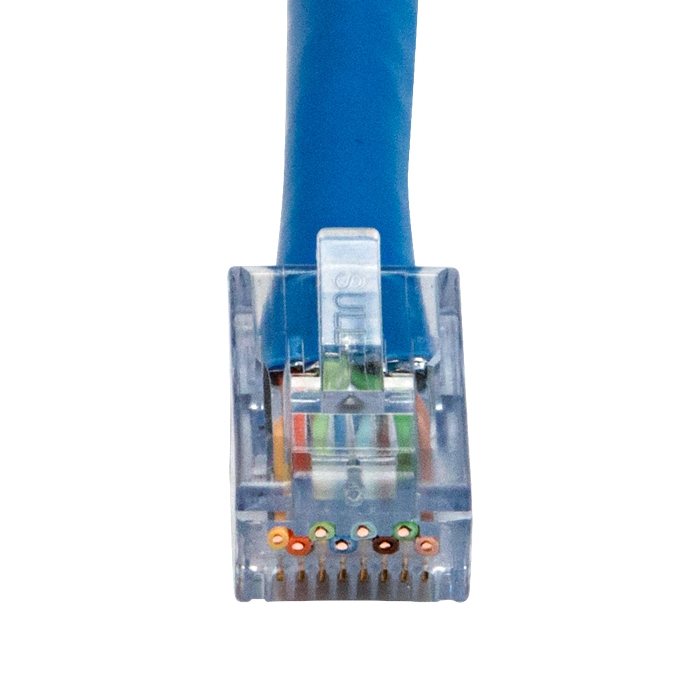

ezEX-RJ45 pass-through design (ezEX48 series) - conductors pass through the front of the plug
Hi-Lo stagger isolates each conductor for higher performance
Simple one piece/pass through design, no bars or liners
For conductor insulation diameters of 0.043" - 0.048" (1.09 - 1.22mm)
Unshielded, clear polycarbonate body

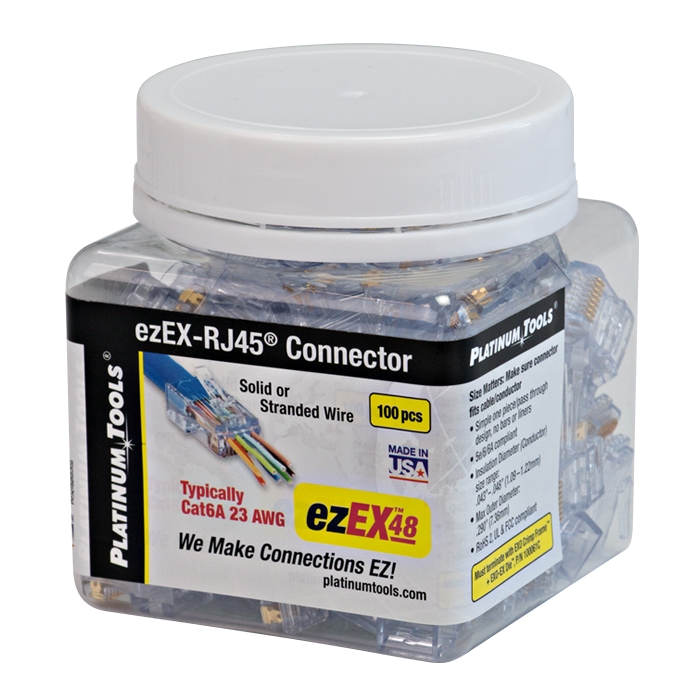

Packed 100 per jar with screw lid
Specifications:
Connector Type: RJ45, ezEX-RJ45 pass-through (ezEX48)
Category: Cat6A
Quantity: 100 connectors (jar)
Insulation Diameter (Conductor): 0.043" - 0.048" (1.09 - 1.22mm)
Max Outer Diameter: 0.290" (7.36mm)
Conductor: Solid or Stranded, 22-24 AWG
Shielding: Unshielded
Material: Polycarbonate
Color: Clear
Compliant: RoHS 2, UL & FCC
Made in the USA
Model: 202048J
Fits These Tools:
| Part # | Platinum # | Description |
|---|
| PLA-100061C | 100061C | EXO crimp frame with EXO-EX die - required to terminate ezEX-RJ45 connectors |
| PLA-100071C | 100071C | EXO-EX die only, for an EXO crimp frame you already own |
Related Products:
| Part # | Platinum # | Description |
|---|
| PLA-100029C | 100029C | ezEX48 Cat6A connectors, 50 piece pack |
| PLA-202044J | 202044J | ezEX44 Cat6 connectors, jar of 100 - for 0.039" - 0.044" insulation |
