SC Simplex SM UPC Splice-On Connector, Low-Loss Fiber Optic 3 mm

Home > Categories > Connectors & Adapters > Fiber >

TTS PRICE: $10.99

STATUS:

IN STOCK

Availability:

Normally Ships Same Day

PRODUCT CODE: AI-SC-SM-UPC-3M

QUANTITY:

PRODUCT DESCRIPTION

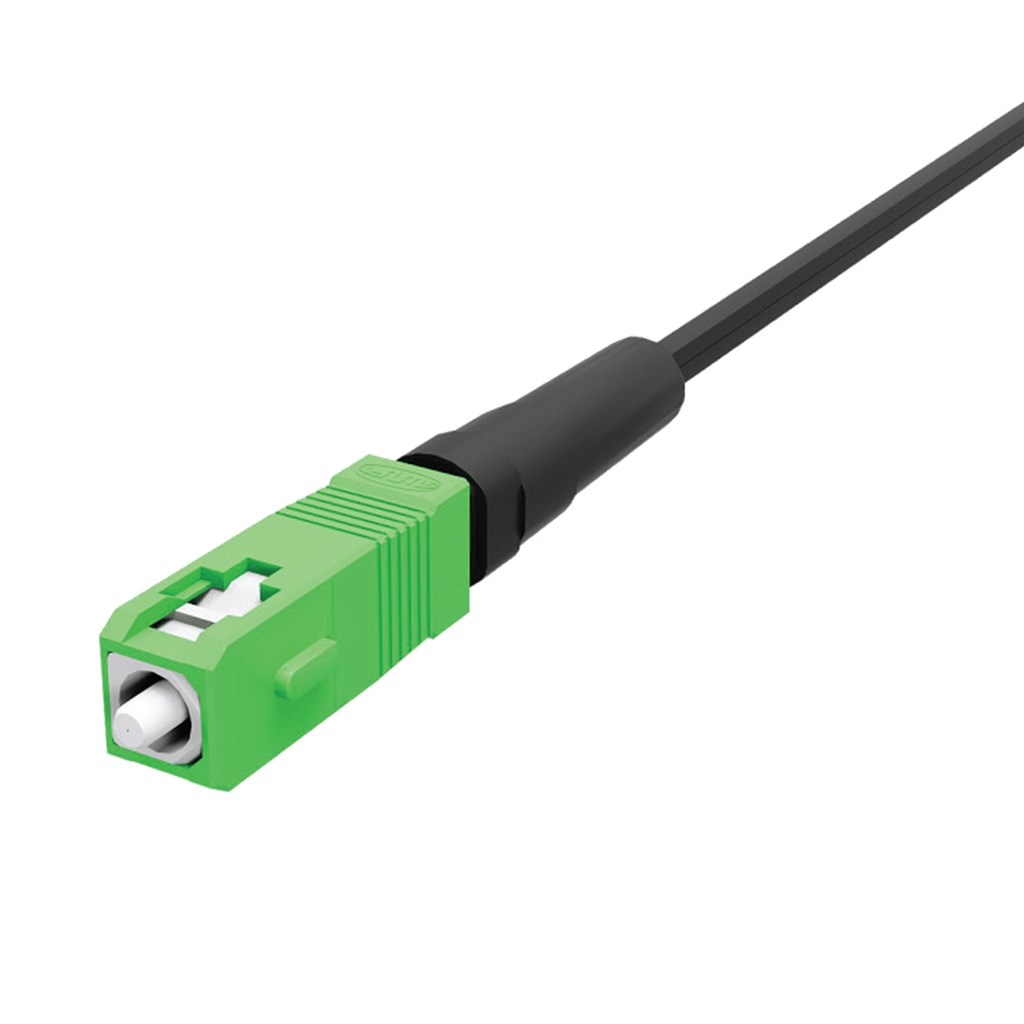

The UCL Swift SC Singlemode UPC Splice-On Connector (AI-SC-SM-UPC-3M) delivers reliable and low-loss fiber optic terminations with quick field installation. Designed for 3 mm fiber cable, this connector combines the precision of fusion splicing with the simplicity of an SC interface. Its factory-polished ferrule ensures consistently low insertion loss and high return loss, while its durable design provides excellent tensile strength. Ideal for FTTH, LAN, and data center applications, this connector is built for performance and long-term stability.

Features

Splice-on SC connector for singlemode fiber with UPC polish
Compatible with 3 mm fiber cable
Factory-polished ferrule for low insertion loss
Enhanced tensile strength exceeding 60 N
FOCIS-compliant SC connector interface
Verified to TIA-568-C.3 standards
Supports rapid, reliable fusion splice installation
Available with U.S.-made connectors
Backed by the Swift 25-year warranty

Specifications:

Model: AI-SC-SM-UPC-3M
Connector type: SC
Fiber type: Singlemode (SM)
Polish: UPC (Ultra Physical Contact)
Cable compatibility: 3 mm
Tensile strength: > 60 N
Return loss (UPC): > 50 dB
Insertion loss: Average < 0.15 dB (Max < 0.30 dB)
Compliance: TIA-568-C.3, IEC61754, KS C6974, JIS C5973

Applications

FTTH (Fiber-to-the-Home) networks
LAN and enterprise optical networks
Data centers
CATV systems
Medium to long-range optical transmission
