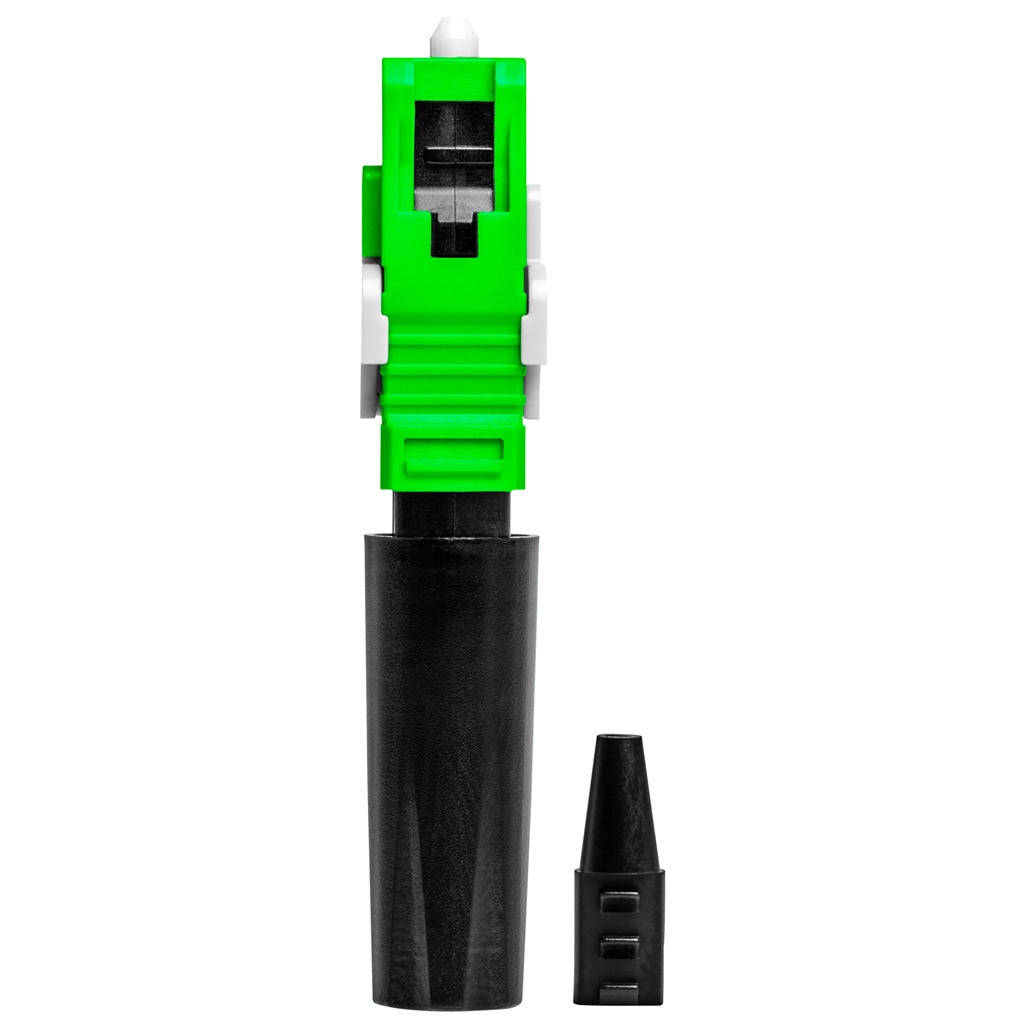

Jonard Tools SC/APC Mechanical Connectors provide a reliable and efficient solution for connectorizing 250 µm and 900 µm coated fibers. Designed for quick field installations, these connectors feature a simple, tool-free setup that saves time while ensuring excellent performance and long-lasting reliability.

• High Performance: SC/APC polish for minimal signal loss and excellent optical quality
• Versatile Compatibility: Works with both 250 µm and 900 µm coated fiber cables
• Tool-Free Installation: No special tools required, ideal for fast fieldwork
• Durable Design: Built to withstand demanding environments
• Includes: (10) SC/APC mechanical connectors

Specifications:

• Connector Type: SC
• Polish Type: APC (Singlemode)
• Fiber Type: Singlemode
• Cable Types: 900 μm & 250 μm
• Insertion Loss: AVG ≤ 0.3 dB, MAX ≤ 0.5 dB
• Return Loss: APC ≥ 55 dB
• Operating Temperature: -40 °C to +85 °C
• Standards: TIA/EIA 604-3
• Dimensions: 2 in × 0.35 in × 0.43 in (5.08 cm × 0.89 cm × 1.09 cm)
• Weight: 0.1 lb (45.4 g)
• UPC: 810132438523
• Quantity: 10
