SC Simplex SM APC Splice-On Connector, Low-Loss Fiber Optic 3 mm

SC Simplex SM APC Splice-On Connector, Low-Loss Fiber Optic 3 mm


TTS PRICE: $8.29

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: AI-SC-SM-APC-3M
QUANTITY:

PRODUCT DESCRIPTION

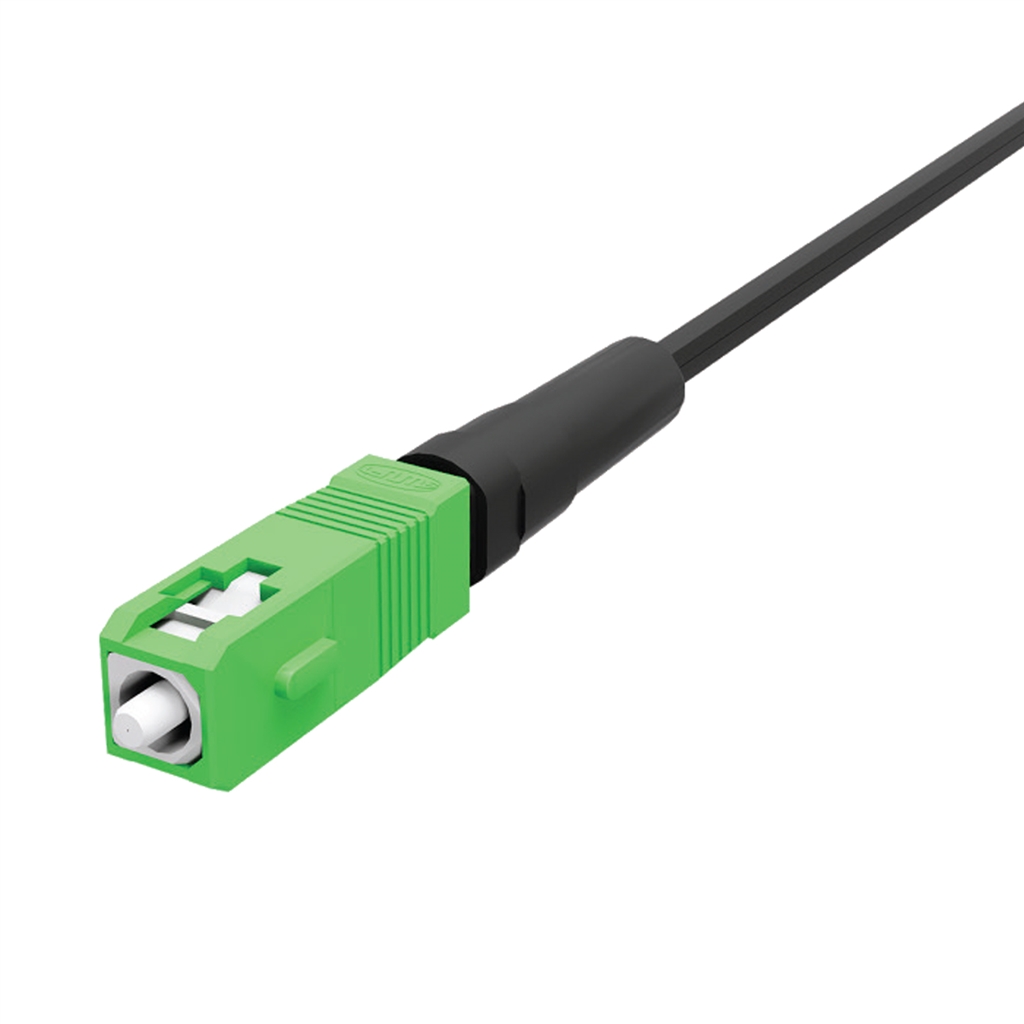

The UCL Swift SC Singlemode APC Splice-On Connector (AI-SC-SM-APC-3M) is built for reliable performance in demanding fiber networks. Designed for 3 mm singlemode fiber cables, this connector combines the precision of fusion splicing with the convenience of a standard SC interface. Its factory-polished ferrule ensures consistently low insertion loss and excellent return loss, while the rugged design delivers tensile strength exceeding 60 N. Ideal for FTTH, LAN, and telecom applications, this connector provides stable, long-term optical performance with quick field installation.

Features
  • Splice-on SC connector for singlemode fiber with APC polish
  • Compatible with 3 mm fiber cable
  • Factory-polished ferrule for optimum optical performance
  • Enhanced tensile strength exceeding 60 N
  • FOCIS-compliant SC connector interface
  • Verified to TIA-568-C.3 standards
  • Reliable and repeatable fusion splice field installation
  • Available with U.S.-made connectors
  • Backed by the Swift 25-year warranty
Specifications:
  • Model: AI-SC-SM-APC-3M
  • Connector type: SC
  • Fiber type: Singlemode (SM)
  • Polish: APC (Angled Physical Contact)
  • Cable compatibility: 3 mm
  • Tensile strength: > 60 N
  • Return loss (APC): > 60 dB
  • Insertion loss: Average < 0.15 dB (Max < 0.30 dB)
  • Compliance: TIA-568-C.3, IEC61754, KS C6974, JIS C5973
Applications
  • FTTH (Fiber-to-the-Home) networks
  • LAN and enterprise optical networks
  • Telecom/datacom systems
  • CATV applications
  • Medium to long-range optical transmission
