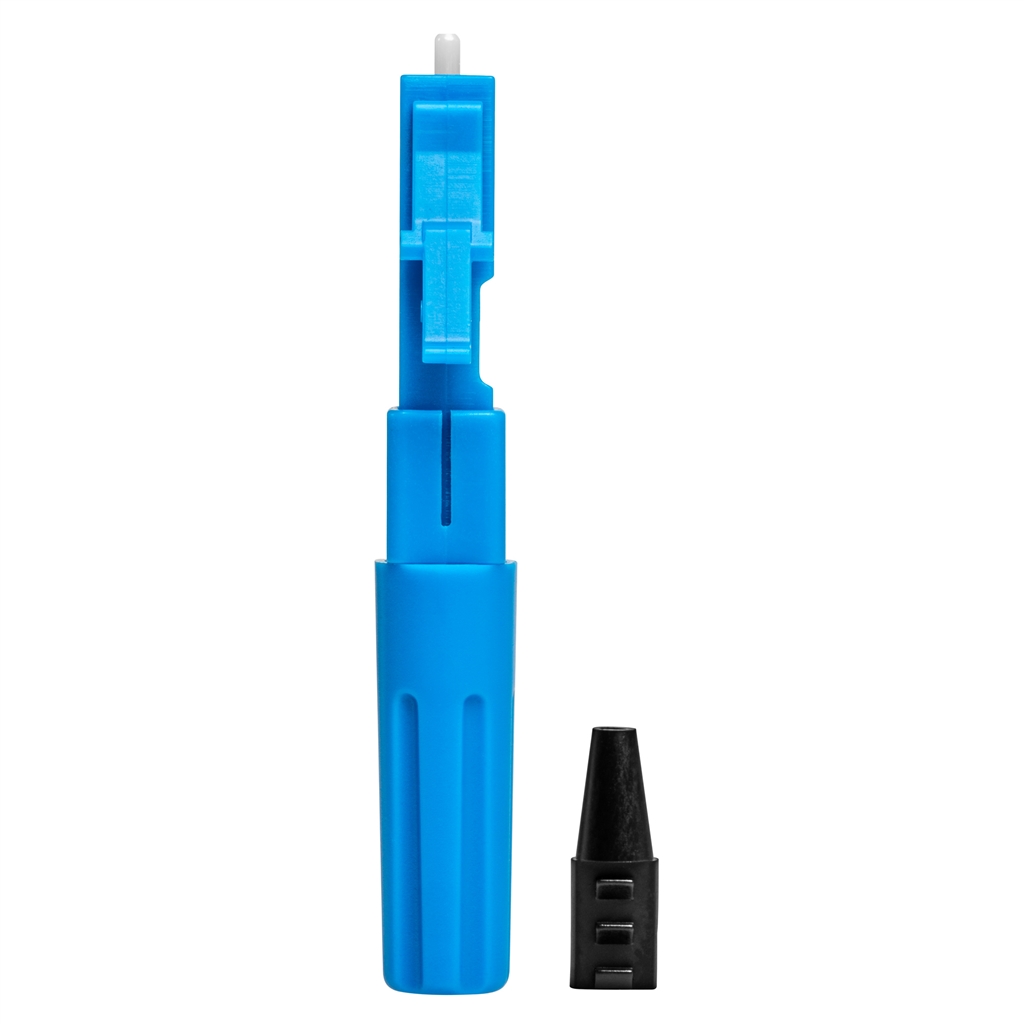

Jonard Tools LC/UPC Mechanical Connectors provide a reliable and efficient solution for connectorizing 250 µm and 900 µm coated fibers. Designed for quick field installations, these connectors feature a simple, tool-free setup that saves time while ensuring excellent performance and long-lasting reliability.

• High Performance: LC/UPC polish for minimal signal loss and excellent optical quality
• Versatile Compatibility: Works with both 250 µm and 900 µm coated fiber cables
• Tool-Free Installation: No special tools required, ideal for fast fieldwork
• Durable Design: Built to withstand demanding environments
• Includes: (10) LC/UPC mechanical connectors

Specifications:

• Connector Type: LC
• Polish Type: UPC (Singlemode)
• Fiber Type: Singlemode
• Cable Types: 900 μm & 250 μm
• Insertion Loss: AVG ≤ 0.3 dB, MAX ≤ 0.5 dB
• Return Loss: APC ≥ 45 dB
• Operating Temperature: -20 °C to +85 °C
• Standards: TIA/EIA 604-3
• Dimensions: 1.81 in × 0.35 in × 0.2 in (4.6 cm × 0.89 cm × 0.51 cm)
• Weight: 0.1 lb (45.4 g)
• UPC: 810132438691
• Quantity: 10
