SC Simplex SM APC Splice-On Connector, Low-Loss Fiber Optic 2/3 mm

SC Singlemode APC Simplex Splice-On Connector, 2 mm & 3 mm Fiber


TTS PRICE: $11.59

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: AI-SC-SM-APC-20-30
QUANTITY:

PRODUCT DESCRIPTION

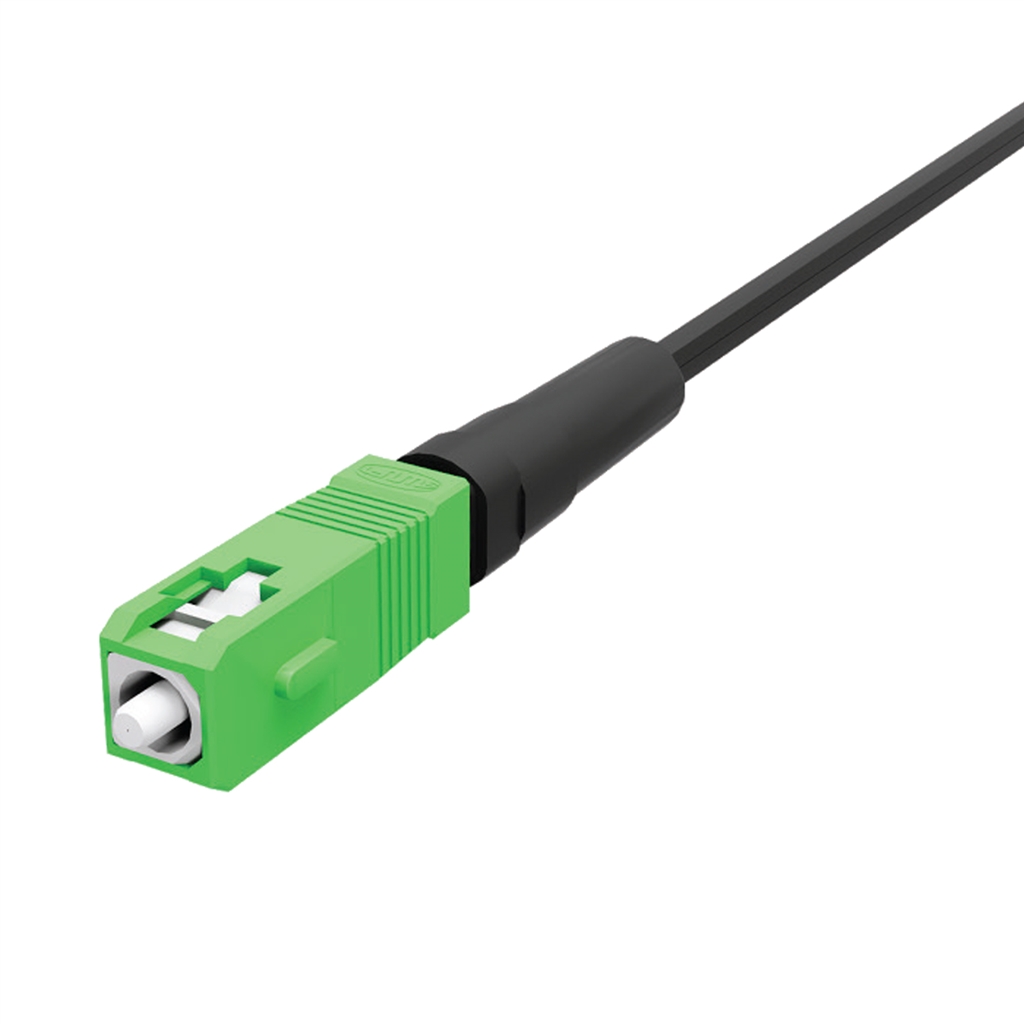

The UCL Swift SC Singlemode APC Splice-On Connector (AI-SC-SM-APC-20-30) provides high-performance optical connectivity with superior reliability. Designed for 2 mm and 3 mm fiber cables, this splice-on connector combines fusion splice technology with the convenience of an SC form factor. Factory-polished ferrule end faces ensure low insertion loss, while the rugged design delivers long-term tensile strength and stable optical performance. Ideal for FTTH, LAN, and telecom applications, this connector offers a fast, consistent, and field-friendly termination solution.

Features
  • Factory-installed fiber stubs using premium-grade fiber
  • Factory-polished and inspected ferrule end faces for optimum performance
  • Enhanced tensile strength exceeding 60 N for reliable field terminations
  • FOCIS-compliant SC connector interface
  • Verified to TIA-568-C.3 performance standards
  • Supports quick, consistent fusion splice field installation
  • Available with U.S.-made connectors
  • Backed by the Swift 25-year warranty
Specifications:
  • Model: AI-SC-SM-APC-20-30
  • Connector type: SC
  • Fiber type: Singlemode (SM)
  • Polish: APC (Angled Physical Contact)
  • Cable compatibility: 2 mm & 3 mm
  • Tensile strength: > 60 N
  • Return loss (APC): > 60 dB
  • Insertion loss: Average < 0.15 dB (Max < 0.30 dB)
  • Compliance: TIA-568-C.3, IEC61754, KS C6974, JIS C5973
Applications
  • FTTH (Fiber-to-the-Home) networks
  • LAN and enterprise optical networks
  • Telecom/datacom circuits
  • CATV systems
  • Medium to long-haul optical transmission
