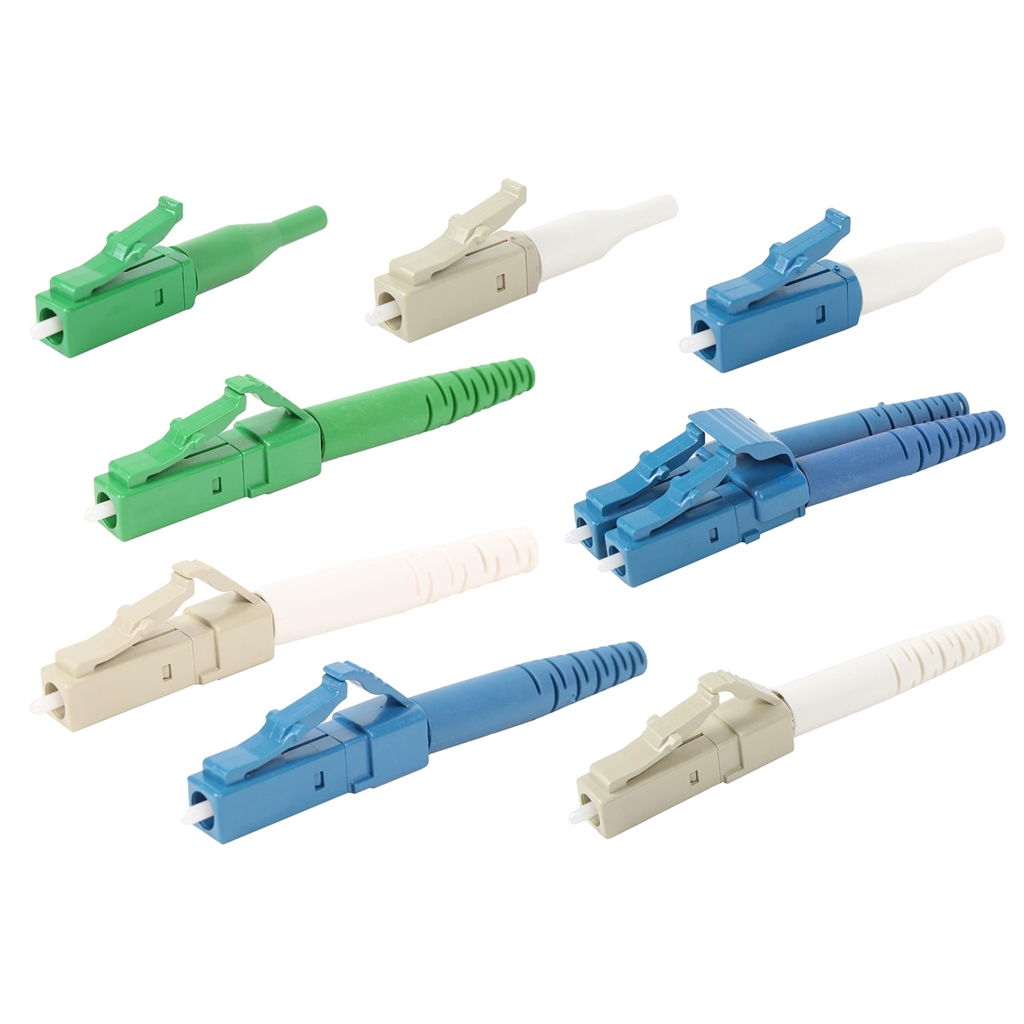

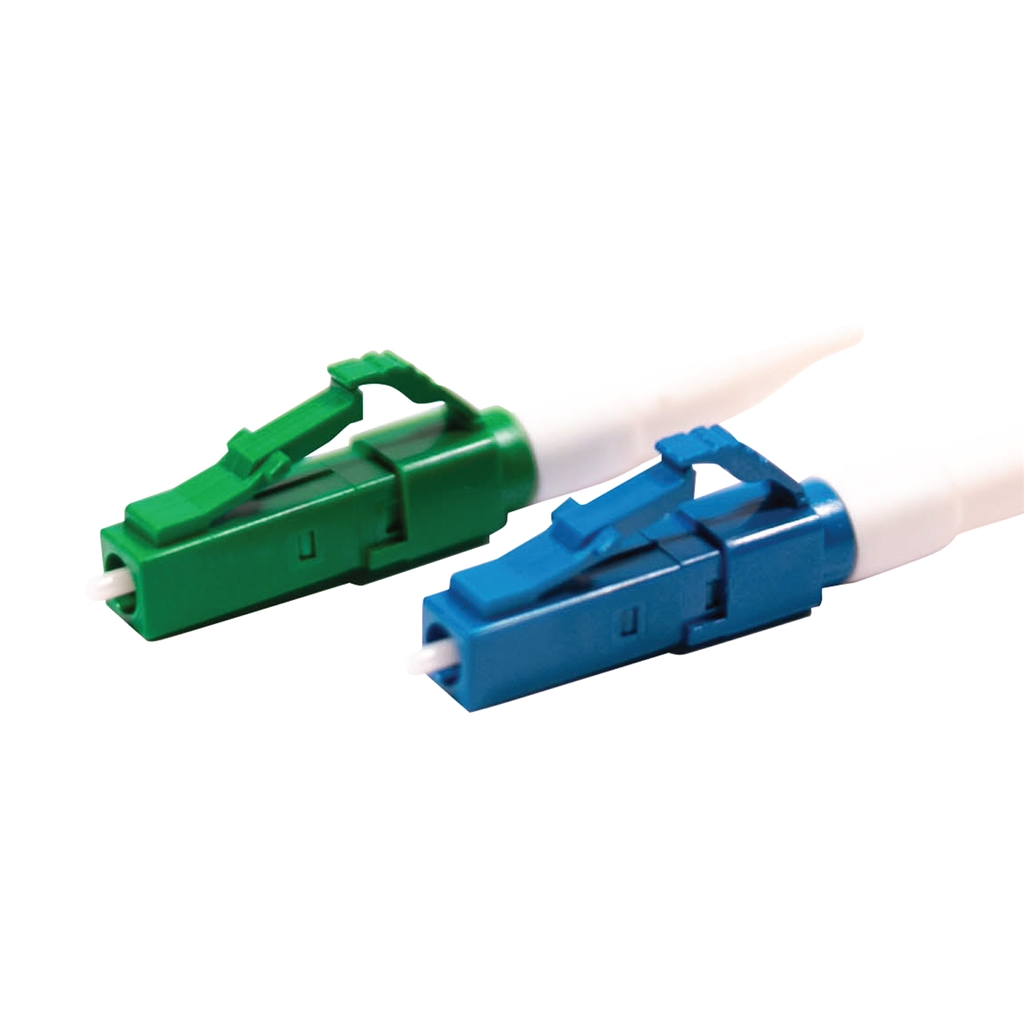

LC Duplex SM UPC Splice-On Connector, Low-Loss Fiber Optic 900µm

LC Duplex SM UPC Splice-On Connector, Low-Loss Fiber Optic 900µm


Alternative Views:
TTS PRICE: $9.29

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: AI-LCS-SMG-625D-UPC-09-SA
QUANTITY:

PRODUCT DESCRIPTION


The UCL Swift LC Duplex Splice-On Connector (LCS-SMG-625D-UPC-09-SA) is engineered for high-density optical transmissions where performance and reliability are critical. Designed for singlemode fiber with UPC polish, this connector supports 900 micron fiber and provides factory-polished end faces for consistent low-loss connections. Its FOCIS-compliant interface and enhanced tensile strength make it ideal for FTTH, LAN, data centers, and other demanding optical networks.

Features
  • Factory-installed fiber stubs using high-quality fiber
  • Factory polished and inspected ferrule end faces for optimum connectivity
  • Enhanced tensile strength for improved field terminations
  • FOCIS compliant connector interface
  • Verified to TIA-568-C.3 standards
  • Ideal for FTTH, LAN, POL, CATV, and data center deployments
  • Available with U.S.-made connectors
  • Swift 25-year warranty available
Specifications:
  • Model: LCS-SMG-625D-UPC-09-SA
  • Connector type: LC Duplex
  • Fiber type: Singlemode (SM, G.657.A1/A2)
  • Polish: UPC (Ultra Physical Contact)
  • Cable compatibility: 900 micron
  • Tensile strength: > 60 N
  • Return loss (UPC): > 50 dB
  • Insertion loss: Average < 0.15 dB (Max < 0.30 dB)
  • Compliance: TIA-568-C.3, IEC61754, KS C6974, JIS C5973
Applications
  • FTTH (Fiber-to-the-Home)
  • Data centers
  • LAN and POL networks
  • CATV systems
  • Medium to long-range optical transmission circuits
