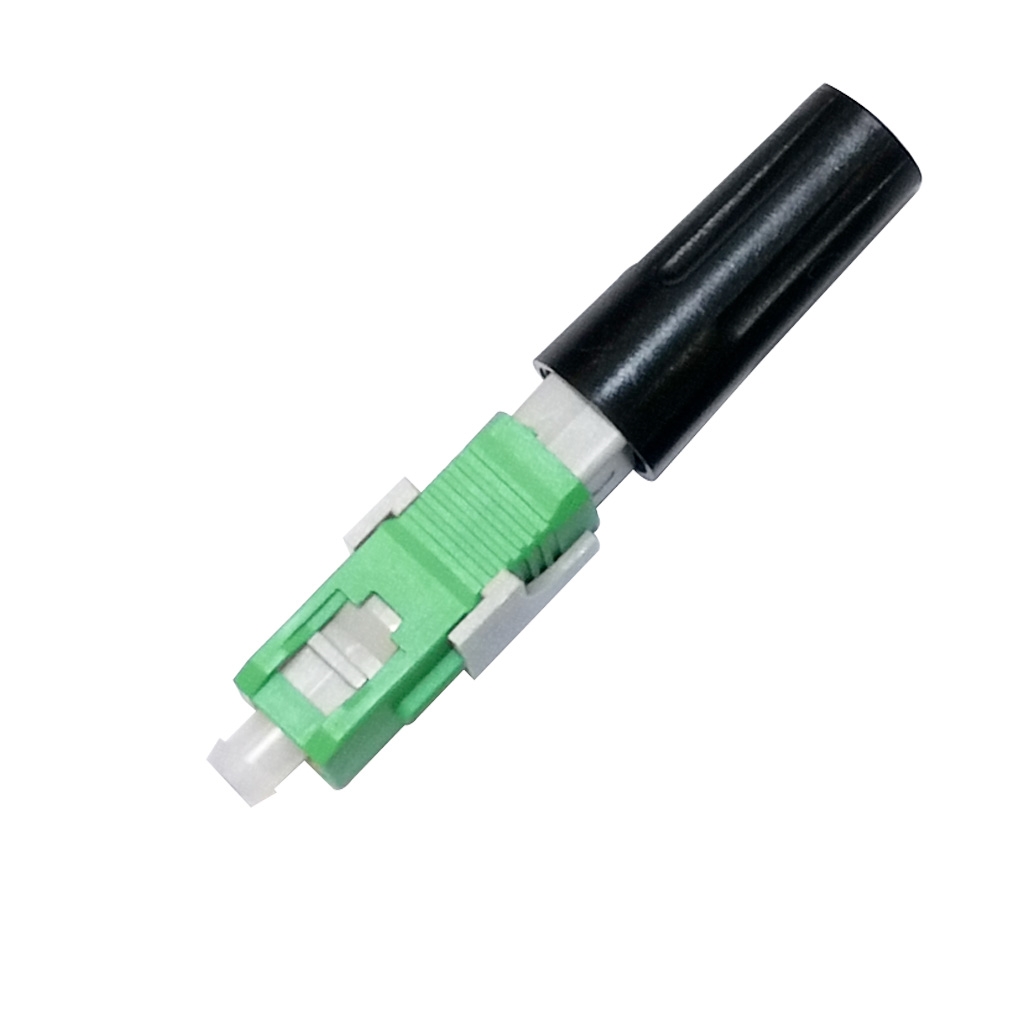

Tempo SC/APC Mechanical Connector

Tempo SC/APC Mechanical Connector




Alternative Views:


TTS PRICE: $16.19

STATUS:  IN STOCK



Availability:
Normally Ships Same Day

PRODUCT CODE: TEM-SCAPCMCM
QUANTITY:

PRODUCT DESCRIPTION

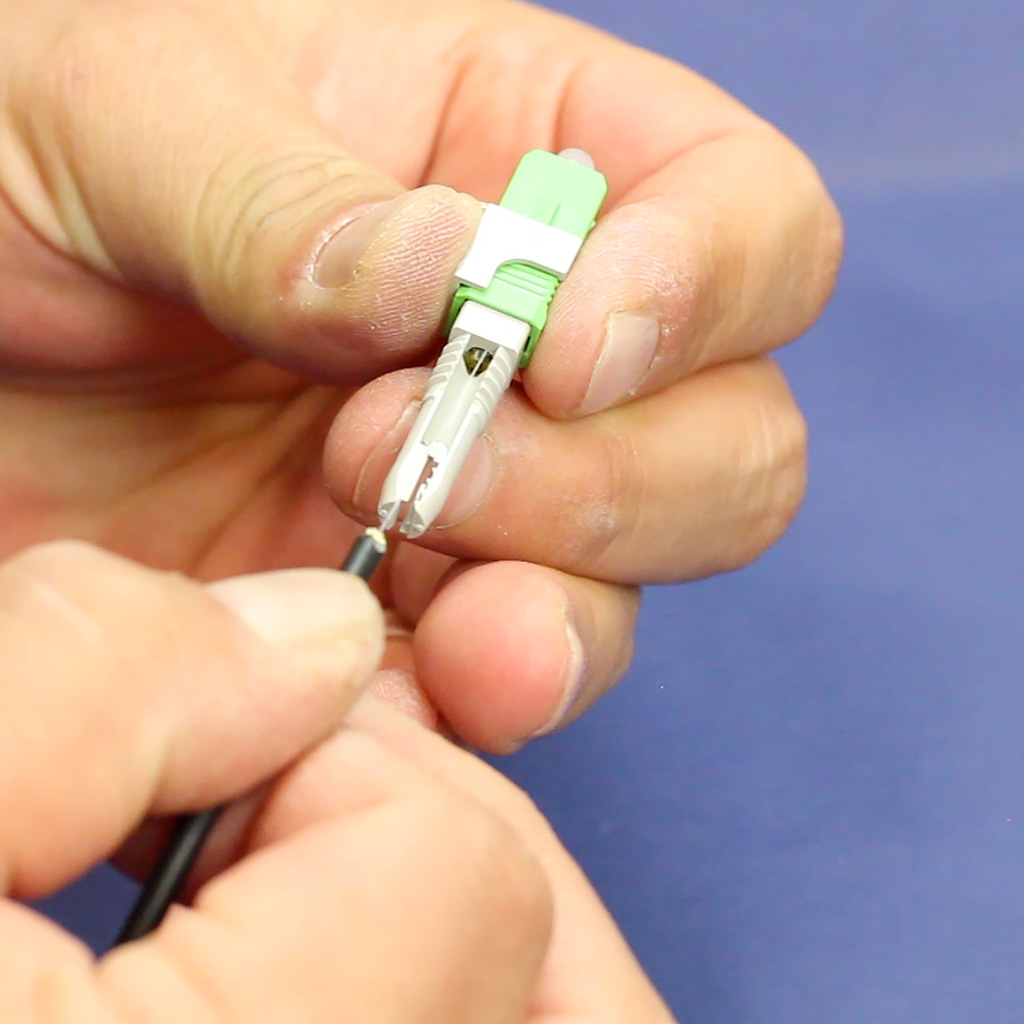

The SCAPCMCM Mechanical Connector from Tempo is designed for fast and simple field termination of 3mm jacketed single-mode fiber-optic cables without polishing or epoxy.

The Mechanical Connector is made with precision and high-quality Zirconia ferrules and provides a highly reliable low back reflection, low insertion loss connection.

Features:
  • Less than one minute termination time
  • Low insertion loss – typically ≤ 0.2dB
  • Return loss ≥ 55dB (APC) and ≥ 45dB (UPC)
  • Up to five re-assembly types are possible
  • Ceramic ferrule

  • Specifications:
  • Quantity: 1
  • Typical Insertion Loss: ≤ 0.2dB
  • Max Insertion Loss: ≤ 0.4dB
  • Max Return Loss: ≥ 45 UPC, ≥ 55 APC dB
  • Storage Temperature: -40 ̊C ~ +85 ̊C
  • Operating Temperature: -40 ̊C ~ +85 ̊C
  • Re-assembly: Five Times
  • Tensile Strength: 30N, ∆ IL ≤ 0.3 dB
  • Durability: 500 times, ∆ IL ≤ 0.3 dB
  • Ferrule Material: Ceramic
  • Ferrule Diameter: 2.5mm
  • Ferrule End Face: 0 ̊ UPC, 8 ̊APC
  • Fiber Type: Singlemode (G.657B3)
  • Fiber Geometry: Core diameter (9µm), coating (125µm)
  • Cable: 3.0mm Round Cable & 3.0 x 2.0mm Drop Cable
  • Operating Wavelength: 1310nm to 1625nm
  • Connection Method in Port: Push - Pull
  • Cleaving Fixture: One supplied for every 10 connectors
  • Average Assembly Time: < One Minute
  • Standards: TIA/EIA 58-B.3 & UL-94V-0
