Ripley 12950 WS 6DA Drill-Driven Cable End Stripper

Home > Categories > Utility & MV Cable Prep > Cable End Strippers >

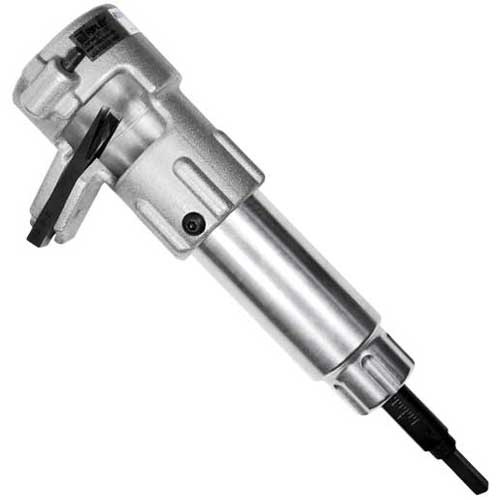

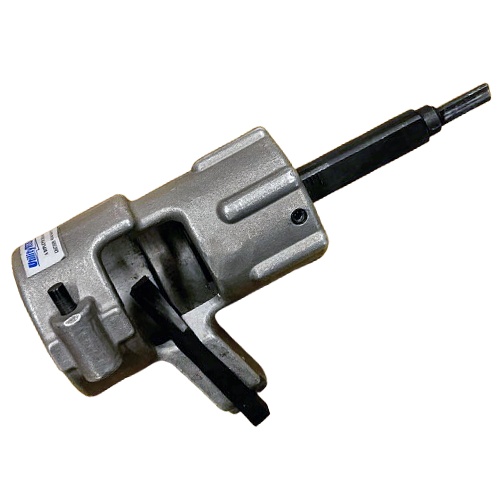

UtilityTool by Ripley Tools WS 6DA Drill-Driven Cable End Stripper - 15-46kV

Alternative Views:

TTS PRICE: $485.37

STATUS: ON ORDER

Availability:

SHIP ESTIMATE 6-8 DAYS

PRODUCT CODE: UTIL-12950

QUANTITY:

PRODUCT DESCRIPTION

The UtilityTool WS 6 strips XLPE, polyethylene and EPR insulation on 15-46 kV cable without damaging the conductor.
It is a rugged, all-metal tool with a guarded blade, and bushings fit it to the insulation and semi-con diameter (0.9-2.03in / 22.86-51.56 mm).

The WS 6DA adds a drill drive to the WS 6, with a 0.5-2.125in adjustable strip length.

Features:

Strips XLPE, PE and EPR insulation, 15-46 kV
Cable OD 0.9-2.03in (22.86-51.56 mm) with WS 6 series bushings
Rugged all-metal construction
Guarded cutting blade protects the user and the blade
Shaves semi-con
Adjustable strip stop bar for preset lengths
Replacement blade 12903

Specifications:

Model: Ripley UtilityTool 12950
Drive: Manual or drill
Strip Length: 0.5-2.125in (12.7-54.1 mm)
Scale: Inch
Voltage: 15-46 kV
Insulation Thickness: Up to 400 mils
Weight: 1.5 lb
Replacement Blade: 12903

Available Sizes:

Model	Part #	Drive	Strip Length	Scale
WS 6	12900	Manual	0.5-2.125in	Inch
WS 6DA	12950	Manual, Drill	0.5-2.125in	Inch (this item)
WS 6DA-M with WA 3	12960	Manual, Wrench, Drill	12.7-146.1 mm	Metric
