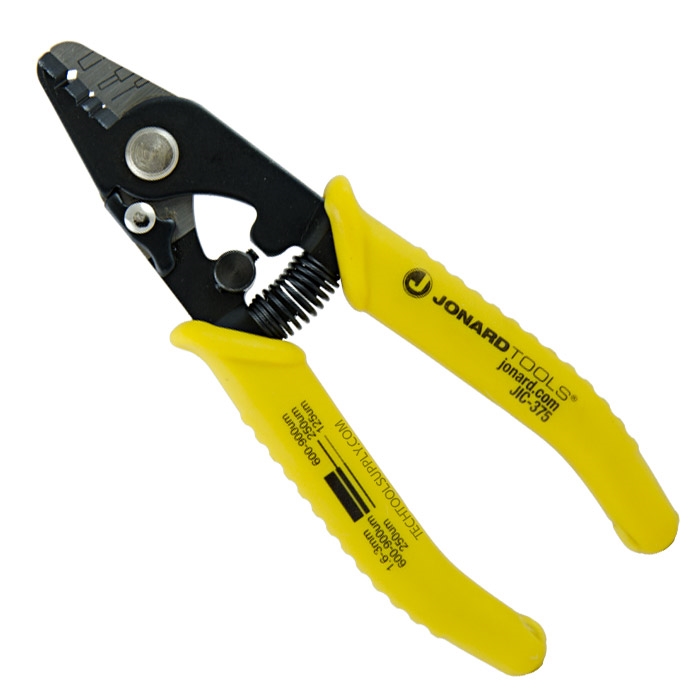

Jonard JIC-375 Three Hole Fiber Optic Stripper - 1.6-3.0 mm Jacket to 125 Micron Fiber
Jonard's JIC-375 three hole Fiber Optic Stripper performs all common fiber stripping functions. The first hole strips the 1.6-3.0 mm fiber jacket down to the 600-900 micron buffer coating. The second hole strips the 600-900 micron buffer coating down to the 250 micron coating, and the third hole strips the 250 micron coating down to the 125 micron glass fiber without nicks or scratches. Handle is made of TPR (Thermoplastic Rubber).
Features:
Three factory preset holes take fiber from jacket to bare glass
Preset blades need no adjustment, preventing nicks and scratches on the fiber
Angled jaw guides the fiber into the third hole to prevent accidental cutting
High carbon steel with ground and hardened blades for long life
Comfortable TPR handles
Safety lock keeps the tool closed for storage
Lifetime warranty
Specifications:
CIFA #: 42686
Cut Type: Strip
Cable Type: Jacket, Buffer, Fiber Optic
Strip Diameter: 250 micron, 600-900 micron, 1.6 mm-3.0 mm
Number of Stripping Holes: 3
Material: High Carbon Steel
Handle: TPR (Thermoplastic Rubber)
Color: Yellow Handle
Length: 6" (152mm)
Dimensions: 6" x 2" (15.24 x 5.08 cm)
Weight: 0.22 lb (100 g)
Model: JIC-375
Available Models:
| Part # | Jonard # | Description | Strip Diameter |
|---|
| JIC-175 | JIC-175 | Ergonomic Fiber Optic Stripper, 250 micron | 250 micron |
| JIC-375 | JIC-375 (this item) | Fiber Optic Stripper, Three Hole | 250 micron, 600-900 micron, 1.6 mm-3.0 mm |
