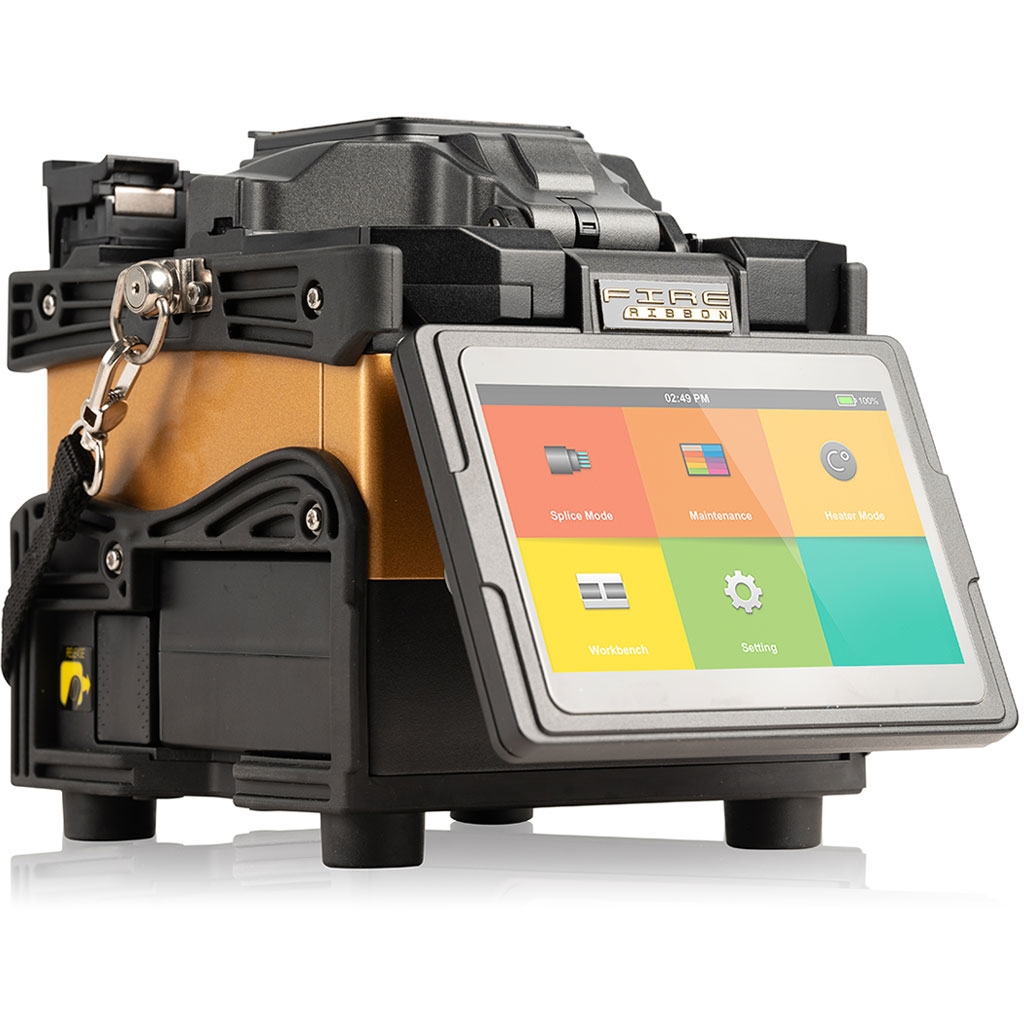

The SPARC™ Ribbon Fiber Fusion Splicer (SPRI-1) is engineered for precision, speed, and reliability in the most demanding fiber optic applications. Designed for professionals, it combines core alignment technology with a rugged build, delivering consistent low-loss splices for both ribbon and single fibers. With rapid splice and heating times, intuitive controls, and a long-life battery, this splicer ensures maximum efficiency and minimal downtime in the field.

• High-Speed Splicing: Splices up to 12 ribbon fibers in as little as 15 seconds, or single fibers in just 9 seconds.
• Pressure Heater Technology: Reduces heating time to only 20 seconds for quick protection sleeve application.
• Versatile Fiber Holders: Easily switch between different ribbon sizes or standard single fibers (250 μm & 900 μm).
• Enhanced Visibility: Integrated lighting ensures accurate operation even in dark or low-light environments.
• Touchscreen Interface: 5.0" full color LCD touch screen provides intuitive control and real-time splice data.
• Long Battery Life: 9000 mAh battery supports up to 220–330 splicing + heating cycles per charge.
• Durability Built-In: Water resistant (IPx2), dust resistant (IP5X), and shock tested to 30” drops for maximum reliability in the field.
• On-Board Memory: Stores up to 5,000 splice results for tracking, QC, and reporting.

Specifications:

• Alignment Method: Core Alignment
• Number of Fibers: Up to 12 (Ribbon) or Single Fiber
• Applicable Fibers: SM (ITU-T G.652 & G.657), MM (G.651), DS (G.653), NZDS (G.655)
• Compatible Fiber Sizes: Ribbon: 0.25–0.4 mm / Single: 250 μm & 900 μm
• Cladding Diameter: 125 µm
• Cleave Length: 10–13 mm
• Typical Splice Loss: SM: 0.01 dB / MM: 0.01 dB / DS: 0.03 dB / NZDS: 0.03 dB / G.657: 0.01 dB
• Return Loss: >>60 dB
• Splice Time: Ribbon: Avg. 15 sec / Single: Avg. 9 sec
• Heating Time: Avg. 20 sec
• Splice Programs: Max 100
• Automatic Calibration: Arc calibration adjusts by air pressure & temperature
• Electrode Life: 1500 arc discharges
• Protection Sleeve Length: 20–60 mm
• Data Output: USB-C
• Magnification: x360, x520
• Pull Test: 1.96 – 2.25 N
• Battery Capacity: 9000 mAh (≈330 cycles)
• Dimensions: 6.8" x 6.5" x 6.5" (17.27 cm x 16.51 cm x 16.51 cm)
• Weight: 6 lb (2721.55 g)
• UPC #: 810132438004

Complete Professional Kit Includes:

• FCR-800: SPARC™ Blade One Step Ribbon Cleaver
• TFS-100: Handheld Thermal Stripper (Ribbon & Simplex)
• JIC-375: Three-Hole Fiber Optic Stripper
• JIC-186: Kevlar® Cutting Shears
• FDC-66: Fiber Scraps Disposal Can
• CWP-125: Cotton Swabs (125 pack)
• FW-5: Fiber Wipes, Wet (2 packs of 5)
• FSP-RI: SPARC Ribbon Fusion Splicer
• FSP-SOC: SOC Holder
• FSP-SOCSR: SOC Heater Holder for Ribbon Fiber
• FSP-ADP-65JH: AC Adapter
• FSP-E50: Spare Electrodes (1 set)
• FSP-ADP-PC: Power Cable
• H-2000: SPARC Carrying Case
• FSP-STP: Shoulder Strap
• FSP-CTR: Cooling Tray
• FH-250/2: Magnetic Single Fiber Holder Set
• FH-12/2: Magnetic 12F Ribbon Holder Set
• FH-2250A/2 & FH-2250B/2: Magnetic Fiber Holder Sets
• FSP-DC: Data Transfer USB Cable
• FSP-FT: Fiber Tray & Shoulder Strap
• FSP-WCB: Wire Cleaning Brush
• FSP-SBB: Soft Bristle Brush
• FSP-FBB: Firm Bristle Brush
• FSP-B9000: High-Capacity Ribbon Battery Pack
• FSP-CCT: Clip-On Cooling Tray
• Installed: Splicing Fiber Holder & Ribbon Heater Fiber Holder

Whether you’re working on FTTH, backbone networks, or high-density data centers, the SPARC™ Ribbon Splicer is the ultimate choice for handling large volumes of fibers quickly and reliably. Its combination of precision engineering, rugged durability, and all-inclusive kit ensures professionals have everything needed to splice efficiently and with confidence on any jobsite.
