The TI223 Mobile Thermal Imager transforms your smartphone into a professional-grade thermal camera with high resolution 19,200 pixel imaging. Designed for electricians, HVAC technicians, contractors, and inspectors, this compact imager quickly identifies hot and cold spots for fast, accurate troubleshooting in the field.

With USB C compatibility, the TI223 works with Android® devices and iPhone 15 or newer iOS® devices equipped with USB C ports. Fits phone cases up to 1/5 inch thick.

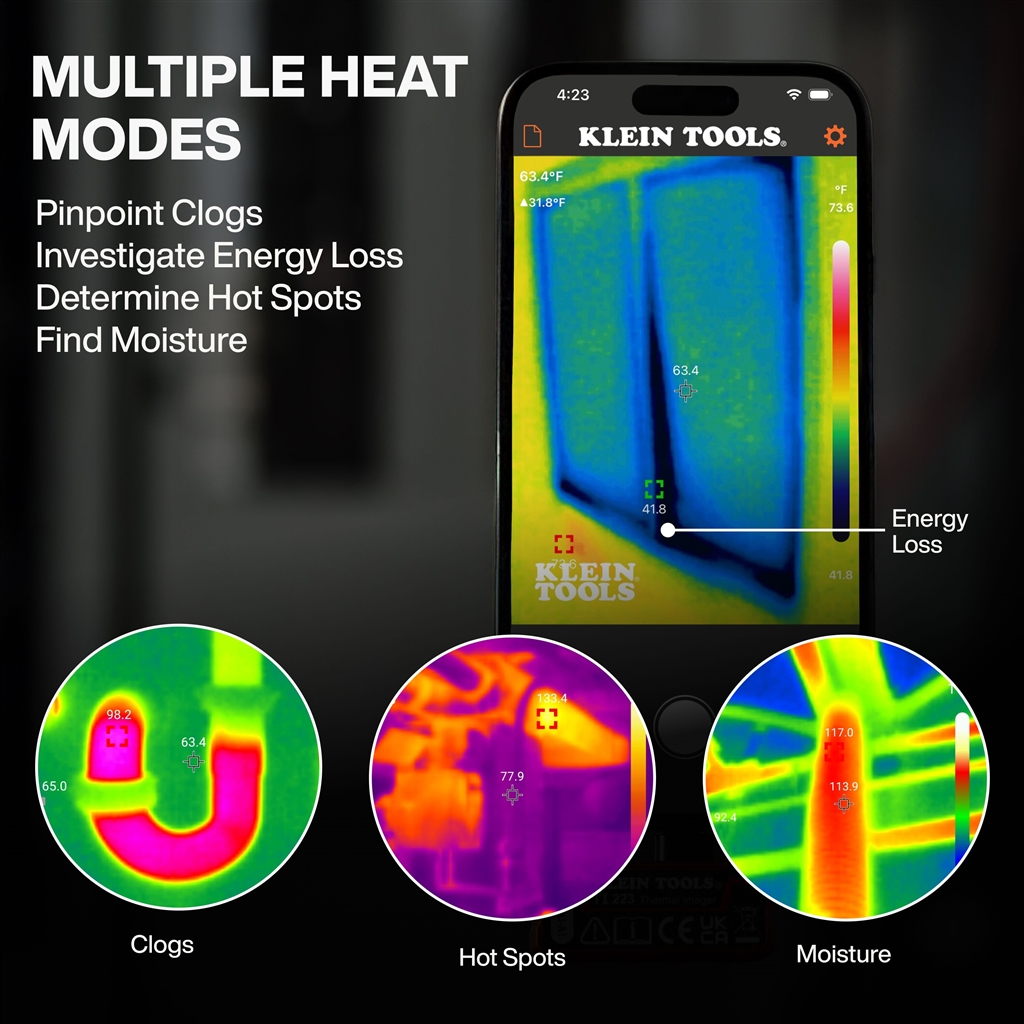

Multiple temperature modes provide touch screen spot temperature, high and low temperature indicators, and differential temperature readouts. The wide temperature range measures from minus 4 to 752 degrees Fahrenheit across three selectable color palettes including Ironbow, Rainbow, and Grayscale.

• High resolution 19,200 pixel VOx microbolometer sensor

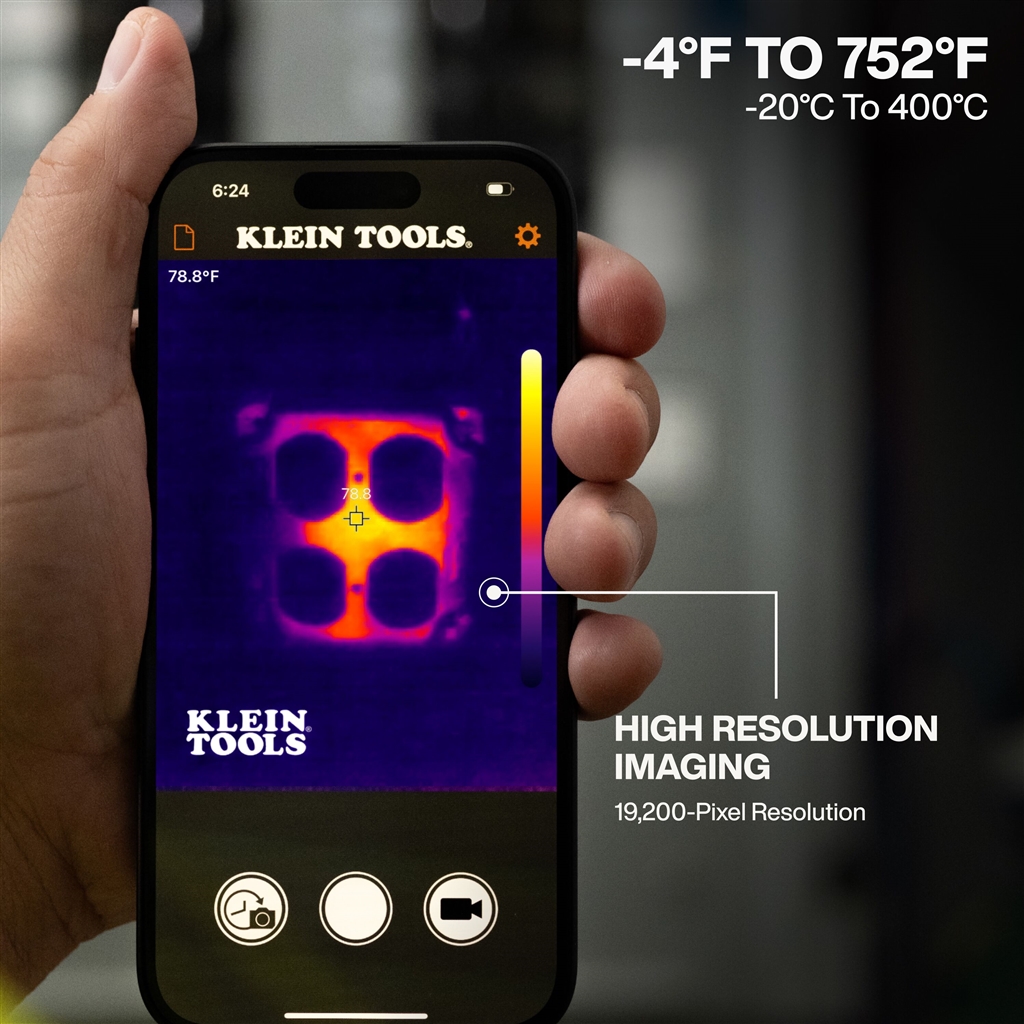

• Measures temperatures from minus 4 to 752 degrees Fahrenheit
• Three color palettes including Ironbow, Rainbow, and Grayscale

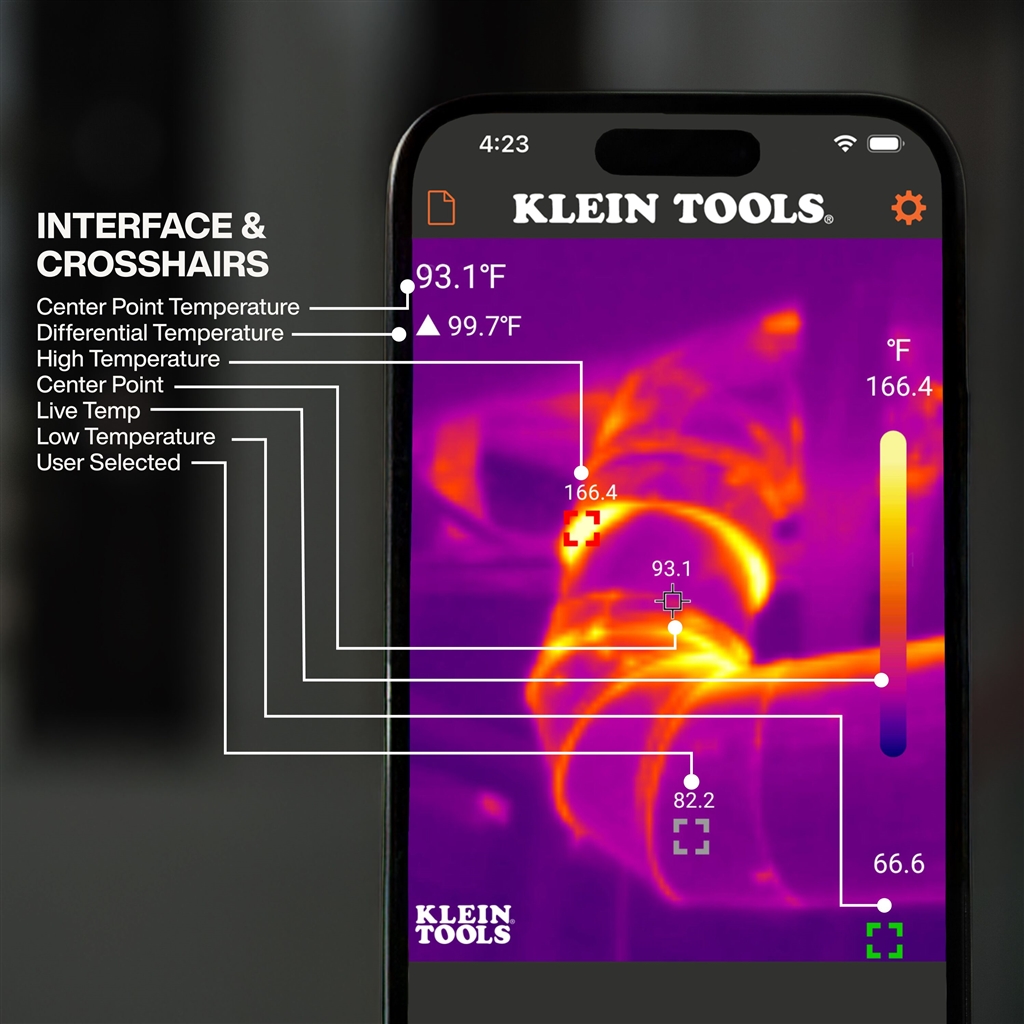

• Touch screen spot, high, low, and differential temperature readout

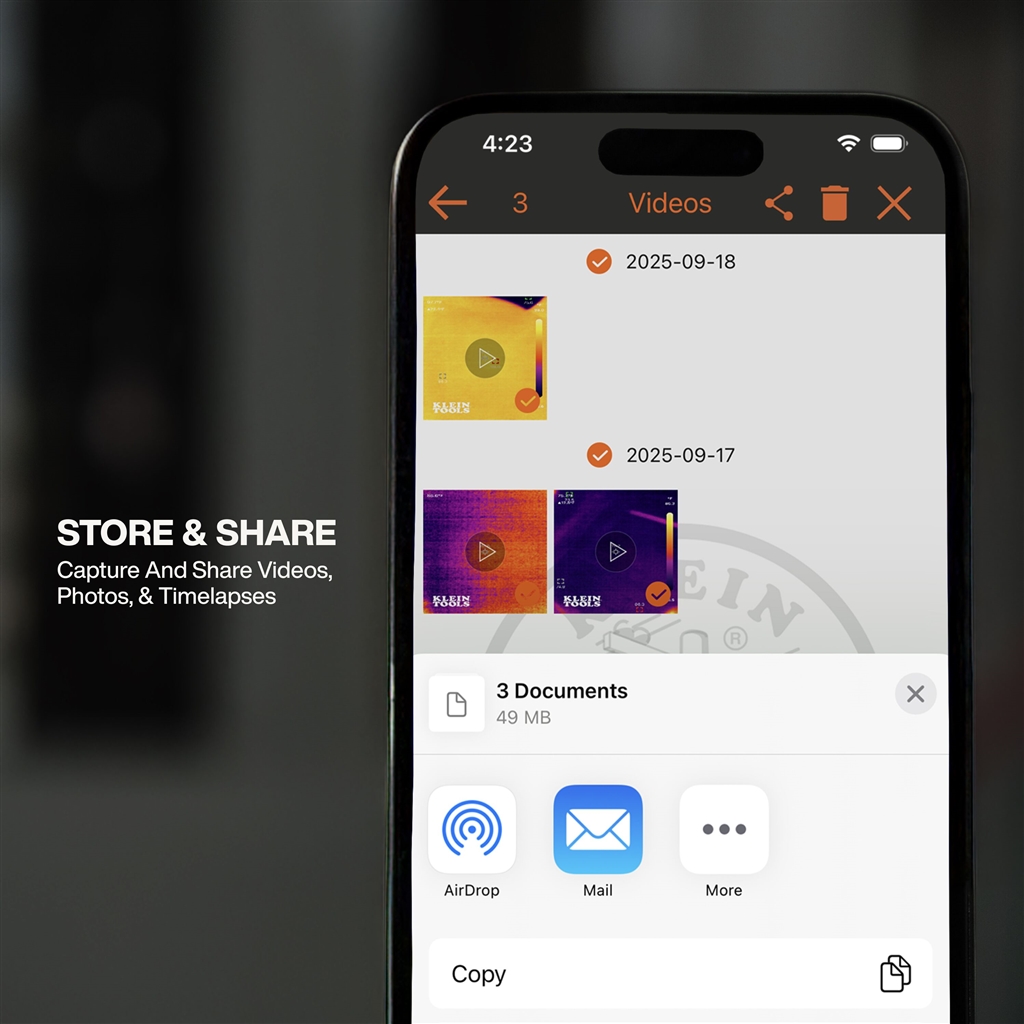

• Capture photos, videos, and time lapse recordings
• Compatible with Android® devices and iPhone 15 or newer with USB C connection
• Fits phone cases up to 1/5 inch thick
• No batteries required, powered by your mobile device
• Compact aluminum housing for durability and portability

• Sensor Resolution: 19,200 pixels
• Thermal Sensitivity: Less than 50 mK at 25°C
• Spectral Range: 8 to 14 μm
• Temperature Range: Minus 4° to 752°F (Minus 20° to 400°C)
• Accuracy: Plus or minus 2°C or 2 percent, whichever is greater
• Field of View: 56° horizontal, 71° diagonal
• Emissivity: Adjustable from 0.01 to 0.99
• Maximum Frame Rate: Less than 9 Hz

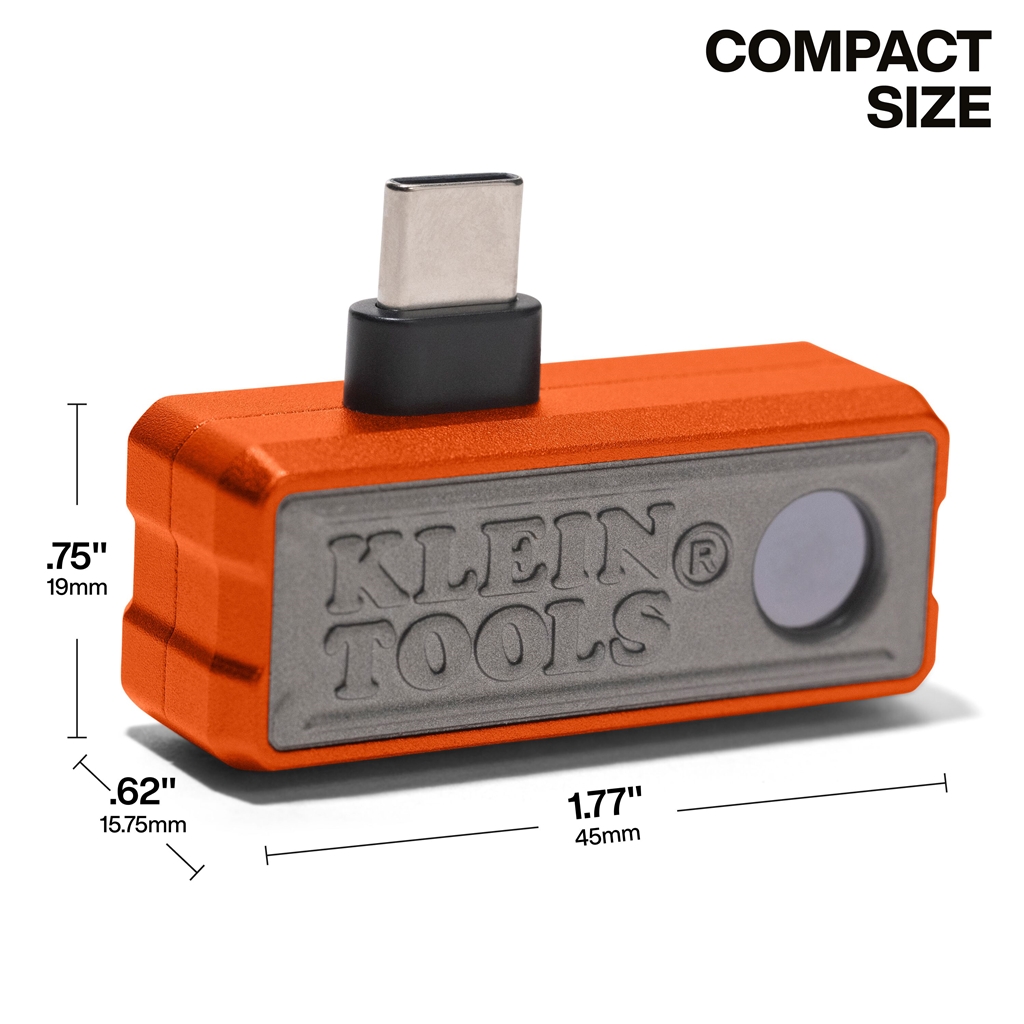

• Overall Dimensions: 1.77" x 0.62" x 1.23"
• Weight: 0.9 oz

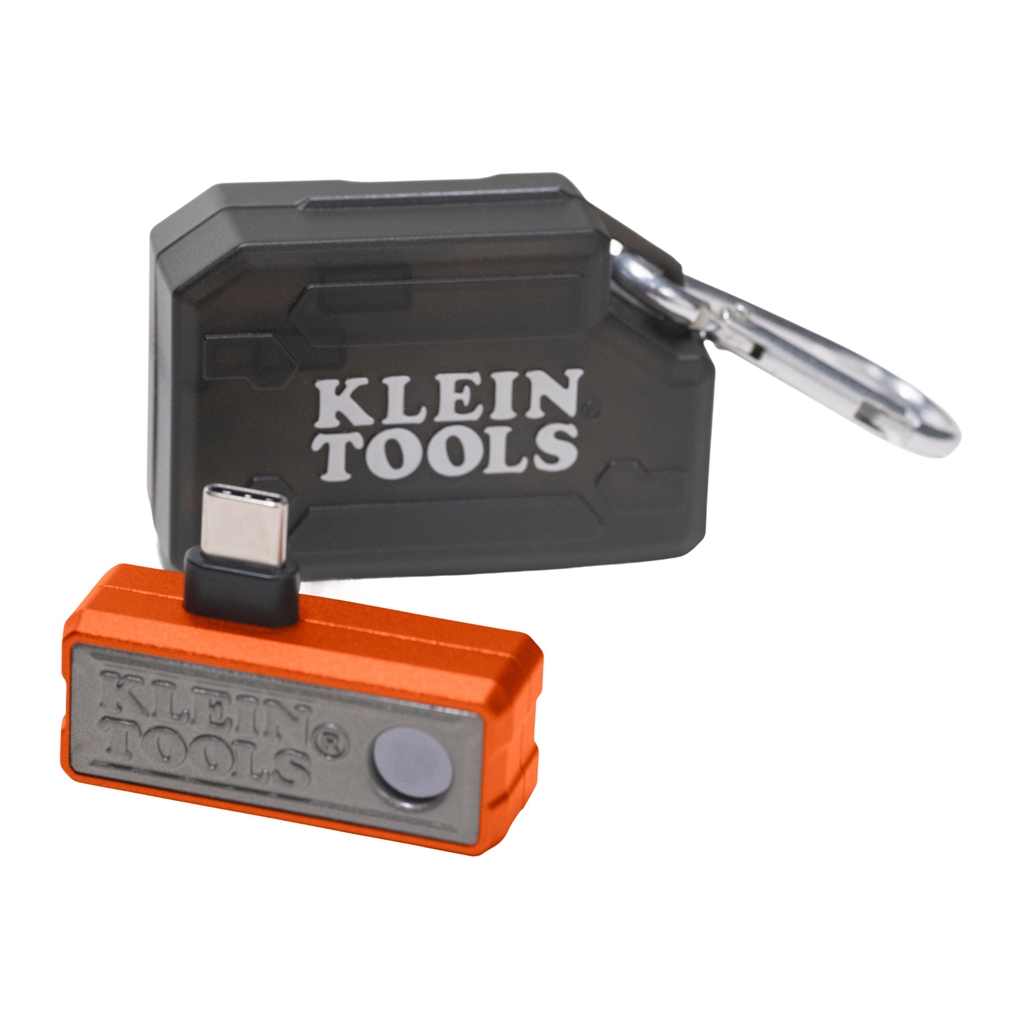

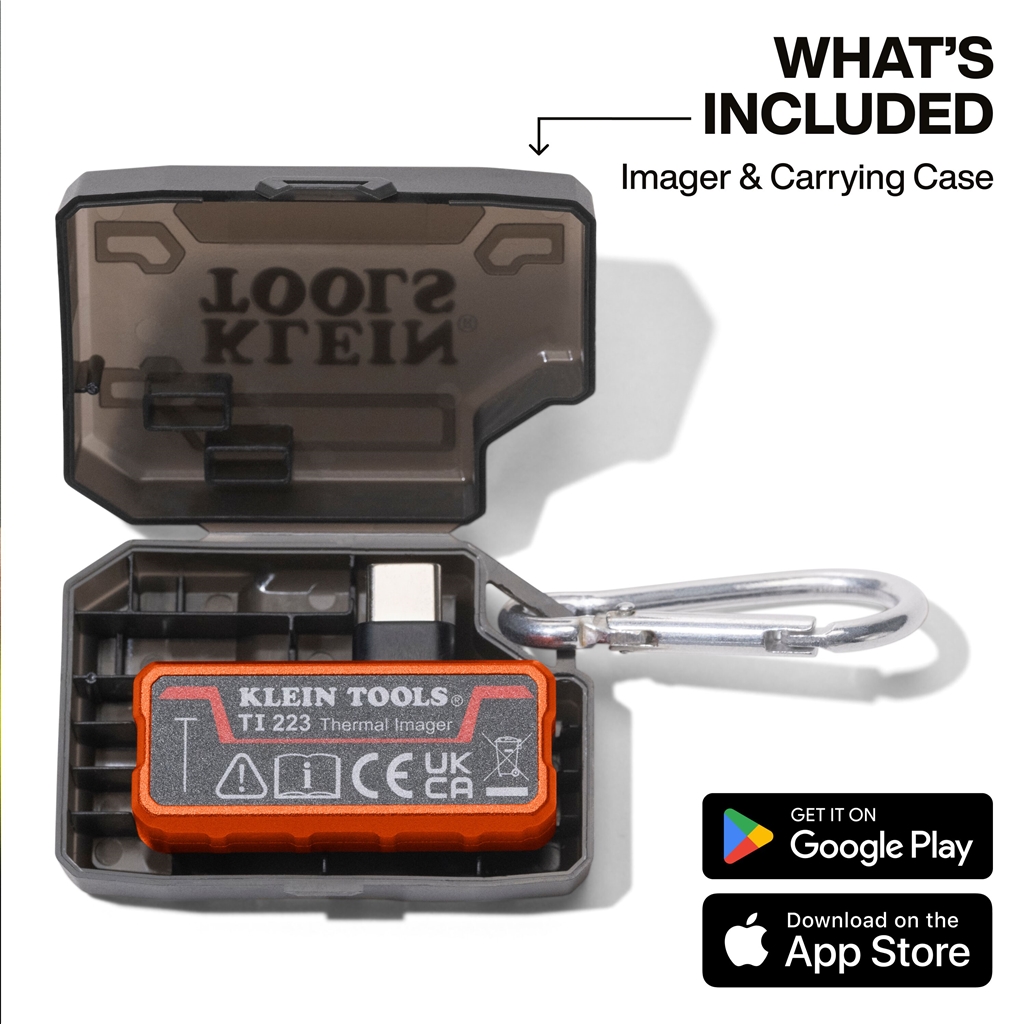

Please Note: Includes TI223 Thermal Imager, hard storage case with carabiner, and instructions. Compatible mobile device required and sold separately.
