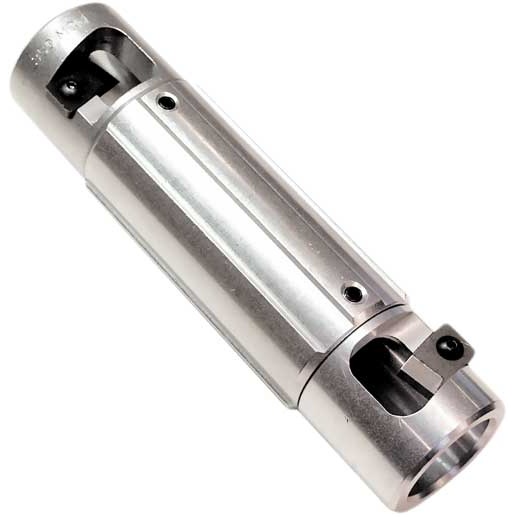

The UtilityTool WS 22 strips 600 volt secondary cable cleanly and precisely - without damaging the conductor, even in cold weather.
Its double-sided body holds two square-cut bushings, so one tool covers two cable sizes; bushings change out with a hex wrench.
Tool body only - order two WS 22 square-cut bushings sized to your cable.
Bushings cover 60-110 mil insulation on concentric, compressed or compacted conductors, #1/0 AWG to 1,000 kcmil. Replacement blade: R12302.
Features:
Double-sided body holds two square-cut bushings
Bushings change out with a hex wrench
Strips 600 V secondary cable without damaging the conductor, even in cold climates
Guarded bushing cutting blades help prevent injury
For 60-110 mil insulation on concentric, compressed or compacted conductors, #1/0 AWG to 1,000 kcmil
Specifications:
Model: Ripley UtilityTool WS 22 (Ripley Part # 12304H)
Item Type: Tool body only (bushings sold separately, two required)
Cable: 600 V secondary distribution, #1/0 AWG to 1,000 kcmil
Insulation Thickness: 60-110 mils
Max Bushings: 2
Length: 6in (152 mm)
Weight: 1 lb (454 g)
Patent: U.S. Patent No. 10,819,091
Replacement Parts:
| Part # | Ripley # | Description |
|---|
| UTIL-R12302 | R12302 | Replacement blade (in bushings) |
Compatible Bushings:
| Part # | Ripley # | Description |
|---|
| RIP-15-70075 | 15-70075 | 0.690" max OD, 95 mils - Concentric 3/0 AWG, Compacted 4/0 AWG |
| RIP-15-75075 | 15-75075 | 0.740" max OD, 95 mils - Compressed 4/0 AWG, Concentric 4/0 AWG, Compacted 250 kcmil |
| UTIL-15-77560 | 15-77560 | 0.765" max OD, 80 mils - Concentric 250 kcmil |
| UTIL-15-87590 | 15-87590 | 0.865" max OD, 110 mils - Compacted 350 kcmil |
| RIP-15-90090 | 15-90090 | 0.890" max OD, 110 mils |
| UTIL-15-100060 | 15-100060 | 0.990" max OD, 80 mils - Concentric 500 kcmil |
| RIP-15-102595 | 15-102595 | 1.015" max OD, 95 mils |
| RIP-15-105090 | 15-105090 | 1.040" max OD, 110 mils - Compressed 500 kcmil |
| UTIL-15-107560 | 15-107560 | 1.065" max OD, 80 mils - Concentric 600 kcmil, Compressed 600 kcmil, Compacted 700 kcmil |
| UTIL-15-110090 | 15-110090 | 1.090" max OD, 110 mils - Compacted 600 kcmil |
| UTIL-15-112590 | 15-112590 | 1.115" max OD, 110 mils - Compressed 600 kcmil |
| UTIL-15-1150110 | 15-1150110 | 1.140" max OD, 110 mils |
| UTIL-15-115075 | 15-115075 | 1.140" max OD, 95 mils - Compacted 750 kcmil |
| UTIL-15-117560 | 15-117560 | 1.165" max OD, 80 mils - Concentric 700 kcmil, Compressed 750 kcmil |
| UTIL-15-120060 | 15-120060 | 1.190" max OD, 80 mils - Concentric 750 kcmil, Compressed 800 kcmil, Compacted 900 kcmil |
| UTIL-15-120090 | 15-120090 | 1.190" max OD, 110 mils - Compressed 700 kcmil, Compacted 800 kcmil |
| RIP-15-122590 | 15-122590 | 110 mils - Concentric 700 kcmil, Compressed 750 kcmil |
| UTIL-15-135060 | 15-135060 | 1.340" max OD, 80 mils - Concentric 1000 kcmil |
| UTIL-15-140090 | 15-140090 | 1.390" max OD, 110 mils - Concentric 1000 kcmil |
|
|
|
 |
|
 |
|
